DD Audio SS4.1300-24V (B-Ware) 4-Channel Amplifier
180 Watt
DD Audio

SS4.1300-24V (B-Ware)

4-Channel Amplifier

Technical Highlights

  • 325W Leistung pro Kanal bei 2 Ohm, Dauerleistung bei 4 Ohm 180W.
  • Klasse D Verstärker, Dämpfungsfaktor 100, Frequenzgang 20-20kHz.
  • Hoch-/Tiefpassfilter: 35-600 Hz, maximale Stromaufnahme 150 A.
  • More technical details
00 d
00 h
00 m
00 s
€258,30
-30% €369,00 €258,30
5% discount with prepayment
inkl. VAT , possibly plus shipping
Only a few left in stock (1 pieces available)
In stock
Apr 5, - Apr 6,
x Stück
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €21,52 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Ground ZeroGZCS A-4.80
Ground Zero-GZCS A-4.80-4-Kanal Verstärker-masori-kaufen
Soundigital-800.4 EVO 6.0-4-Kanal Verstärker-masori-kaufen
Soundigital800.4 EVO 6.0
DD Audio-SS4.1300-24V (B-Ware)-4-Kanal Verstärker-masori-kaufen
€258,30
€369,00 €258,30

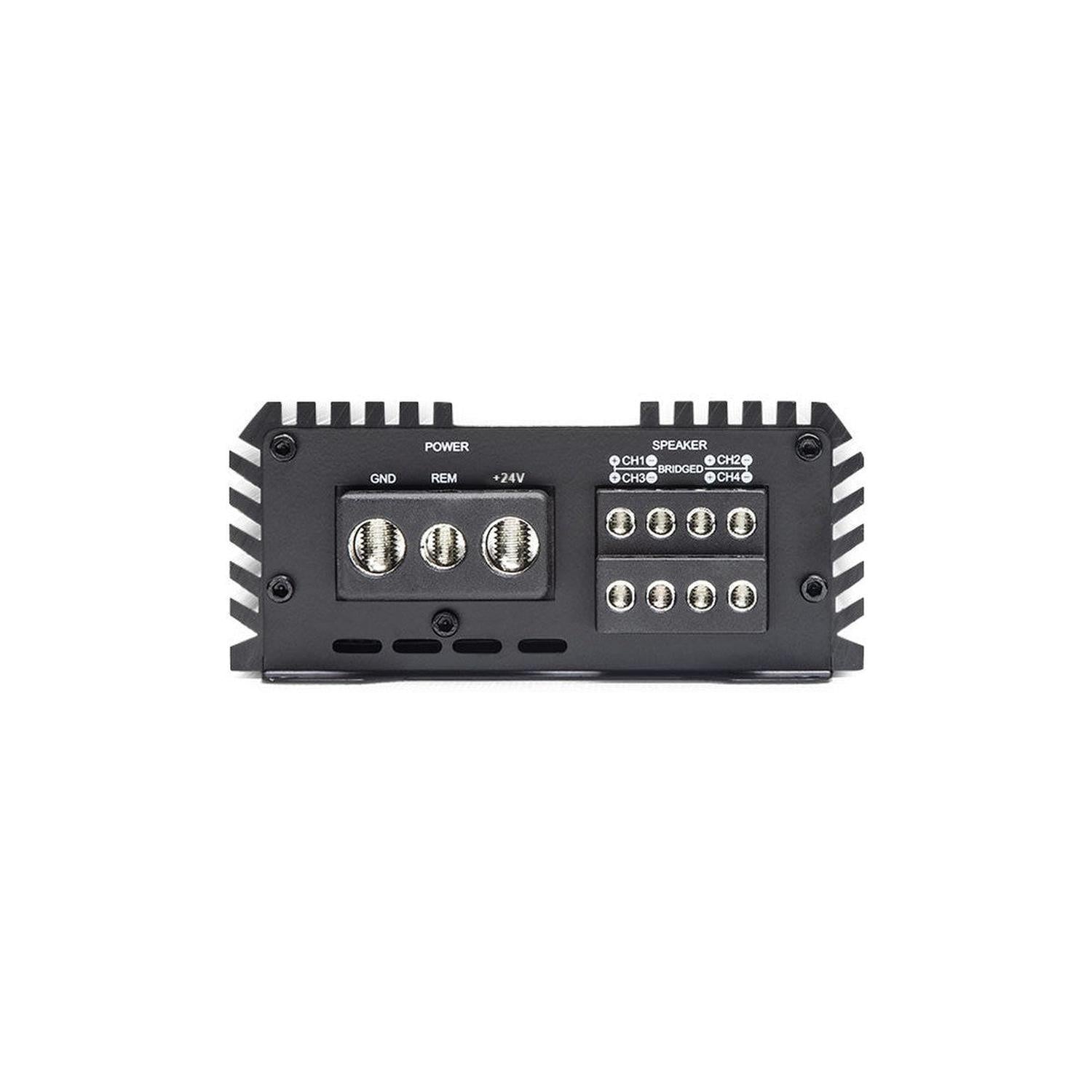

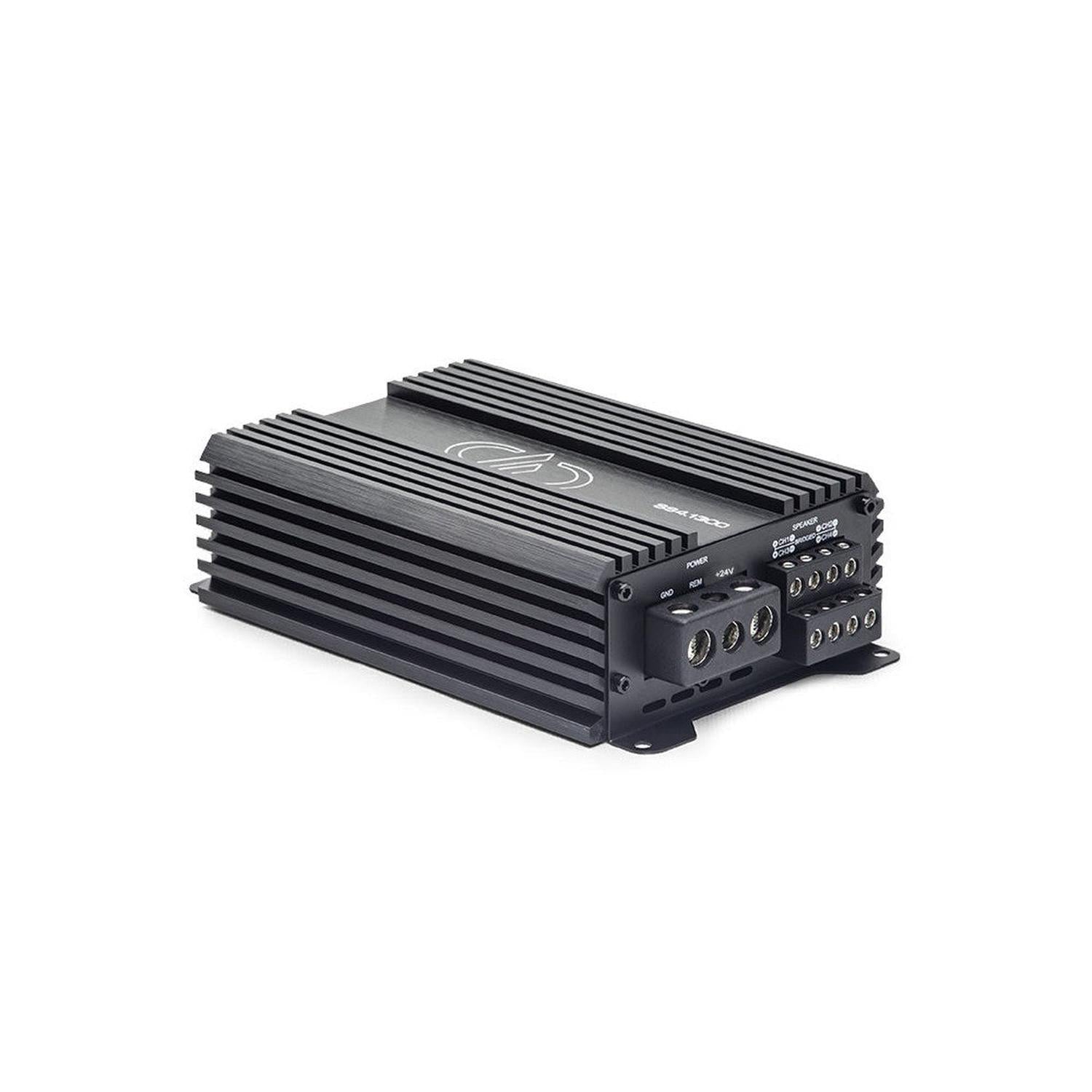

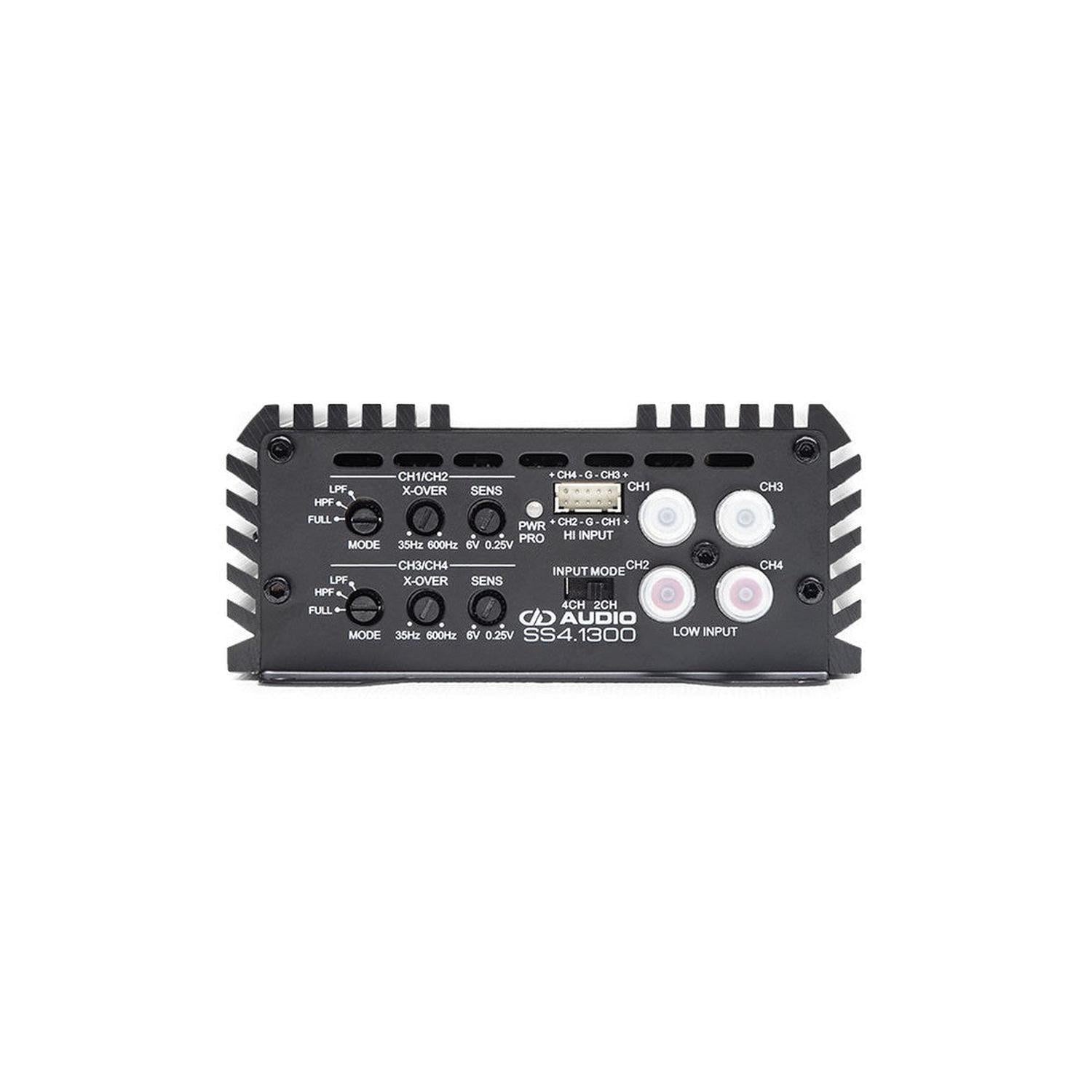

SS4.1300-24V (B-Ware) by DD Audio

B-goods due to damaged or incomplete original packaging, or minor cosmetic defects. The same warranty conditions apply to B-goods as to our A-goods. The product is technically flawless.

Discover the 4-Channel Amplifier SS4.1300-24V from DD Audio, designed specifically for powerful sound systems. This compact Class D amplifier delivers up to 325 watts per channel at 2 ohms and 180 watts at 4 ohms, making it ideal for pro audio and motorcycle systems. With its efficient heat sink, it ensures optimal cooling and performance efficiency. Thanks to its small size and high-quality design, the SS4.1300-24V offers an excellent power-to-size ratio. The dual capability with high-pass and low-pass filters, along with a high damping factor of 100, makes it an outstanding choice for demanding audio applications.

Features

  • 24V 4-Channel Amplifier
  • Class D Amplifier
  • Very small size
  • Efficient heat sink
  • 4 x 325W / 2 x 650W

Technical Specifications

  • Input channel(s): 4
  • Output channel(s): 4
  • Continuous power @4ohm: 180 x 4 / 650 x 2
  • Continuous wattage @2Ohm: 325 x 4
  • Maximum current draw (Amps): 150
  • RCA input voltage sensitivity: 6 - 0.25
  • High-level input voltage sensitivity: 20 - 1.1
  • RCA input S/N: 95
  • Damping factor: 100
  • THD: 1.0%
  • Frequency response (Hz): 20 - 20k
  • High-pass filter: 35 - 600
  • Low-pass filter: 35 - 600
  • Power cable gauge: 4
  • Speaker wire gauge: 14
  • Dimensions (MM): 159 x 117 x 50

Your benefits at Masori

Frequently Asked Questions about SS4.1300-24V (B-Ware)

What power does the SS4.1300-24V provide per channel?

The SS4.1300-24V from DD Audio delivers 325 Watts at 2 Ohms and 180 Watts at 4 Ohms per channel. This high output power makes it ideal for pro audio and motorcycle systems where a powerful sound is desired. The Class D Amplifier ensures efficient power utilization, minimizing heat generation in the compact housing. For car enthusiasts who appreciate every detail of sound, the amplifier offers precise adjustment for various speaker configurations, which is particularly advantageous when integrating into existing systems. The ability to deliver 650 Watts in bridged mode demonstrates its flexibility and versatility.

How efficient is the SS4.1300-24V Amplifier in terms of cooling and design?

The SS4.1300-24V Amplifier uses a sophisticated heat sink to effectively dissipate heat, preventing overheating during high power output. Its compact design with dimensions of 159 x 117 x 50 mm makes it particularly space-saving for tight installation spots in vehicles or motorcycles. Thanks to Class D technology, it combines high efficiency with minimal space requirements without compromising audio quality. The design allows for installation in areas with restricted airflow, ensuring long-lasting stability and performance.

What filtering options does the SS4.1300-24V offer?

The SS4.1300-24V Amplifier is equipped with high-pass and low-pass filters, both adjustable between 35 and 600 Hz. These filters allow for customization of audio output to different speaker types and arrangements. With these filters, you can achieve precise frequency separation for the highest audio quality. In addition to the filtering function, the amplifier also supports variable sensitivity of the RCA input voltage between 6 and 0.25 as well as the high-level input voltage between 20 and 1.1, enabling broad compatibility with various audio sources.

What is the significance of the damping factor of 100 in the SS4.1300-24V?

A damping factor of 100 in the SS4.1300-24V Amplifier from DD Audio indicates excellent control over speaker movement, resulting in precise and detailed bass reproduction. This damping factor is particularly evident at low frequencies, where power and control are crucial. This feature reduces distortion and improves sound fidelity by precisely managing the feedback between the speakers and the amplifier. This characteristic is especially important in high-performance audio and motorcycle systems that require high precision and quality.

What input configurations does the SS4.1300-24V offer?

The SS4.1300-24V from DD Audio is equipped with four input and four output channels, providing versatile connection options. The sensitivity of the RCA inputs ranges from 6 to 0.25, while the high-level inputs can be adjusted from 20 to 1.1. This versatility allows for integration into various audio systems and ensures optimal signal delivery. With a signal-to-noise ratio of 95 dB, clear, low-noise audio playback is supported, which is particularly appreciated when installed in high-quality car hi-fi and motorcycle systems.

What are the dimensions of the SS4.1300-24V Amplifier and what gauge power cable is required?

The SS4.1300-24V Amplifier measures a compact 159 x 117 x 50 mm, making its installation in vehicles or motorcycles particularly flexible, even when space is limited. A cable with a gauge of 4 AWG is recommended for power supply to safely handle the maximum current draw of 150 Amperes and to ensure the amplifier's maximum possible output. Speaker connections should be made with a wire gauge of 14 AWG. These wire gauges are ideal for ensuring a stable and low-loss connection.

Why is the total harmonic distortion rate of the SS4.1300-24V important?

The total harmonic distortion of 1.0% in the SS4.1300-24V indicates how much the audio signal is distorted as it passes through the amplifier. A low distortion rate like this ensures that the audio output remains close to the original recording by minimizing unwanted harmonic distortions. This technical specification is important for audiophiles who demand the highest sound fidelity. Especially at high volumes, the sound remains clean and true to detail, making this amplifier particularly appealing to music lovers who value clear sound.

What frequency ranges does the SS4.1300-24V cover?

The SS4.1300-24V has a frequency range of 20 Hz to 20 kHz, which corresponds to the standard for CD quality and ensures a rich, balanced sound across the entire audible spectrum. This allows for the reproduction of deep bass elements to clear highs, ideal for those who value a comprehensive sound experience. The bandwidth covers the entire human audible spectrum, making it well-suited for nearly every music genre, which makes the amplifier the ideal choice for demanding audio applications.

Is the SS4.1300-24V compatible with my vehicle?

With dimensions of 159 x 117 x 50 mm, the SS4.1300-24V is compact enough to be installed in most vehicles, regardless of brand or model. However, it is advisable to check the available installation space in the vehicle carefully. The compactness supports integration into Fast-Everywhere setups, even in motorcycles, where space is often a constraint. Thanks to the variable input sensitivity, it can be integrated into a variety of audio systems. This flexibility makes it universally compatible with many modern and classic vehicle configurations.

How does the SS4.1300-24V support detailed sound adjustment?

The SS4.1300-24V features dual high-pass and low-pass filters that are adjustable between 35 and 600 Hz, allowing for precise control over the sound. These filters enable optimal adjustment of the frequency range to personal preferences or specific speaker characteristics. In addition to the filters, the sensitivity settings of the RCA and high-level inputs between 0.25-6 and 1.1-20 adapt the amplifier to different audio sources, providing maximum flexibility. This allows for a custom, balanced sound profile tailored to individual listening habits.
