  3. LFB Mercedes ISO/10 Pin ISO > Multilead
ACV LFB Mercedes ISO/10 Pin ISO > Multilead Steering Wheel Remote Control
SKU:  42-1190-201
EAN:  4026724239065

LFB Mercedes ISO/10 Pin ISO > Multilead

SKU:  42-1190-201
EAN:  4026724239065

Technical Highlights

  • CAN bus, ISO / 10-pin ISO Mercedes connector, radio preparation. Suitable for Mercedes A-Class, B-Class, and C-Class, various models. Signals: ignition, lights, reverse signal, speed.
  • More technical details
€119,00
€119,00 €119,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €9,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

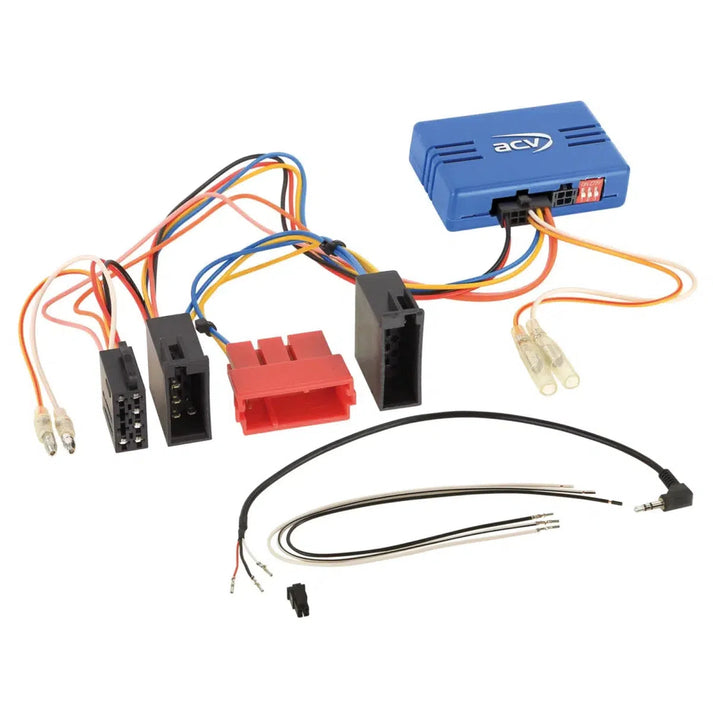

ACV-LFB Mercedes ISO/10 Pin ISO > Multilead-Lenkradfernbedienung-masori-kaufen
€119,00
€119,00 €119,00

LFB Mercedes ISO/10 Pin ISO > Multilead by ACV

LFB Mercedes ISO/10 Pin ISO > Multilead is a Steering Wheel Remote Control from ACV. The connection is made via ISO and 10 Pin ISO Mercedes Plug with CAN Bus. Supports OEM devices Audio 5, Audio 10, Audio 30 APS as well as Comand 2.0 and 2.5. Signals are available for +12V ignition terminal 15 up to 1.5A, +12V lighting terminal 58 up to 0.1A, +12V reverse gear up to 1.5A, speed signal, and Steering Wheel Remote Control. Compatible with vehicles with radio preparation and CAN Bus connection 10 Pin ISO as well as differing comfort interior CAN Bus connection. Multilead connection to various retrofit devices via suitable connection cables.

Features
  • Steering Wheel Remote Control
  • CAN Bus
  • Connection: ISO / 10 Pin ISO Mercedes Plug > Item: 42cx27
  • Connection: Steering Wheel Remote Control > Item: 42arc100
  • Check dip switch position
  • Vehicles with radio preparation
  • Vehicles with Audio 5 / Audio 10 OEM device
  • Vehicles with Audio 30 APS OEM navigation
  • Vehicles with Comand 2.0 / 2.5 OEM navigation
  • Vehicles with CAN Bus connection: 10 Pin ISO
  • Vehicles with differing comfort interior CAN Bus connection
  • Compatible vehicles: Mercedes A-Class (W169) 10/2004 - 04/2012
  • Compatible vehicles: Mercedes A-Class (C169) 11/2004 - 07/2011
  • Compatible vehicles: Mercedes B-Class (T245) 06/2005 - 06/2011
  • Compatible vehicles: Mercedes C-Class (W203) 03/2000 - 01/2005
  • Compatible vehicles: Mercedes CLK-Class (C208) 07/1999 - 03/2003
  • Compatible vehicles: Mercedes CLK-Class (C209) 03/2002 - 05/2005
  • Compatible vehicles: Mercedes E-Class (W210) 06/1999 - 12/2002
  • Compatible vehicles: Mercedes SL-Class (R230) 08/2001 - 02/2006
  • Compatible vehicles: Mercedes SLR (C199) 13/2003 - 12/2009
  • Compatible vehicles: Mercedes Sprinter (W906) 04/2006 - 08/2013
  • Compatible vehicles: Mercedes Sprinter (W906) 08/2013 - 05/2018
  • Compatible vehicles: Mercedes Vito/Viano (W639) 07/2003 - 08/2010
  • Compatible vehicles: Mercedes Vito/Viano (W639) 09/2010 - 03/2014
  • Connection cable: Multilead various devices > 42arc100
  • Connection cable: Alpine 3.5mm jack connection > 42arc101
  • Connection cable: Blaupunkt 2010 > 3.5mm jack connection > 42arc107
  • Connection cable: Blaupunkt 2010 > Key1 / Key2 / GND connection > 42arc000
  • Connection cable: China HU Key1 / Key2 / GND connection > 42arc000
  • Connection cable: Clarion 3.5mm jack connection > 42arc104
  • Connection cable: Digital Dynamics single cable connection > 42arc108
  • Connection cable: ESX Key1 / Key2 connection > 42arc000
  • Connection cable: JVC 3.5mm jack connection > 42arc104
  • Connection cable: JVC single cable connection > 42arc105
  • Connection cable: Kenwood single cable connection > 42arc105
  • Connection cable: Kenwood 2017 > 3.5mm jack connection > 42arc107
  • Connection cable: Kenwood 2020 > Key1 / Key2 / GND connection > 42arc000
  • Connection cable: Pioneer 3.5mm jack connection > 42arc107
  • Connection cable: Snooper Key1 / Key2 connection > 42arc000
  • Connection cable: Sony 3.5mm jack connection > 42arc107
  • Connection cable: XZent single cable connection > 42arc108
  • Connection cable: Zenec single cable connection > 42arc108
  • Delivery contents: LFB various vehicles universal cx401 > Item: 42cx401
  • Delivery contents: LFB wiring harness 42cx401/42cx402 Mercedes ISO/10Pin ISO > Item: 42cx27
  • Delivery contents: LFB cable 42a/42cx401 > Multilead various devices > Item: 42arc100
Technical Data
  • Signals: pink +12V ignition terminal 15 1.5A max.
  • Signals: orange +12V lighting terminal 58 0.1A max.
  • Signals: white +12V reverse gear signal 1.5A max.
  • Signals: yellow/green yellow/red speed signal
  • Signals: Steering Wheel Remote Control
  • brown-red twisted: CAN high
  • brown twisted: CAN low
  • differing cable colors 18 Pin AMP Plug possible
  • CAN Bus to CAN Bus distributor sill strip
  • CAN Bus to climate control
  • CAN Bus in Mini ISO Plug: Pin 1 CAN low / Pin 2 CAN high
  • CAN Bus in 8 Pin ISO power plug: Pin 7 CAN high / Pin 6 CAN low
  • CAN Bus in 18 Pin AMP Plug: Pin 8 CAN low / Pin 9 CAN high / not Robert-Bosch CAN
  • Check connection and pin assignment before installation with OEM device
  • OEM devices with ISO block connection: ISO extension speaker 10 cm > Item: 1322-02
  • Reimport vehicles or vehicles with differing software may be incompatible in functions

Your benefits at Masori

ACV LFB Mercedes ISO/10 Pin ISO > Multilead Datasheet

Open datasheet

Frequently Asked Questions about LFB Mercedes ISO/10 Pin ISO > Multilead

What functions does the LFB Mercedes ISO/10 Pin Adapter support in my vehicle?

The LFB Mercedes ISO/10 Pin ISO Adapter from ACV is designed to retain the Steering Wheel Remote Control functions from the original system after installing an aftermarket radio. Note that depending on the vehicle's equipment, the range of functions, and the software of the new device, some functions may differ or be replaced. It is important to compare the depicted plugs with those in the vehicle to ensure compatibility. The adapter supports vehicles that were originally equipped with certain radios such as Audio 5, Audio 10, or Comand 2.0/2.5. Additional signals like CAN High and CAN Low are also provided.

How do I check the compatibility of the LFB Mercedes ISO/10 Pin ISO Adapter with my Mercedes?

To ensure the compatibility of the LFB Mercedes ISO/10 Pin ISO from ACV, compare the plugs of the adapter with those in your vehicle. Make sure they fit both visually and technically. The adapter is suitable for several Mercedes models, including the A-Class, B-Class, C-Class, CLK-Class, E-Class, SL-Class, and SLR. Note that vehicles with special equipment or differing software may not be fully compatible. The CAN Bus connection should be matched with the OEM device, taking into account the color coding of the wires to ensure proper wiring.

What installation instructions should be followed for the LFB Mercedes ISO/10 Pin ISO Adapter?

When installing the LFB Mercedes ISO/10 Pin ISO Adapter from ACV, ensure that all plugs are properly connected and that the adapter is correctly integrated into the vehicle. The CAN Bus connections must be connected according to the color coding guide: brown-red twisted for CAN High and brown twisted for CAN Low. Dip switches may need to be adjusted if necessary. Before the final installation, check the functionality of the Steering Wheel Remote Control and other vehicle functions to ensure they operate correctly. The adapter is equipped for vehicles that correspond to specific original devices.

How does the CAN Bus connection work in the LFB Mercedes Adapter?

The CAN bus connection in the Steering Wheel Remote Control Mercedes ISO/10 Pin ISO adapter is crucial for integration in vehicles with electronic control. The adapter provides connections for CAN High (brown-red twisted) and CAN Low (brown twisted) via pins in the 18-pin AMP plug and Mini ISO plug. For specific Mercedes vehicles with 10 Pin ISO or other OEM devices, carefully check the connection assignment according to the manufacturer's specifications to ensure a faultless installation. These CAN bus connections are necessary to correctly ensure data transmission between the vehicle and the aftermarket radio.

Which vehicle models are compatible with the Steering Wheel Remote Control Mercedes ISO/10 Pin adapter?

The Steering Wheel Remote Control Mercedes ISO/10 Pin ISO adapter from ACV is compatible with several model series from Mercedes. This includes the A-Class (W169, C169), B-Class (T245), C-Class (W203), CLK-Class (C208, C209), E-Class (W210), SL-Class (R230), SLR (C199), Sprinter (W906), and Vito/Viano (W639) in specific production years. Be sure to match the depicted plugs with those in your vehicle model. Vehicles with special equipment or re-imports may have different software versions, which could affect certain functions of the adapter.

What signal connections does the ACV adapter provide for the Steering Wheel Remote Control?

The ACV Steering Wheel Remote Control Mercedes ISO/10 Pin ISO adapter provides various signal connections for the Steering Wheel Remote Control functionality, including ignition +12V (terminal 15), lighting (terminal 58), and reverse signals. Connections for speed sensors are also available to ensure seamless control while driving. Various radio manufacturer connections are supported via 3.5mm jack or Key1/Key2 format. Due to this variety, closer adaptation of the adapter is required for vehicle models with specific requirements to fully utilize the remote control functions in the replacement radio.

Which radio systems can be controlled with the Steering Wheel Remote Control Mercedes ISO/10 Pin ISO adapter?

The Steering Wheel Remote Control Mercedes ISO/10 Pin ISO adapter from ACV supports various radio systems and their specific connections. Compatible radio manufacturers include Alpine, Blaupunkt, Clarion, JVC, Kenwood, Pioneer, Sony, and other multi-lead systems. Connections are made via 3.5mm jack or through Key1/Key2 or GND connections. Ensure that your aftermarket radio provides one of the supported connection types. This guarantees comprehensive control while maintaining full compatibility with the original steering wheel control options in the supported Mercedes vehicles.

How do I proceed with a different cable color for the Steering Wheel Remote Control Mercedes adapter?

If a discrepant cable color occurs during the installation of the Steering Wheel Remote Control Mercedes ISO/10 Pin ISO from ACV, decide based on the correct pin assignment of the adapter compared to the vehicle-specific requirements. For example: Pin 1 and Pin 2 in the Mini ISO correspond to CAN Low and High, respectively. Ensure that in the wiring, CAN High is twisted to brown-red and CAN Low to brown. In case of doubt, refer to the specific documentation of your vehicle model or consult the vehicle manufacturer to avoid incorrect connections. Such discrepancies may occur in re-import vehicles.

What wiring harness adaptations are included with the ACV adapter?

The ACV Steering Wheel Remote Control Mercedes ISO/10 Pin ISO adapter package includes various connection cables, including the LFB wiring harness 42cx401 and 42cx402. Also included in the package is the LFB cable, suitable for various multilead systems such as item 42arc100. Check the item numbers immediately after delivery to ensure that all components required for installation are included. These wiring harness components allow for direct integration and ensure the complexity of connection options necessary to maintain the Steering Wheel Remote Control functions in the new vehicle radio, guaranteeing a technical adaptation for most common aftermarket radios.

Can the Steering Wheel Remote Control Mercedes ISO/10 Pin ISO adapter be integrated into vehicles with different software versions?

The Steering Wheel Remote Control Mercedes ISO/10 Pin ISO adapter from ACV can generally be integrated into various models. However, be aware that in re-import vehicles or versions with different software, certain functions may not be compatible. It is advisable to check the specific vehicle configurations before installation. Especially the arrangement of the CAN bus connections and the software versions of the original system could have an impact. The correct dip switch configuration may also need to be adjusted to transfer the full functionality of the Steering Wheel Remote Control to the aftermarket radio.
