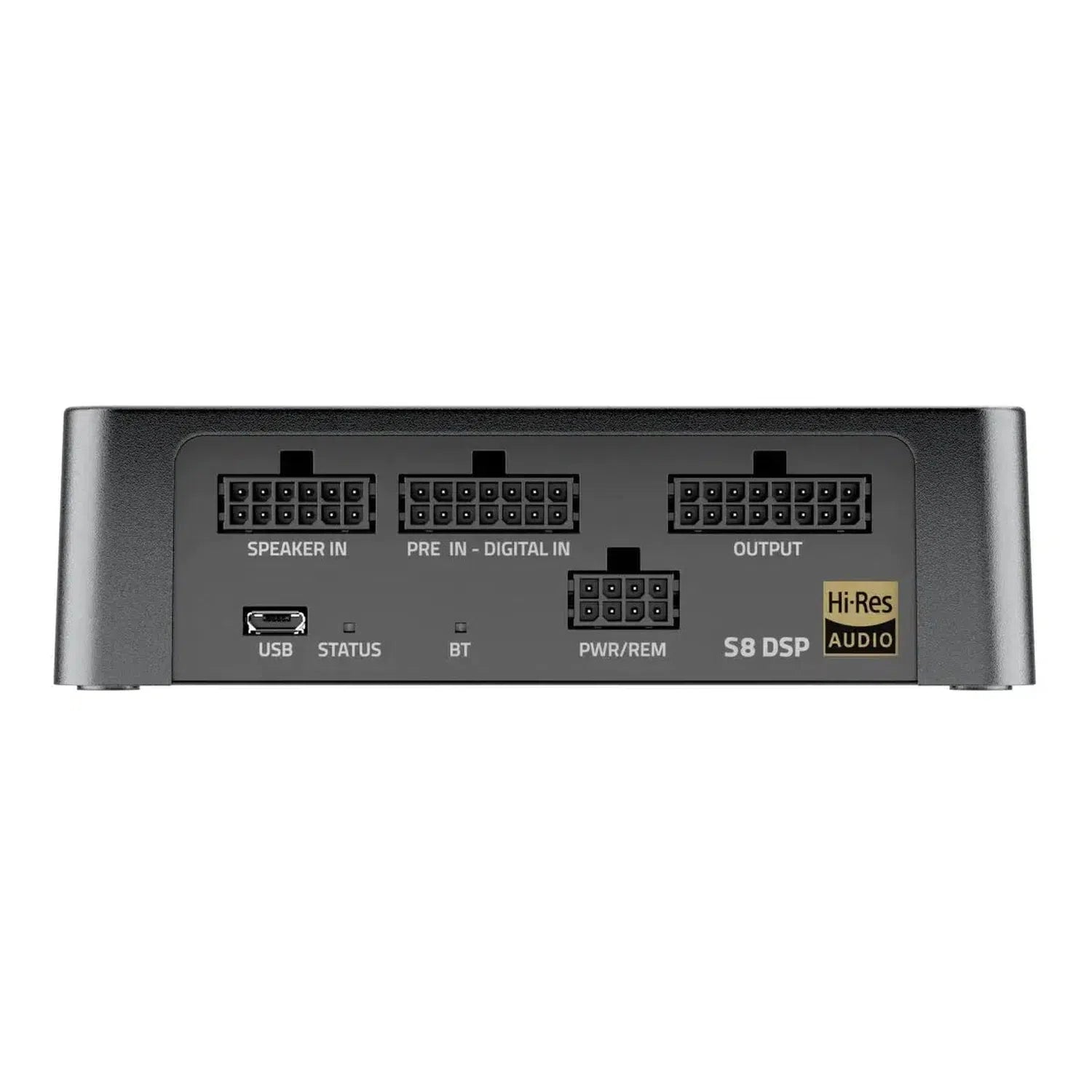

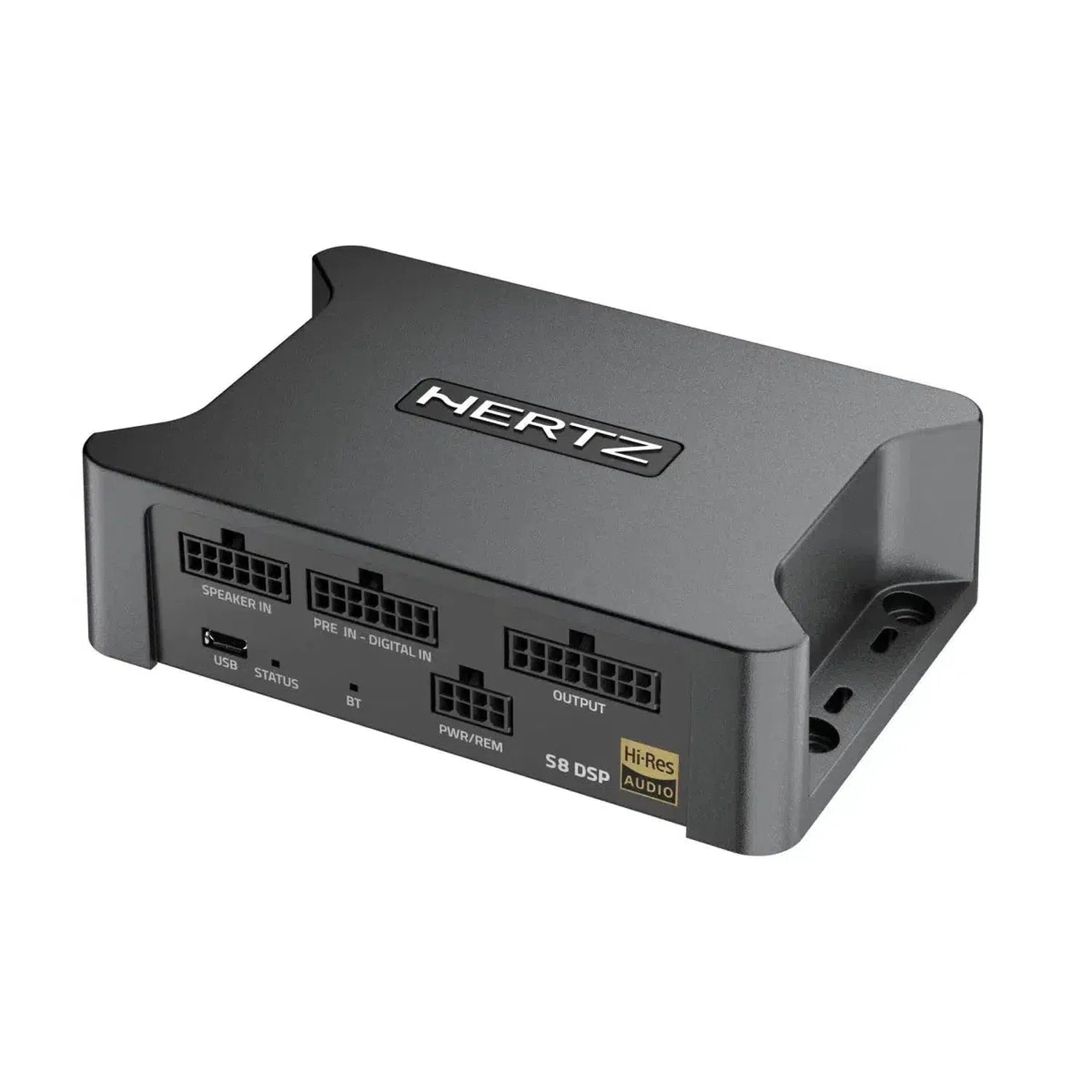

B-stock due to damaged or incomplete original packaging, or minor cosmetic defects. The same warranty conditions apply to B-stock as to our A-stock. The product is technically flawless. The compact S8 DSP is the perfect solution for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is the distilled essence of technology in the service of the highest audio quality in a corrosion-free metal and composite housing.

The S8 DSP processes the audio signal with a resolution of 96 kHz / 24 bit and has received Hi-Res certification from the JAS (Japan Audio Society), a recognition that certifies the extreme level of audio performance achieved.

The powerful 32-bit DSP manages 6 analog high/low-level input channels, one digital coaxial input, and 8 output channels, providing the specialist with maximum configuration freedom. The coaxial SPDIF input is ideal for digital connection with a Hi-Res player, a solution that enables maximum listening quality. For each of the eight output channels, a level controller, the 15-pin parametric equalizer, time delays, and crossover filters are available. The parametric 7-band equalizer of the input signal allows for neutral playback of OEM sources, which often have an exaggerated emphasis on low frequencies.

Main features

• POWER SUPPLY
• Nominal supply voltage / Fuse: 7 - 20 VDC / 1A
• Pulse operating voltage: 5 - 24 VDC
• Idle current: 0.34 A
• Standby current (ART= OFF): <80 uA
• Standby current (ART= ON): <80 uA
• Remote IN 6 - 20 VDC (10 mA)
• Remote OUT 4 - 20 VDC (150 mA)
• ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 - 7 VDC
• Input stage
• Analog low-level inputs 6 channels (differential input) (Molex micro plug to RCAs)
• Analog high-level inputs 6 channels (differential input) (Molex micro connector to triggered ends) + USS (Universal Speakers Simulator)
• Digital inputs Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)
• Input sensitivity (low level) 0.8 V - 6 V RMS
• Input sensitivity (high level) 2.5 V - 21 V RMS
• Management of the analog inputs audio input routing in the form of a matrix
• Parametric 7-band equalizer for each analog input channel
• ART Automatic Remote Turn-On/Off with Speaker-In
• Output Stage
• Analog Outputs (RCA) 8 Channels
• Max. Output Level (rms) @ 0.05% THD 4V
• 95dBA Analog Outputs Management The DSP controls each output channel: Gain, Crossover, EQ, Delay, Polarity
• Bandwidth 10Hz - 40KHz (+/-3dB)
• Signal-to-Noise Ratio (A-weighted) 105dBA (Analog Input) 112dBA (Digital Input)
• THD+N (@ 1Vrms out, @ 1KHz) <0.005%
• Crosstalk (Channel Separation) @ 1KHz >95dBA
• Digital Signal Processor
• Sampling Rate 96KHz
• Bit Depth 24
• Output Equalizer 15 bands per channel with adjustable Q and frequency
• Equalizer Resolution 1/10th dB per step +12dB / -12dB
• Time Alignment (Distance) 0 - 468.4 cm
• Time Alignment (Time) 0 - 13.5ms
• Time Alignment (Step) 0.08 ms; 2.8 cm
• Time Alignment (Fine Adjustment) 0.02 ms; 0.7 cm
• Crossover AP/HP/LP/BP all channels
• Crossover Type Butterworth, Linkwitz-Riley, Bessel (all channels)
• Crossover Slope From 6dB/Oct. to 30dB/Oct. (6dB step)
• Crossover Steps 120 steps 20Hz-20KHz
• Mute Function Each channel individually or all channels.
• Presets 4 Presets

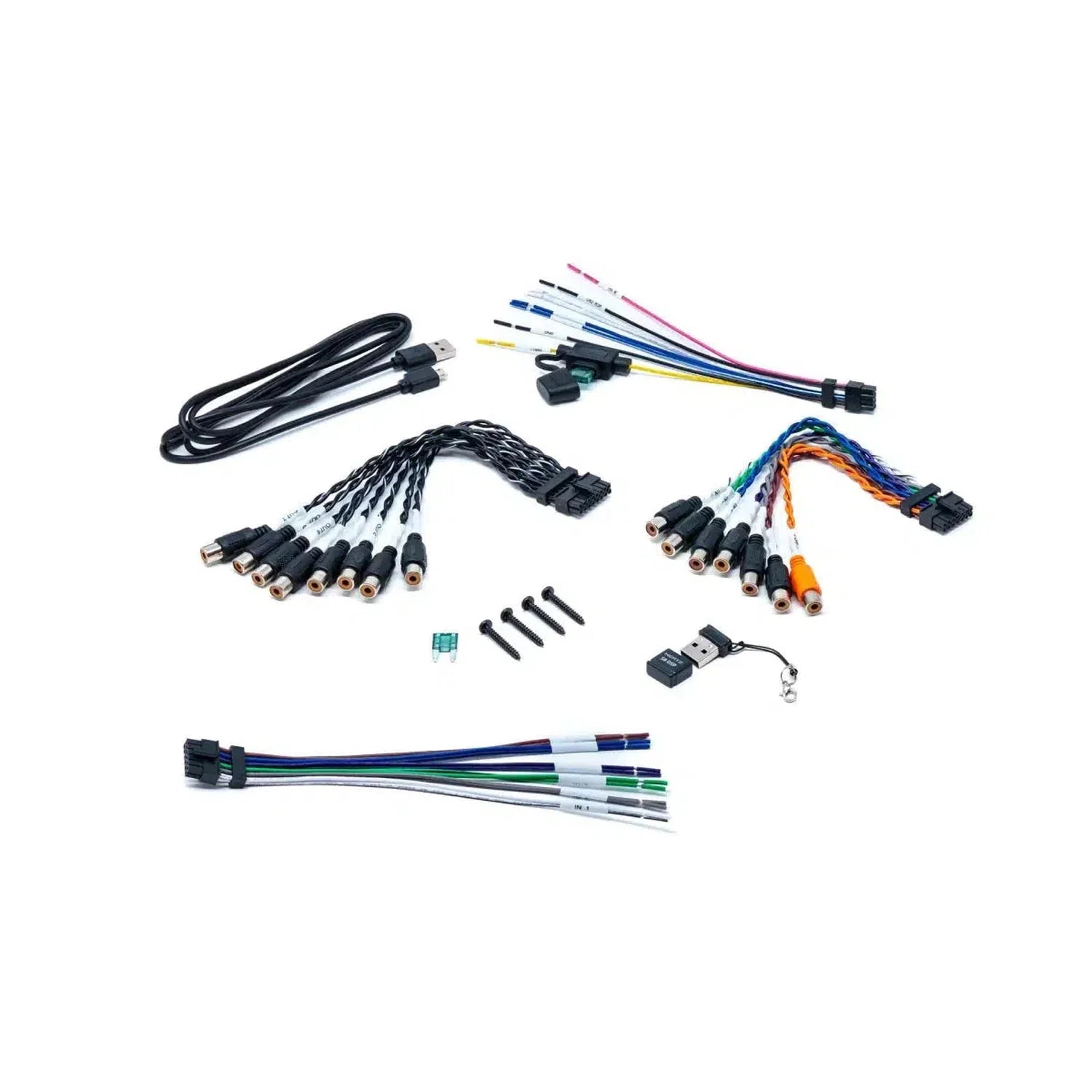

• Selection of Presets 2 special cables to control the 4 presets via external switches.
• Input Selection via Cable A special cable to select the desired input between Analog and Digital.
• Audio Signal Compressor in the Output Stage Yes (enable/disable)
• DSP Chipset Analog Device: ADAU1451

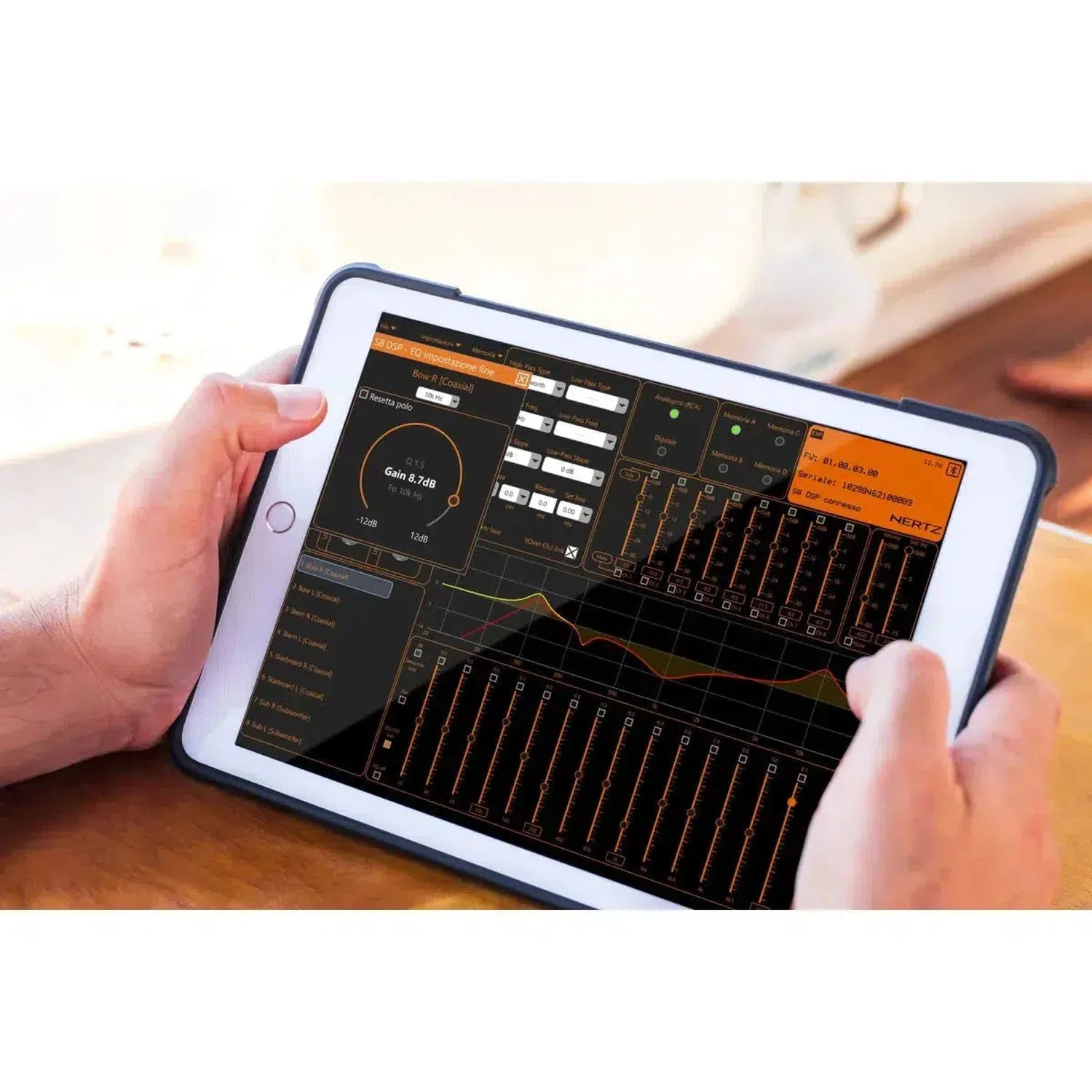

• DSP Management with the BT App (iOS/ Android) 1. CONFIGURATOR Mode Primarily allows DSP settings. You can manage all DSP functions via your smartphone/tablet/PC/MAC. 2. DRC Mode The BT device acts as a remote control using the special app with a simple graphical user interface. Manage volume and SUB levels, select different setup files, and upload a new setup file.
• Transfer of Setup Files via BT Upload a setup file via the BT APP when in "Configurator" or "DRC" mode.
• DSP Management via PC / Mac / iOS / Android Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac OS: 10.13 High Sierra or higher (USB and BT BLE)
• Physical Specifications
• Maximum Size W x H x D (mm) 130 x 33.8 x 88.3
• Weight (kg) 0.66
