  3. Carhifi clearance sale | Only while stocks last
  5. HX 165 SQ EM Evo 3 (B-Ware)

Audio System HX 165 SQ EM Evo 3 (B-Ware) 6.5" (16,5cm) Speaker Set

110 Watt

Audio System HX 165 SQ EM Evo 3 (B-Ware) 6.5" (16,5cm) Speaker Set

Technical Highlights

  • Impedanz des Lautsprechers: 3 Ohm, Leistung: 130/110 Watt.
  • Hochwertige 165 mm Neodym-Treiber, ventiliertes Chassis.
  • 25 mm Gewebehochtöner, Ferrofluidkühlung, 4 Ohm Impedanz.
  • More technical details
00 d
00 h
00 m
00 s
€227,50
-30% €325,00 €227,50
5% discount with prepayment
inkl. VAT , possibly plus shipping
Only a few left in stock (1 pieces available)
In stock
Mar 22, - Mar 23,
x Set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €18,95 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audio SystemHX 130 SQ Evo 3 (B-Ware)
Audio System-HX 130 SQ Evo 3 (B-Ware)-5" (13cm) Lautsprecherset-masori-kaufen

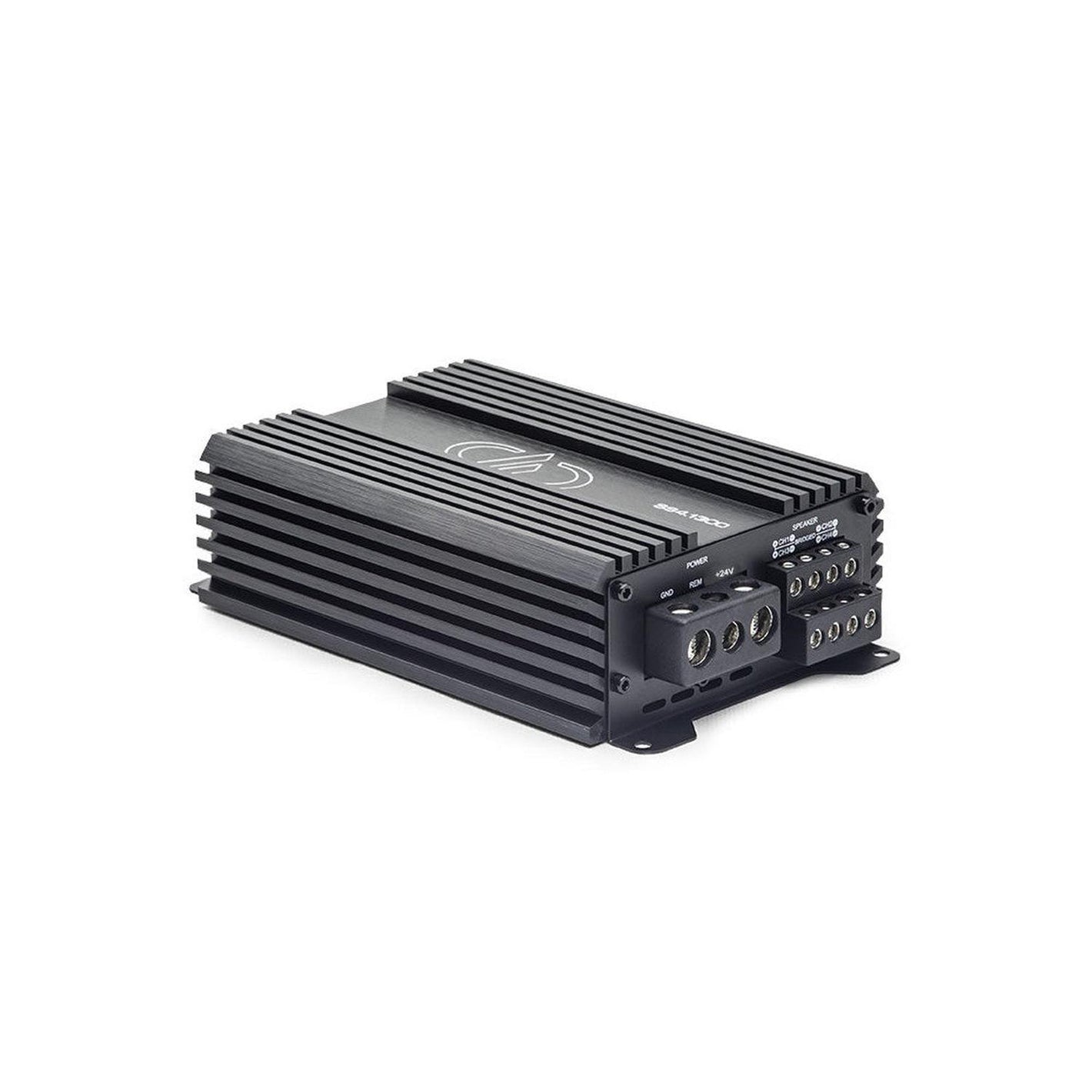

DD Audio-SS4.1300-24V (B-Ware)-4-Kanal Verstärker-masori-kaufen
DD AudioSS4.1300-24V (B-Ware)
Audio System-HX 165 SQ EM Evo 3 (B-Ware)-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€227,50
€325,00 €227,50

HX 165 SQ EM Evo 3 (B-Ware) by Audio System

Refurbished items due to damaged or incomplete original packaging, or minor cosmetic defects. The same warranty conditions apply to refurbished items as to our new items. The product is technically flawless.

The HX 165 SQ EM Evo 3 is a 6.5 inch Speaker Set from Audio System, which impresses with both high-quality and powerful components. The woofer and midrange driver of the set features a 165 mm high-end neodymium speaker with a ventilated basket. The ultra-light and stable NAWI paper cone combined with fiberglass and Nomex spider ensures very deep sound reproduction. The speaker has an impedance of 3 Ohms and a power rating of 130/110 Watts. Additionally, it includes a 25 mm textile neodymium tweeter, equipped with a protective grille and ferrofluid cooling. The set also includes plug and play crossovers for user-friendly installation.

EX 165 SQ EVO3 Features

  • Audio System woofer/midrange driver
  • 165 mm HIGH-END NEODYM speaker with ventilated basket
  • Ultra-light/stable NAWI paper cone with fiberglass and Nomex spider
  • Very deep sound reproduction
  • Impedance: 3 Ohms
  • Power: 130/110 Watts
  • Outer diameter: 166 mm
  • Installation depth: 63 mm
  • Installation size: 143 mm

HS 25 EVO 2 Features

  • Audio System 25 mm textile neodymium tweeter
  • Protective grille
  • Top and bottom mounting brackets
  • Ferrofluid cooling
  • Fs: 960 Hz
  • Impedance: 4 Ohms
  • Outer diameter with bracket: 53.5 mm / without bracket: 44 mm
  • Installation depth with bracket: 16 mm / without bracket with grille: 21 mm
  • Installation size with bracket: 47.5 mm / without bracket: 44 mm
  • Height of the housing: 28 mm

Scope of delivery

  • 2x HS 25 INSTALL EVO2+ universal brackets
  • 2x FWK TW EVO plug and play crossover with 3-way adjustment
  • 2x FWK MW plug and play crossover
  • 2x EX 165 SQ EVO3

Your benefits at Masori

Audio System HX 165 SQ EM Evo 3 (B-Ware) Datasheet

Open datasheet

Frequently Asked Questions about HX 165 SQ EM Evo 3 (B-Ware)

What is special about the HX 165 SQ EM Evo 3 Speaker Set?

The HX 165 SQ EM Evo 3 from Audio System features a 165 mm high-end neodymium speaker with a ventilated basket, utilizing an ultra-light and stable NAWI paper cone with fiberglass and Nomex spider. This construction allows for particularly deep sound reproduction, while the impedance of 3 Ohms and the power of 130/110 Watts ensure powerful sound. The plug and play crossovers provide user-friendly installation, while the 25 mm fabric neodymium tweeter with protective grille and ferrofluid cooling ensures precise high-frequency reproduction.

What frequency ranges does the HX 165 SQ EM Evo 3 cover?

The HX 165 SQ EM Evo 3 Speaker Set from Audio System offers very deep sound reproduction thanks to the combination of a 165 mm high-end neodymium woofer and mid frequencies stabilized by a Nomex spider. High frequencies are handled by the 25 mm fabric neodymium tweeter, which is stabilized with ferrofluid cooling for consistent vibrations. Together, the system provides comprehensive coverage of frequency ranges, reproducing both deep and high sound facets with impressive detail accuracy.

How is the installation of the HX 165 SQ EM Evo 3 Speaker Set?

The installation of the HX 165 SQ EM Evo 3 Speaker Set from Audio System is user-friendly, as it is equipped with plug and play crossovers. The woofer and midrange driver have an outer diameter of 166 mm and a mounting depth of 63 mm, while the 25 mm tweeter is installed with an outer diameter of 53.5 mm including the bracket. Thanks to its universal design, seamless integration into various vehicle models is possible, as long as the installation dimensions are suitable. The crossovers allow for triple adjustment, making installation in your car easier.

What power does the HX 165 SQ EM Evo 3 Speaker Set from Audio System offer?

The HX 165 SQ EM Evo 3 from Audio System offers impressive performance specifications. The speaker operates with a maximum power of 130 watts and 110 watts RMS, providing high output power that allows for excellent sound reproduction even in larger vehicle spaces. The 165 mm high-end neodymium speaker alone contributes to powerful sound development and is ideal for listeners who desire dynamic and voluminous sound experiences in their vehicle.

What technical features distinguish the tweeter of the HX 165 SQ EM Evo 3?

The tweeter of the HX 165 SQ EM Evo 3 from Audio System is a 25 mm fabric neodymium type, equipped with some remarkable technical features. It comes with a protective grille, a mounting bracket, and ferrofluid cooling, which ensures consistent performance even under load. The outer diameter with the bracket is 53.5 mm, without the bracket 44 mm, and the installation depth varies between 16 mm with the bracket and 21 mm without the bracket. The fs frequency of 960 Hz supports precise high-frequency reproduction, making this tweeter a high-quality component of the set.

What advantages does the NAWI paper membrane in the HX 165 SQ EM Evo 3 offer?

The NAWI paper membrane of the HX 165 SQ EM Evo 3 from Audio System combines lightness and stability in one design. This combination of paper, fiberglass, and Nomex spider allows for extremely deep audio reproduction, as it is optimized for vibration damping and resonance control. With these properties, you can expect excellent bass performance that impresses both with bass-intensive music tracks and more complex acoustic works. Especially if you enjoy listening to music at high volumes, this membrane provides astonishingly clear bass gradations.

What specific dimensions does the HX 165 SQ EM Evo 3 speaker set have?

The HX 165 SQ EM Evo 3 from Audio System has specific dimensions that are crucial for installation. The 165 mm speaker has an outer diameter of 166 mm and an installation depth of 63 mm with a mounting measurement of 143 mm. The tweeter has an outer diameter of 53.5 mm with the bracket, an installation depth of 16 mm with the bracket, and a height of 28 mm. These detailed measurements help you ensure that the speaker set is suitable for installation in your vehicle without requiring further adjustments.

Why is the impedance in speakers like the HX 165 SQ EM Evo 3 important?

The impedance of speakers, such as the 3 Ohm impedance in the HX 165 SQ EM Evo 3 from Audio System, plays a crucial role in the performance of the audio system. This technical specification affects the volume and efficiency of sound reproduction, as it controls the resistance that the speaker presents to the amplifier. A lower impedance like 3 Ohm allows the speaker to draw more power from the amplifier, resulting in higher output power and a clearer, louder sound. Ideal for listeners seeking maximum volume.

How does ferrofluid cooling affect the performance of the tweeter in the HX 165 SQ EM Evo 3?

The ferrofluid cooling in the tweeter of the HX 165 SQ EM Evo 3 speaker from Audio System plays a critical role in performance optimization. This cooling technology enhances the thermal stability of the tweeter by dissipating heat more efficiently. This leads to improved durability and reduced distortion at high volumes. Especially during intense use or in environments where high frequencies are constantly required, ferrofluid cooling supports the even and accurate reproduction of sounds, ultimately resulting in a clearer overall sound profile.

What installation options are available for the crossovers of the HX 165 SQ EM Evo 3?

The speaker set HX 165 SQ EM Evo 3 from Audio System offers versatile installation options with its plug and play crossovers. The package includes crossovers for both the woofer and the tweeter, each allowing for triple adjustment. The adjustment provides you with flexibility in mounting in the vehicle and ensures that the speaker set works compatibly with your existing audio system. These user-friendly components support a hassle-free and quick installation and are easy to handle, even for installations in more complex vehicle models.
