Audison Forza AF M12.14 bit 12-Channel DSP Amplifier

1 Review

90 Watt

Audison Forza AF M12.14 bit 12-Channel DSP Amplifier

1 Review

Technical Highlights

  • 12-channel amplifier, Audison D-Class technology.
  • 60 x 12 @4Ω, 90W x 12 @2Ω, Hi-Res certification.
  • DSP 24 bit/96 kHz, flexible performance.
  • More technical details
€1.290,00
€1.290,00 €1.290,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 22, - Mar 25,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €107,50 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Prima APBMW S8-4.2-BMW-Subwoofer-masori-kaufen
AudisonGreat APBMW S8-4.2

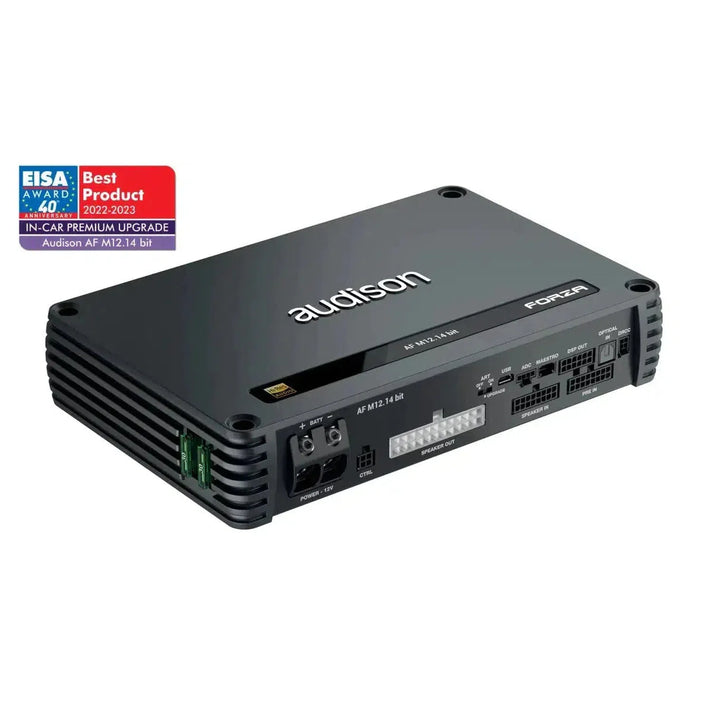

Audison-Forza AF M12.14 bit-12-Kanal DSP-Verstärker-masori-kaufen
€1.290,00
€1.290,00 €1.290,00

Compatible with Forza AF M12.14 bit

Forza AF M12.14 bit by Audison

The AF M12.14 bit features twelve reinforced high-fidelity channels 60 x 12 @4Ω*, 90W x 12 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher tolerance components deliver a sound that exceeds expectations for Class D – all in an amazingly compact package! This is combined with a native DSP operating at 24 Bit/96 kHz, extending the audio band up to 40 kHz and having received the coveted High-Resolution certification. Bridging channel pairs results in 180 x 6 @4Ω*, guaranteeing flexible and powerful performance. Support for the Absolute Volume function of the Audison B-CON ensures maximum bit depth, even with wireless connections! *Output continuous power (RMS) @14.4 VDC, 1% THD, all channels driven.

TECHNICAL DATA

  • Channels 12
  • Amplifier Class D-Class
  • Efficiency 80%
  • Supply Voltage / Fuse 11 - 15 VDC / 2 x 30A
  • Power Supply Operating Voltage 6.5 - 17.5 VDC
  • Idle Current 1.68 A
  • Standby Current Consumption 1.7 mA
  • Current Consumption @ 14.4 VDC, 2Ω, Max Music Power 45 A
  • Remote IN 4 -15 VDC (1 mA)
  • Remote OUT 6.5 -15 VDC (150 mA)
  • ART - Automatic On/Off via BTL Speaker Voltage 1.5 VDC
  • Efficiency Rated Power 80%

AMPLIFIER SECTION

  • Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.03%
  • Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz
  • Damping Factor @ 1 kHz, 4Ω, 2 VRMS 80
  • S/N Ratio (A weighted @ 1 V input) Master Input 98 dBA
  • S/N Ratio (A weighted @ 1 V input) Optical Input 105
  • Total RMS Power 1080 W
  • Minimum Impedance 12Ch: 2Ω | 6Ch - (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω
  • Continuous Output Power (RMS) @14.4 VDC, 1% THD
    • 12 Ch @ 4Ω: 60 W x 12
    • 12 Ch @ 2Ω: 90 W x 12
    • 6 Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6
  • Adjustable Crossover Yes

CEA SPECIFICATIONS

  • Output Power @ 4Ω, 1% THD+N, 14.4 V 45 W
  • S/N Ratio (ref. 1W output) 75.5 dB

INPUTS / OUTPUTS

  • Pre-In Inputs 0.6 - 6 VRMS (15 kΩ Imp.)
  • Digital Input Yes
  • Preamp Outputs 2
  • High-Level Inputs 8
  • Low-Level Inputs 8
  • Speaker Inputs 2.2 - 22 VRMS (5 Ω Imp.)
  • Digital Input 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
  • Subwoofer Output (RCA Pre Out) 5V RMS

DIGITAL SIGNAL PROCESSOR

  • Audio DSP Converter Automotive-grade audio processor ADAU1467 from Analog Devices. Processing at 96 kHz. 3 x ADAU1978 (4 channels) and ADAU1966A (16 channels) A/D and D/A converters (24 Bit/192 kHz) from Analog Devices provide very high performance.
  • Filter Type Full / High Pass / Low Pass / Band Pass
  • Filter Mode and Slope
  • Linkwitz-Riley @ 12/24/36/48 dB/Oct.
  • Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
  • QLP @ 6 dB/Oct.
  • Crossover Frequency 20 Hz - 20 kHz
  • Phase Control 0° / 180°, All-Pass filters
  • Equalizer for Analog Input (20 - 20k Hz) 12 Biquad + Delay
  • Output Equalizer Parametric/Graphic Biquad: 15 bands, 20 Hz - 20 kHz
  • Time Delay / Distance 0 - 54 inches / 0 - 200.8 inches
  • Time Delay / Delay 0 - 15 ms
  • Input / Output Real-Time Audio Monitor RTA

CONNECTION CONTROL

  • DRC Port Input for DRC AC Remote Control (optional)
  • ADC Port Manage other Audison devices supporting this standard
  • 1 Wire Customizable Functions (+ 12 V activated)
  • 2 Wire Customizable Functions (+ 12 V activated)

GENERAL REQUIREMENTS

  • PC Connections Compatible with Micro USB 1.1 / 2.0 / 3.0
  • Software/PC Requirements Windows 10, Windows 11 (min. res. 1024 x 768
  • Operating Ambient Temperature Range 0 °C to 55 °C
  • Size 240 x 47 x 156
  • Weight 2.04 kg

DIMENSIONS

AF M12.14 bit

  • Dimension A240 mm
  • Dimension B156 mm
  • Dimension C47 mm

FEATURES

  • Enhanced audio performance and power thanks to the latest generation ADT technology (Audison D-Class)
  • Unbeatable power-to-volume ratio of up to 0.68 Watts RMS/cm³ with an efficiency of 82%
  • Next-generation bit Drive software platform
  • Hi-Res compatibility with an extended audio band up to 40 kHz, enabled by a DSP operating at 24 Bit/96 kHz
  • Maximum versatility thanks to the ability to bridge any pair of power outputs
  • Up to 14 output channels (12 amplified, 2 native preamp outputs) controlled by the DSP to expand the system with other amplifiers
  • 8 High-/Low-Level inputs (and one optical Toslink digital input) allow comprehensive connectivity even with the most complex OEM systems
  • Slot for expansion cards (additional 4 analog or 1 digital input)
  • Electrical signal analysis for each input channel ensures correct integration and correction
  • Acoustic analysis (with your USB microphone) integrates the frequency response curve into the equalizer display. This ensures efficient tuning and great sound!
  • Advanced options for signal routing allow the technician to go beyond the predefined system definitions in the configuration wizard

Your benefits at Masori

Audison Forza AF M12.14 bit Datasheet

Open datasheet

Frequently Asked Questions about Forza AF M12.14 bit

What amplifier technology is used in the Audison Forza AF M12.14 bit?

The Forza AF M12.14 bit utilizes Audison's state-of-the-art D-Class amplifier technology, which offers the highest switching frequencies and steeper filtering. The higher tolerance components ensure sound quality that surpasses the Class D standard. With twelve amplified high-fidelity channels, it delivers 60 W per channel at 4Ω and up to 90 W at 2Ω. In bridged mode, it provides 180 W per channel at 4Ω, allowing for flexible power adjustments. This high-end technology ensures audiophile sound quality, as highlighted by its high-resolution certification.

How do the DSP functions affect the sound quality of the Forza AF M12.14 bit?

The integrated DSP operates at 24 Bit/96 kHz and extends the audio bandwidth up to 40 kHz, enabling high-resolution certification. This results in significantly higher sound quality. It uses ADAU1467 along with A/D and D/A converters from Analog Devices to provide impressive sound processing. The DSP functionalities include flexible filter types, such as Linkwitz-Riley and Butterworth, allowing for precise adjustments of the frequency spectrum. Additionally, the time delay of up to 15 ms enables accurate placement of audio sources. This combination ensures crystal-clear, dynamic sound.

What are the key technical parameters of the Forza AF M12.14 bit?

The Forza AF M12.14 bit offers a total power output of 1080 Watts RMS with twelve amplified channels. The continuous output power is 60 W x 12 at 4Ω and 90 W x 12 at 2Ω. The device supports a power supply of 11 - 15 VDC. With a no-load current draw of 1.68 A and standby current draw of 1.7 mA, it is efficient in operation. The high efficiency of 80% defines its performance. The signal-to-noise ratios reach up to 105 dBA at optical inputs, ensuring interference-free audio transmission.

How do I install the Forza AF M12.14 bit in my vehicle?

To install the Forza AF M12.14 bit in your vehicle, you need a space of 240 x 47 x 156 mm. The device's power supply must be between 11 and 15 VDC. The Amplifier is equipped with high and low-level inputs, allowing integration into various audio systems. Ensure that the connections for optical inputs and expansion cards are correctly connected. For optimal performance, the Amplifier should be mounted in a well-ventilated area. Use Audison's user-friendly software to refine the setup.

What audio formats does the Forza AF M12.14 bit support?

The Forza AF M12.14 bit is optimized for playback of high-resolution audio formats, as it operates with a 24 Bit/96 kHz DSP that extends the audio band up to 40 kHz. This ensures that high-resolution audio files are played back losslessly. Thanks to the optical S/PDIF input with a maximum sampling rate of 192 kHz/24 Bit and additional support from optional expansion cards, it allows for flexible integration into specialized audio systems and the use of digital audio formats that maximize sound quality.

Is the Forza AF M12.14 bit compatible with my existing audio system?

The Forza AF M12.14 bit from Audison supports a variety of input options, including 8 high/low-level inputs and an optical Toslink digital input, allowing integration into many existing audio systems. If your audio system has pre-in inputs with a signal strength of 0.6 - 6 VRMS, compatibility is ensured. Make sure that your system's impedance matches the 2Ω or 4Ω output impedances of the Amplifier for optimal performance. The flexible architecture promises seamless integration into your existing setup.

What advantages does the ADT technology in the Forza AF M12.14 bit offer?

The innovative ADT technology from Audison in the Forza AF M12.14 bit significantly enhances audio performance. With a power-to-volume ratio of up to 0.68 Watts RMS/cm³, the Amplifier achieves an efficiency of 82% without compromising sound quality. This technology enables steeper filtering and higher switching frequencies, resulting in a more precise and dynamic sound output. Additionally, the ADT technology ensures improved heat dissipation, allowing the Amplifier to operate in a compact form without overheating.

What are the advantages of a 12-channel Amplifier like the Forza AF M12.14 bit?

A 12-channel Amplifier, like the Forza AF M12.14 bit, offers exceptional flexibility in configuring audio systems. It allows for the operation of multiple speaker zones or the amplification of individual frequency ranges for specialized sound adjustments. Through the bridging options of the channel pairs, the power output can be adjusted, providing versatile applications. This enables audiophile multi-zone control and detailed sound configurations, ideal for complex OEM systems or specialized sound layouts where precise control and excellent sound quality are required.

How do I manage external audio devices with the Forza AF M12.14 bit?

The Forza AF M12.14 bit is equipped with an ADC port through which you can manage compatible Audison devices. The DRC port allows for the use of the optional DRC AC remote control for intuitive control of the Amplifier. Additionally, the Amplifier provides an interface for connecting to PC software that runs on Windows 10 or 11 via Micro USB. This allows for detailed settings to be made through Audison's custom software platform and for monitoring the entire system to achieve optimal performance and sound quality.

What role does the High-Resolution certification play in the Forza AF M12.14 bit?

The High-Resolution certification of the Forza AF M12.14 bit confirms that the Amplifier can efficiently process an extended audio bandwidth of up to 40 kHz. This means that the Amplifier is capable of reproducing the finest sound details and the full dynamics of modern music recordings. Classic Class D Amplifiers typically do not achieve this breadth and detail depth, which is why this is particularly significant for audiophiles. The support for high-resolution formats ensures that the original sound character of the recordings is preserved, significantly enhancing the listening experience.
