3. DB EDB6W-E0

DB EDB6W-E0

100 Watt

DB EDB6W-E0

Technical Highlights

  • High power of 200 watts, impedance of 4 Ω, frequency range 70Hz-15500Hz.
  • Sensitivity at 94 dB, textile surrounds, steel basket for stability.
  • Ferrite magnet for high sound fidelity, installation depth of 57 mm, compact.
  • More technical details
€34.99
€34.99 €34.99
2% discount with credit card

Your price match offer

ProductDB EDB6W-E0

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT plus shipping
Estimated delivery: Sep 22–Sep 29.
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
Edge-DB EDB6W-E0-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
€34.99
€34.99 €34.99

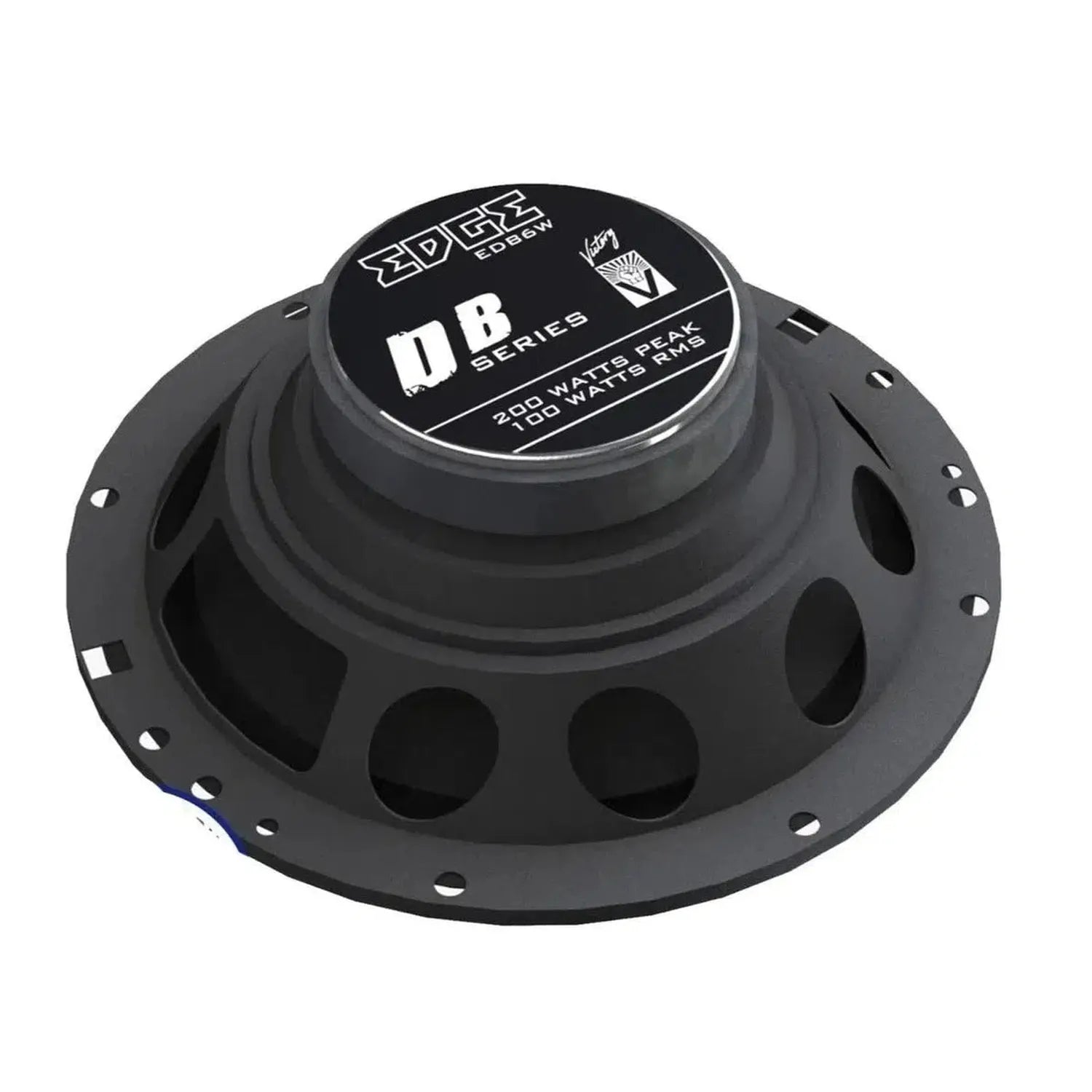

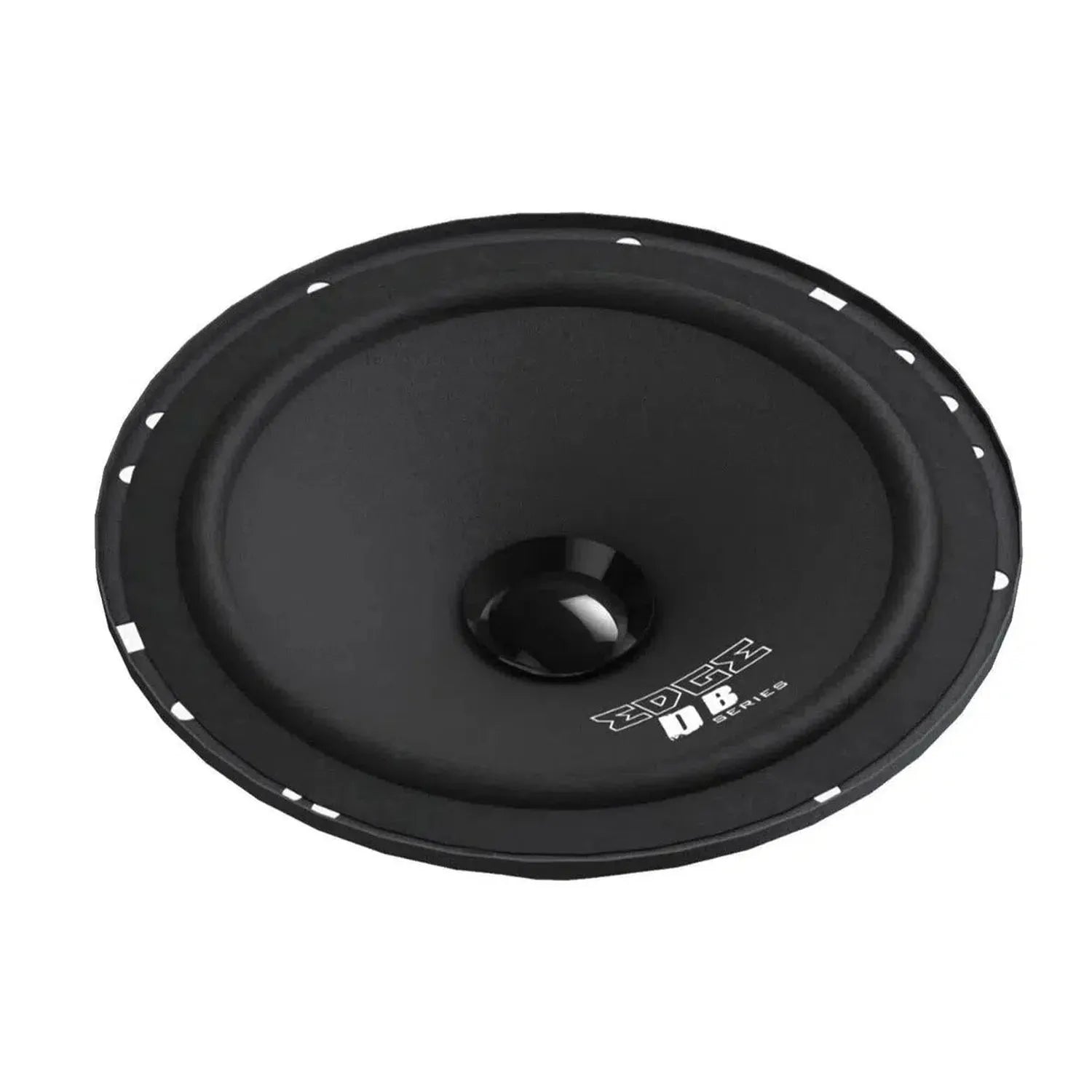

The DB EDB6W-E0 from EDGE is a 6.5-inch coaxial speaker that stands out for its vibrant sound and robust construction. With an impedance of 4 Ω and a frequency range of 70Hz to 15500Hz, it offers impressive sound quality. The speaker has a high power handling capacity of up to 200 watts and a sensitivity of 94 dB. The materials, such as textile for the surround, steel for the basket, and ferrite for the magnet, contribute to its durability. Discover how this speaker adds a new dimension to your audio experience.

Technical Specifications

  • 6.5-inch coax
  • Diameter 6.5 inches 165mm
  • Impedance 4 Ω
  • Frequency range 70Hz - 15500Hz
  • Power handling RMS 100 watts
  • Power handling MAX 200 watts
  • SPL (sensitivity) 94 dB
  • Surround material textile
  • Mounting depth 57mm
  • Mounting diameter 141mm
  • Basket material steel
  • Magnet material ferrite
  • Voice coil diameter 1 inch 25.4mm


Frequently Asked Questions about DB EDB6W-E0

What are the key technical specifications of the Edge DB EDB6W-E0 speaker?

The Edge DB EDB6W-E0 is a 6.5 inch (165 mm) coaxial speaker with an impedance of 4 Ω, covering a frequency range of 70 Hz to 15500 Hz. With a power handling of 200 watts and an RMS of 100 watts, it achieves a sensitivity (SPL) of 94 dB. The surround material is made of textile and the basket is made of steel. The magnet is made of ferrite, while the voice coil diameter is 1 inch (25.4 mm). The mounting depth is 57 mm and the mounting diameter is 141 mm. These technical specifications ensure robust performance and high sound enjoyment.

How is the power handling of the Edge DB EDB6W-E0 defined?

The Edge DB EDB6W-E0 has a maximum power handling of 200 watts, meaning it can handle peak audio outputs without distortion. At the same time, it offers an RMS power of 100 watts, designed for consistent, clear audio playback. This data is crucial when considering how loud or clear the speakers in your car can operate. The combination ensures that playback remains dynamic and distortion-free, which is beneficial for an intense listening experience, especially during longer listening sessions.

What materials are used in the Edge DB EDB6W-E0 speaker?

In the construction of the DB EDB6W-E0, the developers focus on materials that ensure enhanced performance and durability. The surround is made of textile, providing flexibility and resonance optimization. The speaker basket is made of durable steel, ensuring stability. The magnet, made of ferrite, also supports the endurance of sound frequencies. This high-quality material composition significantly contributes to the sound quality and robustness of the coaxial speaker while giving it a solid and professional design.

What frequency range is covered by the Edge DB EDB6W-E0?

The Edge DB EDB6W-E0 is designed to cover a frequency range of 70 Hz to 15500 Hz. This bandwidth ensures that the speaker reproduces both low and high frequencies accurately. Users who appreciate detailed acoustics benefit from this wide frequency coverage. Particularly in the mid-frequency range, the speaker impresses with clear and differentiated sounds, ideal for various music styles. Whether bass or treble, the speaker ensures that every tone comes through clearly and distinctly, contributing to the overall experience.

What are the dimensions of the Edge DB EDB6W-E0 speaker?

The dimensions of the DB EDB6W-E0 are designed for easy and versatile integration into various vehicles. The speaker has an overall diameter of 165 mm (6.5 inches), a mounting depth of 57 mm, and a mounting diameter of 141 mm. These compact dimensions allow for use in most vehicle models and ensure a smooth installation. If you are considering installing a new speaker in your car, these dimensions provide an ideal balance between size and performance without compromising sound quality.

How efficient is the Edge DB EDB6W-E0 in sound reproduction?

With a sound pressure level (SPL) of 94 dB, the Edge DB EDB6W-E0 proves to be extremely efficient in sound reproduction. This sensitivity rating indicates that the speaker delivers impressive volume even at low power consumption. High sensitivity is a crucial factor for sound quality, as it ensures that even fine sound details remain clearly audible at low volumes. Especially if you enjoy listening to music loudly but do not want to compromise on clarity and detail, this speaker is an excellent choice.

What requirements must my car meet to install the Edge DB EDB6W-E0?

To successfully install the DB EDB6W-E0 from Edge, you should ensure that your vehicle has a mounting space with a mounting diameter of at least 141 mm and a mounting depth of 57 mm. These specifications allow the speaker to be installed in standard mounting frames of most vehicle brands. Given the standardized dimensions, this coaxial speaker fits a variety of car models. Make sure to check your vehicle's installation dimensions or discuss directly with an automotive specialist to avoid compatibility issues.

What role does the surround material play in the Edge DB EDB6W-E0 speaker?

The surround material of the DB EDB6W-E0, made of textile, plays a crucial role in the flexibility and durability of the speaker membrane. Textile surrounds are known for their excellent vibration damping, which minimizes disruptive resonances. They optimize the frequency response and support both low and high-frequency reproduction by providing a smooth transition across different frequencies. This material choice has the advantage, especially at high volumes, that the membrane remains stable and precise. This generally improves sound fidelity and makes the speaker more adaptable to various music genres.

What is the significance of the ferrite magnet in the Edge DB EDB6W-E0 speaker?

The ferrite magnet used in the DB EDB6W-E0 is essential for generating a strong magnetic system that contributes to the efficiency of sound radiation. Ferrite magnets are known for their high continuity and robustness in various environments. They are less susceptible to thermal influences and provide a constant magnetic force, which improves reliability in performance. The choice of magnet material directly affects the efficiency and sound characteristics of the speaker, making it ideal for demanding acoustic applications in the automotive sector.

What should be considered when installing the Edge DB EDB6W-E0 speaker?

When installing the DB EDB6W-E0, it is important that the installation location has a sufficient depth of 57 mm. Additionally, the mounting diameter must be at least 141 mm. This ensures that the speaker fits correctly and delivers optimal performance. It is advisable to first carefully check the physical conditions in the car and make adjustments if necessary. Ensure that all electrical connections are made correctly to guarantee optimal performance and longevity of the speaker. A clean, secure fit minimizes unwanted vibrations and optimizes sound quality.
