3. Machete M6C

Machete M6C

1 review

Machete M6C

1 review

Technical Highlights

  • Performance: Signal output voltage 4.5 V, channel separation >80 dB.
  • Input impedance 1 kOhm, output impedance 22 kOhm, SNR 95 dB.
  • Frequency response 5 Hz 100 kHz, supply voltage 8-15 V.
  • More technical details
€63.20
-20% €79.00 €63.20
2% discount with credit card

Your price match offer

ProductMachete M6C

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Pre-order now · Dispatch when stock arrives Pre-order · Ships when restocked
This product is currently out of stock at the supplier. As soon as it becomes available again, it will be dispatched to you automatically. We cannot provide an exact delivery date yet.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

Pre-order: this variant is not currently in our stock. Without a confirmed delivery date we cannot give an exact arrival date. We ship once the goods are available.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet
Deaf Bonce-Machete M6C-High-Low Adapter-masori-kaufen
€63.20
€79.00 €63.20

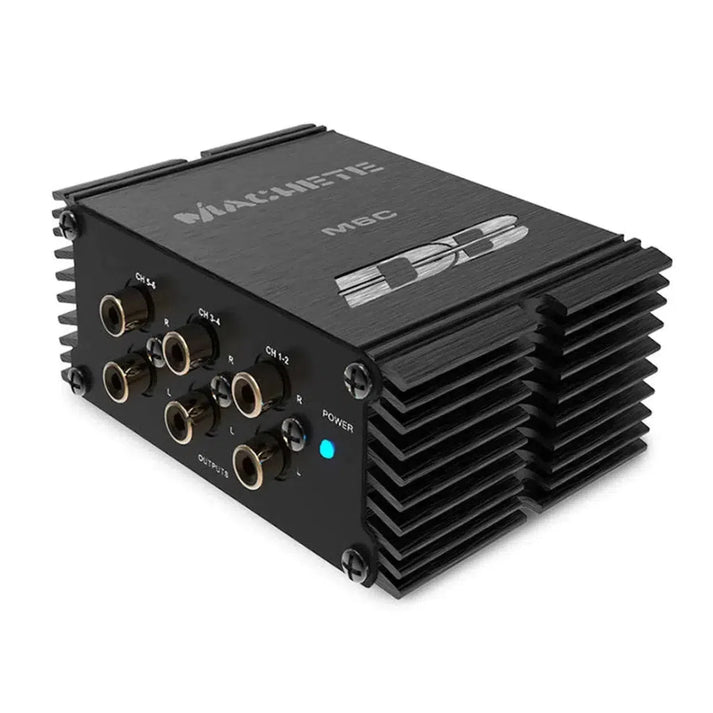

The Machete M6C is a High-Low Adapter from Deaf Bonce. It converts high-level signals into low-level signals. Designed for 6 channels with three pairs of line outputs. Integrated automatic power-on function and REM OUT with > 1 A at 12 V. Supply voltage 8–15 V and signal output voltage 4.5 V. Frequency response 5 Hz to 100 kHz, channel separation > 80 dB and signal-to-noise ratio 95 dB. THD 0.01%, input impedance 1 kOhm and output impedance 22 kOhm. Input sensitivity or maximum input voltage < 20 V, standby consumption 90 mA and dimensions 8.6 x 10.9 x 4.5 cm.

Features
  • High-Low Adapter
  • 6 channels
  • Converts high-level signals into low-level signals
  • 3 pairs of line outputs
  • Automatic power-on function
  • REM OUT output current > 1 A at 12 V
Technical Specifications
  • Supply voltage: 8–15 V
  • Signal output voltage: 4.5 V
  • Frequency response: 5 Hz – 100 kHz
  • Channel separation: > 80 dB
  • Signal-to-noise ratio: 95 dB
  • THD: 0.01%
  • Input impedance: 1 kOhm
  • Output impedance: 22 kOhm
  • Standby consumption: 90 mA
  • REM OUT output current: > 1 A at 12 V
  • Input sensitivity / maximum input voltage: < 20 V
  • Dimensions: 8.6 x 10.9 x 4.5 cm

Frequently Asked Questions about Machete M6C

How does the Deaf Bonce Machete M6C High-Low Adapter work?

The Machete M6C from Deaf Bonce converts a high-level signal from an OEM radio into a low-level signal. This allows for the connection of nearly any amplifier. Three pairs of line outputs provide flexible connection options. The adapter automatically powers on and controls the amplifier when a signal is provided by the head unit. The signal output voltage is 4.5 V, which is sufficient to efficiently drive a variety of amplifiers. The support for a frequency range of 5 Hz to 100 kHz makes the Machete M6C a highly qualified device for a variety of audio applications.

What performance features does the Deaf Bonce Machete M6C offer?

The Machete M6C offers impressive technical specifications. With a number of 6 channels and a supply voltage of 8-15 V, it is very versatile. The frequency range extends from 5 Hz to 100 kHz, covering a wide range of audio frequencies. The signal-to-noise ratio of 95 dB ensures clear and uncolored sound, while the channel separation of over 80 dB minimizes cross-talk. The low total harmonic distortion (THD) of 0.01% ensures high sound fidelity. The adapter also has an input impedance of 1 kOhm and an output impedance of 22 kOhm.

What are the specific dimensions of the Machete M6C?

The dimensions of the Machete M6C are 8.6 x 10.9 x 4.5 cm. These compact measurements make it ideal for installation in vehicles with limited space. Despite its small size, the adapter offers full power and flexibility in installation. When choosing the installation location, you should ensure that there is adequate ventilation to prevent overheating during continuous operation. The overall design focuses on user-friendliness and flexible integration in the vehicle, ensuring high installation comfort.

What are the input and output impedances of the Machete M6C?

The Deaf Bonce Machete M6C has an input impedance of 1 kOhm, which is ideal for connecting to most OEM radios. The output impedance is 22 kOhm and allows for interference-free transmission of the audio signal to connected Amplifiers. These impedance parameters are crucial to ensure that neither the audio input nor the audio output negatively affects the sound signal. The significantly different input and output impedances prevent impedance matching issues, which maintains sound quality and minimizes noise problems.

Is the Deaf Bonce Machete M6C suitable for my car?

The Machete M6C is universally compatible with a variety of vehicles and OEM radios, as it only converts high-level to low-level signals. Its dimensions of 8.6 x 10.9 x 4.5 cm make it compact enough to be installed in various vehicle models without space issues. However, ensure that the vehicle's supply voltage is in the range of 8-15 V to ensure optimal functionality. Especially in older vehicles, the maximum input and supply voltage should not be exceeded.

What is the signal-to-noise ratio of the Machete M6C?

The signal-to-noise ratio of the Machete M6C is 95 dB, indicating very low self-noise. This is crucial for clear and precise sound, especially at high volumes, as the background noise is minimized. A higher dB value in the signal-to-noise ratio ensures that even weaker audio signals can be clearly and accurately amplified by the Amplifier and made audible to the end consumer. You will positively notice the difference in acoustics, especially in quiet passages or high dynamic ranges.

What is the maximum input voltage of the Machete M6C?

The Deaf Bonce Machete M6C accepts a maximum input voltage of under 20V. This feature is essential to ensure compatibility with various audio systems without the risk of overload. It is important that this input voltage is not exceeded by the head unit to avoid damage. Normally, most OEM radios meet these requirements without any issues. Thus, you can confidently use the Machete M6C for your specific audio system as long as the devices operate within these electrical parameters.

How efficient is the Deaf Bonce Machete M6C in standby?

The standby consumption of the Machete M6C is only 90mA, making it an exceptionally efficient device even in idle mode. A low power consumption in standby operation is beneficial to preserve the vehicle battery and minimize unnecessary energy losses. Especially when the vehicle is not in use for extended periods, it becomes evident that the Machete M6C optimally manages resources without causing additional power demand. This efficiency in standby mode harmonizes with the automatic power-on function, providing seamless integration for the adapter.

What does the signal channel separation measure mean for this adapter?

The channel separation of the Machete M6C is over 80 dB, which means that crosstalk between channels is effectively minimized. This capability ensures a clearer and more precise sound by keeping each audio channel isolated without signal loss. This is particularly important for accurately reproducing stereo and multi-channel sound experiences. High channel separation significantly contributes to improving sound output quality by preventing signal errors or overlaps from adversely affecting the output.

What current does the REM OUT output provide on the Machete M6C?

The REM OUT output of the Machete M6C provides a current of 12V at more than 1A, which is sufficient to reliably power on the amplifier. This current ensures that connected devices are activated without delay and with adequate power. Interference-free operation of the amplifier is guaranteed, as the necessary starting energy is supplied by the REM OUT. Especially with high-power amplifiers, it is crucial that the remote output meets these power requirements to ensure functionality and quality of audio playback.
