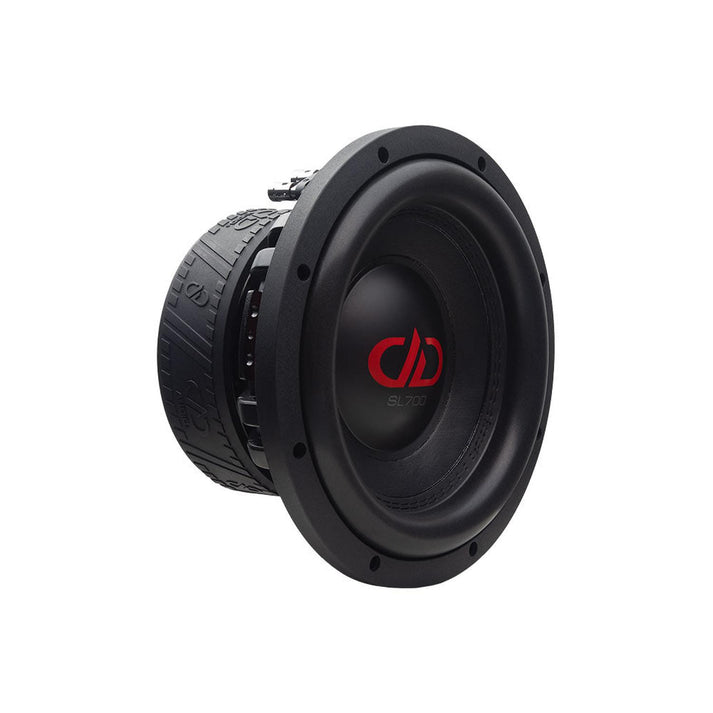

DD Audio SL710 10" (25cm) Subwoofer
1000 Watt
DD Audio

SL710

10" (25cm) Subwoofer

Technical Highlights

  • Power 1000 Watt RMS, impedance D2 or D4, 3-inch voice coil.
  • Frequency range 30-300 Hz, Xmax 19mm, sound-focused subwoofer.
  • Compact 10-inch size, Vas 11.5 liters, for small enclosures.
  • More technical details
€229,00
€229,00 €229,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Impedance: D2 (2x2 Ohm)
Delivery
Apr 12, - Apr 17,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €19,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
DD Audio-SL710-10" (25cm) Subwoofer-masori-kaufen
€229,00
€229,00 €229,00

SL710 by DD Audio

The SL710 from DD Audio is a 10-inch Subwoofer with a nominal power handling of 1000 Watts RMS. The technical features include a 3-inch voice coil, dual-layer spiders, and highly compressed EROM surrounds. The Subwoofer is equipped with rigid cones of low mass and a highly efficient motor integrated into a flat cast frame. The frequency range is focused on a range of 30 to 300 Hz. The model is designed for operation in compact sealed or ported enclosures and is available in impedance variants D2 and D4. The construction is based on the tradition of the DD9000 and DD4500 series.

Features
  • 10-inch (25 cm) Subwoofer
  • Power: 1000 Watts RMS
  • Impedance: D2 or D4
  • 3-inch voice coil
  • Flat cast frame
  • Dual-layer spiders
  • Highly compressed EROM surrounds
  • Rigid cones of low mass
  • High-energy motor
Technical Specifications
  • Diaphragm diameter: 254 mm
  • Resonance frequency (Fs): 41 Hz
  • Qms: 6.1
  • Qes: 0.63
  • Qts: 0.57
  • Vas: 11.5 liters
  • Xmech: 40 mm
  • Xmax: 19 mm
  • Frame outer diameter: 261 mm
  • Frame outer diameter with gasket: 264 mm
  • Mounting diameter: 238 mm
  • Mounting depth: 127 mm
  • Motor diameter: 170 mm
  • Motor depth: 63.5 mm
  • Woofer displacement: 1.7 liters
  • Sealed enclosure: 14.2 – 28.3 liters
  • Ported enclosure: 14.2 – 25.4 liters

Your benefits at Masori

Frequently Asked Questions about SL710

What are the power specifications of the DD Audio SL710 Subwoofer?

The DD Audio SL710 Subwoofer offers impressive performance with a maximum power handling of 1000 Watts RMS. It features a 3-inch voice coil that ensures strong resonances. The frequency range extends from 30 Hz to 300 Hz, making the SL710 ideal for a wide variety of music styles. Its Qts of 0.57 and Fs of 41 Hz represent optimized frequency reproduction, allowing for both deep and precise bass. The maximum mechanical displacement (Xmech) is 40 mm, while the linear displacement (Xmax) is specified at 19 mm.

What are the dimensions of the SL710 and which vehicles is it suitable for?

The DD Audio SL710 is a compact subwoofer with a frame outer diameter of 10.25 inches (261 mm) and a mounting depth of 5 inches (127 mm). Its mounting diameter is 9.375 inches (238 mm). This subwoofer easily fits into various installations and is particularly well-suited for installation in trucks, under or behind seats, as well as motorcycle saddlebags. The compact design and high efficiency of the motor make it ideal for smaller everyday applications or detailed SQ builds in sealed enclosures.

What advantages do the materials used in the SL710 offer?

The DD Audio SL710 utilizes materials specifically chosen for sound precision and durability. The rigid diaphragm is lightweight to ensure quick response, while the heavily compressed, dual-layer spider design provides a stable structure. Additionally, the highly compressed EROM surround ensures uniform displacement without distortion. The 3-inch voice coil allows for efficient and powerful conversion of electrical energy into sound pressure. Together, these materials enable the SL710 to produce powerful and precise low frequencies in a variety of acoustic environments.

How is the SL710 acoustically tuned?

The SL710 from DD Audio is acoustically tuned to provide optimal performance in a frequency range of 30 Hz to 300 Hz. This has been achieved through the combination of a strong motor and an optimally sized enclosure design. With a Qms of 6.1 and a Qes of 0.63, the SL710 has a balanced Qts of 0.57, allowing for accurate and deep bass reproduction. The Vas value of 11.5 liters supports this by optimizing the volume that the Subwoofer uses for air movement, leading to improved sound precision.

What enclosure configurations are suitable for the SL710?

The DD Audio SL710 Subwoofer is flexible in enclosure configuration and is suitable for both sealed and bass reflex enclosures. For sealed enclosures, the manufacturer recommends a volume of 0.5 to 1 cubic foot (approximately 14.2 to 28.3 liters), while for bass reflex enclosures, a volume of 0.5 to 1.25 cubic feet (about 14.2 to 25.4 liters) is appropriate. These configurations support the optimal function of the Subwoofer by controlling air circulation and pressure equalization, resulting in improved bass reproduction and sound depth.

How is the SL710 integrated into an existing audio system?

For the integration of the DD Audio SL710 into an existing audio system, several technical aspects must be considered. First, it must be ensured that the impedance of the Subwoofer – the SL710 is available in D2 and D4 – is compatible with the Amplifier. The connection terminals should be wired correctly to avoid power losses. Installing it in a suitable enclosure with the appropriate volume dimensions is crucial for the performance of the Subwoofer. The positioning within the vehicle or room can also significantly affect the sound characteristics. Suitable locations are spacious enough and have no obstacles for sound waves.

What can the SL710 impress with in terms of bass reproduction?

The SL710 from DD Audio impresses in the area of bass reproduction with its ability to reproduce deep and powerful bass with a clear resonance from 30 to 300 Hz. With the high-energy 3-inch voice coil, it can generate impressive sound pressure levels. The maximum values for mechanical displacement (Xmech) of 40 mm and linear displacement (Xmax) of 19 mm contribute to dynamic and precise bass reproduction. Especially if you enjoy listening to music loudly, the combination of Qms of 6.1 and Qes of 0.63 will provide differentiated and deep sounds without distortion.

What differences do the DL710-D2 and DL710-D4 variations have?

The main differences between the SL710-D2 and SL710-D4 variants of the DD Audio Subwoofer lie in their impedance. The SL710-D2 Subwoofer has a dual voice coil with an impedance of 2 Ohms, while the D4 version offers a dual voice coil with 4 Ohms. These different impedances allow the systems to be wired according to the requirements of the Amplifier and the overall impedance of the sound system. Both versions share the same physical and acoustic parameters, such as an RMS power of 1000 Watts and a 3-inch voice coil, and excel in reproducing low frequencies.

What technical features enhance the sound of the SL710?

The technical features of the DD Audio SL710 that enhance its sound include a series of thoughtful design decisions. Starting with the diaphragm construction, which is optimized for maximum stiffness at minimal weight, through the highly compressed EROM surround that allows for precise displacement, to the dual-layer spiders that ensure stable movement of the diaphragm. The woofer is equipped for both sealed and bass reflex enclosures and optimally utilizes the Vas values of 11.5 liters at specific volumes. All these features work together to ensure a detailed sound profile with dynamic bass tones.

What acoustic advantages does the SL700 series offer over others?

The SL700 series from DD Audio, which includes the SL710, offers special acoustic advantages through its historical design inspired by classic models from the 2000s. This series is designed to efficiently reproduce all types of music while being space-saving. The optimized frequency range of 30 to 300 Hz allows for outstanding bass precision within compact spaces. The integration of rigid cones with low mass and high-energy motors, along with the 3-inch voice coil, enables fast and deep bass reproduction that meets the demands of even the most challenging musical pieces and performs well in various acoustic environments.
