  3. Rage 3500
B2 Audio Rage 3500 1-Channel Amplifier
SKU:  RAGE-3500
3500 Watt

Rage 3500

SKU:  RAGE-3500

Technical Highlights

  • RMS power: 4 Ohm 1200 W, 2 Ohm 2150 W, 1 Ohm 3500 W.
    Impedance: 4, 2, and 1 Ohm, Frequency response: 10 Hz – 20 kHz.
    Signal-to-noise ratio: > 90 dB, fuse rating: 250 A.
  • More technical details
€499,00
€499,00 €499,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 16, - Jun 20,
at your door in 4–8 days This item isn't in stock right now. We'll ship it within the stated delivery time.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
B2 Audio-Rage 3500-1-Kanal Verstärker-masori-kaufen
€499,00
€499,00 €499,00

Compatible with Rage 3500

  • Four Connect-4-600431 20mm²-70mm² ANL Spritzwassergeschützt-Sicherungshalter-masori-kaufen Four Connect-4-600431 20mm²-70mm² ANL Spritzwassergeschützt-Sicherungshalter-masori-kaufen

    4-600431 20mm²-70mm² ANL Splashproof

    Four Connect
    €19,90
    €19,90 €19,90
    Delivery
    Jun 17, - Jun 22,
  • Four Connect-Stage3 Kupfer Keramik ANL Sicherung 30-400A-Sicherung-masori-kaufen Four Connect-Stage3 Kupfer Keramik ANL Sicherung 30-400A-Sicherung-masori-kaufen

    Stage3 copper ceramic ANL fuse 30-400A

    Four Connect
    €7,00
    €7,00 €7,00
    In stock
    Jun 13, - Jun 14,
    8 ready to ship now This quantity is ready to ship immediately. If you order more, we'll deliver the additional quantity free of charge within the stated delivery time.
  • The Four Connect Stage2 OFC Flex 50mm² kit includes red, black, gray cables, Mini-ANL fuse holder, corrugated tubing, and connector bag for car amplifiers. The Four Connect Stage2 OFC Flex 50mm² car audio power kit includes a Mini-ANL fuse holder, connectors, and comes in a labeled white and red box.

    Stage2 OFC Flex 50mm²

    Four Connect
    €149,00
    €149,00 €149,00
    Delivery
    Jun 17, - Jun 22,
  • The Four Connect Stage2 5,5m 2-Kanal is a black coiled RCA audio cable with T-OFC conductors and two pairs of male connectors, each marked red and black. Four Connect Stage2 5.5m 2-Kanal coiled black RCA cable with red/black metal-tipped connectors; features dreifach geschirmt T-OFC for high-quality audio.

    Stage2 5.5m 2-channel

    Four Connect
    €26,00
    €26,00 €26,00
    Delivery
    Jun 17, - Jun 22,

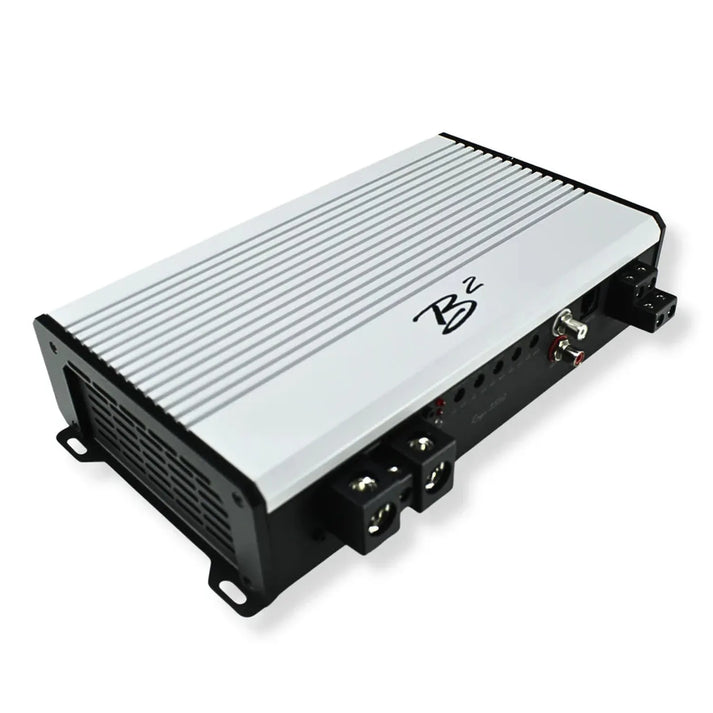

Rage 3500 by B2 Audio

The Rage 3500 from B2 Audio is a 1-Channel Amplifier with an RMS power of up to 3500 Watts at 1 Ohm. Its compact design has dimensions of 292 mm x 184 mm x 64 mm and weighs 3.3 kg. The device covers a frequency range of 10 Hz to 20 kHz and achieves a signal-to-noise ratio of over 90 dB. Features include integrated crossovers such as low-pass, high-pass, and a subsonic filter. The bass control is adjustable from 30 to 80 Hz. The power connection is designed for cable cross-sections of 53 mm².

Features
  • 1-Channel Amplifier
  • RMS power at 4 Ohm: 1050 W – 1200 W
  • RMS power at 2 Ohm: 1850 W – 2150 W
  • RMS power at 1 Ohm: 3000 W – 3500 W
  • Compact housing design
  • Signal-to-noise ratio: > 90 dB
  • Input sensitivity: 6 V – 0.2 V
  • Power connection: 53 mm²
  • Fuse rating: 250 A
  • Bass control: 30 – 80 Hz
Technical Specifications
  • Frequency response: 10 Hz – 20 kHz
  • Low-pass filter: 50 Hz – 20 kHz
  • High-pass filter: 10 Hz – 2 kHz
  • Subsonic filter: 10 Hz – 2 kHz
  • Length: 292 mm
  • Width: 184 mm
  • Height: 64 mm
  • Weight: 3.3 kg

Your benefits at Masori

Frequently Asked Questions about Rage 3500

What RMS power does the Rage 3500 provide at different ohm values?

The Rage 3500 from B2 Audio demonstrates impressive performance at various ohm values. At 4 ohms, it delivers between 1050 W and 1200 watts of RMS power. If the power demand increases, the amplifier provides an RMS power of 1850 W to 2150 W at 2 ohms. Maximum power is achieved at 1 ohm, where it reaches a robust RMS power of 3000 W to 3500 W. Especially when you want to adjust the power to your needs, the Rage 3500 offers flexibility and strength. Such values are ideal for dynamic music support.

What frequency range does the B2 Audio Rage 3500 cover?

The B2 Audio Rage 3500 covers a very wide range of frequencies. The overall frequency response ranges from 10 Hz to 20 kHz, allowing for very comprehensive coverage. This ensures that both low and high sound components are reproduced with a clarity and precision required for demanding audio applications. Additionally, the amplifier offers flexible control through the integrated crossovers. The low-pass filter allows settings from 50 Hz to 20 kHz, while the high-pass can be adjusted from 10 Hz to 2 kHz. The subsonic filter also operates in the range of 10 Hz to 2 kHz.

What is the signal-to-noise ratio of the Rage 3500?

The signal-to-noise ratio of the B2 Audio Rage 3500 is over 90 dB, indicating high audio quality. In practice, this means that the output of the amplifier occurs with minimal background noise, even at high power amplification. This high ratio value is crucial for crystal-clear sound reproduction, as it reduces annoying noise components and allows for an enhanced dynamic range. Especially in demanding audio setups where playback accuracy is important, this feature proves to be valuable. The high quality of the noise ratio supports detailed and interference-free music playback.

What input voltages does the Rage 3500 support?

The B2 Audio Rage 3500 is designed for a wide range of input voltages between 6 V and 0.2 V. This flexibility in input sensitivity allows for easy adaptation to various source devices and signal strengths. You can work with both powerful preamplifiers and standard speaker units without loss of power. A typical scenario is supplying different signal strengths from various signal sources such as car radios or media players. The adaptability ensures that the amplifier harmonizes optimally with your existing equipment, without sound impairments or distortions.

What are the dimensions and connections of the Rage 3500?

The B2 Audio Rage 3500 has very compact dimensions with a length of 292 mm, a width of 184 mm, and a height of only 64 mm. It weighs 3.3 kg, allowing for easy installation in tight spaces. The amplifier is equipped with a power connection for 53 mm² (0 Gauge) cables and uses a fuse rating of 250 A. This configuration is ideal for ensuring a stable power supply. When installing in a vehicle, it is important to consider the available space to ensure optimal performance and ventilation. Be sure to take these specifications into account during installation.

How can the bass control be adjusted on the Rage 3500?

The bass control of the B2 Audio Rage 3500 can be flexibly adjusted within a range of 30 Hz to 80 Hz. This adjustment option allows you to tailor low-frequency sounds to your individual listening preferences or specific music genres. The bandwidth enables precise tuning of the subwoofer performance in your audio setup. For example, when listening to genre-specific music, you can change the bass intensity accordingly to achieve the desired sound experience. This way, the amplifier can provide optimally tuned low-frequency reproduction for various preferences, whether you prefer strong bass or softer, deeper sounds.

Is the Rage 3500 compatible with my car?

The compatibility of the B2 Audio Rage 3500 largely depends on the installation spaces in your car. Due to its compact dimensions of 292 mm in length, 184 mm in width, and 64 mm in height, it should fit in vehicles that offer sufficient space for such a device. It is lightweight (3.3 kg) and can be installed in a variety of vehicle types. It is important to consider the installation location to ensure both stable mounting and adequate ventilation. Make sure that the available installation space can accommodate a power supply appropriate for the amplifier to minimize performance losses.

What are the fuse requirements for the Rage 3500?

The B2 Audio Rage 3500 requires a fuse rating of 250 A to safely cover its power needs at maximum output. It is crucial to use the correct fuses during installation to protect the amplifier from overload damage. Such a fuse rating is quite high and indicates the potential current draw required at high power. This ensures that the supply remains stable and the amplifier operates reliably. Check the power connections and wiring during installation to ensure they meet the amplifier's requirements.

How do the crossovers of the Rage 3500 adjust the sound reproduction?

The B2 Audio Rage 3500 offers versatile adjustment options with the crossovers. The low-pass filter can control frequencies from 50 Hz to 20 kHz, while the high-pass filter covers a range from 10 Hz to 2 kHz. Additionally, the subsonic filter can be adjusted in the range of 10 Hz to 2 kHz. These diverse control options allow for precise tuning of the frequency ranges to your audio project. For example, if deep tones need to be amplified, the low-pass can be adjusted accordingly. For optimal sound depending on music style or speaker configuration, precise adjustments of the various filters are essential.

What should be considered for the power supply of the Rage 3500?

When powering the B2 Audio Rage 3500, it is important to ensure that the connection is designed for 53 mm² (0 Gauge) cables. This cable gauge is necessary to handle the amplifier's maximum current demand without risking power loss. The large cable cross-section ensures stable power transmission, especially under high power requirements. In practice, inadequate wiring can lead to voltage drops, which can affect overall performance. Therefore, make sure that your power supply is properly sized and suitable for the connection to ensure favorable operating characteristics.
