Xcelsia Competition XXT30W

1 review

50 Watt

Xcelsia Competition XXT30W

1 review

Technical Highlights

  • Power 50 watts RMS, 200 watts MAX, impedance 4 ohms.
  • Sensitivity of 98 dB, installation dimensions 70 mm opening, 45 mm depth.
  • Closed aluminum waveguide, 30 mm SQL tweeter.
  • More technical details
€239.20
-20% €299.00 €239.20
2% discount with credit card
including VAT
Estimated delivery: Sep 18–Sep 25.
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Right for your project?

What does this product offer?

The Xcelsia Competition XXT30W is a Dome Tweeter from Xcelsus with a 30 mm SQL Wave Guide. It is housed in a closed waveguide made of aluminum. The sensitivity is 98 dB with an impedance of 4 Ohms. The power ratings are 50 Watts RMS and 200 Watts MAX. The cutout diameter is 70 mm, and the installation depth is 45 mm. A 6 dB or 12 dB attenuation is...

Will it fit my car?
  • Cutout Diameter: 70 mm

Compare installation dimensions and connections with your car and existing system. Vehicle-specific products may also be limited to certain years or equipment versions.

Which variant do I need?

No other variant is offered for this product. Check your system requirements before buying.

What is included?

The offer is for the named product in the selected variant. The available information does not clearly list all included accessories. Check required accessories with us before buying.

What else do I need?

Check mounting depth, cutout, fixings and connectors. Speaker rings or adapters may be required for your car; tweeters and component systems need suitable crossovers.

What does installation involve?

Effort depends on the car, existing wiring and installation position. A reliable installation time cannot be stated generally. Check connections, mounting and space before buying; use a qualified installer if unsure.

Advice by email

Reply in 1–3 working days · Mon–Fri

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Learn more

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

XcelsusXcelsia Competition XXM650
Two round, black Xcelsus Xcelsia Competition XXM650 car speakers with 6.5 woofers and carbon-glass fiber cones, angled towards each other on a white background.
Xcelsus-Magma 220.4 Black-4-Kanal Verstärker-masori-kaufen
XcelsusMagma 220.4 Black

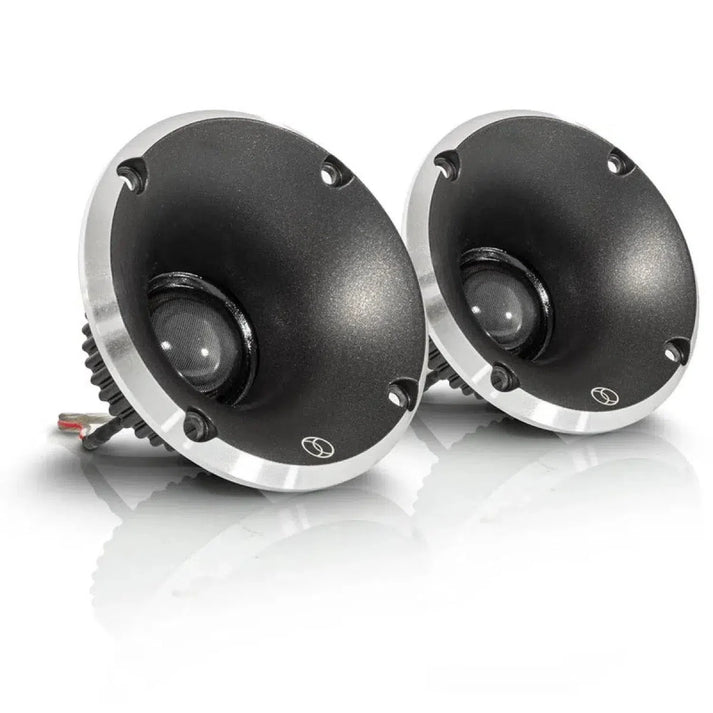

Two black and silver Xcelsus Xcelsia Competition XXT30W tweeters with round openings sit side by side on a white reflective surface.
€239.20
€299.00 €239.20

The Xcelsia Competition XXT30W is a Dome Tweeter from Xcelsus with a 30 mm SQL Wave Guide. It is housed in a closed waveguide made of aluminum. The sensitivity is 98 dB with an impedance of 4 Ohms. The power ratings are 50 Watts RMS and 200 Watts MAX. The cutout diameter is 70 mm, and the installation depth is 45 mm. A 6 dB or 12 dB attenuation is recommended; stronger reductions are not advised.

Features
  • Dome Tweeter
  • 30 mm SQL Wave Guide
  • Closed waveguide made of aluminum
Technical Specifications
  • RMS Power: 50 Watts
  • Maximum Power: 200 Watts
  • Impedance: 4 Ohms
  • Sensitivity: 98 dB
  • Cutout Diameter: 70 mm
  • Installation Depth: 45 mm
  • Recommended Attenuation: 6 dB or 12 dB

Frequently Asked Questions about Xcelsia Competition XXT30W

What is the maximum power of the Xcelsia Competition XXT30W?

The Xcelsia Competition XXT30W offers a robust maximum power of 200 watts. This makes it excellent for use in performance-oriented sound systems where high sound levels are required without distorting the sound. Additionally, its RMS value is rated at 50 watts, allowing for a continuous supply of stable power. These power parameters ensure that the XXT30W maintains its smooth and delicate sound even at high volumes, making it ideal for high-end audio applications.

What is the sensitivity of the Xcelsia Competition XXT30W?

The sensitivity of the Xcelsia Competition XXT30W is an impressive 98 dB. This high sensitivity means that the tweeter is capable of producing a significant sound pressure level even at low input power. This is particularly advantageous in applications where energy efficiency and maximum volume are important. The high sensitivity ensures that nuances in the sound image are particularly well represented, resulting in clear and dynamic sound quality.

For which crossover configurations is the XXT30W suitable?

The XXT30W is designed for both 2-way and 3-way speaker systems and can deliver excellent results in both configurations. Xcelsus recommends a crossover frequency with a 6dB or 12dB slope to achieve the best possible performance. However, a stronger damping is not recommended, as it could negatively affect sound performance. This flexibility in tuning makes the XXT30W highly adaptable to various system requirements.

What are the installation dimensions of the Xcelsia Competition XXT30W?

The Xcelsia Competition XXT30W requires an installation opening of 70 mm and a mounting depth of 45 mm. These dimensions are important to ensure compatibility with various vehicle models and assist in planning the installation. The compactness of the tweeter allows it to be integrated into a variety of installation environments without compromising audio quality. If you are planning to install it in your vehicle, make sure there is enough space for these dimensions.

What is the impedance of the Xcelsia Competition XXT30W?

The Xcelsia Competition XXT30W has an impedance of 4 ohms. This impedance is widely used and ensures that the speaker is compatible with many standard amplifiers. A 4-ohm impedance allows for higher load capacity and can create an excellent power balance between the speaker and the amplifier. This makes it particularly suitable for use in hi-fi and car audio systems, where it can deliver intense audio performance.

What makes the tweeter of the Xcelsia Competition XXT30W special?

The tweeter of the Xcelsia Competition XXT30W stands out particularly due to its Wave Guide construction. With a 30 mm dome tweeter in a closed aluminum waveguide, it optimizes sound radiation and minimizes distortion. The design allows for high sound levels while keeping the sound smooth and delicate. This technology promotes uniformity and precision in the high-frequency range, making it ideal for discerning audio enthusiasts.

What technical features should I pay attention to with the XXT30W?

Several technical features of the XXT30W are outstanding. The power of 50 watts RMS and 200 watts MAX demonstrates its load capacity. The tweeter has a sensitivity of 98 dB, allowing for high level reproduction at low power. Its 4-ohm impedance ensures compatibility with many amplifiers. A waveguide design enhances sound quality. The installation opening of 70 mm and installation depth of 45 mm must be considered during installation. Together, these features provide unparalleled sound performance.

How is the sound quality of the XXT30W in a 2-way system?

In a 2-way system, the Xcelsia Competition XXT30W demonstrates outstanding performance through its ability to utilize low crossover points while ensuring clear, brilliant sound reproduction. The tweeter, supported by its 30 mm waveguide construction, integrates seamlessly with mid-bass drivers, forming a balanced sound image that is suitable for both Hi-Fi enthusiasts and professional audio solutions. Especially if you enjoy listening to music at high volumes, the sound remains natural and uncolored.

How is the XXT30W optimally installed?

When installing the XXT30W, first consider the installation opening of 70 mm and the installation depth of 45 mm. These parameters are crucial for a precise fit. Proper placement helps optimize the radiation of high frequencies, leading to a better sound image. A 6dB or 12dB cut at the crossover is optimal. Avoid stronger damping to not impair the sound characteristics. Good planning in advance facilitates integration into the audio system.

What audio applications are suitable for the XXT30W?

The XXT30W is versatile and is excellent for various audio applications, both in 2-way and 3-way systems. Its high load capacity, excellent sensitivity, and waveguide technology make it the ideal tweeter for high-end home and car audio systems. It is particularly effective when high sound levels are required while still desiring finely tuned sound reproduction. These capabilities make it popular among audiophiles and professional users.
