3. Xcelsus
  5. Magma 220.4 Black

Magma 220.4 Black

300 Watt

Magma 220.4 Black

Technical Highlights

  • Power 4x300W RMS at 2 Ohm, 2x600W RMS at 4 Ohm, Class A/B.
  • Frequency range 10Hz-35kHz, adjustable high or low pass filter.
  • Integrated bass amplification, operating voltage 11-16V, THD 0.01%.
  • More technical details
€359.20
-20% €449.00 €359.20
2% discount with credit card
including VAT
Pre-order now · Dispatch when stock arrives Pre-order · Ships when restocked
This product is currently out of stock at the supplier. As soon as it becomes available again, it will be dispatched to you automatically. We cannot provide an exact delivery date yet.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Delivery & availability

Pre-order: this variant is not currently in our stock. Without a confirmed delivery date we cannot give an exact arrival date. We ship once the goods are available.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

XcelsusXcelsia Competition XXT30W
Two black and silver Xcelsus Xcelsia Competition XXT30W tweeters with round openings sit side by side on a white reflective surface.
Two Xcelsus Magma Ultra SQL XUSM8.2SQL 8 speakers, SoftDome-Horn-Hochtöner tweeters, and crossovers shown on a white background.
XcelsusMagma Ultra SQL XUSM8.2SQL

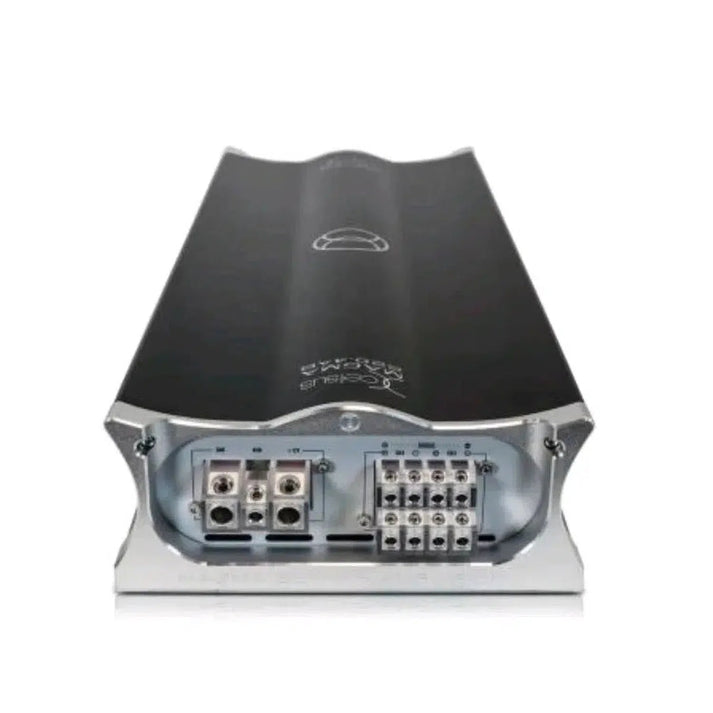

Xcelsus-Magma 220.4 Black-4-Kanal Verstärker-masori-kaufen
€359.20
€449.00 €359.20

More power than Magma 220.4 Black here!

Show all

The Xcelsus Magma 220.4 Black is a 4-Channel Amplifier of Class A/B with a frequency range of 10 Hz to 35 kHz. The output power is 4x220 Watts RMS at 4 Ohms, 4x300 Watts RMS at 2 Ohms, and 2x600 Watts RMS bridged at 4 Ohms. It includes a high-pass filter from 15–4000 Hz, a low-pass filter from 50–4000 Hz, and bass boost. The operating voltage is 11–16 V, the maximum current consumption is 150 A, and the fuse rating is 150 A. A power and ground cable of 35 mm² is recommended. The total harmonic distortion (THD) is 0.01%. The dimensions are 470 x 175 x 70 mm.

Features
  • 4-Channel Amplifier
  • Amplifier Class A/B
  • Frequency Range 10 Hz – 35 kHz
  • Power @ 4 Ohm RMS: 4x220 Watts RMS
  • Power @ 2 Ohm RMS: 4x300 Watts RMS
  • Bridged Power @ 4 Ohm RMS: 2x600 Watts RMS
  • High-Pass Filter 15–4000 Hz
  • Low-Pass Filter 50–4000 Hz
  • Bass Boost
  • Dimensions 470 x 175 x 70 mm
Technical Specifications
  • Operating Voltage 11–16 V
  • Maximum Current Consumption 150 A
  • Recommended Power and Ground Cable 35 mm²
  • Fuses 150 A
  • THD 0.01%

Immediately available 4-Channel Amplifier

    Frequently Asked Questions about Magma 220.4 Black

    What power does the Magma 220.4 Black provide at different ohm values?

    The Magma 220.4 Black offers an impressive power of 4x300W RMS at 2 ohms, which is particularly beneficial for high-quality speaker systems. When you operate the amplifier at 4 ohms, you achieve a power of 4x220W RMS. If you want to maximize efficiency, you can also run the amplifier in bridged mode. In this mode, it reaches a power of 2x600W RMS at 4 ohms. This versatile power output ensures that the amplifier is suitable for both normal and more demanding applications.

    How does the Class A/B amplifier affect the sound of the Magma 220.4 Black?

    The Class A/B amplifier of the Magma 220.4 Black offers the ideal compromise between sound quality and efficiency. While Class A is known for excellent signal purity, Class B provides more efficient power usage by only operating when needed. This amplifier combines the best of both worlds by offering low distortion (THD of 0.01%) while still meeting high power demands. This design guarantees a clear and powerful sound that is essential for demanding music listening.

    What frequency ranges does the Magma 220.4 Black cover?

    The Magma 220.4 Black covers an extremely wide frequency range from 10Hz to 35kHz. This means that both very deep bass and very high frequencies can be reproduced with exceptional precision. The high-pass filter can be set between 15Hz and 4000Hz, which is particularly useful for versatile applications. The low-pass filter with a range of 50Hz to 4000Hz allows for the elimination of excess frequencies to further optimize sound quality. This broad adaptability allows you to shape the sound profile exactly to your preferences.

    What role does the adjustable bass amplifier of the Magma 220.4 Black play?

    The adjustable bass amplifier in the Magma 220.4 Black allows you to specifically enhance the bass levels to suit your personal preferences or the acoustic conditions of your vehicle. With targeted bass boost, you can experience a full bass sound at lower volumes or make the low-frequency range even more impressive at high volumes. This is especially useful if you prefer music genres that rely heavily on bass frequencies. This feature provides the amplifier with flexibility for individual sound needs.

    What recommendations are there for installing the Magma 220.4 Black?

    When installing the Magma 220.4 Black, it is important to consider the dimensions of 470 x 175 x 70 mm to ensure that the amplifier fits optimally in your vehicle. For power supply, a cable cross-section of 35mm2 in conjunction with a 150A fuse is recommended to ensure stable operation. The operating voltage of 11V to 16V should always be maintained to ensure full performance. It is advisable to install the amplifier in a well-ventilated area to avoid overheating.

    How can the Magma 220.4 Black be optimally integrated into a car audio system?

    To effectively integrate the Magma 220.4 Black into a car audio system, you should fully utilize the available adjustment options such as high-pass and low-pass filters as well as bass boost. By connecting the appropriate speakers to the four channel outputs of the amplifier, you can operate both front and rear speakers. The flexible bridging allows for the operation of more powerful subwoofers. Make sure that the total connections and resistances are operated within specification to optimally utilize the functions of the amplifier.

    How does Total Harmonic Distortion (THD) affect the sound of the Magma 220.4 Black?

    The Magma 220.4 Black has a very low Total Harmonic Distortion (THD) of 0.01%, which means that the distortion in the output signal is minimal. This is crucial for the clean reproduction of music, as there are no perceptible sound distortions that could affect the listening quality. The low THD value ensures that the Amplifier maintains a crystal-clear sound even at high power output. This is particularly advantageous for live concert recordings or genres with clearly defined volume levels.

    What are the power requirements for the Magma 220.4 Black?

    The Magma 220.4 Black requires an operating voltage between 11V and 16V to function optimally. The maximum current consumption of 150A should be considered in the planning of the power supply to ensure smooth and consistent operation. Therefore, a Power Cable with a cross-section of 35mm2 is recommended, as well as a corresponding Fuse of 150A, to prevent damage and ensure the safety of the system. A well-dimensioned power supply contributes to the stability and longevity of the Amplifier.

    What adjustment options does the Magma 220.4 Black offer for high-pass and low-pass filters?

    The Magma 220.4 Black offers versatile high-pass and low-pass filters that can be individually adjusted. The high-pass filter covers a range from 15Hz to 4000Hz, which can be particularly beneficial for excluding low frequencies to optimize the performance of the Tweeters. The low-pass filter, with a range of 50Hz to 4000Hz, is useful for removing higher frequencies from the signal that are not needed by low speakers. These precise settings allow for fine-tuning for a balanced sound image in the vehicle.

    How compatible is the Magma 220.4 Black with different vehicles?

    The Magma 220.4 Black has compact dimensions of 470 x 175 x 70 mm, making it compatible with a variety of vehicle models. Its size allows it to be installed in most cars, SUVs, and even some smaller vehicles. The flexible power output and the ability to operate it in bridged mode make it easy to combine with existing audio equipment. This way, it can be used in both standard setups and special tuning projects, ensuring a wide range of usability.
