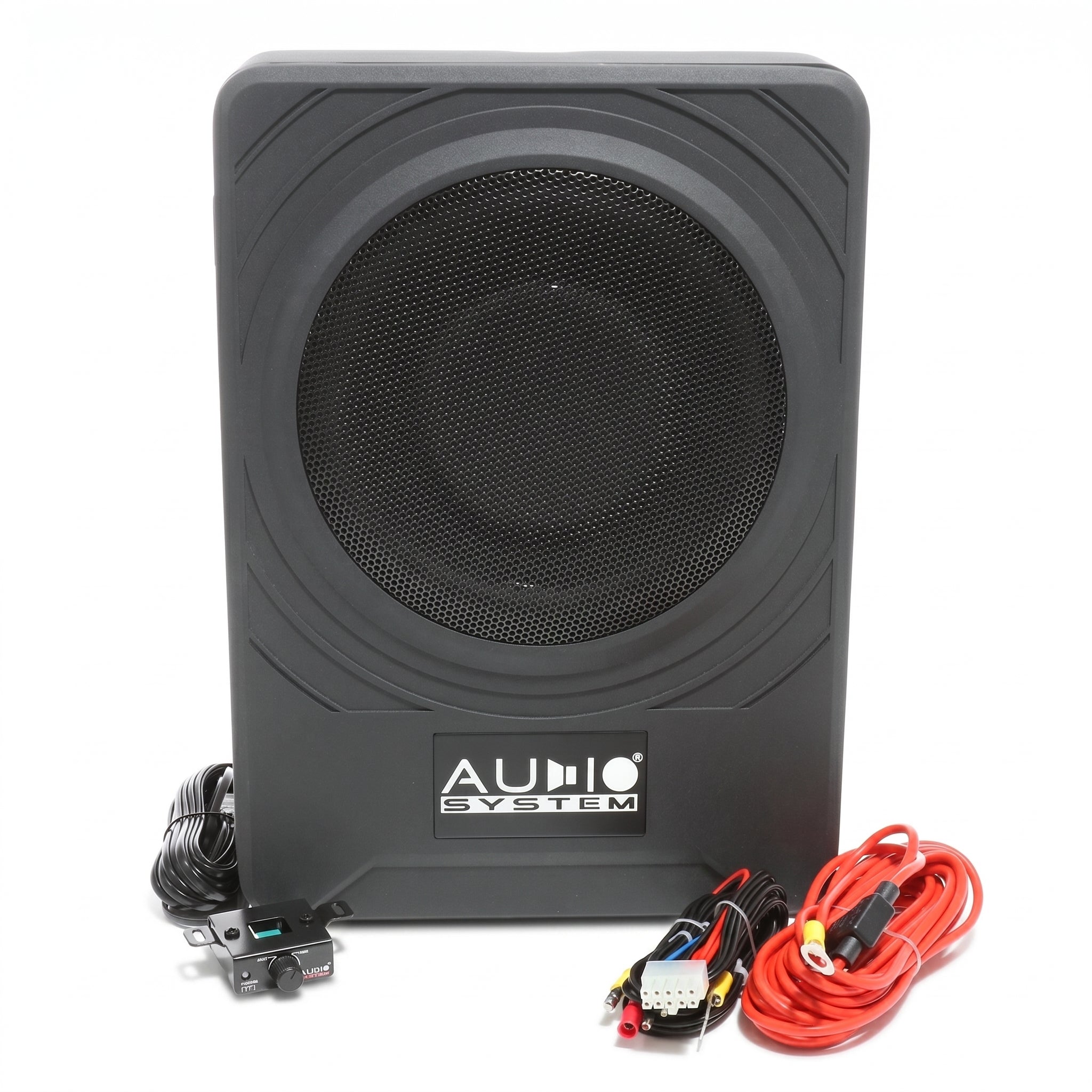

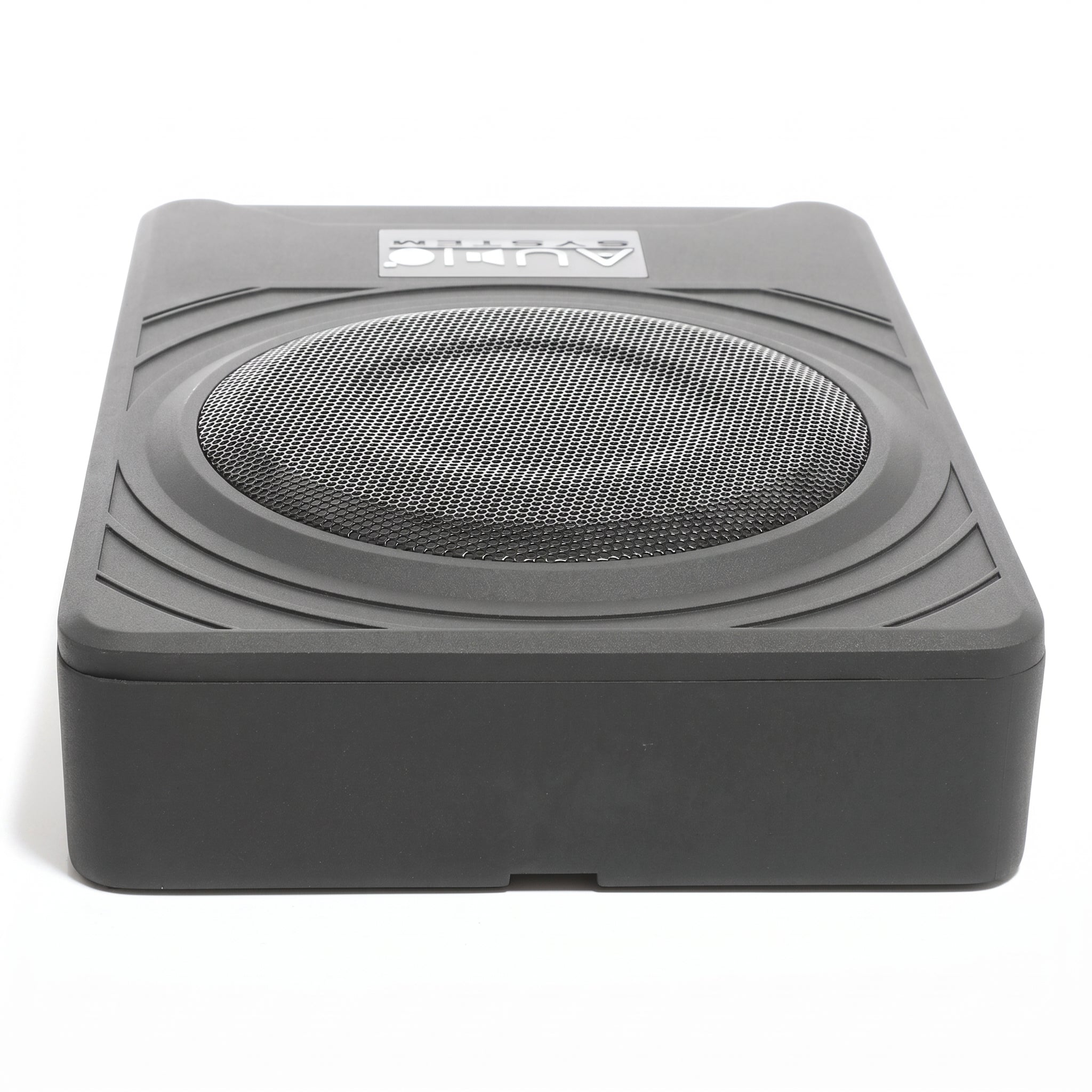

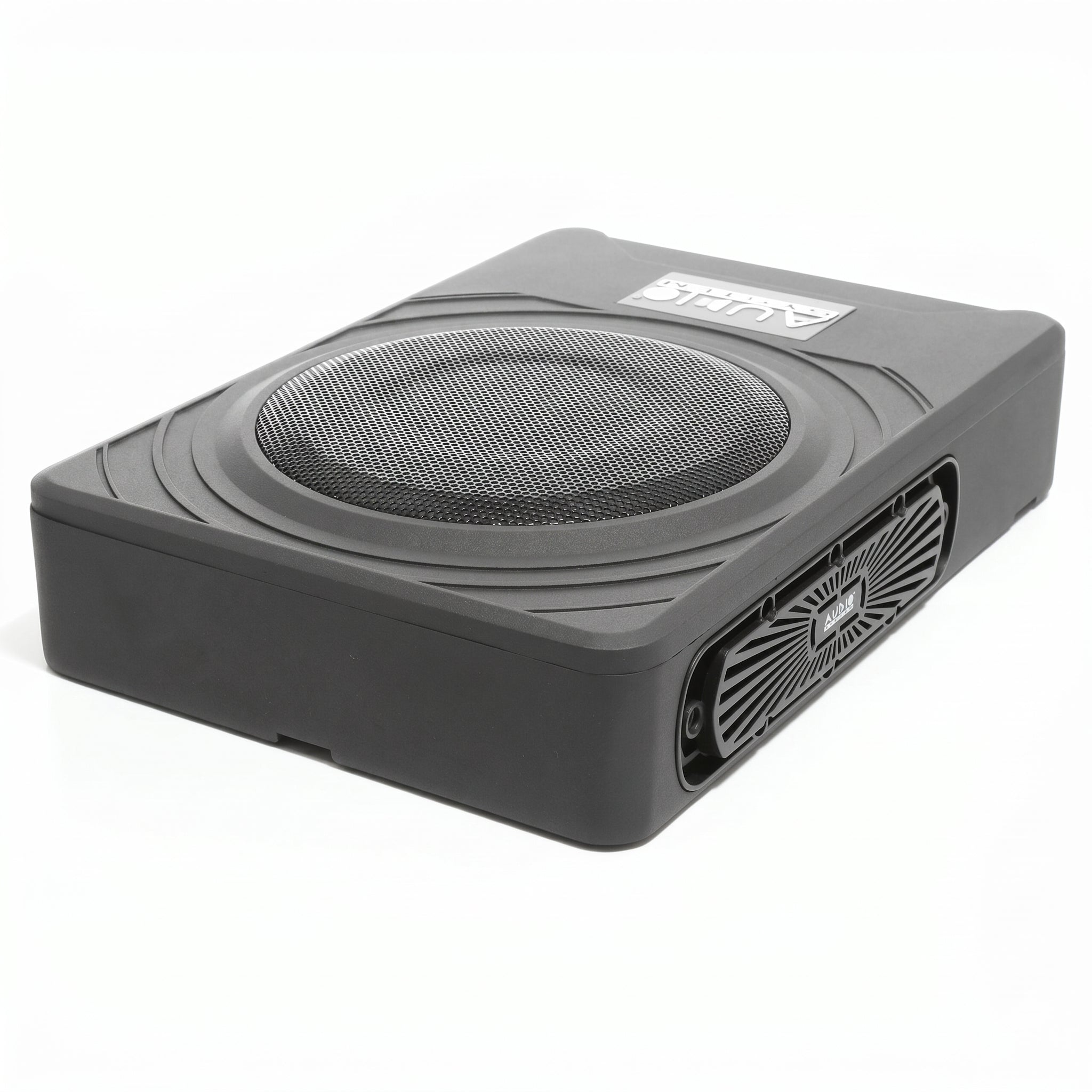

Audio System US08 Active EVO 8" (20cm) Active Enclosed Subwoofer
SKU:  US08-ACTIVE-EVO
EAN:  4251834507685

US08 Active EVO

SKU:  US08-ACTIVE-EVO
EAN:  4251834507685

Technical Highlights

  • Convincing sound with 275/225 watts, impedance of 2 ohms.
  • Heavy 6.5 kg die-cast housing, two passive membranes.
  • Special clipping circuit, bass boost up to 18 dB at 50 Hz.
  • More technical details
00 d
00 h
00 m
00 s
€324,00
€325,00 €324,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €27,00 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
HifonicsZeus ZRX200A
Hifonics-Zeus ZRX200A-8" (20cm) Aktiv-Gehäusesubwoofer-masori-kaufen
Hifonics-Vulcan VRX1000A-10" (25cm) Aktiv-Gehäusesubwoofer-masori-kaufen
HifonicsVulcan VRX1000A
Audio System-US08 Active EVO-8" (20cm) Aktiv-Gehäusesubwoofer-masori-kaufen
€324,00
€325,00 €324,00

Compatible with US08 Active EVO

US08 Active EVO by Audio System

US08 Active EVO is a 200 mm active enclosure subwoofer from Audio System. Underseat subwoofer with internal mono amplifier in a 6.5 kg aluminum die-cast housing. Two passive membranes on both sides. Special clipping circuit, bass boost 0–18 dB at 50 Hz and phase shift 0–180°. RCA input or external high-level input with automatic turn on. Includes RTC and original Audio System cable set from PCS AMP. Impedance 2 Ohm. Power 275 watts and 225 watts. Dimensions 345 mm length, 70 mm height, 250 mm depth.

Features
  • 200 mm active enclosure subwoofer
  • Underseat subwoofer with internal mono amplifier
  • Aluminum die-cast housing, 6.5 kg
  • 2x passive membranes on both sides
  • Special clipping circuit
  • RCA input or external high-level input with automatic turn on
  • Includes RTC
  • Includes original Audio System cable set from PCS AMP
Technical Specifications
  • Impedance: 2 Ohm
  • Phase shift: 0–180°
  • Bass boost: 0–18 dB at 50 Hz
  • Power: 275 watts
  • Power: 225 watts
  • Dimensions: 345 mm length, 70 mm height, 250 mm depth

Your benefits at Masori

Audio System US08 Active EVO Datasheet

Open datasheet

Frequently Asked Questions about US08 Active EVO

What size does the US08 Active EVO Subwoofer have?

The US08 Active EVO from Audio System has compact dimensions that make it ideal for use as an under-seat subwoofer. It measures 345 mm in length, 70 mm in height, and 250 mm in depth. These dimensions allow for easy installation in various vehicle types and help optimize valuable space in the interior. Despite its size, it offers impressive sound performance thanks to its robust aluminum die-cast housing, weighing 6.5 kg, while maximizing space-saving potential.

What is the power output of the US08 Active EVO?

The US08 Active EVO has a powerful output capacity of 275 watts maximum and 225 watts RMS. This power allows the subwoofer to produce deep and punchy bass that can significantly enhance the in-car sound experience. The integrated mono amplifier contributes to the efficient amplification of the audio signal, while the subwoofer impedance of 2 ohms ensures optimal compatibility with various audio systems. Loud music enthusiasts will particularly appreciate the extended bass range.

What features contribute to the sound of the US08 Active EVO?

The sound quality of the US08 Active EVO is enriched by several technical refinements. Notable features include the two passive membranes on both sides, which help extend the lower frequency range. Additionally, the subwoofer has a special clipping circuit that minimizes distortion. The bass boost can be adjusted from 0-18 dB at 50 Hz to tailor the low-frequency reproduction to individual preferences. These details allow for personalized settings to meet personal sound preferences.

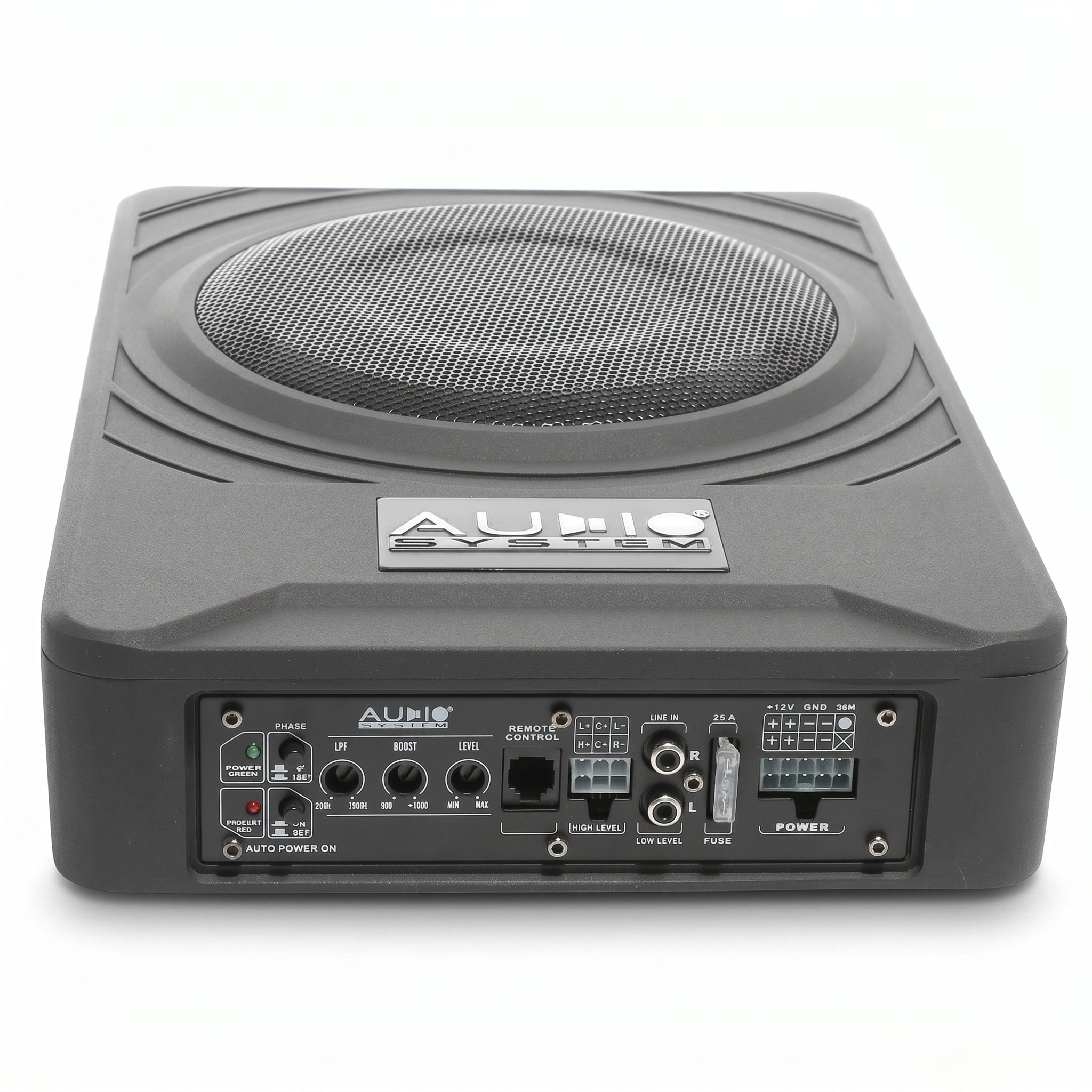

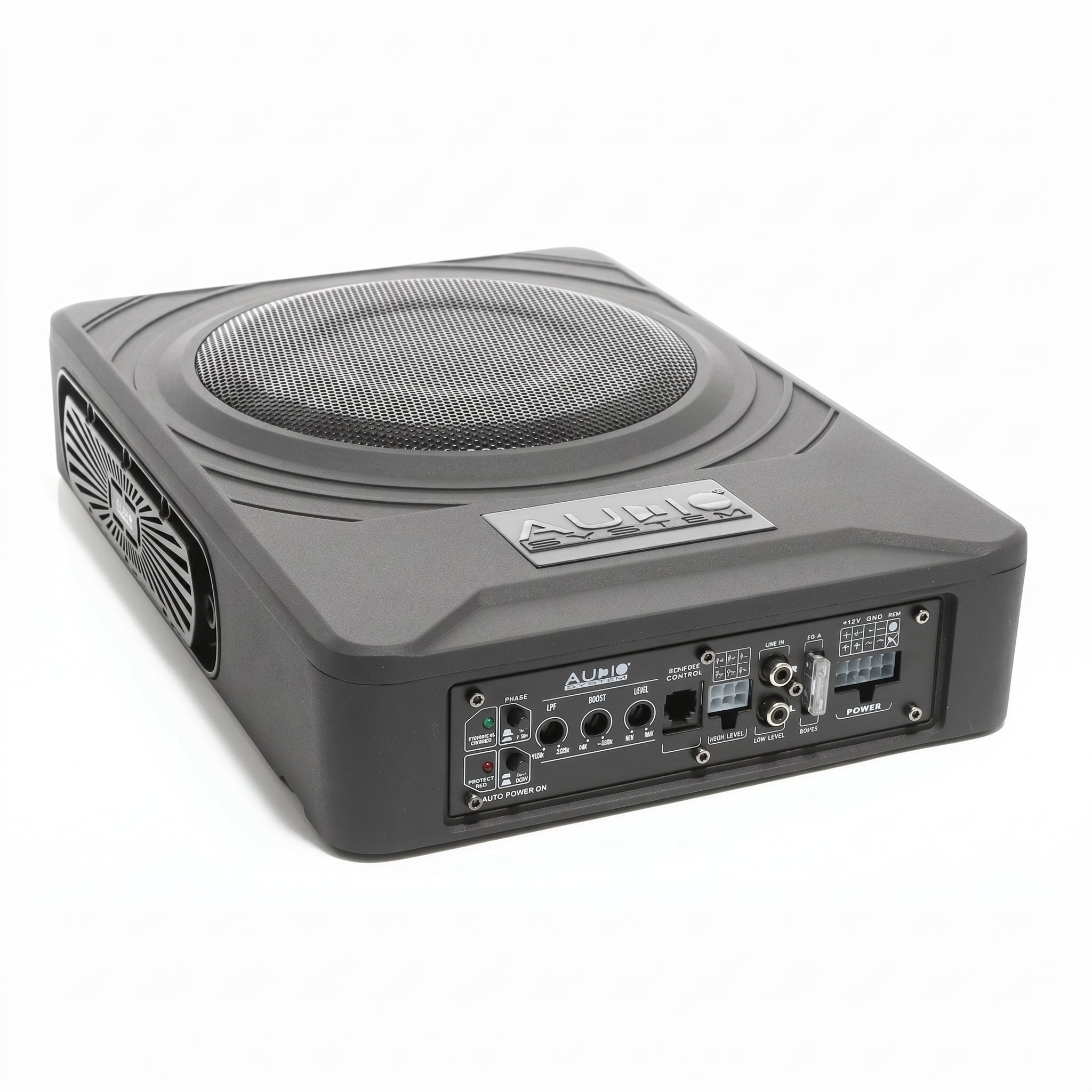

What inputs does the US08 Active EVO offer?

The US08 Active EVO has versatile connection options that allow for flexible integration into existing audio systems. These include an RCA input and an external high-level input with automatic turn-on, ensuring that the subwoofer automatically powers on with audio input. These features make the US08 Active EVO compatible with a variety of car radios and audio systems, facilitating installation and enabling seamless connection to the vehicle.

How does the phase shift work on the US08 Active EVO?

The phase shift function of the US08 Active EVO offers an adjustment range of 0-180°, designed to optimally align the subwoofer with the other speakers in the vehicle. By adjusting the phase shift, the timing offset of the bass signal can be modified to minimize interference and ensure coherent bass reproduction. This function is particularly beneficial when the subwoofer is acoustically combined with other speakers to achieve the best possible sound image.

What role does the aluminum housing play in the US08 Active EVO?

The robust aluminum die-cast housing of the US08 Active EVO is crucial for the sound quality and durability of the Subwoofer. Weighing 6.5 kg, the housing is not only stable but also prevents unwanted vibrations and resonances that could impair sound quality. The material ensures optimal heat dissipation, allowing operation at higher power levels without risking overheating issues. Additionally, it gives the Subwoofer a durable and elegant structure.

How do I install the US08 Active EVO in my car?

Installing the US08 Active EVO is quite straightforward due to its compact dimensions and the included AUDIO SYSTEM cable set. Since the Subwoofer is specifically designed as an under-seat Subwoofer, it can be easily placed under car seats, provided the dimensions of 345 mm x 70 mm x 250 mm fit there. Connection is made through the RCA or high-level input. The automatic turn-on feature also makes usage easier by activating the device automatically as soon as the audio signal is fed into the system.

How does the bass boost of the US08 Active EVO affect sound reproduction?

The US08 Active EVO offers a variable bass boost ranging from 0 to 18 dB at 50 Hz. This feature allows you to enhance the low-frequency reproduction according to your preferences. Specifically designed to emphasize the frequency range, the bass boost provides the opportunity to expand and intensify the listening experience across a diverse range of music genres. This way, you can adjust the bass to your personal listening preference and make the most of the Subwoofer's overall sound richness.

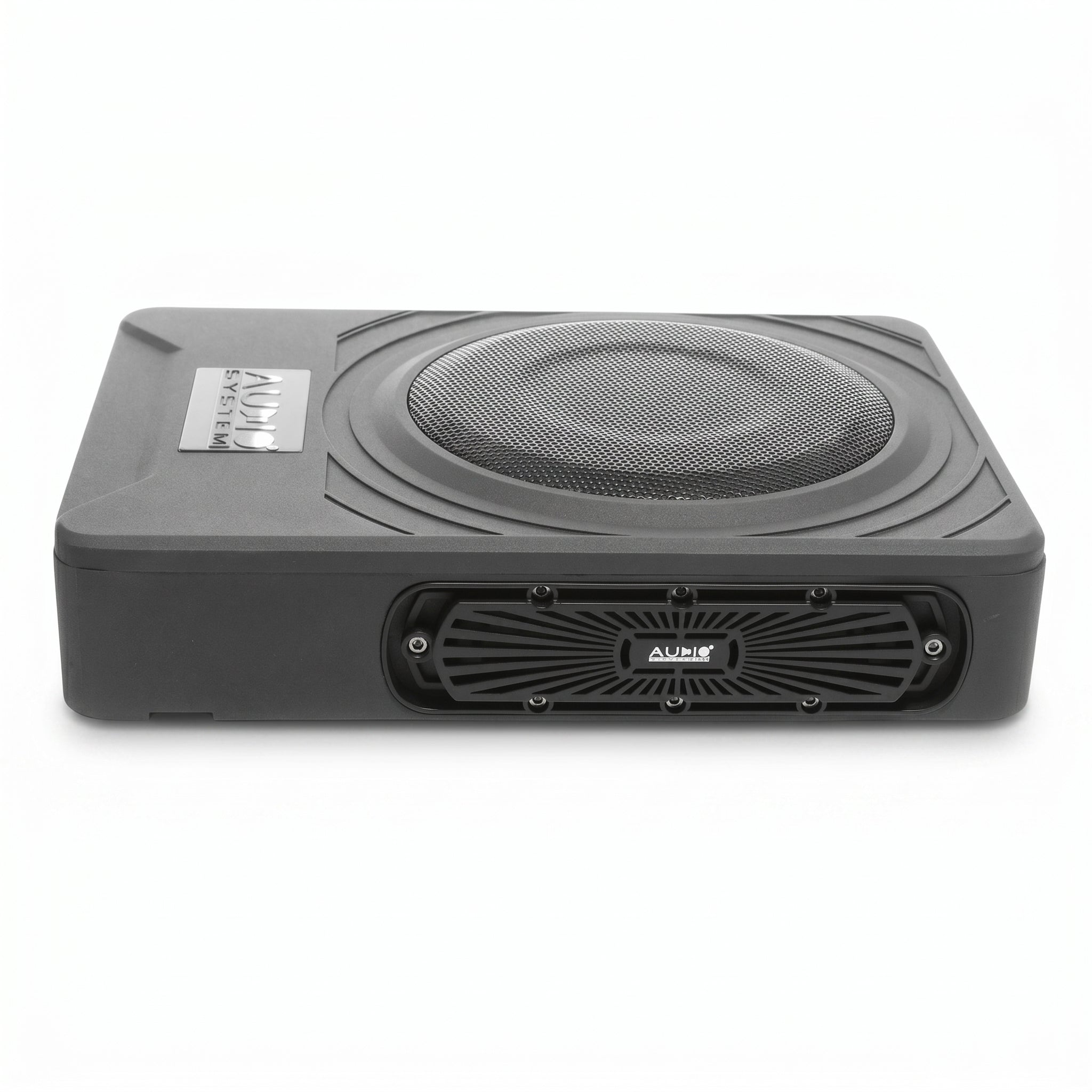

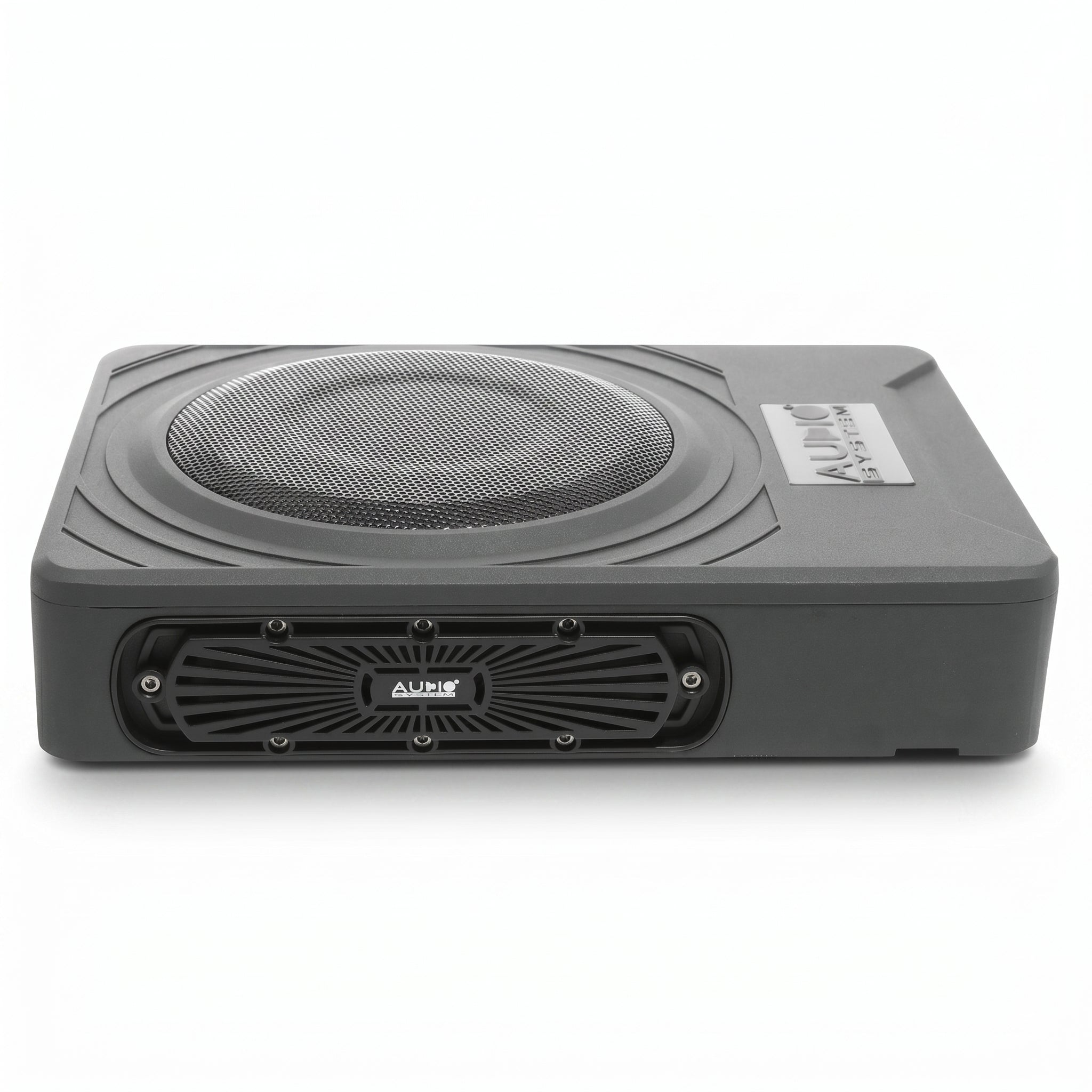

Why are the passive membranes of the US08 Active EVO important?

The two passive membranes of the US08 Active EVO play a vital role in enhancing bass reproduction. These membranes act as resonators that support and extend the low-frequency range without increasing the overall dimensions of the Subwoofer. They utilize the air pressure generated within the housing to make the sound more dynamic and powerful. This concept ensures deeper low-frequency reproduction, which is particularly beneficial for music lovers who prefer a voluminous and rich bass foundation.

What advantages does the automated 'Turn On' feature offer with the US08 Active EVO?

The automated turn-on mechanism of the US08 Active EVO provides a user-friendly solution for activating the Subwoofer. This feature allows the Subwoofer to automatically turn on as soon as an audio signal is received through the high-level input. The advantage of this technology lies in its ease of use, as there is no need to manually activate or deactivate the Subwoofer. Thus, the feature enhances comfort and functionality, especially in complex audio systems that need to start efficiently.
