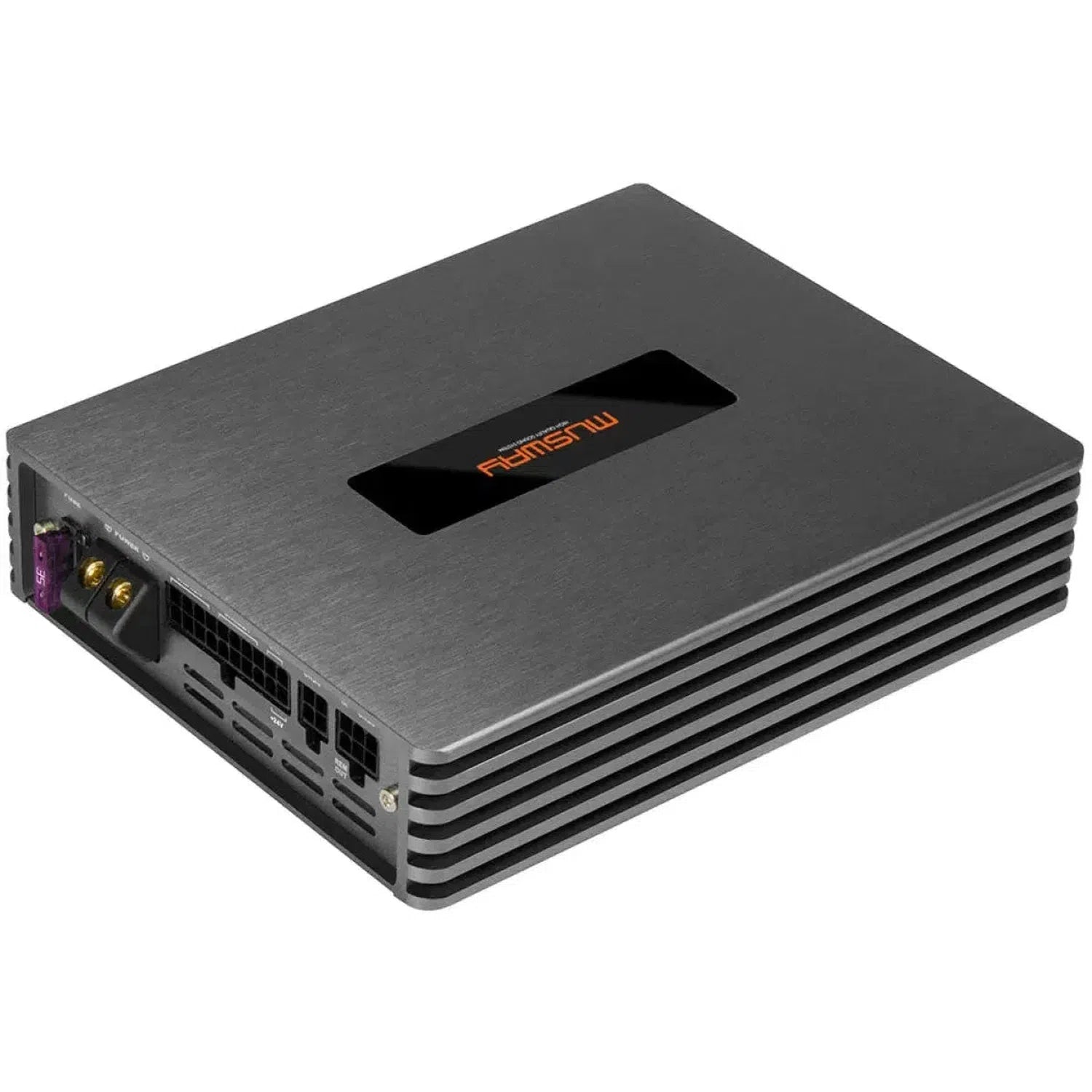

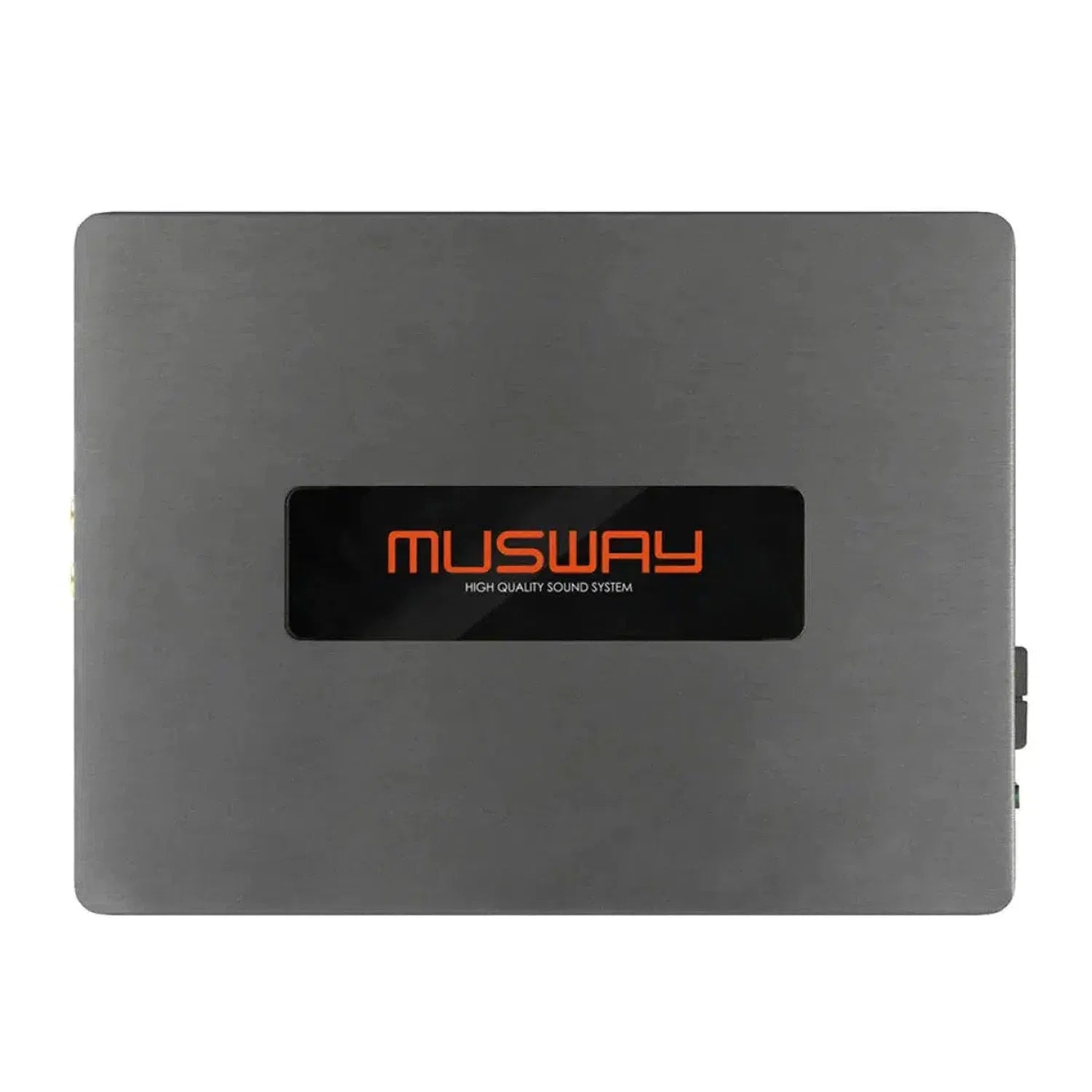

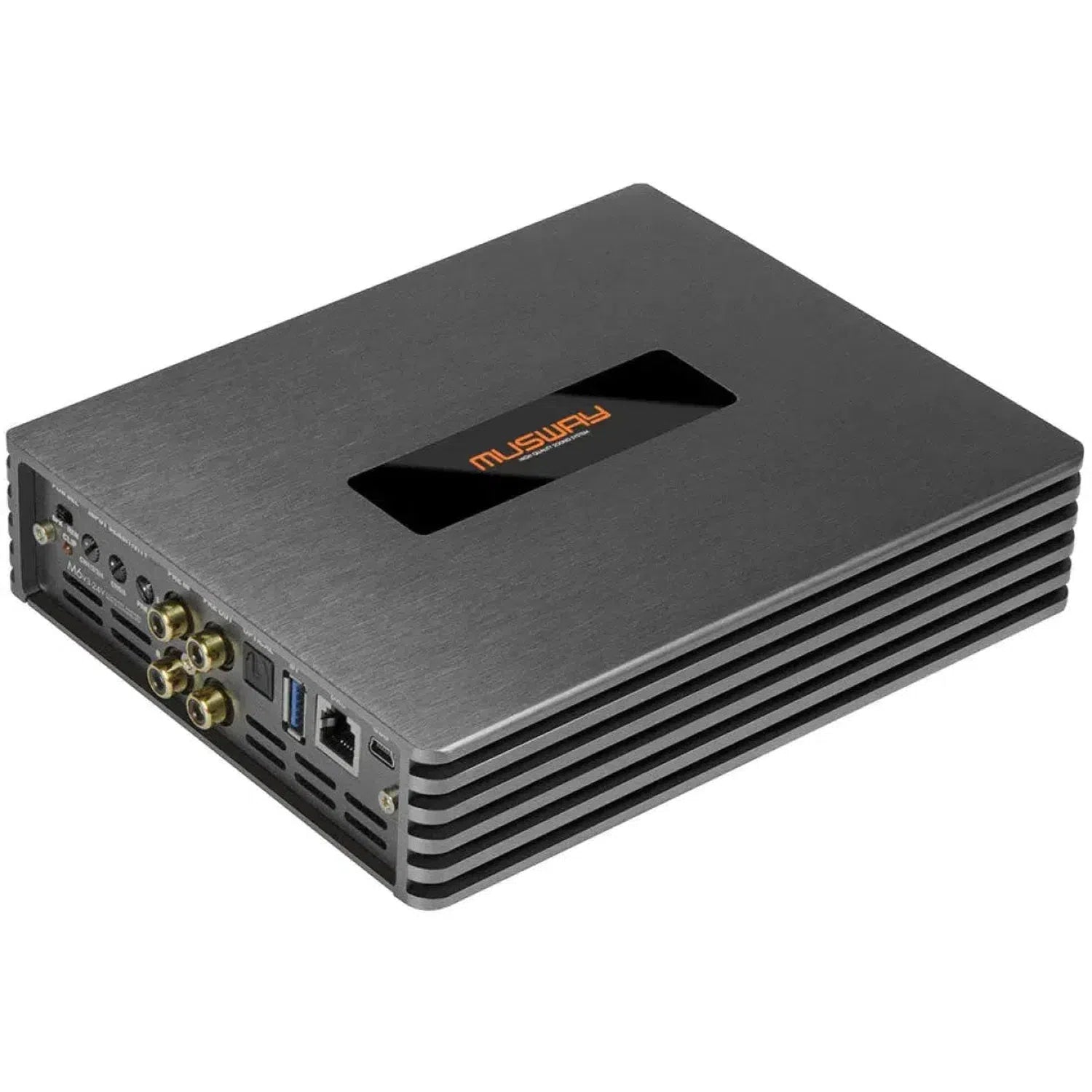

The Musway M6v3-24V is a 6-channel Class-D amplifier with an 8-channel DSP, designed for 24V onboard networks.

The popular M6v3 amp is now also available as a 24V version for trucks and buses. One would hardly suspect that a fully-fledged Class D amplifier is working in the small housing, powering six pairable bridged outputs with 125 watts RMS per channel (at 2 ohms). In total, this provides 750 watts RMS. The compact dimensions are made possible by an elaborate 4-layer laminated circuit board, which also effectively suppresses EMC interference due to its favorable topology - a must for full-range Class D amplifiers.

At the heart of it all is the state-of-the-art DSP chip ADAU1452 from Analog Devices, finely tuned by the MUSWAY engineers, leaving no audiophile wishes unfulfilled. The amplifier connects via a space-saving wiring harness with ISO connectors, and individual plug-and-play cable sets are also available. Meaningful additional features include soft clipping to protect the electronics and the speakers in 2-ohm operation, as well as the newly developed high-level input with error protection system, which prevents any functions from being impaired or error messages from being written to the vehicle's memory when connected to OEM factory radios.

properties

• Intelligent high-level input with EPS (Error Protection System)
• Start-Stop ready, Automatic switch-on function
• Burr-Brown Converter (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 330 MHz DSP technology, controllable via new V3 DSP software and V3 app.
• Soft-Clipping (Power Reduction) in 2 Ohm Operation
• Signal-to-noise ratio ≥90dB, frequency response 15 Hz – 22 kHz (-3dB)
• Crosstalk factor ≤0.1% (1 kHz, 4 Ohm, 90% power)

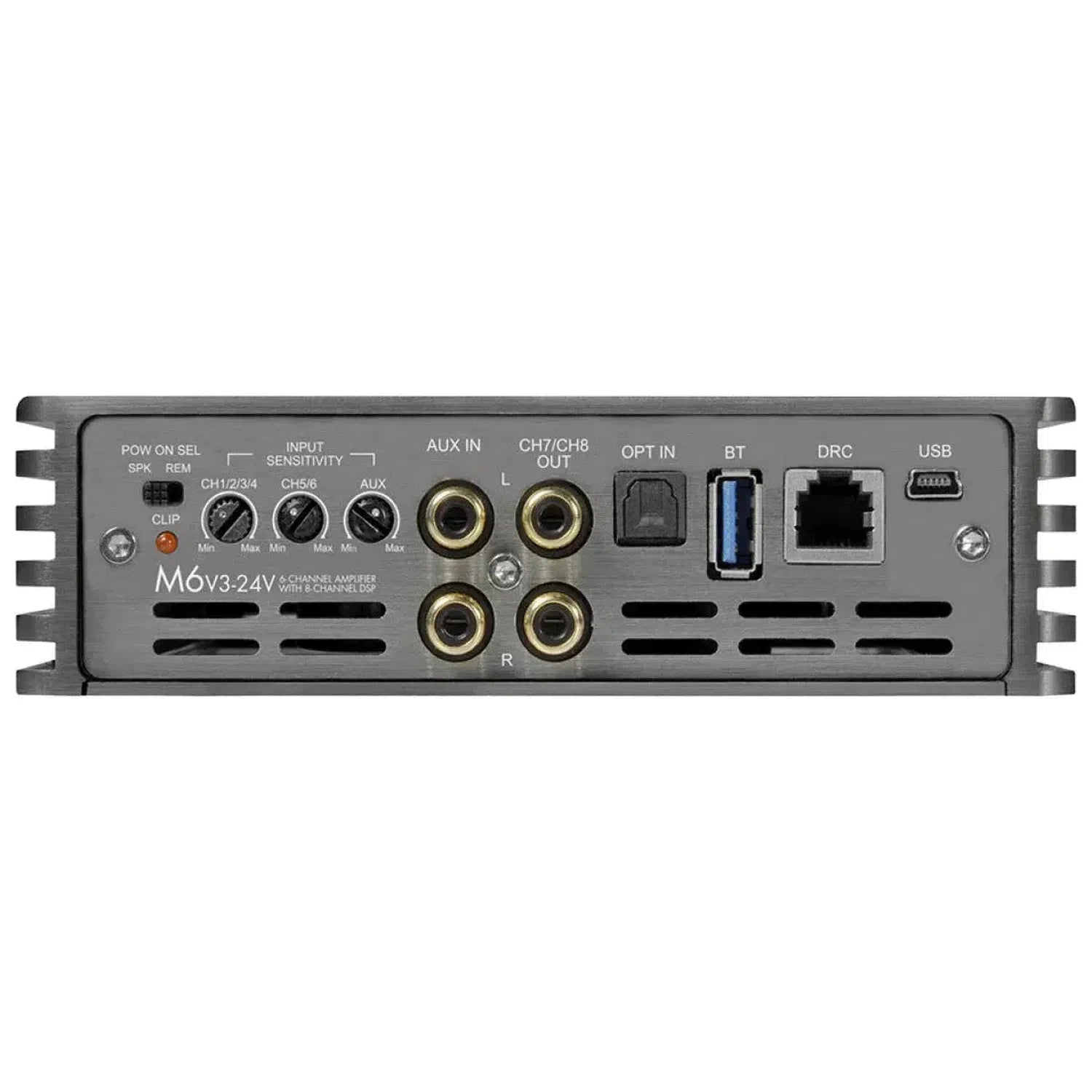

• Independently adjustable input sensitivity (Channel 1-4, Channel 5-6), Clipping LED
• External Bluetooth® USB dongle BTS, BTS-HD & BTA2 for audio streaming & app control (optional)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
• Quick Connect Terminal for Connecting MUSWAY Subwoofer Systems

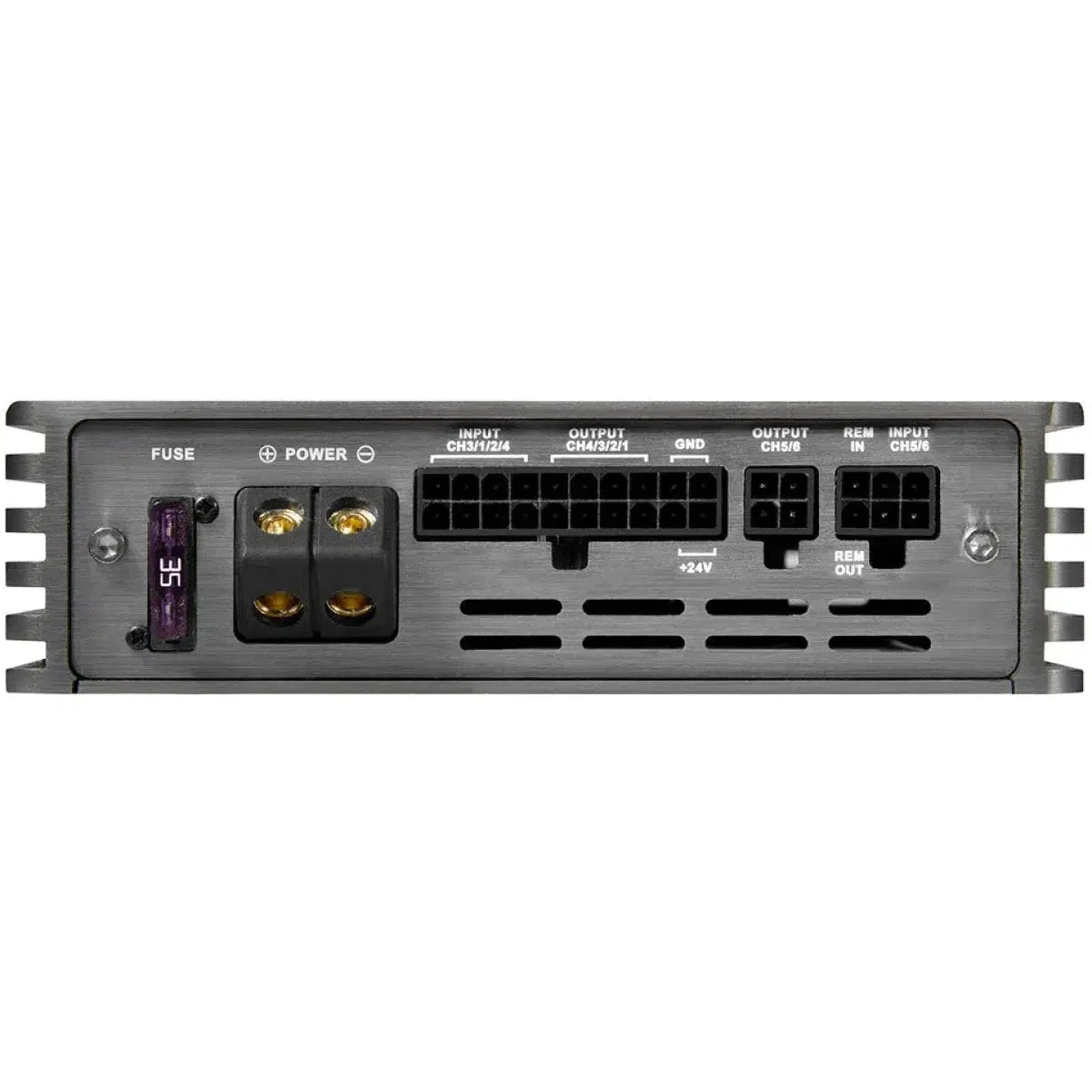

• Cable harness with open ends (ISO cable harness optionally available)

Technical Data

• 6 x 90/125 Watt RMS @ 4/2 Ohm or
• 3 x 250 Watt RMS 4 Ohm bridged
• 6 x high-level input 4.8 – 20 V RMS
• 6 x low-level input* (RCA) 2 – 6 V RMS
• 1 x AUX input/stereo (RCA) 2 – 6 V RMS
• 1 x Optical/Stereo Input (PCM, 96 kHz / 24 bit)
• 6 x amplified speaker output (CH5/6 Quick Connect)
• 2 x preamplifier output (RCA) 4 V RMS
• Dimensions 150 x 44 x 220 mm
• * only with optional MPK-RCA6/MPK-RCA6-PP cable set
