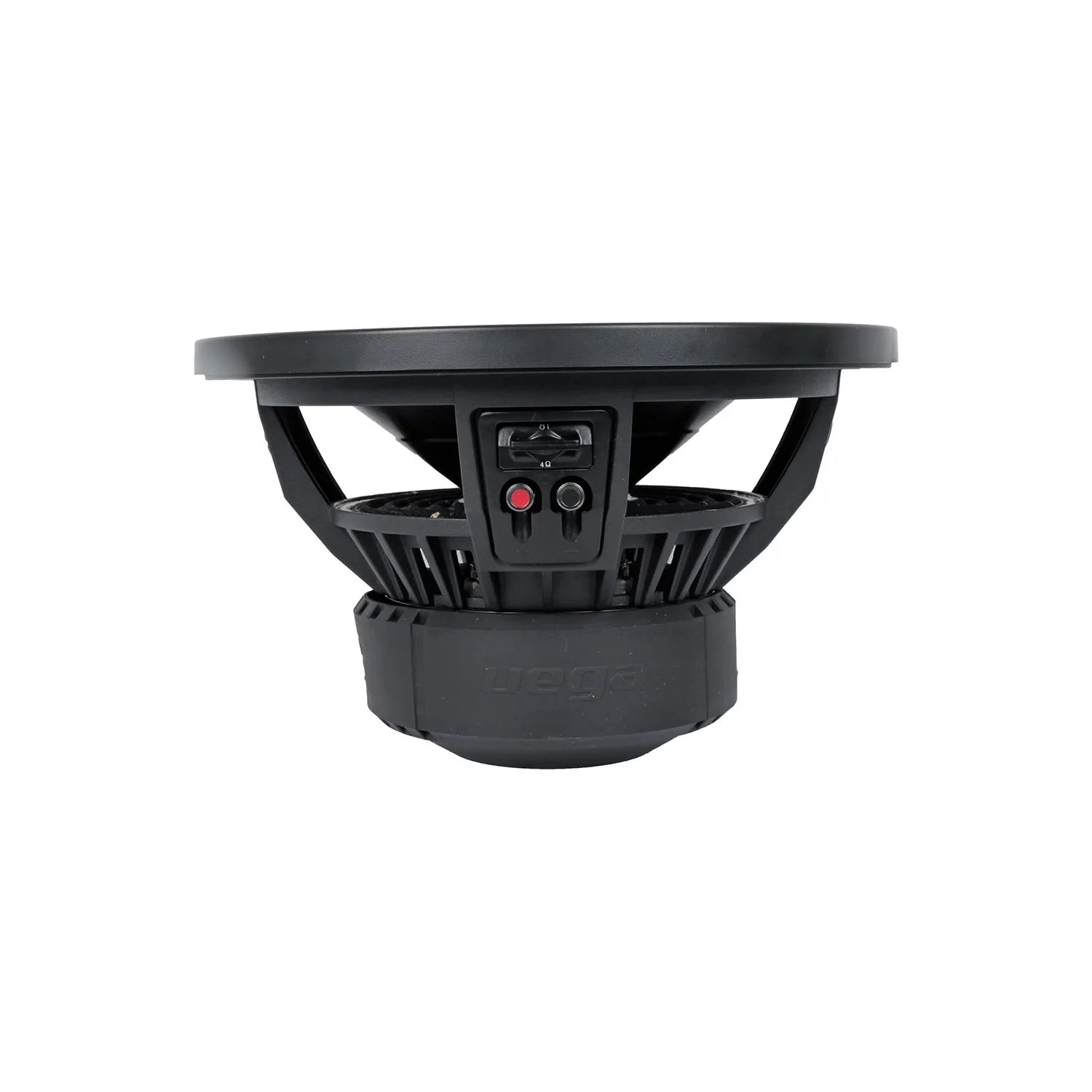

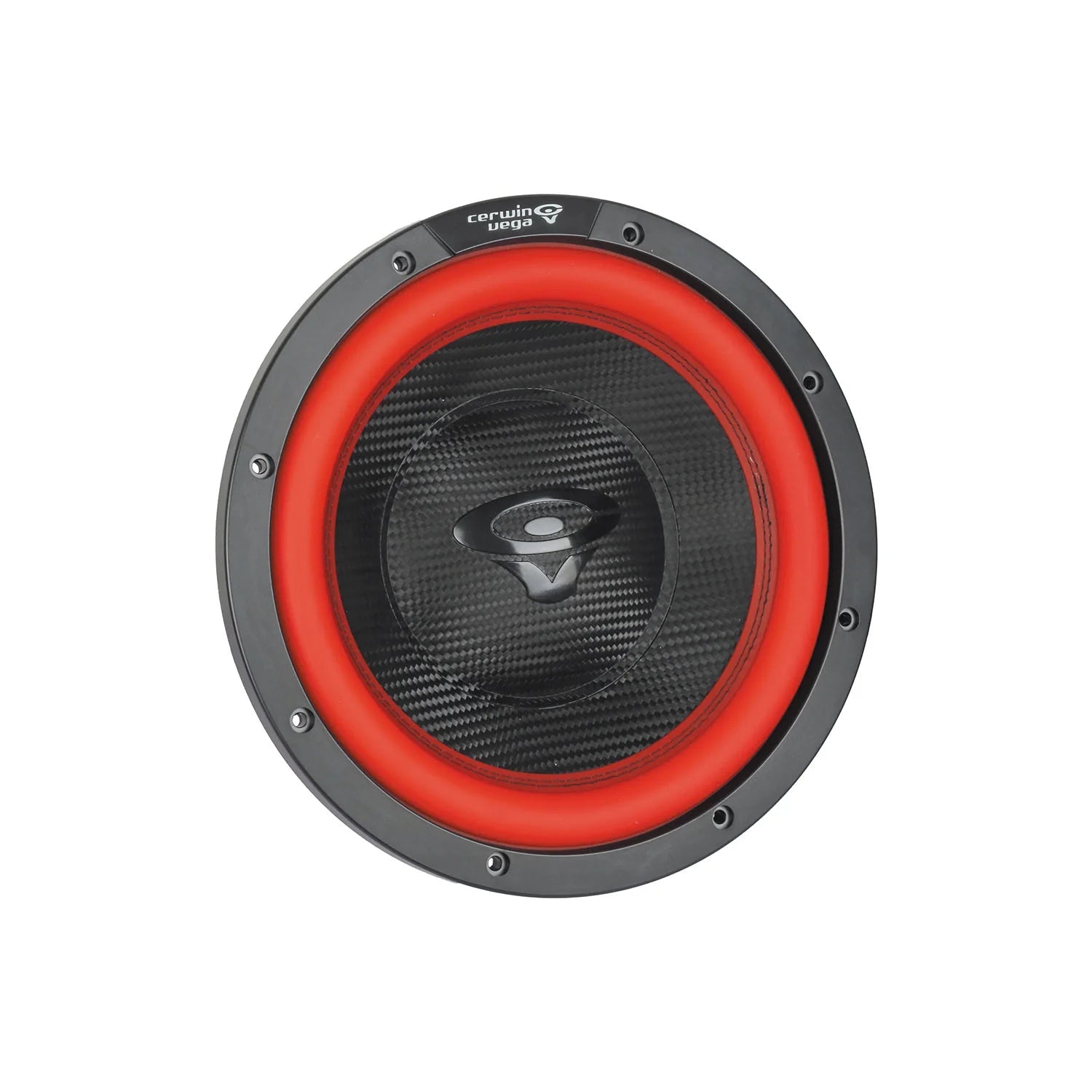

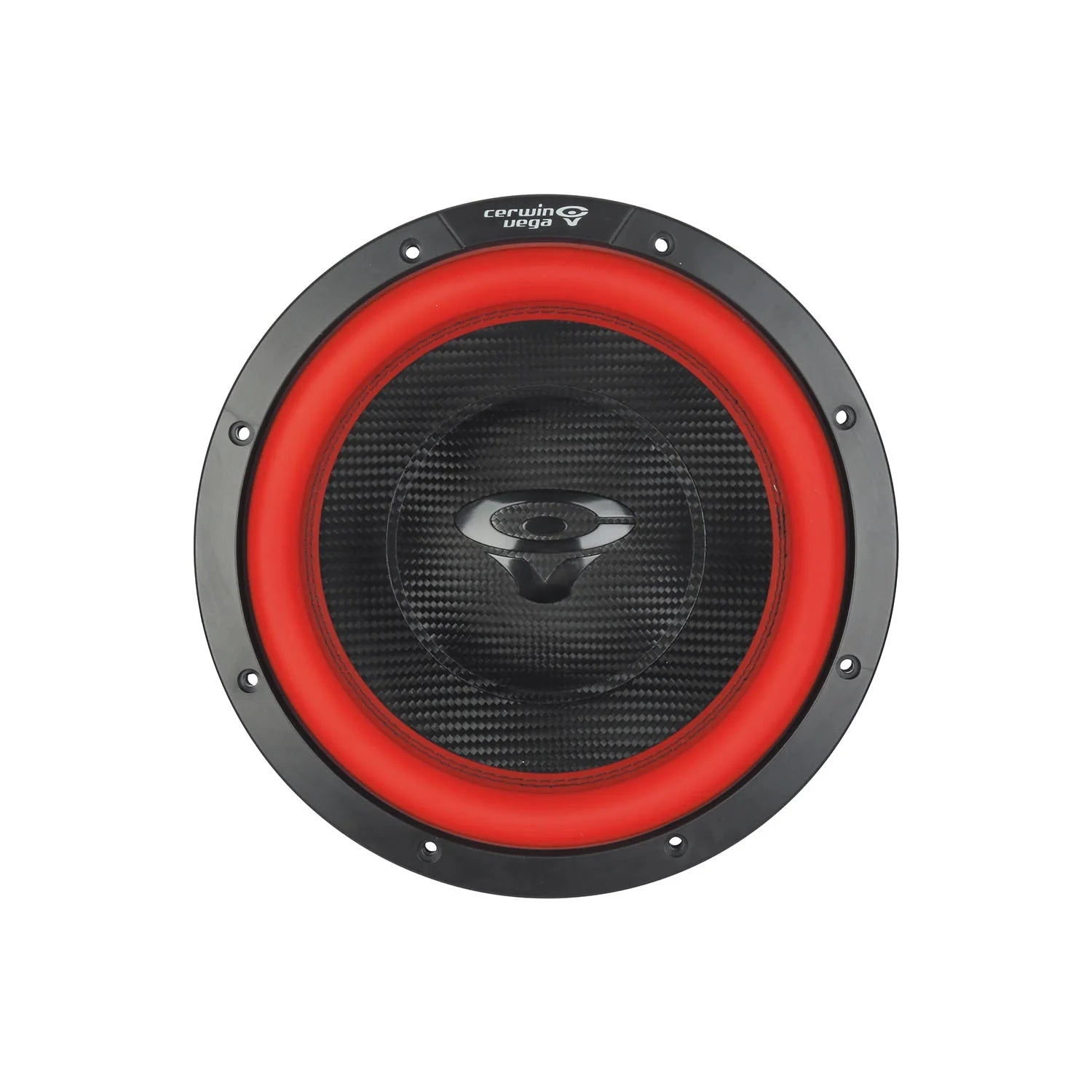

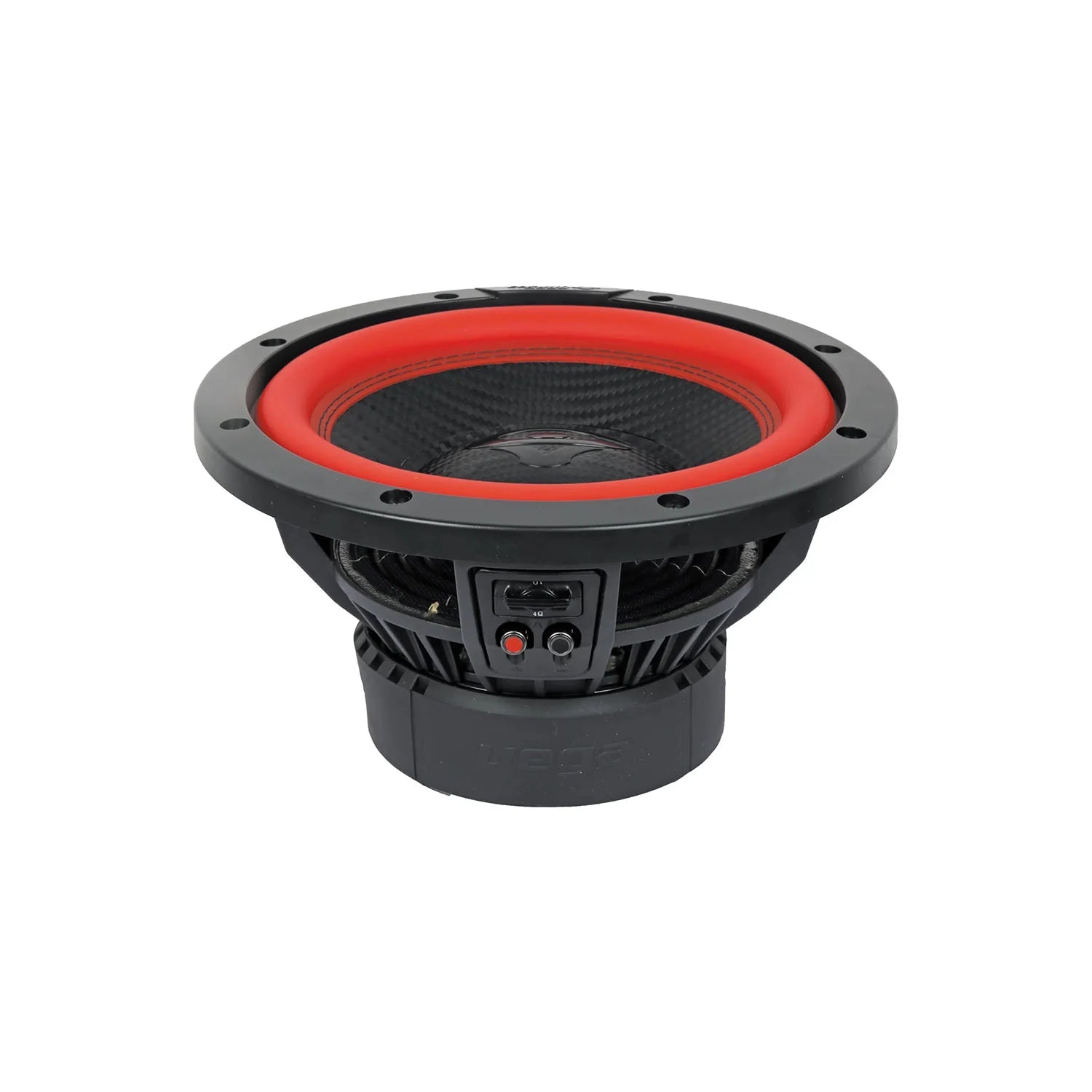

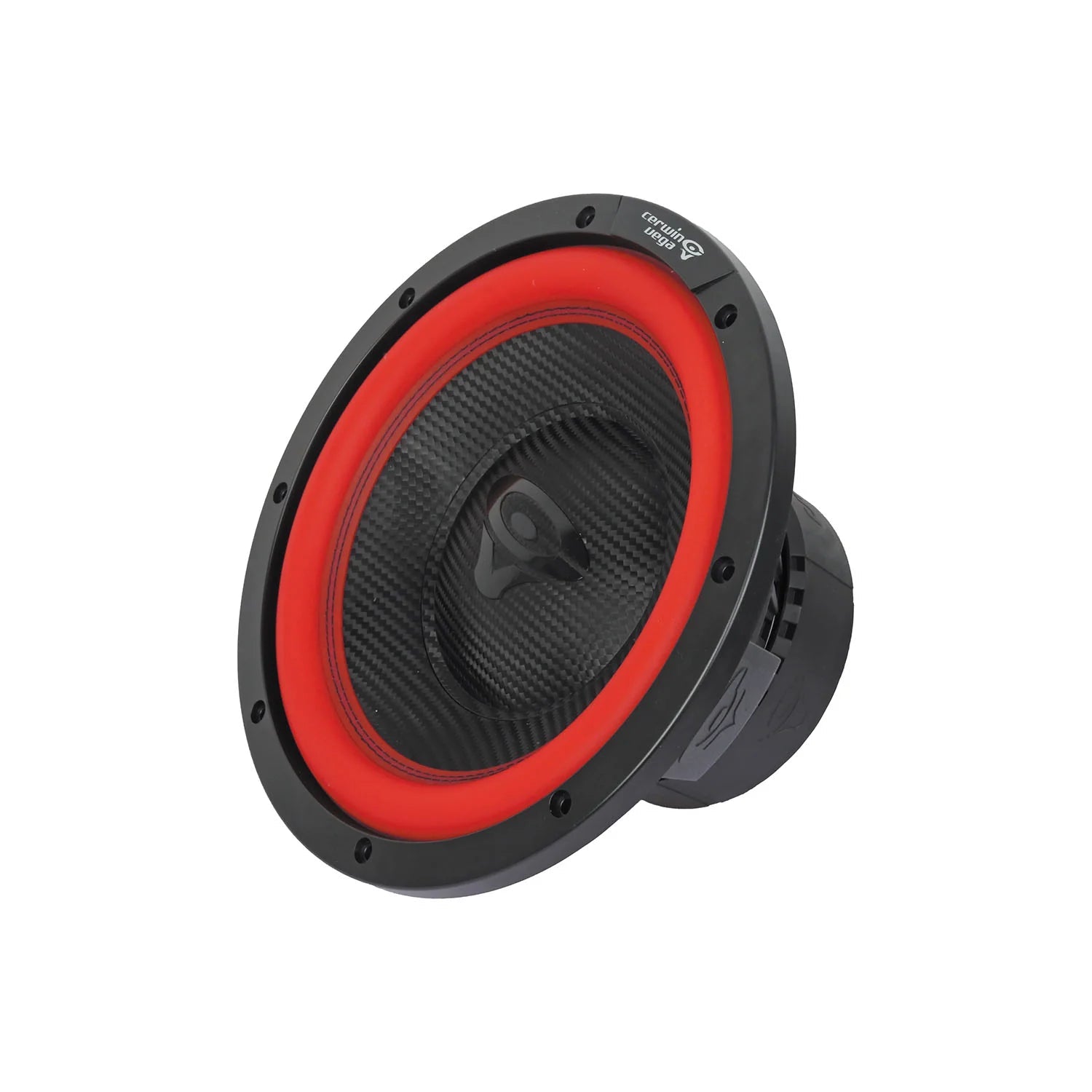

Cerwin Vega Vega 2025 Edition V10DV2/4 10" (25cm) Subwoofer
SKU:  V10DV2

1 Review

1000 Watt

Vega 2025 Edition V10DV2/4

SKU:  V10DV2

1 Review

Technical Highlights

  • Power 1000 W RMS, 3000 W max, impedance: 2 x 2 ohm or 2 x 4 ohm.
  • Frequency range 45 Hz, cone area: 346.36 m², sensitivity 85 dB.
  • Voice coil size 3 inches, mounting depth 151 mm, QTS value: 0.47.
  • More technical details
€199,00
€199,00 €199,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Impedance: D2 (2x2 Ohm)
Delivery
May 21, - May 26,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €16,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Rockford FosgatePunch P3D2-10 / P3D4-10
Rockford Fosgate-Punch P3D2-10 / P3D4-10-10" (25cm) Subwoofer-masori-kaufen
The Deaf Bonce Apocalypse DB-SA2510 is a black 25 cm subwoofer with green accents, 1000 W RMS, wiring terminals, and a detailed outer casing.
Deaf BonceApocalypse DB-SA2510
Cerwin Vega-Vega 2025 Edition V10DV2/4-10" (25cm) Subwoofer-masori-kaufen
€199,00
€199,00 €199,00

Vega 2025 Edition V10DV2/4 by Cerwin Vega

The Vega 2025 Edition V10DV2/4 from Cerwin Vega is a 10-inch Subwoofer with an RMS power of 1000 W and a maximum power of 3000 W. The model features a 3-inch voice coil and is available with an impedance of 2 x 2 Ohm or 2 x 4 Ohm. The technical design has an Xmax of 7.5 mm and a volume of 15.86 l. The outer diameter is 250 mm with a mounting depth of 151 mm. For installation, there are mounting holes with a diameter of 233 mm. The sensitivity of the system is specified at 85 dB.

Features
  • 10-inch (25 cm) Subwoofer
  • RMS power: 1000 W
  • Maximum power: 3000 W
  • Impedance: 2 x 2 Ohm / 2 x 4 Ohm
  • Voice coil size: 3 inches (76.2 mm)
  • Volume (Vas): 15.86 l
  • Xmax: 7.5 mm

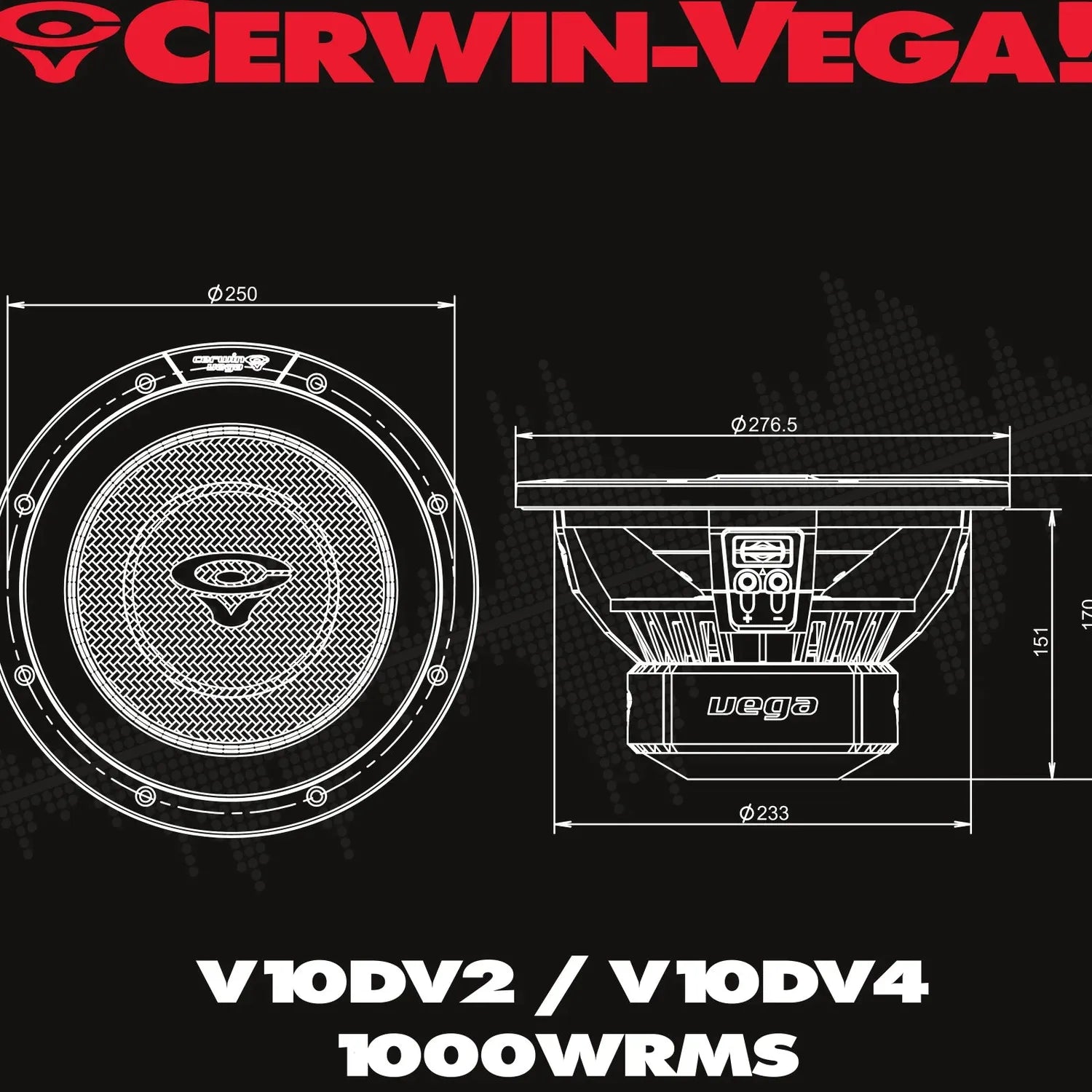

  • Outer diameter: 250 mm
  • Mounting depth: 151 mm
  • Mounting holes: 233 mm
Technical Specifications
  • Frequency range (Fs): 45 Hz
  • Sensitivity: 85 dB
  • Qes: 0.5
  • Qms: 8.43
  • Qts: 0.47
  • BL: 17.67
  • Cms: 0.093
  • Mms: 153.88 g
  • Sd (diaphragm area): 346.36 cm²

Your benefits at Masori

Frequently Asked Questions about Vega 2025 Edition V10DV2/4

What are the technical highlights of the Vega 2025 Edition V10DV2/4 Subwoofer?

The Vega 2025 Edition V10DV2/4 from Cerwin Vega impresses with an RMS power of 1000 W and a maximum power of 3000 W. It features a 10-inch diaphragm with an outer diameter of 250 mm and a mounting depth of 151 mm. The Subwoofer has an impedance of either 2 x 2 Ohm or 2 x 4 Ohm, depending on the preferred configuration. The voice coil size is 3 inches, contributing to its enormous load capacity. With a sensitivity of 85 dB, the Subwoofer is very efficient and delivers significant sound pressure even at moderate input levels.

How does the frequency range of the Vega 2025 Edition V10DV2/4 Subwoofer affect sound quality?

The frequency range, particularly the FS value of 45 Hz, ensures deep bass response in the Vega 2025 Edition V10DV2/4 Subwoofer. This emphasis on low-frequency tones allows for vibrant and powerful bass reproduction. The BL value of 17.67 and the volume value (Vase) of 15.86 l contribute to a precise and dynamic sound, making the Subwoofer particularly suitable for music genres with deep bass frequencies. These technical characteristics are crucial for high-quality and uncolored music playback.

What impedance options are available for the Vega 2025 Edition V10DV2/4 Subwoofer and what does that mean for installation?

The Vega 2025 Edition V10DV2/4 Subwoofer offers impedance options of 2 x 2 Ohm and 2 x 4 Ohm. This flexibility allows you to install and adjust the Subwoofer in various setups depending on the application. A low impedance of 2 Ohm means, for example, that the Subwoofer draws more power from the Amplifier and can therefore be operated more powerfully. Switching to 4 Ohm can reduce the load on the Amplifier. Thus, the choice of impedance affects both the power output and the efficiency of sound reproduction.

What Thiele-Small parameters does the Vega 2025 Edition V10DV2/4 have and why are they important?

Thiele-Small parameters, such as the QES value of 0.5 and the QTS value of 0.47, provide fundamental insight into the behavior of the Vega 2025 Edition V10DV2/4 Subwoofer. The QES value describes the mechanical damping, while the QTS value describes the combined electromagnetic-mechanical system behavior. A higher QTS value indicates efficiency in smaller enclosures. The Xmax value of 7.5 mm indicates how far the diaphragm can move before distortion occurs. These parameters are crucial for tuning and designing the speaker enclosure to achieve optimal performance.

How does the diaphragm area of the Vega 2025 Edition V10DV2/4 Subwoofer affect sound reproduction?

With a diaphragm area (Sd) of 346.36 m², the Vega 2025 Edition V10DV2/4 enables impressive bass projection. This large diaphragm area increases the subwoofer's ability to move air, resulting in a stronger and deeper bass. The larger the diaphragm area, the more sound pressure can be generated, which is particularly noticeable at low frequencies. This feature is especially significant when the subwoofer is used standalone or as part of a powerful audio system.

What tips are there for optimal placement of the Vega 2025 Edition V10DV2/4 in the car?

With the dimensions of the Vega 2025 Edition V10DV2/4, including an outer diameter of 250 mm and a mounting depth of 151 mm, careful placement in the car is crucial for the best possible sound quality. It is advisable to position the subwoofer so that sound waves can freely reflect in the vehicle's interior, especially near the back seat or in the trunk, to minimize standing waves and enhance resonances. Proper sealing, ensuring a tight connection between the baffle and vehicle structure, maximizes sound pressure and prevents unwanted vibrations.

How does the voice coil size of the Vega 2025 Edition V10DV2/4 contribute to better sound?

The impressive 3-inch voice coil size of the Vega 2025 Edition V10DV2/4 is crucial for its high load capacity and thermal handling of large power values. A larger voice coil provides more room for current flow, thereby improving control over the diaphragm movement. This results in more precise sound reproduction and clearer bass impulses. The durability of the Subwoofer is also enhanced by more effective heat dissipation, which is particularly important during longer sessions or under high load.

Why is the BL value of the Vega 2025 Edition V10DV2/4 crucial?

The BL value of 17.67 for the Vega 2025 Edition V10DV2/4 describes the electromechanical force unit of the Subwoofer, meaning the strength of the drive that moves the diaphragm. A higher BL value means that the Subwoofer has a stronger electromagnetic driving force, resulting in a more precise sound image. This component is central to optimizing depth layering and bass precision, especially in intensely percussive or dynamic music pieces. A high BL value combined with good magnetic drive provides a more effective drive of the diaphragm.

What does the sensitivity of 85 dB indicate about the Vega 2025 Edition V10DV2/4?

The sensitivity of 85 dB describes the volume of the Subwoofer relative to one watt of power at a distance of one meter. A sensitivity value of 85 dB indicates that the Vega 2025 Edition V10DV2/4 requires moderate input power to achieve audible volumes. This is important for energy efficiency in operation and ensures that the Subwoofer can be efficiently integrated into both compact and more demanding audio setups. A lower sensitivity typically requires more amplifier power for comparable sound pressure levels.

How does the installation depth of 151 mm affect the installation of the Vega 2025 Edition V10DV2/4?

The installation depth of 151 mm for the Vega 2025 Edition V10DV2/4 is significant as it determines how much space must be available in the mounting area. This depth allows for sufficient air movement behind the diaphragm, which affects sound quality. In vehicles with limited installation space, choosing a Subwoofer with too great an installation depth may require excessive installation adjustments. It is therefore crucial to measure the available installation area beforehand to ensure optimal integration of the Subwoofer, especially in closed or shallow enclosures.
