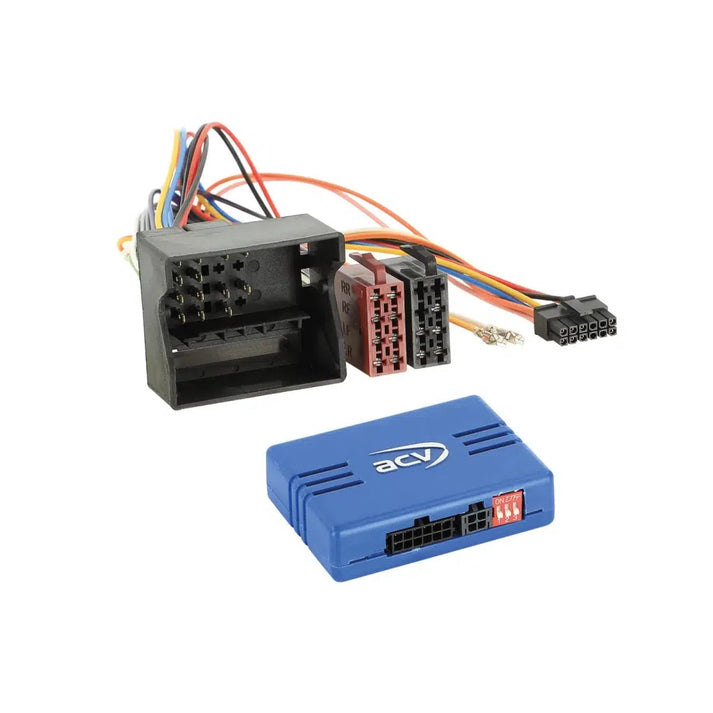

LFB Porsche Quadlock by ACV
The LFB Porsche Quadlock Steering Wheel Remote Control from ACV uses CAN Bus and connects via a 40 Pin Quadlock Porsche Plug. Designed for vehicles with PCM 3.0, PCM 3.1, or CRD30 OEM device. Signals such as +12V ignition terminal 15 (1.5A max.), +12V lighting terminal 58 (0.1A max.), +12V reverse signal (1.5A max.), speed signal, and steering wheel remote control are available. +12V antenna remote chamber A Pin 13 check with OEM device before installation, chamber A Pin 14 alternative. Vehicle settings not supported. Check dip switch position for retrofit device. Suitable for Porsche 911 (977) 08/2008 - 05/2013, Porsche Boxster (987) 02/2009 - 01/2012, Porsche Boxster (981) 04/2012 - 01/2016, Porsche Cayenne (9PA/955) 02/2007 - 02/2010, Porsche Cayenne (92A/958) 05/2010 - 07/2014, Porsche Cayenne (92A/958) 10/2014 - 12/2017, Porsche Cayman (987C) 02/2009 - 11/2012, Porsche Cayman (987C) 03/2013 - 04/2016, Porsche Panamera (970) 09/2009 - 04/2013 and Porsche Panamera (970) 07/2013 - 07/2016.
- Steering Wheel Remote Control
- Manufacturer: ACV
- CAN Bus
- Connection: 40 Pin Quadlock Porsche Plug
- Item: 42cx28
- Vehicles with PCM 3.0 / PCM 3.1 / CRD30 OEM device
- +12V antenna remote chamber A Pin 13 check with OEM device before installation
- Chamber A Pin 14 alternative
- Vehicle settings not supported
- Check dip switch position for retrofit device
- Suitable for
- Porsche 911 (977) 08/2008 - 05/2013*
- Porsche Boxster (987) 02/2009 - 01/2012*
- Porsche Boxster (981) 04/2012 - 01/2016
- Porsche Cayenne (9PA/955) 02/2007 - 02/2010*
- Porsche Cayenne (92A/958) 05/2010 - 07/2014
- Porsche Cayenne (92A/958) 10/2014 - 12/2017
- Porsche Cayman (987C) 02/2009 - 11/2012*
- Porsche Cayman (987C) 03/2013 - 04/2016
- Porsche Panamera (970) 09/2009 - 04/2013
- Porsche Panamera (970) 07/2013 - 07/2016
- Provided signals
- pink: +12V ignition terminal 15 1.5A max.
- orange: +12V lighting terminal 58 0.1A max.
- white: +12V reverse signal 1.5A max.
- yellow/green yellow/red: Speed signal
- Steering Wheel Remote Control
- Note
- Reimported vehicles or vehicles with different software may be incompatible in functions.
- *Vehicles with MOST OEM sound system > Item: 13-1190-52
- *Vehicles with OEM sound system / speaker cable: +12V Amp Remote MQS Plug chamber C Pin 4 white/red check with OEM device
- Connection cable for the following radio manufacturers
- Multilead various devices: 42arc100
- Alpine 3.5mm jack connection: 42arc101
- Blaupunkt 2010> 3.5mm jack connection: 42arc107
- Blaupunkt 2010> Key1 / Key2 / (GND) connection: 42arc000
- China HU Key1 / Key2 / (GND) connection: 42arc000
- Clarion 3.5mm jack connection: 42arc104
- Digital Dynamics single cable connection: 42arc108
- ESX Key1 / Key2 connection: 42arc000
- JVC 3.5mm jack connection: 42arc104
- JVC single cable connection: 42arc105
- Kenwood single cable connection: 42arc105
- Kenwood 2017> 3.5mm jack connection: 42arc107
- Kenwood 2020> Key1 / Key2 / GND connection: 42arc000
- Pioneer 3.5mm jack connection: 42arc107
- Snooper Key1 / Key2 connection: 42arc000
- Sony 3.5mm jack connection: 42arc107
- XZent single cable connection: 42arc108
- Zenec single cable connection: 42arc108
- General installation instructions
- Connection and connection sequence
- Make settings and configuration of the interface without voltage
- Check configuration of the radio connection cable
- Make connection of the radio connection cable according to the operating manual of the retrofit device
- Make connection of all other connections according to the operating manual of the retrofit device
- Connection of the overall installation to the vehicle with live connection last
- Configuration of the retrofit device according to the operating manual of the retrofit device Steering Wheel Remote Control/Camera/Hands-Free System/Antennas Phantom Power Supply and others
- Changes to the configuration of the interface and the radio connection cable
- Make modifications without voltage
- Connection after modification see above 5 and 6
- Connections, connection changes, alternative connections, connections of loose cables, or connection extensions of loose cables specified in the note text or the operating manual are for orientation and information purposes only for trained professionals.
- Connections, changes to the wiring configuration of the wiring harness, or use of alternative connections or connection extensions
- Connections and modifications are to be carried out exclusively by trained professionals
- Connections and modifications must be checked for any manufacturer approvals or any manufacturer Warranty conditions that may be affected by the modifications before connection
- Connections and modifications must be checked for functionality and correctness before connection by measuring and comparing with the vehicle's wiring diagram
- Connections and modifications are made at your own risk without Warranty for functionality
- Connections and modifications are made at your own risk without Warranty for damages to the vehicle, the retrofit device, or the interface
- Changes to the pre-assembled wiring harness will void the product's Warranty
- Connection and connection sequence
