  3. LFB Mazda 24-Pin Amp
ACV LFB Mazda 24-Pin Amp Steering Wheel Remote Control
SKU:  41-1173-001
EAN:  606523109239

LFB Mazda 24-Pin Amp

SKU:  41-1173-001
EAN:  606523109239

Technical Highlights

  • CAN bus, 24-pin Mazda connector, OEM sound system, RCA. Suitable for Mazda CX-5, CX-7, CX-9, various models. Signals: handbrake signal, reverse signal, speed signal, ignition.
  • More technical details
€329,00
€329,00 €329,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €27,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

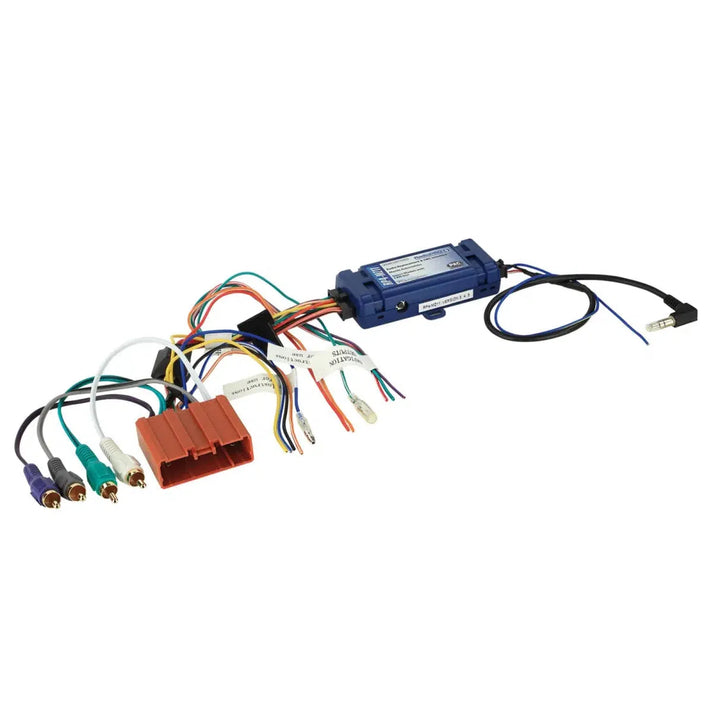

ACV-LFB Mazda 24Pin Amp-Lenkradfernbedienung-masori-kaufen
€329,00
€329,00 €329,00

LFB Mazda 24-Pin Amp by ACV

ACV LFB Mazda 24Pin Amp is a Steering Wheel Remote Control with a 24 Pin Mazda Plug and CAN Bus for vehicles with MS CAN Bus OEM devices. It features a connection for OEM sound systems to RCA and supports vehicles with or without BOSE Digital or BOSE Premium OEM sound systems. Provided signals: handbrake signal, reverse signal, speed signal, ignition, LFB, OEM sound system, OEM sound system settings for gain, fader, and surround, vehicle settings, and time. The blue and white wire provides +12 V switched as Amp Remote. XZent and Zenec devices are not supported. Compatible Mazda models: CX-5 2013–2015, CX-7 2007–2012, CX-9 2007–2015, 2 2011–2012, 3 2008–2015, 5 2010–2015, 6 2009–2015, MX-5 Miata 2006–2015, and RX-8 2009–2011. Notes: Vehicles 2013–2015 with BOSE OEM sound system only revision 1.2.3 or higher, 2010–2015 air conditioning compressor CAN command supported, Mazda 3 without 7-inch touchscreen.

Features
  • Steering Wheel Remote Control
  • Connection: 24 Pin Mazda Plug
  • CAN Bus
  • Connection: OEM sound system to RCA
  • Vehicles with MS CAN Bus OEM devices
  • Compatible with or without BOSE Digital and BOSE Premium OEM sound system
  • Not supported: XZent and Zenec devices
  • Compatibility: Mazda CX-5 2013–2015; Mazda CX-7 2007–2012; Mazda CX-9 2007–2015; Mazda 2 2011–2012; Mazda 3 2008–2015; Mazda 5 2010–2015; Mazda 6 2009–2015; Mazda MX-5 Miata 2006–2015; Mazda RX-8 2009–2011
  • Optional: Retrofit adapter ISO(f) power speaker to loose wires, 1432-02
Technical Specifications
  • Blue and white: +12 V switched Amp Remote
  • Provided signals: handbrake signal, reverse signal, speed signal, ignition, LFB, OEM sound system, OEM sound system settings gain fader surround (Mazda CX-7 and Mazda CX-9), vehicle settings, time
  • Note: Vehicles 2013–2015 with BOSE OEM sound system only revision 1.2.3 or higher
  • Note: 2010–2015 air conditioning compressor CAN command supported
  • Note: Mazda 3 without 7-inch touchscreen

Your benefits at Masori

ACV LFB Mazda 24-Pin Amp Datasheet

Open datasheet

Frequently Asked Questions about LFB Mazda 24-Pin Amp

How does the Steering Wheel Remote Control Mazda 24Pin Amp Adapter work?

The Steering Wheel Remote Control Mazda 24Pin Amp Adapter from ACV enables the integration of an aftermarket radio while maintaining the steering wheel remote control functionality. It accesses the CAN Bus system and translates its signals to adapt functions like volume control or track changes to the new requirements. With proper integration, signals such as the handbrake signal, reverse signal, and ignition are still supported. However, it is important to check functionality before final installation, as not all devices or vehicle configurations are compatible.

Which vehicles are compatible with the Steering Wheel Remote Control Mazda 24Pin Amp?

The Steering Wheel Remote Control Mazda 24Pin Amp Adapter is compatible with a range of Mazda models, including Mazda CX-5 (2013-2015), Mazda CX-7 (2007-2012), Mazda CX-9 (2007-2015), Mazda 2 (2011-2012), Mazda 3 (2008-2015), Mazda 5 (2010-2015), Mazda 6 (2009-2015), Mazda MX-5 Miata (2006-2015), and Mazda RX-8 (2009-2011). The requirement is that the vehicles have a 24Pin connection for the OEM sound system. However, note that some models have specific restrictions, such as the Mazda CX-9 with BOSE sound system revision 1.2.3 or higher.

What signals does the Steering Wheel Remote Control Mazda 24Pin Amp Adapter support?

The Steering Wheel Remote Control Mazda 24Pin Amp Adapter supports important vehicle signals that are significant for using an aftermarket radio. These include the handbrake signal, reverse signal, speed signal, and ignition. Additionally, the OEM sound system along with its specific settings like gain, fader, and surround is integrated. This versatility ensures that all original and useful functions can continue to be used even after the radio replacement. It is important to check the compatibility of the signals, especially with the software of the aftermarket radio.

How is the Steering Wheel Remote Control Mazda 24Pin Amp Adapter installed?

The installation of the Steering Wheel Remote Control Mazda 24Pin Amp Adapter is done via the 24Pin connection in the vehicle. The process begins with matching the existing plugs in the vehicle with those of the adapter. If compatible, the adapter is connected to the CAN Bus connection of the original sound system. To ensure an optimal fit, it must be verified that these connections match both visually and technically. It is advisable to test the adapter function before the final installation to ensure that all controls work properly.

Can BOSE systems be used with the Steering Wheel Remote Control Mazda 24Pin Amp Adapter?

Yes, the Steering Wheel Remote Control Mazda 24Pin Amp Adapter is compatible with BOSE sound systems, but there are limitations. Vehicles with BOSE OEM sound systems, particularly Mazda CX-9 models from 2013 to 2015, must have a specific software revision (1.2.3 or higher) for smooth integration. This requirement is crucial, as there may be variations in signal processing depending on the model year and software version that can affect functionality. If compatibility is uncertain, a data check with the manufacturer should be conducted.

What functions are supported by the Steering Wheel Remote Control?

The Steering Wheel Remote Control Mazda 24Pin Amp Adapter allows for the retention of key functions of the steering wheel remote control such as volume control, track, and source switching. The correct connection with the CAN Bus system is essential for these functions to be fully transmitted. However, depending on the retrofitted device and functionality, there may be changes or limitations. It is important to thoroughly test the controls before the retrofit radio is fully installed to ensure that no operational scope is lost.

What precautions should I take when installing the Steering Wheel Remote Control Mazda 24Pin Amp Adapter?

Before installing the Steering Wheel Remote Control Mazda 24Pin Amp Adapter, it is advisable to check all vehicle functions for their operability. This includes steering wheel controls, vehicle settings, and OEM sound system features. Before the final integration, it is recommended to ensure the compatibility of the plugs and the proper connection with the CAN Bus system. If there are uncertainties regarding signal compatibility, the assistance of a professional should be considered. This ensures that no function is restricted after installation.

Which aftermarket radios are not supported by the Steering Wheel Remote Control Mazda 24Pin Amp Adapter?

The Steering Wheel Remote Control Mazda 24Pin Amp Adapter does not support aftermarket radios from the brands XZent and Zenec. This specific incompatibility arises from the different signal processing that these manufacturers implement in their devices. The adapter is designed to work with certain signal structures and software profiles that are not met by XZent and Zenec devices. Before purchasing an aftermarket radio, it should be verified whether the chosen manufacturer is compatible with the adapter to ensure proper functionality.

What dimensions should I consider when installing the Steering Wheel Remote Control Mazda 24Pin Amp Adapter?

The Steering Wheel Remote Control Mazda 24Pin Amp Adapter fits into the designated connector of the vehicle; however, the specific dimensions of the connection sockets and the available installation space in the vehicle dashboard are crucial. When matching the connectors, attention should be paid to an exact match of the technical specifications to avoid mechanical complications. The orientation of the sockets and the length of the wiring must exactly match the conditions in the vehicle to ensure seamless signal transmission and integration.

How do I check the functionality of the built-in systems with the Steering Wheel Remote Control Mazda 24Pin Amp Adapter?

After installing the Steering Wheel Remote Control Mazda 24Pin Amp Adapter, a complete functionality test of all steering wheel remote-controlled functions, vehicle settings, and OEM sound system features should be conducted. These tests include checking the signal transmission for the handbrake signal, reverse signal, speed signal, as well as the proper use of the ignition in conjunction with the new radio. Verifying all controls ensures that no functions are restricted and that the adapter operates optimally. Only then can it be determined whether all components are correctly installed.
