  3. LFB Honda 17 pin/20 pin analog
ACV LFB Honda 17 pin/20 pin analog Steering Wheel Remote Control
SKU:  42K-1132-000
EAN:  4026724672091

LFB Honda 17 pin/20 pin analog

SKU:  42K-1132-000
EAN:  4026724672091

Technical Highlights

  • Analog, 17-pin Honda connector, Panasonic/Pioneer OEM device. Suitable for Honda Civic, CR-V, S2000, various models. Signals: steering wheel remote control, climate control, ZVN0 OEM navigation.
  • More technical details
€79,00
€79,00 €79,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €6,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

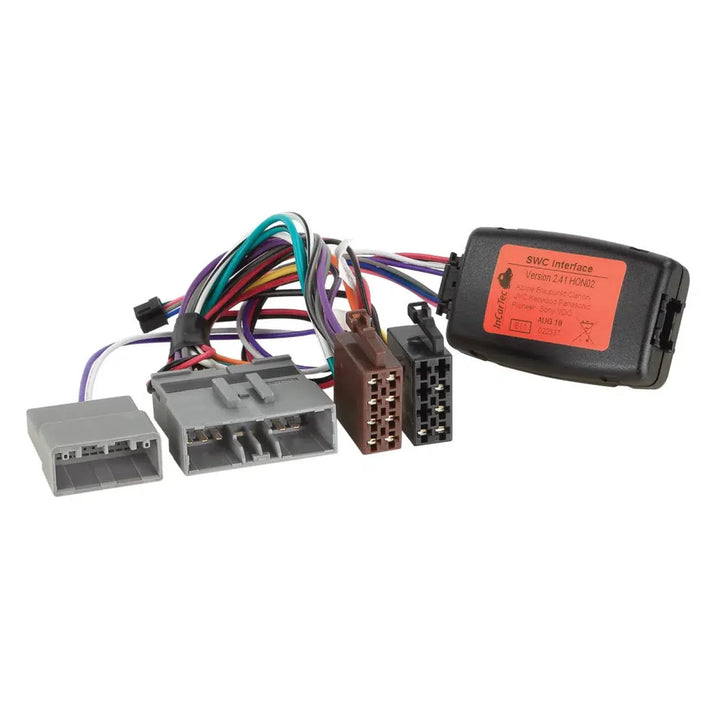

ACV-LFB Honda 17 Pin/20Pin analog-Lenkradfernbedienung-masori-kaufen
€79,00
€79,00 €79,00

LFB Honda 17 pin/20 pin analog by ACV

ACV LFB Honda 17 Pin/20Pin analog is a Steering Wheel Remote Control with analog signal transmission for Honda vehicles. The connection is made via 17 Pin or 20 Pin Honda Plug. Designed for vehicles with Panasonic or Pioneer OEM devices. The system provides the signal for the Steering Wheel Remote Control. Compatible with Honda Civic (FN/FD/FG/FA/FK) 09/2005–12/2011, Civic Hybrid (FD3) 04/2006–10/2010, CR-V (RE5) 01/2007–02/2010 and 04/2010–10/2012, as well as S2000 (AP1) 01/2004–06/2009. For ZVN0 OEM Navigation in the CR-V, the LFB connection is on the 22 Pin Plug green at Pin 4 and Pin 5 according to the BDA.

Features
  • Steering Wheel Remote Control
  • Analog
  • Connection: 17 Pin / 20 Pin Honda Plug
  • Vehicles with Panasonic / Pioneer OEM device
  • Signal: Steering Wheel Remote Control
  • LFB InCartec Cable: Blaupunkt/China HU/Kenwood – 42k-000
  • LFB InCartec Cable: Multilead various devices – 42k-025
  • LFB InCartec Cable: Alpine – 42k-100
  • LFB InCartec Cable: Blaupunkt/Kenwood/Pioneer – 42k-300
  • LFB InCartec Cable: XZent/Zenec – 42k-400
  • LFB InCartec Cable: Sony – 42k-600
  • LFB InCartec Cable: Kenwood – 42k-700a
  • LFB InCartec Cable: Clarion – 42k-800
  • LFB InCartec Cable: JVC – 42k-900
Technical Specifications
  • Suitable for: Honda Civic (FN/FD/FG/FA/FK) 09/2005–12/2011
  • Suitable for: Honda Civic Hybrid (FD3) 04/2006–10/2010
  • Suitable for: Honda CR-V (RE5) 01/2007–02/2010
  • Suitable for: Honda CR-V (RE5) 04/2010–10/2012
  • Suitable for: Honda S2000 (AP1) 01/2004–06/2009
  • Note: Vehicles without OEM Navigation
  • Note: Vehicles with climate control / Display > Item: 42sho002
  • Note: Vehicles with ZVN0 OEM Navigation, LFB connection 22 Pin Plug green at Pin 4 / Pin 5 (see BDA)

Your benefits at Masori

ACV LFB Honda 17 pin/20 pin analog Datasheet

Open datasheet

Frequently Asked Questions about LFB Honda 17 pin/20 pin analog

Which Honda models are compatible with the LFB Honda 17 Pin/20Pin analog?

This product is compatible with specific Honda models: Honda Civic (FN/FD/FG/FA/FK) from 09/2005 to 12/2011, Honda Civic Hybrid (FD3) from 04/2006 to 10/2010, as well as Honda CR-V (RE5) first from 01/2007 to 02/2010, and second from 04/2010 to 10/2012. Additionally, it is suitable for Honda S2000 (AP1) from 01/2004 to 06/2009. Note that this compatibility is primarily ensured with vehicles without OEM Navigation and those equipped with climate control or a display. To ensure smooth functionality, a visual and physical match of the connections is required.

What are the key features of the LFB Honda 17 Pin/20Pin analog?

This interface allows users to retain the original Steering Wheel Remote Control functions of a Honda vehicle with an aftermarket radio. It provides connections for 17- and 20-pin Honda plugs and is compatible with vehicles using Panasonic and Pioneer original devices. It supports various steering wheel controls and comes with InCartec cable options for a variety of radio manufacturers such as Blaupunkt, Kenwood, and Sony. Special installation notes assist in the comprehensive customization of the overall installation to ensure the wide application of the interface and the best possible operability.

How is the LFB Honda 17 Pin/20Pin analog installed?

The correct installation occurs in several steps: First, you should check all control and vehicle setting functions of the original device. Ensure to disconnect the OEM device from power before checking all interface connections for accuracy. After the power-free hardware configuration of the interface, check the configuration of the radio connection cable. Then connect all other connections according to the instructions of the aftermarket device. The final step is to complete the overall installation with the connection point in the vehicle. Be sure to configure the software according to the instructions in the article text and the user manual.

What Steering Wheel Remote Control functions does the LFB Honda 17 Pin/20Pin analog support?

The LFB Honda 17 Pin/20 Pin analog from ACV enables the integration of essential Steering Wheel Remote Control functions when replacing the factory radio with an aftermarket radio. It supports configurations for vehicles with certain Panasonic or Pioneer OEM devices and offers checks on wiring to ensure full functionality. In addition to supporting multifunction buttons on the steering wheel, it comes with specific InCartec cables to ensure connectivity for various devices. For example, functions for Kenwood, JVC, and Sony are supported through specific cable types.

Is the LFB Honda 17 Pin/20 Pin analog compatible with various radio devices?

The interface is compatible with a wide range of radios, including brands like Kenwood, Blaupunkt, Alpine, JVC, and Sony. It uses special InCartec cables to ensure optimal adaptation. For instance, the LFB InCartec cable 42k-300 supports Blaupunkt/Kenwood/Pioneer models, while other cables are specifically tailored for brands like Alpine (42k-100). These cables are essential for integrating the interface into various vehicle models to retain the Steering Wheel Remote Control functions on the desired aftermarket devices.

What should be checked before the final installation of the LFB Honda 17 Pin/20 Pin analog?

Before the final installation, it should be carefully checked that all control and vehicle adjustment functions are working properly. This includes comparison checks of the adapter plugs with the connections present in the vehicle. The aftermarket radio should also be thoroughly checked for operational compatibility with the technical specifications in advance. These checks are necessary to ensure that no functions are lost during installation and that smooth functionality is maintained after installation.

How is an interface error of the LFB Honda 17 Pin/20 Pin analog handled?

If an interface error occurs, it is recommended to revert to the original OEM device and operate it. The CAN bus should be allowed to settle before further steps are taken. After the CAN bus settles, the hardware configuration of the interface and the connection order will be re-examined. The reversion serves to determine whether the error lies in the configuration of the interface or in the connection layout, so that adjustments can be made according to the original connection guidelines if necessary.

What care is required when changing the cable configuration of the Steering Wheel Remote Control Honda 17 Pin/20Pin analog?

When changing the cable configuration, utmost care is required to avoid unwanted consequences. Any changes should be made by trained professionals. It is important to observe the manufacturer's approvals as well as the manufacturer's warranty, as these may be affected by changes. Before connecting, measurements and checks against the vehicle's cable layout plan must be carried out. Note that changes made independently do not guarantee functionality or freedom from damage to the vehicle or device. Additionally, they may affect the warranty of the interface product.

What installation steps are critical when using the Steering Wheel Remote Control Honda 17 Pin/20Pin analog?

Essential installation steps include the voltage-free disassembly of the original OEM device, as well as the necessary verification of the interface wiring connections. The verified hardware configuration must be done without voltage before the software is configured to ensure the full functionality of the Steering Wheel Remote Control in the new retrofit radio. The smooth connection sequence is also critical to prevent malfunctions, while the final overall installation is completed with voltage to ensure that all functions align with the given technical specifications.

What special notes are there for the integration of the Steering Wheel Remote Control Honda 17 Pin/20Pin analog?

When integrating the Steering Wheel Remote Control Honda 17 Pin/20Pin analog, ensure that the verification of the Steering Wheel Remote Control functions and vehicle settings is carried out. Special notes refer to connections that are provided as guidance for trained professionals, including notes on the use of loose cables. Changes that may be made to the pre-assembled wiring harness should be checked particularly regarding their impact on the vehicle warranty conditions. These configurations and changes are made at your own risk and offer no guarantee, so safety precautions must be taken.
