ACV LFB Ford 32Pin Steering Wheel Remote Control
SKU:  42A-1124-000
EAN:  4026724672534

LFB Ford 32Pin

SKU:  42A-1124-000
EAN:  4026724672534

Technical Highlights

  • CAN bus, 32-pin Ford connector, OEM camera, PDC audio playback. Suitable for Ford Transit, Custom, Connect, various models. Signals: ignition, lights, reversing signal, speed.
  • More technical details
€109,00
€109,00 €109,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €9,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

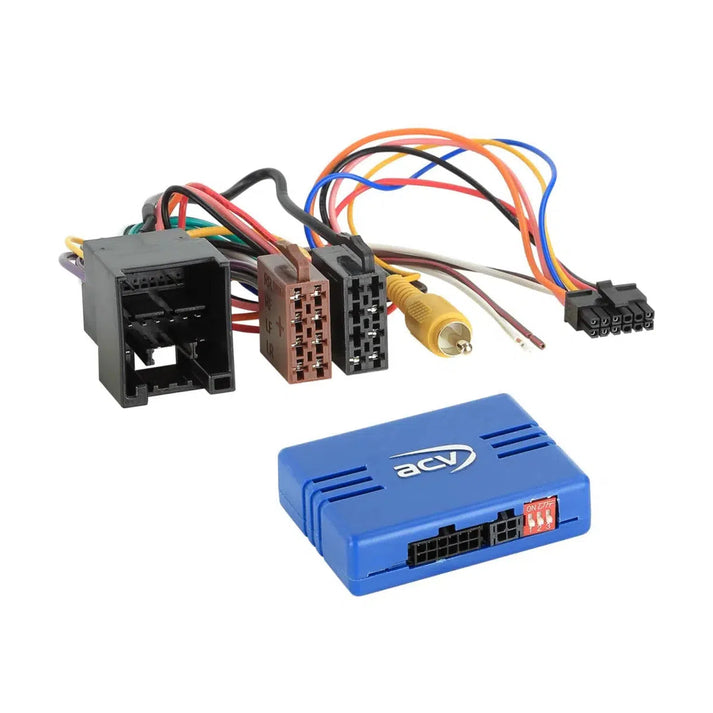

ACV-LFB Ford 32Pin-Lenkradfernbedienung-masori-kaufen
€109,00
€109,00 €109,00

LFB Ford 32Pin by ACV

The LFB Ford 32Pin from ACV is a Steering Wheel Remote Control with CAN Bus and 32 Pin Ford Plug. The connection for the OEM camera is made via yellow Cinch(m). A dip switch setting for the retrofit device is available. Provided signals: +12V ignition terminal 15 1.5 A max., +12V lighting terminal 58 0.1 A max., +12V reverse signal 1.5 A max., speed signal, and Steering Wheel Remote Control. Compatible with Ford Transit V363 (FAC/FAD) 06/2019 - 08/2020, Ford Transit V363 (FAC/FAD) 08/2020 - 2023, Ford Transit Custom (FAC/FAD) 01/2018 - 06/2023, Ford Transit Custom (FAC/FAD) 07/2023 - 2023, and Ford Transit Connect (PJ2) 06/2018 - 2023. PDC sound playback is not supported in all vehicles.

Features
  • Steering Wheel Remote Control
  • Manufacturer: ACV
  • CAN Bus
  • Connection: 32 Pin Ford Plug (Item 42cx11)
  • OEM camera connection: yellow Cinch(m)
  • Dip switch setting for retrofit device
  • PDC sound playback: not supported in all vehicles
Technical Data
  • +12V ignition terminal 15 1.5 A max.
  • +12V lighting terminal 58 0.1 A max.
  • +12V reverse signal 1.5 A max.
  • Speed signal yellow/green yellow/red
  • Steering Wheel Remote Control
  • Ford Transit V363 (FAC/FAD) 06/2019 - 08/2020*
  • Ford Transit V363 (FAC/FAD) 08/2020 - 2023*
  • Ford Transit Custom (FAC/FAD) 01/2018 - 06/2023
  • Ford Transit Custom (FAC/FAD) 07/2023 - 2023
  • Ford Transit Connect (PJ2) 06/2018 - 2023
  • Reimport vehicles or vehicles with different software may be incompatible in functions.
  • +12V ignition current terminal 15 not supported in all vehicles
  • Vehicles from 2020 function not guaranteed
  • Check dip switch setting for retrofit device
  • OEM camera: check correct pin assignment with OEM device before connection
  • Troubleshooting flickering camera image: connect video pin 25 to pin 24
  • Multilead various devices: 42arc100
  • Alpine 3.5mm jack connection: 42arc101
  • Blaupunkt 2010> 3.5mm jack connection: 42arc107
  • Blaupunkt 2010> Key1 / Key2 / GND connection: 42arc000
  • China HU Key1 / Key2 / GND connection: 42arc000
  • Clarion 3.5mm jack connection: 42arc104
  • Digital Dynamics single cable connection: 42arc108
  • ESX Key1 / Key2 connection: 42arc000
  • JVC 3.5mm jack connection: 42arc104
  • JVC single cable connection: 42arc105
  • Kenwood single cable connection: 42arc105
  • Kenwood 2017> 3.5mm jack connection: 42arc107
  • Kenwood 2020> Key1 / Key2 / GND connection: 42arc000
  • Pioneer 3.5mm jack connection: 42arc107
  • Pioneer AVH/DMH/SPH 2022> jack connection: 42arc1072
  • Snooper Key1 / Key2 connection: 42arc000
  • Sony 3.5mm jack connection: 42arc107
  • XZent single cable connection: 42arc108
  • Zenec single cable connection: 42arc108

Your benefits at Masori

ACV LFB Ford 32Pin Datasheet

Open datasheet

Frequently Asked Questions about LFB Ford 32Pin

What functions does the Steering Wheel Remote Control Ford 32Pin Adapter offer in the Ford Transit V363?

The Steering Wheel Remote Control Ford 32Pin Adapter integrates into the Steering Wheel Remote Control of your Ford Transit V363 between 06/2019 and 08/2020 and allows control of aftermarket radios. It supports signals such as +12V ignition (pink), reverse signal (white), and speed data (yellow/green). Note that some functions are not guaranteed for vehicles from 2020 onwards. The connections for OEM cameras and CAN bus signal connection are also included. Reimport vehicles may be subject to slight limitations, so a thorough check of the vehicle equipment is advisable.

How compatible is the Steering Wheel Remote Control Ford 32Pin with various radio devices?

The Steering Wheel Remote Control Ford 32Pin easily adapts to a variety of radio devices. Depending on the manufacturer, you can control Kenwood, Sony, and Pioneer models through specific connections like 3.5mm jack or Key1/Key2. The installation follows the user manual of the aftermarket device, with voltage remaining free of changes. Proper connection setup prevents compatibility issues. Carefully correlate the wiring configurations, as incorrect connections could result in technical malfunctions or voiding the device warranty.

What OEM camera options does the Steering Wheel Remote Control Ford 32Pin offer?

The Steering Wheel Remote Control Ford 32Pin supports the connection of OEM cameras via yellow RCA. Before connecting, check the correct wiring with the original device to prevent flickering in the video image. If there is an issue with the PDC sound playback, keep in mind that this function is not supported in all vehicles. Adjusting the dip switches for different aftermarket devices may be necessary to ensure the ideal function of the camera.

How can the Steering Wheel Remote Control Ford 32Pin be correctly installed in the vehicle?

The correct installation of the Steering Wheel Remote Control Ford 32Pin is carried out according to precise instructions and involves several steps: First, the voltage-free configuration of the interfaces and cables. After checking the radio connection cable according to the instructions, follow the operating manual for the connections, and finally connect to the vehicle. Settings for the Steering Wheel Remote Control, camera, and hands-free system are made at this time. Changes are made at your own risk and should always be checked by trained professionals regarding the manufacturer's warranty.

What signals does the Steering Wheel Remote Control Ford 32Pin adapter transmit?

The signals transmitted by the Steering Wheel Remote Control Ford 32Pin include +12V ignition (pink), lighting (orange), and reverse signal (white) with up to 1.5A. Speed information is transmitted via yellow/green or yellow/red cables. Although specific signal spectrums are not activated in all vehicle models, the adapter still offers extensive coverage for common Steering Wheel Remote Controls. Note that the +12V ignition current is not guaranteed in all vehicles, especially in models from 2020 onwards.

Can the Steering Wheel Remote Control Ford 32Pin cause issues with the installation structure?

If you do not strictly follow the installation guidelines for the Steering Wheel Remote Control Ford 32Pin adapter, problems may arise. Voltage-free configuration of the interfaces and correct wiring are essential. Faulty installations or DIY work can disrupt the working area of the CAN bus and may affect the functionality of the Steering Wheel Remote Control. Changes and adjustments should be made by trained professionals, as incorrect electronic installation can lead to malfunctions or loss of manufacturer approval.

What connection does the Steering Wheel Remote Control Ford 32Pin adapter require with multimodal reception devices?

For the Steering Wheel Remote Control Ford 32Pin, you rely on a series of specific cable connections, depending on the receiver model. Devices from JVC, for example, use the 3.5mm jack connection 42arc104, while Pioneer uses 42arc107. The compatibility of the multifunction adapter with the specific hardware of compatible models is crucial. Different adapter setups like Key1/Key2 enable the flawless adjusted functionality of the communication channels between an aftermarket radio and the steering wheel controller of a Ford vehicle.

What precautions should be taken when making changes to the Steering Wheel Remote Control Ford 32Pin?

All changes to the configuration of the Steering Wheel Remote Control Ford 32Pin should take place with the power disconnected. Always check the physical integrity of the adapter before it is finally connected to the system. Improper modifications can impair functionality or cause damage. In addition to considering manufacturer approvals, noticeable changes for testing purposes serve only as a guideline. Taking responsibility while excluding warranty means that improper use poses a potential risk for malfunctions in the vehicle control unit.

How do you optimally set the dip switches of the Steering Wheel Remote Control Ford 32Pin?

Dip switches of the Steering Wheel Remote Control Ford 32Pin must be adjusted to suitable aftermarket devices before installation. These switches define device interaction and are critical for backward compatibility. When setting, it is important to ensure that device manufacturer specifications are followed precisely to avoid interactions or image flickering (video pin errors) with rearview cameras. Check the correct dip switch configuration before the final electrical connection using the documentation provided with the aftermarket radio or adapter.

For which Ford models is the Steering Wheel Remote Control Ford 32Pin adapter suitable?

The Steering Wheel Remote Control Ford 32Pin is compatible with various Ford models such as the Transit V363 from 2019 to 2023 or the Transit Custom from 2018 to 2023. These vehicles should have the appropriate interface and steering wheel control signals that ensure proper functionality of the aftermarket radio through the adapter. When installing, it is necessary to keep in mind the installation restrictions and model deviations, especially with newer vehicles or re-imported vehicles, to ensure full usability.
