3. LFB Citroen 40Pin Quadlock ohne Gerät

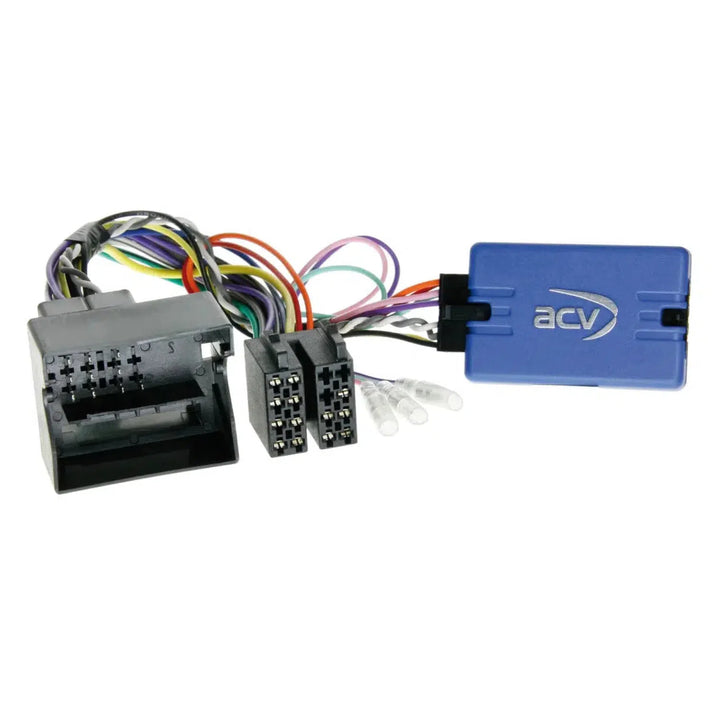

ACV LFB Citroen 40Pin Quadlock ohne Gerät steering wheel remote control

ACV LFB Citroen 40Pin Quadlock ohne Gerät steering wheel remote control

  • Power supply via red: +12V ignition terminal 15, orange: +12V.
  • Ventilation via orange: +12V, reverse signal purple/white: +12V.
  • Coil resistance 75 Ohm min, 150 Ohm min for 2 relays.
  • Mehr technische Details
€99,00
€99,00 €99,00
5% Rabatt mit Vorkasse
inkl. VAT , possibly plus shipping
Klarna Bequem in 12 zinsfreien Raten à €8,25 mit Klarna zahlen.
Delivery to Home
Dec 8, - Dec 11,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa

Seen cheaper?

Shipping cost calculator

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

Deshalb wählen uns 100.000+ Kunden

Expert Image

Rob

Expert Image

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

LFB Citroen 40Pin Quadlock ohne Gerät by ACV

If you want to replace your factory radio with an aftermarket radio, you should make sure to retain the original steering wheel remote control functions.

"However, it is possible that depending on the vehicle equipment as well as the functionality and software of the retrofit device, individual operating functions may be omitted or replaced by other functions."

Compare the illustrated plugs of the adapter with those in your vehicle and ensure that they fit visually and technically.

Please also check if one of the specified original factory radios was installed in your vehicle.

Before you permanently install the retrofit radio, we recommend that you check the functions of your vehicle, the vehicle settings, and the steering wheel remote control for their functionality.

Note

  • CAN-Bus
    • Connection: 40 Pin Quadlock Citroen / Peugeot Connector
    • Vehicles with radio preparation
    • Vehicles with radio coding
    • Vehicles without radio coding > Vehicle coding on OEM device required

Suitable for the following vehicles

  • Citroën
    • Citroën Berlingo (7) 06/2008 - 03/2012
    • Citroën Berlingo (7) 04/2012 - 05/2015
    • Citroën Berlingo (7) 06/2015 - 06/2018
    • Citroën C2 (J) 12/2004 - 12/2009
    • Citroën C3 (F) 10/2005 - 01/2010
    • Citroën C3 (S) 01/2010 - 01/2017
    • Citroën C4 (L) 11/2004 - 08/2010
    • Citroën C5 (D) 10/2004 - 04/2008
    • Citroën C8 (E) 01/2008 - 07/2012
    • Citroën C8 (E) 07/2012 - 06/2014
    • Citroën DS3 (S) 03/2010 - 07/2014
    • Citroen Jumpy (X) 02/2007 - 05/2016
    • Citroen Nemo (A) 08/2008 - 12/2015
    • Citroen Xsara Picasso (C) 03/2004 - 02/2010
  • Fiat
    • Fiat Scudo (ZAF 270) 02/2007 -07/2016
  • Toyota
    • Toyota Proace 03/2013 - 08/2016

The following signals are provided.

  • Reimport vehicles or vehicles with differing software may be incompatible in functions.
  • red: +12V ignition terminal 15
  • orange: +12V lighting terminal 58
  • purple/white: +12V reverse signal
  • rosa: speed signal
  • green: mass GND handbrake signal
  • Load capacity total outputs: 100 mA max.
  • Current demand greater than 100 mA
    • 1 Relay Coil Resistance 75 Ohm min.
    • 2 Relay coil resistance 150 Ohm min.
  • steering wheel remote control

Connection cable for the following radio manufacturers

  • LFB Cable 42s/acv > Alpine Jack: 42ctalpinelead
  • LFB Cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
  • LFB Cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
  • LFB Cable 42s/acv > Blaupunkt/China HU/Kenwood 3 Cable: 42ctchinahulead
  • LFB Cable 42s/acv > Clarion Jack: 42ctclarionlead
  • LFB Cable 42s/acv > JVC 1 Cable/Jack: 42ctjvclead
  • LFB Cable 42s/acv > Kenwood 1 Cable: 42ctkenwoodlead
  • LFB Cable 42s/acv > Multilead various devices: 42ctmultilead
  • LFB Cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
  • LFB Cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
  • LFB Cable 42s/acv > Panasonic 1 Cable: 42ctpanasoniclead
  • LFB Cable 42s/acv > Blaupunkt/Kenwood/Pioneer Jack: 42ctpioneerlead
  • LFB Cable 42s/acv > Pioneer AVH/DMH/SPH 2022> Loose jack: 42ctpioneerlead2
  • LFB Cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
  • LFB Cable 42s/acv > Blaupunkt/Kenwood/Sony Jack: 42ctsonylead
  • LFB Cable 42s/acv > XZent/Zenec 1 Cable: 42ctzeneclead

General Installation Instructions

  • Connection and connection sequence
    • 1: Make settings and configuration of the interface without voltage.
    • 2: Check configuration of the radio connection cable
    • 3: Connect the radio connection cable according to the operating instructions of the retrofit device.
    • 4: Connect all other connections according to the operating instructions of the retrofit device.
    • 5: Connection of the overall installation to the vehicle with live connection last.
    • 6: Configuration of the retrofit device according to the operating instructions of the retrofit device steering wheel remote control/camera/telephone hands-free system/antenna phantom power supply and more
  • Changes to the configuration of the interface and the radio connection cable
    • 1: Carry out changes without voltage
    • 2: Connection after change see above 5 and 6
  • The connections, connection changes, alternative connections, connections of loose cables, or connection extensions of loose cables specified in the instructions or the operating manual are intended solely for orientation and information for trained professionals.
  • "Connections, changes to the cable configuration of the wiring harness, or use of alternative connections or connection extensions"
    • 1: Connections and modifications are to be carried out exclusively by trained professionals.
    • 2: Connections and modifications must be checked for any manufacturer approvals or any manufacturer warranty conditions that may be affected by the modifications before connection.
    • 3: Connections and modifications must be checked for functionality and accuracy before connection by measuring and by matching against the vehicle's wiring diagram.
    • 4: Connections and modifications are made at your own risk without guarantee of functionality.
    • 5: Connections and modifications are made at your own risk without any guarantee against damage to the vehicle, the retrofit device, or the interface.
    • 6: Modifications to the pre-assembled wiring harness will void the product's warranty.

    ACV LFB Citroen 40Pin Quadlock ohne Gerät Datenblatt

    Datenblatt öffnen

    Frequent questions about LFB Citroen 40Pin Quadlock ohne Gerät

    Wie installiere ich das LFB Citroen 40Pin Quadlock ohne Gerät von ACV?

    Before you install the LFB Citroen 40Pin Quadlock from ACV, make sure that all configurations are voltage-free. First, check the radio connection according to the instructions of the retrofit device and connect it accordingly. Follow the connection order: first the radio connection cables as per the instructions, then all other connections. Finally, connect the entire installation to the live connection of your vehicle. Changes and configurations of the interface should always be made in a voltage-free state. It is essential that all connections are made by trained personnel to ensure correct function and safety.

    Welche Fahrzeuge sind kompatibel mit dem LFB Citroen 40Pin Quadlock?

    The LFB Citroen 40Pin Quadlock from ACV is compatible with various Citroën models such as Berlingo, C2, C3, C4, C5, and C8, as well as Fiat Scudo and Toyota Proace. It is important to check vehicle compatibility, as incompatibilities may occur with re-imported vehicles or vehicles with different software. The adapter is specifically designed for models with the CAN-Bus interface and 40 Pin Quadlock connection. It is essential to match the depicted connectors of the adapter with those in your vehicle to ensure optical and technical fit and to avoid disturbances.

    Welche Signale werden vom LFB Citroen 40Pin Quadlock bereitgestellt?

    The LFB Citroen 40Pin Quadlock from ACV offers various signals such as +12V ignition (red), +12V lighting (orange), +12V reverse signal (purple/white), speed signal (pink), and the handbrake signal. The load capacity of the total outputs is limited to a maximum of 100 mA. Installation in vehicles with higher power requirements should definitely be avoided or adjusted. The minimum coil resistance for one of the relays is 75 Ohms, for two relays 150 Ohms. These technical features are critical for the error-free operation of your vehicle equipment in connection with the adapter.

    Wie prüfe ich die Passgenauigkeit des LFB Citroen 40Pin Quadlock?

    Before installing the LFB Citroen 40Pin Quadlock, a comparison of the depicted connectors with those of your vehicle is necessary. Ensure that the connectors visually and technically match the existing connections. Additionally, it is advisable to check the functionality of the vehicle settings and the steering wheel remote control before the final installation. This step ensures that all planned functions are indeed supported and that no essential functions are lost after replacing the factory radio with an aftermarket radio.

    Kompatibilität des LFB Citroen 40Pin Quadlock mit Radioherstellern?

    The LFB Citroen 40Pin Quadlock from ACV offers specific connection cables for various radio manufacturers such as Alpine, Parrot, Bosch-Blaupunkt, Kenwood, and Pioneer. Each LFB cable is designed for a specific brand or device series. For example, the 42ctalpinelead for Alpine, 42ctpanasoniclead for Panasonic, and 42ctzeneclead for XZent/Zenec. Ensuring that the appropriate cables and connections are used and installed correctly increases the chance of full compatibility and the preservation of steering wheel remote control functions.

    Welche technischen Hinweise sind bei der Installation zu beachten?

    When installing the LFB Citroen 40Pin Quadlock, you should keep the voltage flexible, especially during the modification of the steering wheel remote control/camera/phone system. The order of installation is essential: the settings of the interface must be done without voltage. Then configure the radio connection, connect it, and only then proceed with the overall installation. All other connections should follow the instructions of the retrofit device accordingly. This sequence minimizes the risk of malfunctions or damage to the vehicle's electronics. Furthermore, any interventions on the wiring harness should only be carried out by trained professionals.

    Was bedeutet die Angabe ‚Fahrzeugcodierung auf OEM Gerät erforderlich‘?

    The indication 'Vehicle coding on OEM device required' for the LFB Citroen 40Pin Quadlock suggests that for vehicles without radio coding, additional programming or learning may be necessary. This requirement particularly concerns the vehicle database or control units that must interact with the original device to ensure the full functionality of the steering wheel remote control. The coding is often carried out using special devices or software that assess the control unit data. A professional should definitely be consulted to ensure correct functionality.

    Welche Funktionen können entfallen oder ersetzt werden?

    When replacing the factory radio with an aftermarket radio, it may occur that certain control functions are lost or modified due to the LFB Citroen 40Pin Quadlock. These changes depend on the details of the vehicle's equipment as well as the software of the aftermarket device. For example, steering wheel controls may be mapped differently or specific vehicle functions may not be supported. Therefore, it is crucial to study the user manual of the new device carefully to make any necessary adjustments and ensure smooth integration. A thorough check before installation is essential.

    Ist eine externe Spannungserzeugung für das LFB Citroen 40Pin Quadlock nötig?

    For the LFB Citroen 40Pin Quadlock, external voltage generation is not required, as the necessary signals (+12V) are provided directly from the vehicle network. This includes terminal 58 for lighting or terminal 15 for ignition. During installation, care must be taken not to exceed the current requirement of 100 mA. All electrical connections must be made according to the instructions to avoid malfunctions. If a higher current draw is necessary, it is advisable to have the installation adjusted by a professional. Before connecting, check all used cables for functionality.

    Welche Vorsichtsmaßnahmen sollten bei der Nutzung des LFB Citroen 40Pin Quadlock getroffen werden?

    The use of the LFB Citroen 40Pin Quadlock requires basic precautions. Therefore, modifications to the wiring harness or connections must be carefully checked and carried out only by qualified personnel. Any changes may affect or void the manufacturer's warranty. Before commissioning, it is essential to check all connections and measure the voltages according to the vehicle manufacturer's specifications. Ensure that all peripheral devices, such as the steering wheel remote control, are correctly configured. Self-responsible modifications that lead to malfunctions or cause damage to the vehicle are not covered by the warranty.
