ACV LFB BMW/Mini 40Pin Quadlock CAN/PDC Steering Wheel Remote Control
SKU:  42SBM009
EAN:  4026724131239

LFB BMW/Mini 40Pin Quadlock CAN/PDC

SKU:  42SBM009
EAN:  4026724131239

Technical Highlights

  • 40 pin Quadlock BMW connector, +12V continuous current, fused.
  • PDC parking aid sounds switchable, vehicles at standstill.
  • Reverse signal, handbrake signal, ignition, speed active.
  • More technical details
Normal price €169,00
Normal price €169,00 Selling price €169,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €14,08 with Klarna .

Your benefits at Masori


Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Normal price €169,00
Normal price €169,00 Selling price €169,00

LFB BMW/Mini 40Pin Quadlock CAN/PDC by ACV

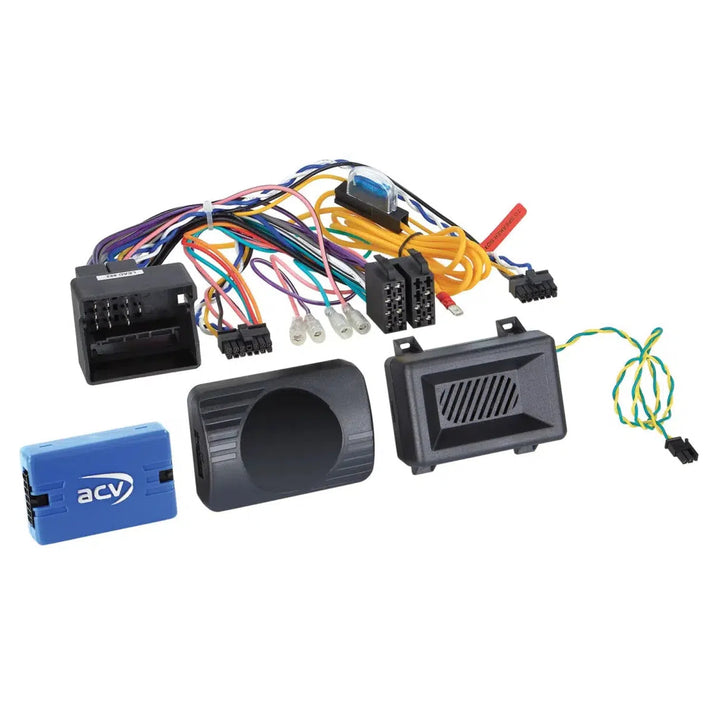

ACV LFB BMW/Mini 40Pin Quadlock CAN/PDC is a Steering Wheel Remote Control with CAN Bus and 40 Pin Quadlock BMW Plug. It provides handbrake signal, reverse signal, ignition, lighting, speed, and steering wheel remote control. Supports rear PDC and warning tones. PDC parking assistance tones can be turned on and off using the turn signal sequence right/left/right/left within 2.5 seconds, with a confirmation tone for the function change. Designed for vehicles with Business Professional OEM device, without iDrive and without OEM MOST sound system. Connection via +12V constant power yellow to terminal 30, battery protected.

Features
  • Steering Wheel Remote Control
  • CAN Bus
  • 40 Pin Quadlock BMW Plug
  • +12V constant power yellow, terminal 30, battery protected
  • Rear PDC supported
  • Warning tones supported
  • PDC tones can be turned on/off via turn signal right/left/right/left
  • Vehicles with Business Professional OEM device
  • Vehicles without iDrive
  • Vehicles without OEM MOST sound system
Technical Data
  • Connection: 40 Pin Quadlock BMW Plug
  • Connection: +12V constant power yellow terminal 30 battery protected
  • Provided signals: handbrake signal
  • Provided signals: reverse signal
  • Provided signals: ignition
  • Provided signals: lighting
  • Provided signals: speed
  • Provided signals: Steering Wheel Remote Control
  • Rear PDC supported
  • Warning tones supported
  • PDC parking assistance tones on/off: turn signal right/left/right/left within 2.5 seconds
  • PDC parking assistance: vehicle stationary, ignition on
  • Confirmation: 1 confirmation tone for function change
  • Suitable for: BMW 1 Series (E81/E82/E87/E88) 03/2004 - 10/2013*
  • Suitable for: BMW 3 Series (E90/E91/E92/E93) 03/2005 - 10/2013*
  • Suitable for: BMW 5 Series (E60/E61) 07/2003 - 07/2010*
  • Suitable for: BMW 6 Series (E63/E64) 09/2004 - 11/2010
  • Suitable for: BMW 7 Series (E65/E66) 08/2001 - 11/2008
  • Suitable for: BMW Z4 (E89) 05/2009 - 08/2016
  • Suitable for: BMW X1 (E84) 10/2009 - 06/2015
  • Suitable for: BMW X5 (E70) 03/2007 - 09/2013*
  • Suitable for: BMW X6 (E71/E72) 05/2008 - 06/2014*
  • Suitable for: BMW Mini (R55/R56/R57/R58/R59) 11/2006 - 05/2015**
  • Note: Vehicles with OEM MOST sound system LFB BMW 1 Series/3 Series/5 Series/X5/X6 40 Pin Quadlock Amp MOST item: 42sbm012
  • Optional: Active system adapter BMW MOST>Cinch: 13-1024-51
  • Note: OEM tachometer display not supported
  • Connection cable: LFB ACV cable > Alpine jack: 42ctalpinelead
  • Connection cable: LFB ACV cable > Parrot 4 Pin: 42ctasteroidlead
  • Connection cable: LFB ACV cable > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
  • Connection cable: LFB ACV cable > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
  • Connection cable: LFB ACV cable > Clarion jack: 42ctclarionlead
  • Connection cable: LFB ACV cable > JVC 1 cable/jack: 42ctjvclead
  • Connection cable: LFB ACV cable > Kenwood 1 cable: 42ctkenwoodlead
  • Connection cable: LFB ACV cable > Multilead various devices: 42ctmultilead
  • Connection cable: LFB ACV cable > Multilead various devices/Pioneer 2022>: 42ctmultilead3
  • Connection cable: LFB ACV cable > Multilead various devices/Pioneer 2022>: 42ctmultilead5
  • Connection cable: LFB ACV cable > Panasonic 1 cable: 42ctpanasoniclead
  • Connection cable: LFB ACV cable > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
  • Connection cable: LFB ACV cable > Pioneer AVH/DMH/SPH 2022> jack: 42ctpioneerlead2
  • Connection cable: LFB ACV cable > Blaupunkt/Kenwood/Sony jack: 42ctsonylead
  • Connection cable: LFB ACV cable > XZent/Zenec 1 cable: 42ctzeneclead

Your benefits at Masori


ACV LFB BMW/Mini 40Pin Quadlock CAN/PDC Datasheet

Frequently Asked Questions about LFB BMW/Mini 40Pin Quadlock CAN/PDC


How is the ACV LFB BMW/Mini 40Pin Quadlock CAN/PDC Adapter connected?

The ACV LFB BMW/Mini 40Pin Quadlock CAN/PDC Adapter connects via a 40-pin Quadlock connector to the vehicle-specific wiring harness. To ensure that the adapter functions seamlessly, it is necessary to match it with the existing connectors in the vehicle. The yellow wire corresponds to terminal 30 and provides +12V constant power, which is required for reliable power supply. The integration concerns vehicles equipped with a Business Professional OEM device and do not use iDrive control. During installation, specifications such as battery fusing must be observed to avoid electrical malfunctions.

Which BMW models are compatible with the ACV LFB BMW/Mini 40Pin Quadlock Adapter?

The ACV LFB BMW/Mini 40Pin Quadlock Adapter is compatible with a variety of BMW models. This includes the BMW 1 Series (E81/E82/E87/E88) from 03/2004 to 10/2013, the BMW 3 Series (E90/E91/E92/E93) from 03/2005 to 10/2013, and the BMW X5 (E70) from 03/2007 to 09/2013. Additionally, models such as the BMW 5 Series (E60/E61) and the BMW 6 Series (E63/E64) are supported. It is important to note that the adapter cannot be combined with vehicles that use an OEM MOST sound system. Only models without iDrive or OEM MOST sound systems are suitable.

What functions does the ACV LFB BMW/Mini 40Pin Quadlock CAN/PDC Adapter support?

The ACV LFB BMW/Mini 40Pin Quadlock CAN/PDC Adapter provides a variety of signals to enhance the functionality of the aftermarket radio. Supported signals include the handbrake signal, reverse signal, ignition, as well as lighting and steering wheel remote control. Additionally, the adapter integrates the PDC parking assistance, allowing the use of warning tones in stationary mode by repeatedly activating the turn signals. Especially for users who wish to retain steering wheel control, the adapter is an excellent solution as it ensures compatibility with various signals.

How does the ACV LFB BMW/Mini Quadlock Adapter affect the PDC parking assistance?

The ACV LFB BMW/Mini Quadlock Adapter allows you to control the sounds of the PDC parking assistance. This feature is particularly beneficial when the driver needs alerts during parking maneuvers. The sound settings are adjusted while stationary by activating the turn signals in a specified sequence: right, left, right, left within 2.5 seconds. The vehicle confirms the function change with a sound. It is important to note that these functionalities are only available in vehicles that are not equipped with an OEM MOST sound system, as these systems require different signal processing.

What steering wheel remote control functions are retained with the ACV LFB BMW/Mini?

The ACV LFB BMW/Mini Adapter ensures the retention of steering wheel control functions, which is particularly interesting for users who do not want to forgo ergonomic operation. Typical functions include volume control, channel switching, and call answering or ending. This allows for convenient control of the most important audio features without taking hands off the steering wheel, which enhances driving safety. The adapter supports smooth signal transmission between the steering wheel and the aftermarket radio to ensure full functionality.

Is the ACV LFB BMW/Mini Adapter compatible with OEM tachometer displays?

The ACV LFB BMW/Mini 40Pin Quadlock Adapter is not compatible with vehicles that have an OEM tachometer display. This is important to note, as such tachometer displays require special signals to display audio and vehicle settings, which are not supported by the adapter. If the vehicle has an OEM tachometer display, it is recommended to consider an alternative specifically designed for this configuration. However, for models that do not have such a display integrated, the adapter can be used without restrictions to expand the desired radio functions.

Are there optional additional modules for the ACV LFB BMW/Mini Adapter?

Yes, optional additional modules are available for the ACV LFB BMW/Mini 40Pin Quadlock Adapter that expand its capabilities. One example is the active system adapter BMW MOST>Cinch with the article number 13-1024-51, which is specifically designed for vehicles with a MOST bus system. This module allows integration into existing active speaker systems, thus providing better sound quality. It is beneficial to align the need for such additional modules with the specific audio requirements of the vehicle before installation to achieve an optimal sound experience.

What radio compatibility does the ACV LFB BMW/Mini Quadlock Adapter offer?

The ACV LFB BMW/Mini 40Pin Quadlock Adapter offers broad compatibility with various aftermarket radios. It is compatible with radio manufacturers such as Alpine, Parrot, Bosch-Blaupunkt, JVC, Kenwood, Sony, Clarion, and Pioneer. Specific connection cables like the LFB ACV cable for Alpine jack (42ctalpinelead) or Kenwood 1 cable (42ctkenwoodlead) are necessary to ensure a disturbance-free connection. This variety of cables allows for the seamless integration of nearly any common aftermarket radio into the respective vehicle model without sacrificing important functions.

How do the signals from the ACV LFB BMW/Mini Adapter affect the vehicle electronics?

The ACV LFB BMW/Mini Adapter influences the vehicle electronics by providing specific signals and integrating signals such as handbrake signal, reverse signal, and ignition into the system architecture of the aftermarket radio. These functionalities are crucial as they enable the radio to respond to current driving situations, e.g., automatic switching when engaging reverse gear to enhance parking assistance. Furthermore, the adapter ensures that all relevant signals are synchronized with the aftermarket radio, thereby ensuring increased interactivity between the vehicle and the radio.

Are there limitations when using the ACV LFB BMW/Mini Quadlock Adapter with certain sound systems?

Yes, there are limitations with vehicles equipped with an OEM MOST sound system, as the ACV LFB BMW/Mini 40Pin Quadlock Adapter is not designed for their digital audio transmission structure. MOST (Media Oriented Systems Transport) requires special adapter solutions to correctly integrate sound and control. In these cases, a specific MOST to RCA active system adapter is often needed to properly convert the signals. Users of such systems should ensure that the correct adapters are available to guarantee the proper functioning of the sound system after installing an aftermarket radio.
