3. Venezia V5

Venezia V5

220 Watt

Venezia V5

Technical Highlights

  • Power 130W x 4 + 490W at 4Ω, 220W x 4 + 820W at 2Ω.
  • Pre-ln impedance 10kΩ, distortion <0.05%, S/N ratio 102 dB.
  • Low-in sensitivity: 0.2-5 VRMS, bandwidth 10-42 kHz.
  • More technical details
€641.16
-14% €749.00 €641.16
2% discount with credit card
including VAT
Estimated delivery: Sep 15–Sep 18.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Right for your project?

What does this product offer?

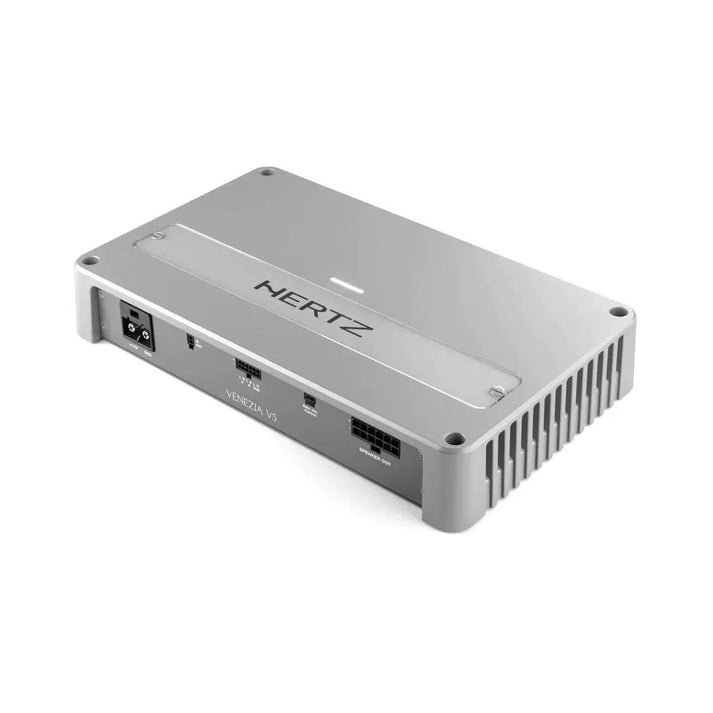

Venezia V5 is a 5-Channel Amplifier from Hertz featuring Hertz Advanced Class D technology and Hi-Res certification. The output power (RMS) @ 14.4 VDC, THD 1% includes 5 channels with 130 W x 4 (4 Ω) plus 490 W x 1 (4 Ω) as well as 5 channels with 220 W x 4 (2 Ω) plus 820 W x 1 (2 Ω). Alternatively, 3 channels with 440 W x 2...

Will it fit my car?
  • Dimensions: A 330 mm, B 300 mm, C 200 mm, D 170 mm, E 54 mm
  • Dimensions: A 330 mm, B 300 mm, C 200 mm, D 170 mm, E 54 mm

Compare installation dimensions and connections with your car and existing system. Vehicle-specific products may also be limited to certain years or equipment versions.

Which variant do I need?

No other variant is offered for this product. Check your system requirements before buying.

What is included?

The offer is for the named product in the selected variant. The available information does not clearly list all included accessories. Check required accessories with us before buying.

What else do I need?

Check power cable and fuse sizing for current and cable length, ground, signal input and supported speaker impedance. Factory radios require compatible signal inputs and any necessary adapters.

What does installation involve?

Effort depends on the car, existing wiring and installation position. A reliable installation time cannot be stated generally. Check connections, mounting and space before buying; use a qualified installer if unsure.

Advice by email

Reply in 1–3 working days · Mon–Fri

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Learn more

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri
Hertz-Venezia V5-5-Kanal Verstärker-masori-kaufen
€641.16
€749.00 €641.16

Venezia V5 is a 5-Channel Amplifier from Hertz featuring Hertz Advanced Class D technology and Hi-Res certification. The output power (RMS) @ 14.4 VDC, THD 1% includes 5 channels with 130 W x 4 (4 Ω) plus 490 W x 1 (4 Ω) as well as 5 channels with 220 W x 4 (2 Ω) plus 820 W x 1 (2 Ω). Alternatively, 3 channels with 440 W x 2 (4 Ω) plus 490 W x 1 (4 Ω) or 3 channels with 440 W x 2 (4 Ω) plus 820 W x 1 (2 Ω); total RMS power is 1700 W. The bandwidth is 10 - 42 kHz, the total harmonic distortion is <0.05% (100 Hz @ 4 Ω), the signal-to-noise ratio is 102 dB (A weighted @ 1 V), and the damping factor is 130 (100 Hz @ 4 Ω). The power supply operates with 9 - 16 VDC, the current draw is 1.8 A when turned on and 0.04 mA in standby, the consumption at 1 Ω and 14.4 VDC (max musical power) is 70 A, the remote input is 7 - 15 VDC and 1 mA. Preamp inputs are available for A, B, and Sub channels, Pre-Out is not available. The filters include Hi-Pass, Band-Pass, and Low-Pass with adjustable ranges, plus phase 0 - 180°, subsonic 25 Hz @ 24 dB/Oct, and boost 50 Hz 0 - 12 dB. The dimensions are A 330 mm, B 300 mm, C 200 mm, D 170 mm, E 54 mm; the weight is 3.72 kg.

Features
  • 5-Channel Amplifier
  • Manufacturer: Hertz
  • Hertz Advanced Class D technology
  • Hi-Res certified
  • Channels: 5 - 3
  • Adjustable crossovers
  • Inputs: A Ch. Pre-In, B Ch. Pre-In, Sub Ch. Pre-In
  • Pre-Out: No
  • Supply voltage: 9 - 16 VDC
  • Bandwidth: 10 - 42 kHz
  • Dimensions: A 330 mm, B 300 mm, C 200 mm, D 170 mm, E 54 mm
  • Weight: 3.72 kg
Technical Specifications
  • Output power (RMS) @ 14.4 VDC, THD 1%: 5 channels 130 W x 4 (4 Ω) + 490 W x 1 (4 Ω)
  • Output power (RMS) @ 14.4 VDC, THD 1%: 5 channels 220 W x 4 (2 Ω) + 820 W x 1 (2 Ω)
  • Output power (RMS) @ 14.4 VDC, THD 1%: 3 channels 440 W x 2 (4 Ω) + 490 W x 1 (4 Ω)
  • Output power (RMS) @ 14.4 VDC, THD 1%: 3 channels 440 W x 2 (4 Ω) + 820 W x 1 (2 Ω)
  • Total RMS power: 1700 W
  • Distortion (THD, 100 Hz @ 4 Ω): <0.05%
  • SNR (A weighted @ 1 V): 102 dB
  • Damping factor (100 Hz @ 4 Ω): 130
  • Sensitivity Low-In: 0.2 - 5 VRMS
  • Pre-In impedance: 10 kΩ
  • Load impedance (MIN) 5Ch: 2 Ω
  • Load impedance (MIN) 3Ch: 4 Ω + 4 Ω + 2 Ω
  • Power supply: 9 - 16 VDC
  • Current (On/Off): 1.8 A / 0.04 mA
  • Consumption @ 1 Ω, 14.4 VDC (max musical power): 70 A
  • Remote input: 7 - 15 VDC, 1 mA
  • A Ch. Filter: Bypass Yes; Hi-Pass 50 - 500 Hz / 500 Hz - 5 kHz @ 12 dB/Oct
  • B Ch. Filter: Bypass Yes; Hi-Pass 50 - 500 Hz @ 12 dB/Oct; Band-Pass 50 - 500 Hz / 500 Hz - 5 kHz @ 12 dB/Oct
  • Sub Ch. Filter: Bypass No; Low-Pass 50 - 250 Hz @ 24 dB/Oct; Phase 0 - 180°; Subsonic 25 Hz @ 24 dB/Oct; Boost 50 Hz 0 - 12 dB
  • Dimensions: A 330 mm, B 300 mm, C 200 mm, D 170 mm, E 54 mm
  • Weight: 3.72 kg

Frequently Asked Questions about Venezia V5

What is the power output of the Venezia V5 Amplifier?

The Hertz Venezia V5 delivers an impressive total power of 1700 Watts RMS. With its 5-channel design, the amplifier offers numerous configurations: 130 W x 4 at 4 Ω and 470 W for the Subwoofer at 4 Ω. At a lower impedance of 2 Ω, the power can be increased to 220 W x 4 and 820 W x 1. This flexible power output allows you to optimally tailor the amplifier to your specific needs and preferences while ensuring consistent and powerful audio performance. Particularly interesting for music enthusiasts who value rich and robust audio playback.

What technology does the Venezia V5 use to achieve efficiency?

The Hertz Venezia V5 utilizes advanced Class D technology. This Class D amplifier technology excels in high efficiency, meaning less power is converted into heat and less energy is wasted. This keeps the amplifier cool while minimizing electromagnetic radiation. These factors contribute to the stability and longevity of the device, especially in demanding marine environments where such features are highly beneficial. Therefore, the Venezia V5 is ideally suited for marine applications, as it consistently provides high-quality audio performance even in adverse conditions.

What are the impedance requirements for the Venezia V5?

The Venezia V5 Amplifier has specific minimum impedances for optimal operation. When using all five channels, you should expect a minimum load of 2 Ω. If you operate the amplifier in 3-channel mode, the impedance requirements are 4 Ω + 4 Ω + 2 Ω. These requirements ensure that the amplifier's power is optimally distributed while avoiding circuit overload. By adhering to these parameters, you achieve stable and reliable performance, which is essential in complex audio installations in vehicles.

What about the distortion and signal-to-noise ratio of the Venezia V5?

The Hertz Venezia V5 scores with a very low distortion factor of less than 0.05% at 100 Hz and 4 Ω. This low distortion ensures that the audio output remains clear and precise, even at high volume. Furthermore, the amplifier impresses with a signal-to-noise ratio of 102 dB, measured with A-weighting at 1 V. This means that the ratio between useful signal and disturbing noise is extremely favorable, leading to a clear and uncolored sound image. Especially during high-quality music playback, this significantly enhances the acoustic performance of the system.

What crossovers are adjustable on the Venezia V5?

The Venezia V5 amplifier offers extensive options for adjusting the crossovers. These include hi-pass filters on channels A and B, with adjustable ranges from 50 - 500 Hz and from 500 Hz to 5 kHz at 12 dB/octave. The subwoofer channel provides a low-pass filter with a range of 50 - 250 Hz at 24 dB/octave, complemented by a phase of 0 to 180° and adjustable boost at 50 Hz from 0 to 12 dB. These settings allow you to optimally adjust the frequency transitions to the speaker system, thereby achieving the best possible sound balance.

How compact is the Venezia V5 marine amplifier?

Although the Venezia V5 delivers powerful performance, it remains compact in size. With dimensions of 330 mm in length, 300 mm in width, and a height of 54 mm, it fits into most audio installations, especially in marine and automotive contexts. When installing, it is important to plan the available space considering these measurements. Despite its compact design, the Venezia V5 shows no compromises in performance and functionality, making it ideal for situations where space is a crucial factor.

Can the Venezia V5 also be used in a car?

The versatile specifications of the Venezia V5 allow its use not only in marine applications but also in vehicle installations. The operating voltage ranges from 9 - 16 VDC, which is suitable for most car batteries. Important during installation is to consider the dimensions (330 mm x 300 mm x 54 mm) and the proper securing of power connections to ensure optimal access and operation. When used in a vehicle, external factors such as ambient temperature and ventilation should also be considered to maximize the longevity and efficiency of the amplifier.

How does the Hi-Res certification affect the sound of the Venezia V5?

The Hi-Res certification of the Venezia V5 by Hertz confirms its ability to reproduce high-resolution audio content. This certification ensures that the Amplifier can reproduce audio frequencies beyond CD quality, resulting in greater detail and clarity in sound. Music is represented in full spectrum, meaning highs, mids, and lows are more detailed and distinct, leading to an overall richer listening experience. Especially in demanding audio installations, the Hi-Res certification provides a significant advantage for audiophile users and sound enthusiasts.

What accessories can be used with the Venezia V5?

The Venezia V5 Amplifier can be equipped with the optional HRC BM2 Subwoofer remote control. This accessory allows you to flexibly adjust the level of the Subwoofer between -20 and +6 dB, ideal depending on your preferred music style and personal preference. The HRC BM2 features a robust Molex connector, enabling a simple and secure connection. This flexibility in controlling the Subwoofer level ensures that you can optimally adjust the bass intensity to different listening environments and requirements.

What is the power consumption of the Venezia V5?

The Venezia V5 Amplifier has a specific power consumption that supports operation without wasting excess energy. When powered on, it draws 1.8 A and consumes a maximum of 70 A during power output at 1 Ω and 14.4 VDC. However, in the off standby mode, it only consumes 0.04 mA. These optimized values provide insights into the efficient energy use of the Venezia V5, which is particularly beneficial in energy-sensitive applications, such as use on board a vehicle or watercraft. This efficient energy management is a feature that both conserves the Battery and promotes the longevity of the device.
