3. Mosconi PICO 4|8 DSP

Mosconi PICO 4|8 DSP

115 Watt

Mosconi PICO 4|8 DSP

Technical Highlights

  • Output power: 4 x 90 watts at 4 ohms, ideal for active systems.
  • Equipped with six analog inputs up to 30 V, flexible use.
  • Features 912 MHz DSP with 32-bit audio port and 64-bit core.
  • More technical details
€599.00
€599.00 €599.00
2% discount with credit card
including VAT
Estimated delivery: Sep 14–Sep 17.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

datasheet

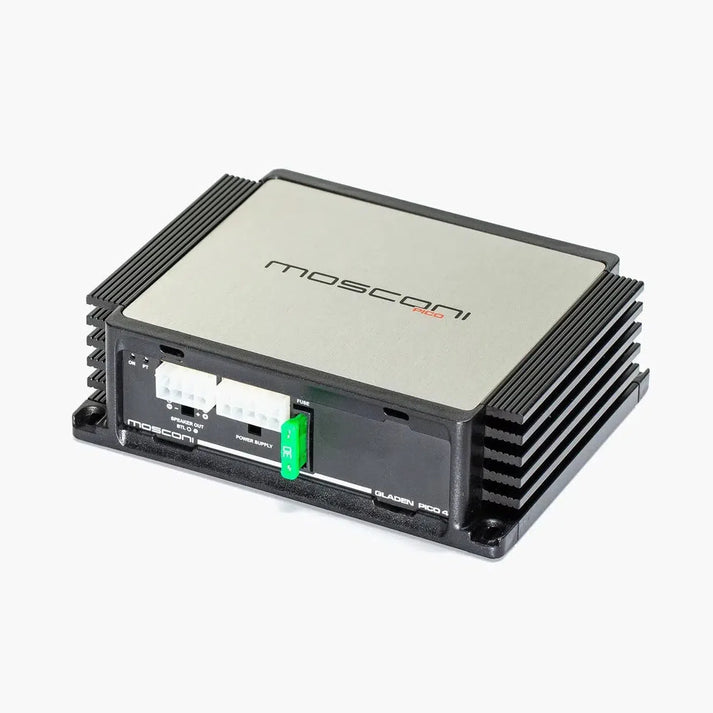

Gladen-Mosconi PICO 4|8 DSP-4-Kanal DSP-Verstärker-masori-kaufen
€599.00
€599.00 €599.00

The Mosconi PICO 4|8 DSP is a 4-Channel DSP Amplifier from Gladen. The output power includes 4 x 90 Watts at 4 Ohms and 4 x 115 Watts at 2 Ohms; additionally, bridged configurations with 2 x 230 Watts and 2 x 85 Watts + 1 x 230 Watts at 4 Ohms are possible. Optimized for use with factory radios with six analog inputs up to 30 V, flexible routing, and 3 x input EQ and delay. Two digital inputs with optical SP-Dif and BT+, as well as Line-Out with 4 x 2 Vrms. DSP section with 912 MHz, 32-Bit audio port, 64-Bit core, and double precision 56 Bit filter calculation. Software features include 3 x 9 band parametric input EQ, 6 x input delay, flexible mixer, output filters, and various filter types. Control via Remote Connector, Bluetooth control port, Remote Out/In, and Auto-Remote for high-level connection; connections with MOLEX connectors. Very compact size with low heat generation, dimensions 150 x 133 x 46 mm, efficiency over all > 80%, weight 1100 grams.

Features
  • 4-Channel DSP Amplifier
  • Optimized for use with factory radios
  • 6 x analog inputs up to 30 V
  • 2 x digital inputs: optical SP-Dif and BT+
  • Bluetooth extended digital Audio Port (BT+) with 8 kHz – 384 kHz, 2 – 16 channels, direct DSP access without jitter
  • Flexible routing
  • 3 x input EQ and delay
  • Very compact size with low heat generation
  • Dimensions: 150 x 133 x 46 mm
  • Connections with MOLEX connectors
  • Remote Connector for RTC.2
  • Bluetooth control port for MOS-BT3.0, RC-Can, MOS_USB2.0
  • Remote Out and Remote In, Auto-Remote for high-level connection
Technical Specifications
  • Output power at 4 Ohms: 4 x 90 Watts
  • Output power at 2 Ohms: 4 x 115 Watts
  • Output power at 4 Ohms: 2 x 85 Watts + 1 x 230 Watts (bridged)
  • Output power at 4 Ohms: 2 x 230 Watts (bridged)
  • Line Out: 4 x 2 Vrms
  • 4 x analog inputs symmetrical (high-level) up to 30 V
  • 2 x switchable analog inputs (high-level / low-level)
  • 1 x digital input optical SP-Dif (8 kHz – 96 kHz sampling rate)
  • 1 x Bluetooth port with SP-Dif – TTL (8 kHz – 96 kHz)
  • BT+ Digital Audio Port: 8 kHz – 384 kHz, 2 – 16 channels, direct DSP access
  • 912 MHz, 32-Bit audio port, 64-Bit core
  • Double precision 56 Bit filter calculation
  • 6144 SIMD instructions per sample at 48 kHz
  • ASRCs from 1:8 to 7.75:1 ratio
  • 139 dB DNR
  • 1 x Remote Connector (Analog, for RTC.2 remote control)
  • 1 x Bluetooth control port (MOS-BT3.0, RC-Can, MOS_USB2.0)
  • 1 x Remote Out
  • 1 x Remote In
  • Auto-Remote for high-level connection
  • 3 x 9 band parametric input EQ (De-Equalizing)
  • 6 x input delay 0 – 3 ms / 0.01 ms (De-Delay)
  • 10 x digital input level controllers
  • Flexible mixer: 10 inputs to 4 x 2 output groups, side-separated, summing and subtracting
  • 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ (parametric)
  • 8 x 10 band output filters
  • Filter types: HighPass / LowPass / HighShelf / LowShelf / Notch / Allpass 1st + 2nd order / Speaker-EQ
  • 8 x speaker delay 0 – 12 ms, step size 0.02 ms
  • 8 x speaker phase switch
  • Input voltage: 0.3 – 15 V
  • Efficiency overall: > 80 %
  • Auto-On (only high level): Off - BTL
  • Dimensions: 150 x 133 x 46 mm
  • Weight: 1100 grams

Frequently Asked Questions about Mosconi PICO 4|8 DSP

What power does the Mosconi PICO 4|8 DSP Amplifier offer?

The Mosconi PICO 4|8 DSP Amplifier provides an impressive output power of 4 x 90 watts at 4 ohms. For higher power needs, it offers 4 x 115 watts at 2 ohms. Particularly appealing for demanding applications is the bridging option, which combines two channels into 2 x 230 watts at 4 ohms. This is ideal for power-intensive applications or large speaker systems. The amplifier's high efficiency exceeds 80%, making it not only power-efficient but also energy-efficient. This capability allows for reliable operation of both active and semi-active audio systems.

How can the Mosconi PICO 4|8 DSP be optimally integrated into an existing system?

The Mosconi PICO 4|8 DSP is designed for perfect OEM integration. With its six analog inputs, which support voltages up to 30 V, the amplifier can be directly integrated into existing factory radios. The flexible signal routing, which includes routing, summing, and subtracting, allows for seamless adaptation to existing systems. Additionally, there are two digital inputs, including an SP-Dif interface and a Bluetooth port, which expand versatility and integration options. Control is achieved through various interfaces, including a Bluetooth Control Port for app control or Can-Bus control.

What input and output options does the Mosconi PICO 4|8 DSP offer?

The Mosconi PICO 4|8 DSP is equipped with a variety of input and output options to ensure maximum flexibility. On the input side, there are four balanced high-level analog inputs, as well as two switchable high or low-level inputs. An optical SP-Dif interface supports sample rates from 8 to 96 kHz, while the Bluetooth port is responsible for digital audio input. On the output side, there are four processed line-outs, each providing 2 Vrms, which are excellent for further signal processing or additional amplifier connections.

What EQ and delay options does the Mosconi PICO 4|8 DSP offer?

The Mosconi PICO 4|8 DSP offers extensive options for sound optimization through its DSP component. It features 3 x 9 band parametric input EQs as well as 6 x input delays with a range of 0 to 3 ms. These functions allow for de-equalization of the input tone and specific equalization. On the output side, the amplifier provides 8 x 10 band output filters including HighPass, LowPass, HighShelf, LowShelf, Notch, and Allpass of 1st and 2nd order, combined with a speaker delay of up to 12 ms. These filter options enable precise tuning of the sound to the desired level.

What digital interfaces does the Mosconi PICO 4|8 DSP support?

The Mosconi PICO 4|8 DSP is equipped with digital interfaces that offer flexibility and connectivity. One of the central digital connections is the SP-Dif input, which can process optical signals with a sample rate of 8 kHz to 96 kHz. Additionally, the Bluetooth port provides enhanced capabilities to synchronously feed digital audio signals in a flexible range from 8 kHz to 384 kHz. These options allow modern audio sources with multiple channels, such as 2 to 16, to be connected directly and without jitter to the DSP system. Two processed line-outs are also available as outputs for further processing.

What are the dimensions of the Mosconi PICO 4|8 DSP and how do they affect installation?

With dimensions of 150 x 133 x 46 mm, the Mosconi PICO 4|8 DSP is extremely compact. These small dimensions allow for installation in tight spaces, such as behind vehicle panels, and minimize space requirements. Especially in vehicles with limited space, the small size proves to be an advantage. Despite the compact format, there is only minor heat generation, ensuring reliable performance in confined areas. The use of MOLEX® connectors also ensures a straightforward and secure connection of the device to existing audio systems.

What features make the Mosconi PICO 4|8 DSP suitable for future requirements?

The Mosconi PICO 4|8 DSP was developed with future audio requirements in mind. Future-oriented features include two digital inputs that support streams via SP-Dif and BT+. The Bluetooth extended digital audio port allows audio sources with a variety of channels to be fed directly into the DSP without jitter, ready for cutting-edge audio applications. With flexible routing and various EQ options, the PICO 4|8 DSP can be easily adapted to new system configurations, making it a central component in any advanced car audio setup.

How does the flexible routing work in the Mosconi PICO 4|8 DSP?

The flexible routing of the Mosconi PICO 4|8 DSP allows for precise control and adjustment of audio signals, enabling individual sound preferences to be realized. Thanks to a side-separated mixer, up to 10 analog inputs can be distributed across 4 x 2 output groups, with the ability to sum or subtract signals. The parametric 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ offers another dimension of sound processing. Together with delay options, equalizers, and speaker delay functions, users can achieve optimal acoustics that are both complex and customizable.

What controllable options does the Mosconi PICO 4|8 DSP offer via Bluetooth?

The Mosconi PICO 4|8 DSP offers several controllable options through its Bluetooth interfaces. In addition to audio transmission via the Bluetooth extended digital audio port, which is designed for audio sources with 2 to 16 channels, there are additional control options. The Bluetooth control port allows the use of the MOS-BT3.0 interface for convenient app control. This means that settings and adjustments can be made directly through an application without needing physical access to the device. Compatibility with RC-Can also enables CAN bus control, facilitating integration into existing systems.

How is the efficiency and heat generation of the Mosconi PICO 4|8 DSP classified?

The efficiency of the Mosconi PICO 4|8 DSP is over 80%, making the amplifier exceptionally energy-efficient. This high efficiency means that a large portion of the energy consumed is actually converted into sound output, minimizing power consumption. Combined with low heat generation, this results in reliable performance even under high-performance conditions. The compact design further ensures that the amplifier can be operated in tight spaces without overheating issues, as heat distribution is optimally managed.
