PRO 175
Technical Highlights
- 70 W RMS power, 4 Ohm impedance, 90 dB efficiency.
- 25 mm fabric dome tweeter, ferrite magnet, 137 cm² diaphragm.
- 11.7 g moving mass, 0.34 mH inductance, 3.2 Ω resistance.
- More technical details
Pay conveniently in 12 interest-free installments at €24,08 with Klarna .
Availability for pickups could not be loaded.
Rob
Max
Avoid a bad purchase? We check your setup!
Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.
-
SALE -15%Normal price €7,65Normal price€9,00Selling price €7,65DeliveryDelivered automatically as soon as available from the supplier. -
200 WattSALE -15%Normal price €127,50Normal price€150,00Selling price €127,50DeliveryJun 8, - Jun 12, -
Normal price From €10,00Normal price€10,00Selling price From €10,00In stockJun 5, - Jun 6,
This could also look like this for you!
A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

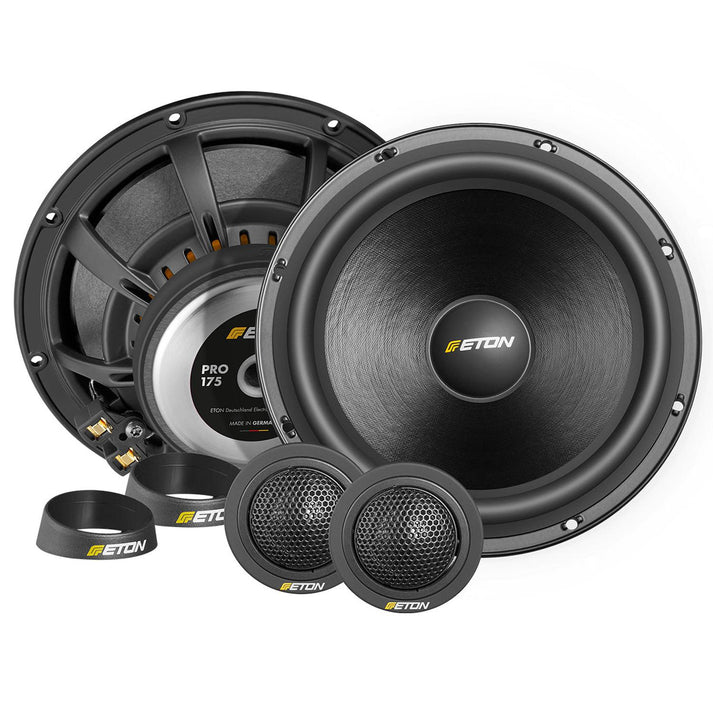

PRO 175 by ETON Description
The PRO 175 speaker set from ETON is a high-quality 6.5" (16.5cm) 2-way component system. It comes with a hand-coated, air-dried paper membrane and 25 mm fabric dome tweeters. The powder-coated die-cast aluminum basket is equipped with a strong ferrite magnet and the base plate has a large core hole. With a nominal impedance of 4 ohms, 70 W RMS power and an efficiency of 90 dB, these speakers impress with their clear sound quality and performance. The housing crossover with level adjustment enables precise adjustment.
product features
165 mm (6.5 inch) 2-way component system with hand-coated, air-dried paper membrane and 25 mm hand-coated fabric dome tweeters. Powder-coated die-cast aluminum basket with strong ferrite magnet and polished base plate with large core hole. 4 ohm impedance, 70 W RMS, 100 W music power handling, 90 dB efficiency, including housing crossover with level adjustment.
Technical data
- Nominal impedance Zn 4 Ω
- Total moving mass (including air mass) MMD 11.7 g
- DC resistance Re 3.2 Ω
- Effective membrane area SD 137 cm2
- Inductance of the voice coil Le 0.34 mH
- resonance frequency TSP for 72 Hz
- force factor BLxl 4.8 Tm
- Suspension compliance CMS 0.41 mm/N
- Mechanical Q QMS 3.55
- Xmax mechanical +/- 9.0 mm
- Electrical Q QES 0.68
- Equivalent air volume of the suspension VAS 11 dm3
- Total Q QTS 0.57
- Characteristic sound pressure level 1 W / 1 m 90 dB
- Mechanical resistance RMS 1.62 kg/s
- rated power 70/100 W
- magnetic material ferrite
- voice coil diameter 25 mm
