  3. EX-TC Terminal Connector
Elerix EX-TC Terminal Connector Battery Accessories
Elerix

EX-TC Terminal Connector

Battery Accessories

Technical Highlights

  • Maximum current calculation: cross-section, width of the plug.
  • Multi-layer copper material ensures high conductivity.
  • Specially developed for ELERIX batteries, compatible with many types.
  • More technical details
00 d
00 h
00 m
00 s
€3,50
-30% €5,00 €3,50
5% discount with prepayment
inkl. VAT , possibly plus shipping
Option: EX-TC22/6
Only a few left in stock (1 pieces available)
In stock
Apr 10, - Apr 11,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

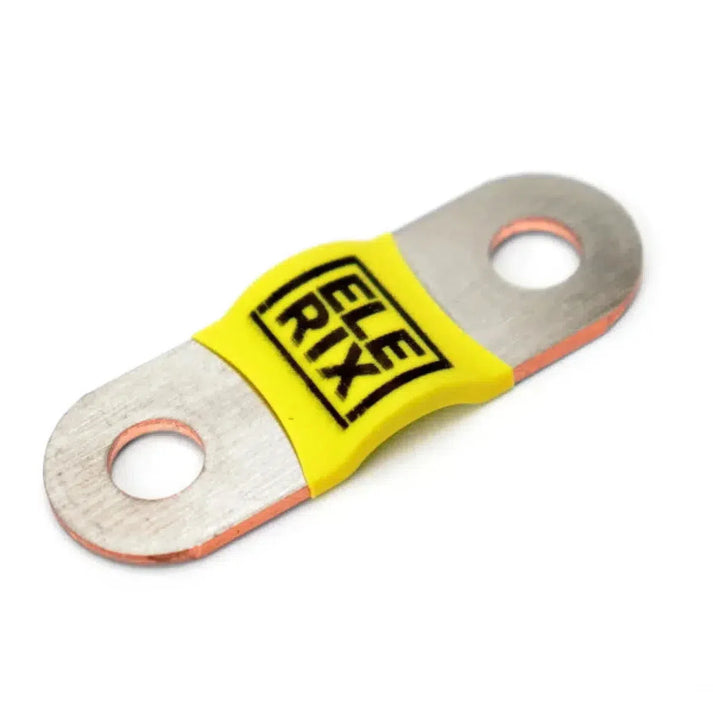

Elerix-EX-TC Terminal Connector-Batterie-Zubehör-masori-kaufen
€3,50
€5,00 €3,50

EX-TC Terminal Connector by Elerix

EX-TC Terminal Connector is Battery Accessories from Elerix and is made of multilayer copper material. Designed for use with ELERIX batteries. The choice of connector depends on the size of the cells and the connection requirements. There is a difference between short and long Plug for the EX-L10. The calculation of the maximum current is based on the cross-section and width of the connection plug. The load capacity is not linear and decreases with the cross-section of the terminal connector.

Features
  • Battery Accessories
  • Material: multilayer copper material
  • Designed for ELERIX batteries
  • Version: short or long (model-dependent)
  • Difference between short and long Plug for EX-L10
  • Selection depends on cell size and connection requirements
  • Maximum current depends on cross-section and width of the connection plug
  • Load capacity is not linear and decreases with the cross-section of the terminal connector
Technical Data
  • EX-TC22/6: suitable for EX-L15
  • EX-TC30/6: suitable for EX-L10, EX-L15, EX-L25
  • EX-TC30/8: connection plug for EX-T30K lithium titanate oxide cell; suitable for EX-T30K
  • EX-TC38/10: terminal connector for EX-L50 LiFePO4; suitable for EX-L50, EX-L100
  • EX-TC40/8: terminal connector for ELERIX lithium cell LiFePO4; suitable for EX-L110, EX-L50D, EX-L50K, EX-L70K, EX-L160
  • EX-TC42/10: terminal connector for EX-L100 LiFePO4; suitable for EX-L100
  • EX-TC62/10: long, for EX-L100 LiFePO4 (3.2V); suitable for EX-L100
  • EX-TC52/10: short, for EX-L280 LiFePO4 (3.2V); suitable for EX-L280
  • EX-TC55/8: short, for EX-L230 LiFePO4 (3.2V); suitable for EX-L230
  • EX-TC55/10: short, for EX-L230 LiFePO4 (3.2V); suitable for EX-L230R
  • EX-TC52/8: terminal connector for ELERIX lithium cell LiFePO4; suitable for EX-L50K, EX-L70K
  • EX-TC50/6: long, connection plug for EX-L100K LiFePO4; suitable for EX-L100K, EX-L100EU
  • EX-TC45/6: short, terminal connector for EX-L100K LiFePO4 (3.2V); suitable for EX-L100K
  • EX-TC58/10: terminal connector for EX-L50 LiFePO4; suitable for EX-L50
  • EX-TC75/10: long, for EX-L280 LiFePO4 (3.2V); suitable for EX-L280
  • EX-TC62/6: suitable for EX-L100EU
  • EX-TC65/8: long, terminal connector for EX-T30K lithium titanate oxide cell; suitable for EX-T30K, EX-L100EU
  • EX-TC75/8: terminal connector for ELERIX lithium cell LiFePO4; suitable for EX-L110, EX-L160
  • EX-TC90/10: short, terminal connector for EX-L550P LiFePO4 (3.2V); suitable for EX-L550P
  • EX-TC68/12: terminal connector for YL-LTO-45-AH, cylindrical lithium titanate oxide battery cell, A-Grade
  • EX-TC82/8: terminal connector for ELERIX lithium cell LiFePO4; suitable for EX-L50D, EX-L135D
  • EX-TC90/8: terminal connector for ELERIX lithium cell LiFePO4; suitable for EX-L135D
  • EX-TC120/8: long, terminal connector for EX-L230 LiFePO4 (3.2V); suitable for EX-L230
  • EX-TC145/10: long, terminal connector for EX-L550P LiFePO4 (3.2V); suitable for EX-L550P
  • EX-TC85/10: long, terminal connector for EX-L230 LiFePO4 (3.2V); suitable for EX-L230

Your benefits at Masori

Frequently Asked Questions about EX-TC Terminal Connector

What is the EX-TC Terminal Connector from Elerix?

The EX-TC Terminal Connector from Elerix is a specific plug made of multilayer copper material, designed for use with ELERIX Batteries. The connector ensures reliable contact between the battery and the plug. Different models such as the EX-TC22/6, EX-TC30/6, or EX-TC35/6 are compatible with specific ELERIX Batteries, depending on their capacity and cell size. By using multilayer copper, the plug offers excellent conductivity and minimizes electrical resistance. The choice of the appropriate connector depends on the size of the battery and the individual connection requirements.

How does the cross-section of the EX-TC Terminal Connector affect its load capacity?

The cross-section of the EX-TC Terminal Connector significantly influences the load capacity. As the cross-section of the connector increases, more current can be conducted; however, the load capacity is not linear and decreases with larger cross-sections. For example, the EX-TC22/6 is suitable for moderate currents, while an EX-TC90/10 is highly current-capable. This property allows for ensuring the right connectivity based on the performance requirements of the specific battery application. Therefore, it is crucial to choose the cross-section according to the electrical requirements and intended use to avoid overloads.

Which ELERIX Batteries are compatible with the EX-TC Terminal Connector?

Compatibility with ELERIX Batteries varies depending on the model of the EX-TC Terminal Connector. Models like the EX-TC30/6 fit batteries such as EX-L10, EX-L15, and EX-L25, while the EX-TC38/10 is suitable for the EX-L50 and EX-L100. Other variants like the EX-TC52/10 can be used with the EX-L280. The selection of the connector is based on the specific battery cells and their size. This compatibility is crucial to ensure optimal performance and safety in operation. Using connectors tailored to the specific battery is essential for a correct and safe connection.

What variants of the EX-TC Terminal Connector are available?

There are various versions of the EX-TC Terminal Connectors designed for different applications and battery types. Examples include the EX-TC30/6 for use with the EX-L15, EX-L10, and EX-L25 batteries, or the EX-TC35/6 for the EX-L25. The EX-TC90/10 is also available, suitable for the EX-L550P. These versions are characterized by their different copper cross-sections and plug lengths to meet the specific requirements of each battery. Each of these connectors is made from multilayer copper material, ensuring excellent electrical properties.

What should be considered when installing the EX-TC Terminal Connector?

When installing the EX-TC Terminal Connector, various factors must be taken into account. The appropriate connector must be selected based on the battery's capacity and its current requirements. Additionally, correct alignment of the connections is necessary to ensure secure contact. The connection should be tight but not overly tightened to avoid mechanical stress. Another point is temperature monitoring, as overheating could impair performance. Careful handling of the connection pins can prevent damage that could lead to malfunctions.

How does the choice of material for the EX-TC Terminal Connector affect performance?

The performance of the EX-TC Terminal Connector is significantly influenced by the choice of material. The use of multilayer copper material ensures excellent electrical conductivity, which is important for minimizing losses in the electrical system. The multilayer structure enhances the durability and longevity of the connector, ensuring stable and safe operation of the connected battery. Copper allows for high current loads with minimal resistance, which is particularly beneficial for applications with high energy throughput. These material properties make the connector a reliable choice for various battery applications.

What role does the plug width play in the EX-TC Terminal Connector?

The plug width of the EX-TC Terminal Connector directly affects the current-carrying capacity and mechanical stability. A wider plug surface allows for better distribution of current density, reducing thermal stress and improving efficiency. Models like the EX-TC75/10 provide wide connections for the EX-L280 battery, which are essential for applications with higher current demands. A wider plug surface also minimizes the likelihood of overheating and improves mechanical fastening to better withstand vibrations and physical stresses. Careful selection of the width in relation to battery-related requirements is crucial.

How does the use of multilayer copper affect the performance parameters of the EX-TC Connector?

Multilayer copper in the EX-TC Connector improves conductivity and reduces electrical losses. This design allows for even current distribution across the contact area, preventing overheating and extending lifespan. The multilayer structure provides additional structural integrity and flexibility, better resisting mechanical stress. This property is particularly useful under high current demands that batteries like the EX-L500 must withstand. This construction simplifies the manufacturing of robust, reliable connectors that can deliver consistent performance metrics even under demanding operating conditions.

What are the differences between short and long plugs in the EX-TC series?

Short and long plugs in the EX-TC series offer different application options and performance capabilities. Short plugs like the EX-TC55/8 are ideal for space constraints and portable applications, while long plugs like the EX-TC120/8 are better suited for fixed installations that require additional connection lengths. Long plugs provide increased flexibility in arrangement within the battery housing, but they may also allow for potentially higher mechanical loads. Length also affects cooling, as longer variants offer a larger surface area for heat dissipation, which is crucial for ensuring thermal stability in high-performance applications.

How do you ensure the correct selection of the EX-TC Terminal Connector for specific applications?

The correct selection of the EX-TC Terminal Connector requires a thorough assessment of the electrical requirements and physical parameters. Key factors include the cross-section and width of the connector relative to the planned current loads and applications. Length also plays a role in flexibility and arrangement within the housing. A careful analysis of battery cell sizes and their specifications, as described for models like EX-L25 or EX-L50, leads to an optimal choice. A compatibility chart can help make the right choice based on company policies and application-specific requirements. This ensures optimal performance and safety.
