  3. RAGE69X
B2 Audio RAGE69X 6"x9" coaxial speaker
SKU:  RAGE69X
100 Watt

RAGE69X

SKU:  RAGE69X

Technical Highlights

  • 100 watts RMS, 90 dB SPL, 50 Hz 30 kHz frequency.
  • 4 Ohm impedance, 3.4 Ohm Re, 1" coil size.
  • 74 mm installation depth, 6.48" x 9.22" outer diameter.
  • More technical details
€109,00
€109,00 €109,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 16, - Jun 20,
at your door in 4–8 days This item isn't in stock right now. We'll ship it within the stated delivery time.
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €9,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
B2 Audio-RAGE69X-6"x9" Koaxial-Lautsprecher-masori-kaufen
€109,00
€109,00 €109,00

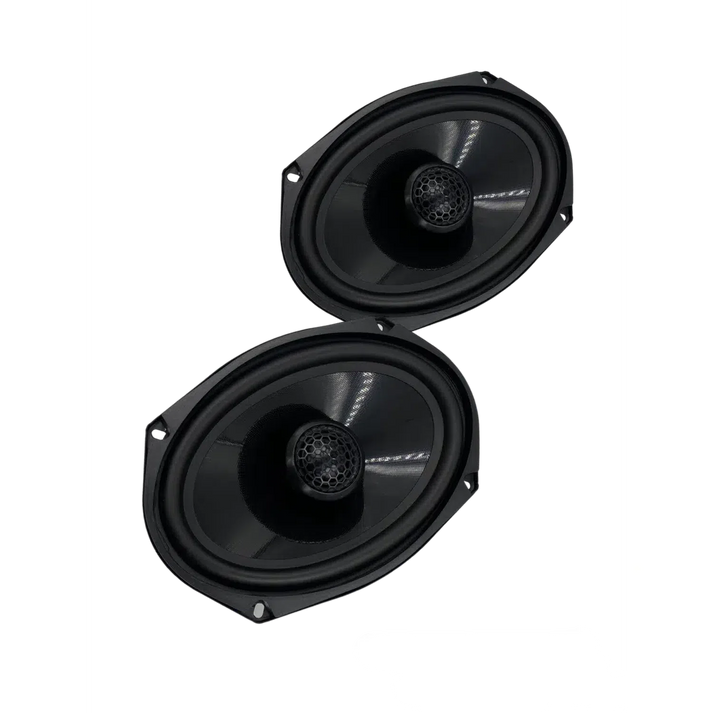

RAGE69X by B2 Audio

The RAGE69X from B2 Audio is a powerful 6x9 inch coaxial speaker. With a frequency range of 50 Hz to 30 KHz and a sound pressure level (SPL) of 90 dB, it delivers impressive audio experiences. The impedance is 4 Ohms, and the RMS power is 100 Watts. Additional features include a coil size of 1" and a mounting depth of 74 mm. The outer diameter measures 6.48 inches x 9.22", and the cutout size is 219.39 x 121.56 mm.

Technical Specifications

  • Frequency Range: 50 Hz ~ 30 KHz
  • SPL: 90 dB
  • Impedance: 4 Ohms
  • DC Resistance (RE): 3.4 Ohms
  • Resonant Frequency: 55 Hz
  • RMS Power: 100 Watts
  • QMS: 6.43
  • QES: 0.93
  • QTS: 0.815
  • VAS: 24.26 L
  • Coil Size: 1"
  • Recommended Crossover: N/A
  • BL^2/RE: 5.17
  • Mounting Depth: 74 mm
  • Outer Diameter: 164mm x 234mm
  • Cutout Size: 219.39 x 121.56 mm

Your benefits at Masori

B2 Audio RAGE69X Datasheet

Open datasheet

Frequently Asked Questions about RAGE69X

Welche technischen Merkmale hat der RAGE69X von B2 Audio?

The RAGE69X from B2 Audio features a frequency range of 50 Hz to 30 KHz and a sound pressure level (SPL) of 90 dB. With an impedance of 4 Ohms and an RMS power of 100 Watts, it offers powerful and clear acoustics. It has a 1-inch voice coil and a mounting depth of 74 mm. The outer diameter is 6.48 x 9.22 inches and the cutout measures 219.39 x 121.56 mm. These technical specifications ensure precise sound reproduction, which should be particularly interesting for discerning music lovers.

Welche Frequenzreichweite deckt der RAGE69X ab?

With a frequency range of 50 Hz to 30 KHz, the RAGE69X from B2 Audio covers a remarkably wide range, effortlessly reproducing both deep bass frequencies and high tones. This bandwidth allows for a comprehensive sound experience, delivering both the depth of music and the clarity of highs and mids. With a resonance frequency of 55 Hz, this speaker is optimized to provide dynamic audio performance, effectively showcasing a variety of music styles and delivering impressive sound quality.

Wie hoch ist der Schalldruckpegel des RAGE69X Lautsprechers?

The sound pressure level (SPL) of the RAGE69X from B2 Audio is 90 dB, which allows it to reproduce audio signals with high volume and clarity. This SPL figure is crucial for the efficiency of the speaker, as it indicates how loud the speaker can be at a given input power. If you enjoy listening to music loudly, this high sound pressure level is ideal, as it ensures that the audio signal remains clearly audible and impressive even in lively environments.

Welche Impedanz hat der Koaxial-Lautsprecher RAGE69X?

The RAGE69X from B2 Audio has an impedance of 4 Ohms. This impedance is typical for many speakers and ensures a balanced relationship between volume and power efficiency. With a DC resistance of 3.4 Ohms, this speaker supports stable electrical performance without significant energy losses. The combination of these values allows the speakers to effectively harmonize with most modern amplifiers and audio devices, thereby ensuring consistent, reliable audio signal output.

Wie sieht es mit der Einbautiefe und den Abmessungen des RAGE69X aus?

The installation depth of the RAGE69X from B2 Audio is 74 mm, which allows for a relatively easy installation in many vehicles. The outer diameter measures 164 mm x 234 mm, while the cutout size is 219.39 x 121.56 mm. These dimensions are crucial to ensure a precise installation, especially when placing it in standard speaker openings of vehicles. If you want to install the RAGE69X in your car, it is advisable to check the dimensions of the existing speaker openings in advance to avoid compatibility issues.

Was sind die Besonderheiten der Schwingspule im RAGE69X?

The RAGE69X from B2 Audio is equipped with a 1-inch voice coil, which is an important component of the speaker for effectively converting and amplifying audio signals. This voice coil allows the speaker to achieve higher volume levels and more precise sound reproduction. In combination with the Thiele Small parameters such as QMS of 6.43 and QES of 0.93, an excellent balance between mechanical and electrical control is achieved, contributing to the high performance and detailed audio reproduction of the speaker.

Welche Audioperformance bietet der RAGE69X bezüglich QMS, QES und QTS?

The B2 Audio RAGE69X delivers impressive audio performance through its Thiele-Small parameters. The QMS value is 6.43, which describes the mechanical damping of the speaker systems, while the QES value is 0.93, indicating how efficiently the speaker utilizes electrical energy. The QTS value combines both values and is 0.815, suggesting a balanced ratio of mechanical and electrical damping. These values mean that the RAGE69X is optimized for both loud, powerful listening and fine, detailed listening, making it versatile.

Wie viel Leistung kann der RAGE69X Lautsprecher verarbeiten?

The RAGE69X from B2 Audio can operate with an RMS power of 100 watts, allowing it to handle a significant amount of power while still delivering clear, powerful sounds. This power capacity is ideal for use with high-powered amplifiers that can deliver voluminous, dynamic audio data. Especially for listeners who want to enjoy their music loud and without distortion, this watt range provides a robust foundation for the entire musical experience, regardless of the preferred genre or style.

Ist der RAGE69X mit meiner Autoanlage kompatibel?

The compatibility of the RAGE69X from B2 Audio with your car audio system primarily depends on the dimensions of the speaker openings. With a cutout size of 219.39 x 121.56 mm and a mounting depth of 74 mm, this speaker fits into many common vehicle audio systems, provided the measurements match. It should be ensured in advance that there is sufficient mounting depth and that the cutouts in your vehicle are compatible with the dimensions of the speaker to ensure a trouble-free installation and optimal sound performance.

Welche Resonanzfrequenz hat der RAGE69X von B2 Audio?

The RAGE69X from B2 Audio has a resonance frequency of 55 Hz, making it ideal for deep bass applications. This frequency indicates the point at which the speaker naturally resonates and therefore efficiently radiates sound. For music genres that require strong bass lines, such as hip-hop or electronic music, this resonance frequency provides a solid foundation. It enhances bass reproduction and ensures that low frequencies are reproduced authentically and powerfully, without unwanted distortions.
