AE146

Name: Axton AE146 Speaker Set 2-Way Coaxial | Buy
Brand: Axton
Price: 36.67 EUR
Availability: InStock

60 Watt

AE146

Technical Highlights

60 W nominal power handling, 4 Ohm impedance, 100 Hz-20 kHz frequency response.
82 dB sensitivity, powerful strontium ferrite magnet.
13 mm Mylar dome, neodymium drive, 386 cm² injection molded cone.
More technical details

€36.67

-19% ~~€45.00~~ €36.67

2% discount with credit card

including VAT plus shipping

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

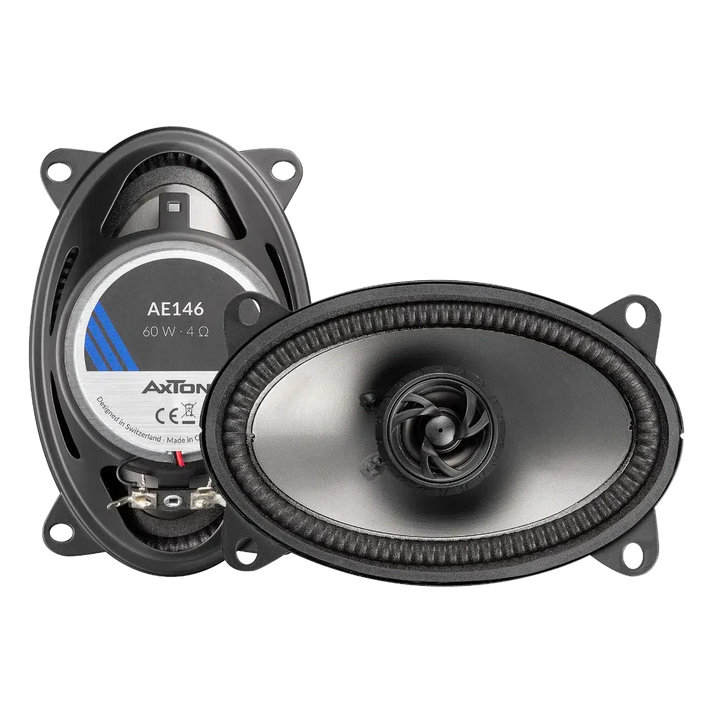

Axton-AE146-4"x6" Lautsprecherset-masori-kaufen

€36.67

~~€45.00~~ €36.67

The AE146 speaker set from Axton offers a versatile 4"x6" (10x15 cm) solution for high-quality audio playback. It is a 2-way coaxial system with a robust, compact basket construction made of steel sheet in Euro-DIN format. Equipped with a powerful strontium ferrite magnet and a lightweight injection-molded polypropylene cone, it delivers precise sound results across the entire frequency range. The polyurethane foam surround and the 13 mm Mylar dome with ferrofluid-cooled neodymium drive complement the set to ensure clear and detailed reproduction. Additionally, the speaker set offers a frequency response of 100 Hz to 20 kHz, a nominal impedance of 4 ohms, a sensitivity of 82 dB, and a nominal power handling of 60 W. The mounting diameter of 10 x 15 cm and an installation depth of 48 mm allow for easy installation.

Highlights

4 x 6" / 10 x 15 cm 2-way coaxial system
Compact steel sheet basket construction in Euro-DIN format
Powerful strontium ferrite magnet
Lightweight injection-molded polypropylene cone for precise reproduction across the entire frequency range
Polyurethane foam surround
13 mm Mylar dome with ferrofluid-cooled neodymium drive

Specifications

Frequency response: 100 Hz – 20 kHz
Nominal impedance: 4 ohms
Sensitivity (1 W/1 m): 82 dB
Nominal power handling: 60 W
Mounting diameter: 10 x 15 cm / 4 x 6"
Installation depth: 48 mm

Frequently Asked Questions about AE146

What is the sensitivity of the Axton AE146 speaker?

The Axton AE146 Speaker Set offers a sensitivity of 82 dB, indicating how much sound pressure the speaker can produce at a given power (1 watt at 1 meter distance). Sensitivity is a crucial factor for the efficiency of the speaker. Under normal use, a higher dB value means less amplification is required to achieve a certain volume. With 82 dB, the AE146 set is well-suited for use in a variety of acoustic environments. Especially if you enjoy listening to music loudly, this value provides a solid foundation.

What are the special features of the basket construction of the Axton AE146 speaker?

The basket construction of the Axton AE146 is made of robust steel sheet and is designed in Euro-DIN format. This design ensures both stability and durability. Such baskets provide a precise mechanical base for the entire speaker assembly and prevent unwanted resonances. The Euro-DIN format allows for universal applicability in many car models. A solid and well-crafted speaker basket is essential for stable sound and consistent high-performance playback. The materials used contribute to low distortion and clear output at high volumes.

What does the frequency response of the Axton AE146 speaker mean?

The Axton AE146 speaker covers a frequency response of 100 Hz to 20 kHz. This range describes the bandwidth of frequencies that the speaker can reproduce, from deep bass tones (100 Hz) to high frequencies (20 kHz), which are important for clear highs. With a solid frequency response, both speech and music are reproduced accurately and faithfully, without distorting or losing certain frequency ranges. A wide frequency response is essential for discerning music lovers to experience an enveloping and detailed soundscape.

What materials are used in the diaphragm of the Axton AE146?

The diaphragm of the Axton AE146 Speaker is made from a lightweight injection-molded material called polypropylene. This material choice allows for precise and detailed audio reproduction, as polypropylene is both robust and lightweight, increasing the mobility and responsiveness of the diaphragm. Additionally, injection molding allows for uniform and accurate shape details, which are important for consistent vibrations. Together with the polyurethane foam surround, this material contributes to resonance-free performance and minimizes unwanted distortions, significantly enhancing the sound of the speaker.

How does the neodymium drive work in the AE146 speaker?

The Axton AE146 speaker features a 13 mm mylar dome with a ferrofluid-cooled neodymium drive. Neodymium is a strong magnet that generates high magnetic forces even in small designs. This property is crucial for the detail fidelity and speed of high-frequency reproduction. The drive ensures a more efficient conversion of the electrical signal into acoustic energy. Ferrofluid helps improve heat dissipation and reduce distortions, which is particularly beneficial at high volumes. This innovation allows the Speaker Set to deliver clear and dynamic highs.

What volume levels can the Axton AE146 speaker handle?

The Axton AE146 speaker has a rated power handling of 60 W. This means it can process continuous audio signals up to this power limit without damage. This specification is particularly important for integration into an existing audio system to ensure compatibility. Combined with its nominal impedance of 4 Ohm, the speaker is capable of achieving impressive volume levels without distorting the sound. At high volumes, the sound quality remains clear and undistorted, which is especially advantageous in acoustically demanding environments.

What are the dimensions and installation requirements of the AE146 speaker?

The AE146 Speaker Set from Axton fits into many pre-fabricated speaker cutouts in vehicles with a mounting diameter of 10 x 15 cm and a mounting depth of 48 mm. These standardized dimensions in the 4 x 6 inch format help ensure that installation in numerous models is possible without special adjustments. A precise fit is essential for sound quality, as it ensures the correct alignment and stability of the speaker. A properly installed speaker minimizes vibration losses and guarantees even sound distribution in the interior.

Is the AE146 speaker compatible with my car?

The AE146 speaker from Axton is compatible with many vehicle models due to its Euro-DIN design and standard installation sizes of 10 x 15 cm. The installation depth of 48 mm is particularly advantageous in defined installation spaces in vehicles where space is limited. It is advisable to check the exact dimensions of the intended speaker cutouts and consult the vehicle manual to ensure complete compatibility. Particularly European vehicles can benefit from this standard size, which is often used in retrofit solutions and minimizes adjustments.

What role does the strontium ferrite magnet play in the AE146 speaker?

The AE146 speaker from Axton uses a strontium ferrite magnet, which plays a central role in the magnetic drive structure. Such magnets are known for their high thermal stability and retention of magnetic forces over longer periods, which is particularly important for bass reproduction. By combining compactness with strong magnetic force, the strontium ferrite magnet enables effective control of diaphragm movements and improves the overall sound quality of the system. This property ensures precision and dynamics, which are especially highlighted in demanding musical pieces.

How is the Axton AE146 speaker correctly installed in the vehicle?

The installation of the Axton AE146 speaker does not require any extraordinary modifications, as it is manufactured in the Euro-DIN standard with its 10 x 15 cm format. The installation usually takes place in existing speaker cutouts, taking into account the installation depth of 48 mm to accommodate any space limitations. It is important to ensure that the speaker is properly screwed in to prevent rattling and unwanted vibrations. It is advisable to pay attention to a tight seal to optimally utilize the acoustics in the vehicle. Each installation should be carried out carefully to achieve the best possible sound performance.
