3. Voce AV 5.1k HD

Voce AV 5.1k HD

1000 Watt

Voce AV 5.1k HD

Technical Highlights

  • Total power of 1650 W, impedance 2 Ω, hybrid amplifier class.
  • Hi-Res Audio certification, digital inputs, AD-Link connection.
  • Bandwidth from 4 – 60k Hz, S/N ratio up to 100 dB, 100 A fuse.
  • More technical details
€987.05
-5% €1,039.00 €987.05
2% discount with credit card
including VAT
Estimated delivery: Sep 15–Sep 18.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Right for your project?

What does this product offer?

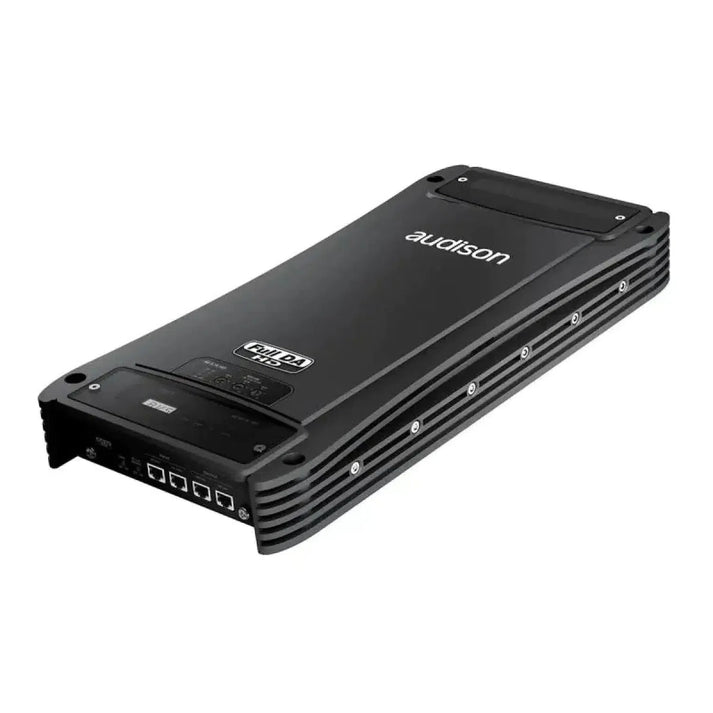

The Audison Voce AV 5.1k HD is a 5-Channel Amplifier with a hybrid design featuring two 75 W Class A channels, two 250 W Class AB channels, and one 1000 W Class D channel. The total power output is 1650 W RMS. Digital inputs are available; via AD-Link, it is possible to create a Full DA HD chain with the bit One HD Virtuoso processor. The Hi-Res Audio certification is...

Will it fit my car?
  • Dimensions 220 x 470 x 58 mm

Compare installation dimensions and connections with your car and existing system. Vehicle-specific products may also be limited to certain years or equipment versions.

Which variant do I need?

No other variant is offered for this product. Check your system requirements before buying.

What is included?

The offer is for the named product in the selected variant. The available information does not clearly list all included accessories. Check required accessories with us before buying.

What else do I need?

Check power cable and fuse sizing for current and cable length, ground, signal input and supported speaker impedance. Factory radios require compatible signal inputs and any necessary adapters.

What does installation involve?

Effort depends on the car, existing wiring and installation position. A reliable installation time cannot be stated generally. Check connections, mounting and space before buying; use a qualified installer if unsure.

Advice by email

Reply in 1–3 working days · Mon–Fri

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Learn more

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

datasheet
Audison-Voce AV 5.1k HD-5-Kanal Verstärker-masori-kaufen
€987.05
€1,039.00 €987.05

The Audison Voce AV 5.1k HD is a 5-Channel Amplifier with a hybrid design featuring two 75 W Class A channels, two 250 W Class AB channels, and one 1000 W Class D channel. The total power output is 1650 W RMS. Digital inputs are available; via AD-Link, it is possible to create a Full DA HD chain with the bit One HD Virtuoso processor. The Hi-Res Audio certification is based on an integrated DA converter with 192 kHz/24 Bit and a bandwidth of 4–60 kHz. Output power @ 14.4 V and 1% THD: 75 W x 2 + 140 W x 2 + 600 W x 1 at 4 Ohm, 75 W x 2 + 140 W x 2 + 1000 W x 1 at 2 Ohm, and 75 W x 2 + 250 W x 2 + 1000 W x 1 at 2 Ohm. The dimensions are 220 x 470 x 58 mm, and the weight is 7.2 kg. A 100 A Fuse and a non-adjustable Crossover are included.

Features
  • 5-Channel Amplifier
  • Hybrid design: 2 x 75 W (Class A), 2 x 250 W (Class AB), 1 x 1000 W (Class D)
  • Digital inputs
  • AD-Link connection for creating a Full DA HD chain with bit One HD Virtuoso processor
  • Hi-Res Audio certification
  • Integrated DA converter 192 kHz/24 Bit
  • Bandwidth 4–60 kHz
  • Adjustable Crossover: No
  • Fuse 100 A
  • Dimensions 220 x 470 x 58 mm
  • Weight 7.2 kg
Technical Specifications
  • Channels 5
  • Amplifier class: AB-Class
  • Total power RMS 1650 W
  • Output power (RMS) @ 14.4 VDC, 1% THD: 5 Ch: 75 W x 2 (4 Ohm) + 140 W x 2 (4 Ohm) + 600 W x 1 (4 Ohm)
  • Output power (RMS) @ 14.4 VDC, 1% THD: 5 Ch: 75 W x 2 (4 Ohm) + 140 W x 2 (4 Ohm) + 1000 W x 1 (2 Ohm)
  • Output power (RMS) @ 14.4 VDC, 1% THD: 5 Ch: 75 W x 2 (4 Ohm) + 250 W x 2 (2 Ohm) + 1000 W x 1 (2 Ohm)
  • Distortion THD (1 kHz @ 4 Ohm) A/B channels: 0.05 %
  • Distortion THD (100 Hz @ 4 Ohm) C (Sub) channel: 0.3 %
  • Bandwidth (-3 dB) A/B channels: 5–20 kHz
  • Bandwidth (-3 dB) C (Sub) channel: 7–350 Hz
  • S/N Ratio (A-weighted @ 1 V) A/B channels: 100 dB
  • S/N Ratio (A-weighted @ 1 V) C (Sub) channel: 87 dB
  • Damping factor (1 kHz @ 4 Ohm) A/B channels: 100
  • Damping factor (100 Hz @ 4 Ohm) C (Sub) channel: 80
  • CEA output power @ 4 Ohm, 1% THD+N, 14.4 V: 75 W x 2 + 140 W x 2 + 600 W x 1
  • CEA S/N Ratio (ref. 1 W output) 75 W channels: 80 dBA
  • CEA S/N Ratio (ref. 1 W output) 140 W channels: 80 dBA
  • CEA S/N Ratio (ref. 1 W output) 600 W channel: 78 dBA
  • Remote OUT 12 VDC, 50 mA
  • Remote IN 7–15 VDC, 1 mA

Frequently Asked Questions about Voce AV 5.1k HD

What performance features does the Audison Voce AV 5.1k HD Amplifier offer?

The Audison Voce AV 5.1k HD Amplifier offers an impressive total power of 1650 watts, distributed across five channels. It features two 75-watt Class A channels, two 250-watt Class AB channels, and a dedicated 1000-watt Class D channel. This allows for flexible adaptation to different speaker setups, ideal for sound enthusiasts. With a low distortion of 0.05% for channels A and B and 0.3% for the Sub channel C, this amplifier guarantees high sound precision. Additionally, it is equipped with an impressive S/N ratio of 100 dB, meaning that noise is minimal, even at high power.

How does the digital input of the Audison Voce AV 5.1k HD work?

The Audison Voce AV 5.1k HD is equipped exclusively with digital inputs, allowing for a direct connection to a Digital Signal Processor (DSP). This enables precise signal processing without loss of sound quality. The integration with the bit One HD Virtuoso processor to create a Full DA HD chain is an example of the advanced application of this digital technology. The wiring is simple and reduces the need for analog detours, enhancing sound fidelity and minimizing interference.

How do the amplifier classes in the Audison Voce AV 5.1k HD differ?

The Audison Voce AV 5.1k HD employs hybrid amplifier techniques: two Class A channels provide 75 watts per channel and are optimized for sound purity, often used at mid to high frequencies. Two additional Class AB channels deliver 250 watts per channel, combining efficiency with sound accuracy and are versatile in use. The Class D channel delivers 1000 watts and is ideal for Subwoofers due to its efficiency and performance at low frequencies. This combination allows for optimal coverage of different sound ranges and versatile use of the amplifier.

What weight and dimensions does the Audison Voce AV 5.1k HD have?

The Audison Voce AV 5.1k HD weighs 7.2 kilograms, making it relatively light for an amplifier in this power class. Its dimensions are 220 mm in width, 470 mm in length, and 58 mm in height. This compact design allows for flexible installation options in various vehicle types or home audio setups without taking up excessive installation space. This can play a crucial role in selection, especially in tight spaces.

What frequency range does the Audison Voce AV 5.1k HD cover?

The Audison Voce AV 5.1k HD offers a remarkable frequency range through its Hi-Res audio certification and integrated DA converters with 192 kHz/24 Bit. Channels A and B range from 5 Hz to 20 kHz, while the sub-channel operates between 7 Hz and 350 Hz. This range ensures the reproduction of the finest musical details, which is especially evident in high-resolution audio recordings. Combined with the ability to utilize these bandwidths efficiently, it results in diverse sound possibilities in an audio chain.

What signal-to-noise ratios does the Audison Voce AV 5.1k HD offer?

The Audison Voce AV 5.1k HD impresses with different signal-to-noise ratios (S/N ratio) depending on the channel. Channels A and B have an S/N ratio of 100 dB. The subwoofer channel is at 87 dB. These values are measured A-weighted and at 1 Volt. This means that the amplifier provides high sound quality with minimal noise, which is particularly advantageous at higher volumes and critical audio playback. Such values are characteristic of the premium quality of this amplifier.

What damping factors does the Audison Voce AV 5.1k HD have?

The Audison Voce AV 5.1k HD offers damping factors that precisely control the speakers. Channels A and B have a damping factor of 100 at 1k Hz and 4Ω, while the sub-channel has a damping factor of 80 at 100 Hz and 4Ω. These features allow for excellent control and management of the diaphragm movements of the speakers, leading to less distortion and more precision, especially in the reproduction of low frequencies.

What are the challenges of installing the Audison Voce AV 5.1k HD in a car?

The compact dimensions of 220 x 470 x 58 mm of the Audison Voce AV 5.1k HD are particularly advantageous during installation, as they allow for flexible placement within the vehicle. There should be enough space to avoid overheating and meet ventilation requirements. The correct wiring with digital connections should be done by experienced hands to ensure integral functionality with a DSP, such as the bit One HD Virtuoso processor. Space and connections must be checked before installation.

What are the power requirements for the Audison Voce AV 5.1k HD?

The Audison Voce AV 5.1k HD operates with a 100-amp fuse, highlighting the high performance of the Amplifier. The remote inputs work in the voltage range of 7 to 15 VDC and 1 mA, while the remote output is at 12 VDC and 50 mA. These specifications are important to ensure compatibility with the vehicle's existing power infrastructure and to provide a stable power supply, which is especially relevant at maximum output.

How is Hi-Res audio certification achieved with the Audison Voce AV 5.1k HD?

The Hi-Res audio certification of the Audison Voce AV 5.1k HD is achieved through the integrated digital converters that operate at a resolution of 192 kHz/24 bit. This allows for immense detail and clarity, making even the finest nuances of an audio recording audible. The AD-Link connection to form a Full DA HD chain in combination with a bit One HD Virtuoso processor further enhances this quality. This technical requirement allows Hi-Res audio content to be output to a speaker without loss.
