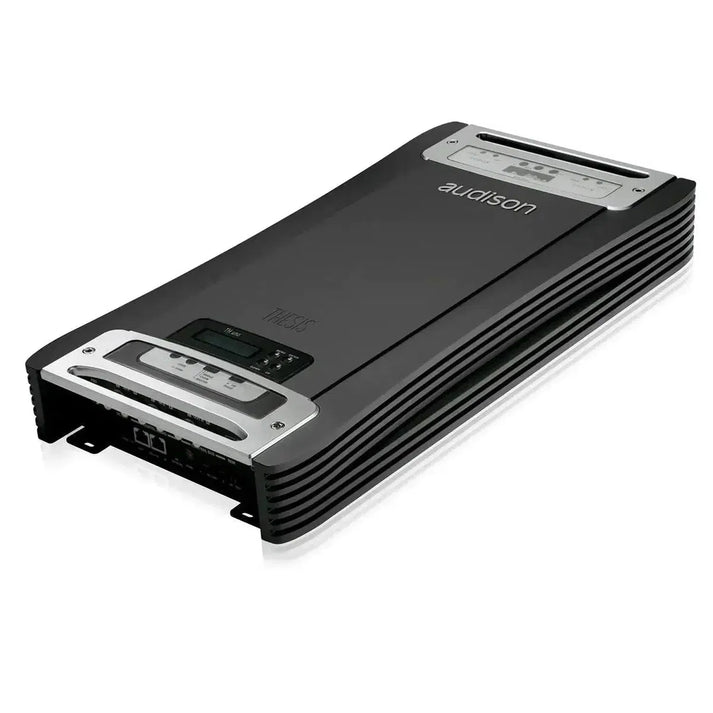

Audison Thesis TH uno 1-Channel Amplifier
SKU:  TH-UNO
EAN:  8018823088428
2300 Watt

Thesis TH uno

SKU:  TH-UNO
EAN:  8018823088428

Technical Highlights

  • Maximum power of 2300 W at 1 ohm, audiophile at 200 W.
  • S/N ratio of 106 dBA, attenuation factor impressive 500.
  • Minimum impedance of 1 Ω, Pre In Impedance is 15 kΩ.
  • More technical details
€3.200,00
€3.200,00 €3.200,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - Jun 2,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €266,66 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Thesis TH uno-1-Kanal Verstärker-masori-kaufen
€3.200,00
€3.200,00 €3.200,00

Thesis TH uno by Audison

The Audison Thesis TH uno is a 1-Channel Amplifier in A-Class design with integrated 24-bit/192 kHz DA converters and compatibility with Audison Full DA HD technology. SPDIF and AD-Link optical inputs support up to 8 digital channels at the RJ-45 connection. The minimum impedance is 1 Ω and the total RMS power is 1500 W. The bandwidth is 5 – 40 kHz, the S/N ratio (A-weighted @1 V) is 106 dBA, and the damping factor is 500. Dual-Mono construction with four power supplies in Synchro-PWM configuration and a chassis made from extruded aluminum CNC are included. A sensitivity control with 256 steps and 120 dB resolution, selectable presets for energy saving, Hi-Current, Hi-AB Class, and A Class, as well as digital control via integrated setting field, DRC, and PC software are available. Low Level Input is present, Hi Level Input is not.

Features
  • 1-Channel Amplifier
  • Amplifier Class: A-Class
  • Total RMS Power: 1500 W
  • Output Power (RMS) @ 4 Ω: 850 W x 1
  • Output Power (RMS) @ 2 Ω: 1500 W x 1
  • Output Power (RMS) @ 1 Ω: 2300 W x 1
  • Minimum Impedance: 1 Ω
  • SPDIF and AD-Link optical inputs (up to 192 kHz/24 bit)
  • Supports up to 8 digital channels at the RJ-45 connection
  • Integrated 24-bit/192 kHz DA converter
  • Dual-Mono construction with four power supplies in Synchro-PWM configuration
  • Sensitivity control with 256 steps and 120 dB resolution
  • Presets: Energy saving, Hi-Current, Hi-AB Class, A Class (selectable in real-time)
  • Digital control via integrated setting field, DRC, and PC software
  • Crossover module included
  • Chassis made from extruded, CNC-crafted aluminum
  • Low Level Input: Yes
  • Hi Level Input: No
  • Linked Amplifiers: Master/Slave Bridged; Slave Chain
Technical Specifications
  • Channels: 1
  • Supply Voltage: 11 – 15 VDC
  • Fuse: 150 A
  • Idle Current when Off: 0.04 mA
  • Power Consumption @ 14.4 VDC, 2 Ω, maximum music power: 132 A
  • Remote OUT: 12 VDC (20 mA)
  • Remote IN: 7 – 15 VDC (1 mA)
  • Distortion (THD) @ 100 Hz, 4 Ω, 70 % rated power: 0.01 %
  • Bandwidth (-3 dB, 2 VRMS, 4 Ω): 5 – 40 kHz
  • S/N Ratio (A-weighted @ 1 V): 106 dBA
  • Damping Factor (1 kHz, 4 Ω): 500
  • Input Sensitivity Pre-In: 0.3 – 4.8 VRMS
  • Input Impedance Pre-In: 15 kΩ
  • Adjustable Crossover: No
  • CEA Output Power @ 4 Ω, 1 % THD+N, 14.4 V: 700 W x 1 channel
  • CEA S/N Ratio (ref. 1 W output): 75 dBA
  • Inputs: PRE and S/PDIF (optical, up to 192 kHz/24 bit) and AD Link
  • Filter Outputs: PRE Bypass / AD Link
  • Filter Pass: Removable kit, Hi-pass/Lo-pass/Bandpass 12/24 dB, 32 steps, 18 – 7.5 kHz, 8 standard and 2 customizable modules
  • Weight: 10.3 kg
  • Dimension A: 510 mm
  • Dimension B: 478 mm
  • Dimension C: 259 mm
  • Dimension D: 160 mm

Your benefits at Masori

Audison Thesis TH uno Datasheet

Open datasheet

Frequently Asked Questions about Thesis TH uno

What power does the Audison Thesis TH uno Amplifier offer?

The Audison Thesis TH uno offers impressive performance values specifically designed for demanding audio requirements. With a maximum power of 2300 W at 1 Ohm, this mono amplifier represents a powerful solution. In audiophile Class A mode, it delivers 200 W, making it ideal for high-end sound systems. Additionally, it provides 850 Watts RMS at 4 Ohm and 1500 Watts RMS at 2 Ohm, ensuring versatile performance across various impedances. With its focus on analog and digital sound advantages, the amplifier also offers a total power of 1500 W.

How efficient is the Thesis TH uno Amplifier in terms of power consumption?

The Thesis TH uno features excellent energy efficiency, reflected in several aspects. In the off state, the amplifier consumes only 0.04 mA, indicating effective energy management. At an operating voltage of 14.4 VDC, it reaches a current consumption of 132 A at maximum music power at 2Ω, highlighting the high performance and efficiency of the design. The supply voltage itself varies from 11 to 15 VDC, providing flexibility for different vehicle configurations and enabling stable operation.

What input options does the Thesis TH uno Amplifier offer?

The Thesis TH uno Amplifier allows for a diverse range of input options. It features a low-level input as well as digital inputs that facilitate integration into modern audio components. With its SPDIF and AD Link connections for optical inputs, it supports a signal spectrum of up to 192 kHz at 24 Bit. This ensures high sound fidelity and seamless connectivity to digital systems. Additionally, up to 8 digital channels are supported via an RJ-45 connection, making it particularly flexible for complex audio systems.

What Class A technical features does the Thesis TH uno offer?

The Thesis TH uno is characterized by its A-Class technology, which enables particularly pure and distortion-free audio transmission. The low distortion of only 0.01% THD at 100 Hz and 4Ω reflects the high sound quality of the Amplifier. Additionally, it achieves a damping factor of 500 at 1 kHz and 4 Ohms, optimizing control over speaker movements. With a signal-to-noise ratio (A-weighted) of 106 dBA at 1 V, a noise-free operation is ensured, maximizing the full potential of high-quality audio files.

What are the dimensions of the Audiophile Amplifier Thesis TH uno?

The Thesis TH uno features a thoughtful design that allows for efficient integration into various vehicle systems. Its dimensions are 510 mm (A) in length, 478 mm (B) in width, 259 mm (C) in depth, and 160 mm (D) in height. These dimensions are housed in a solid aluminum casing, manufactured using CNC machinery, providing high stability and heat dissipation. This compactness allows for easy placement within standard installation slots.

How is the Thesis TH uno controlled and adjusted?

The control of the Thesis TH uno is done through an integrated digital interface, which allows for fine adjustments via DRC and PC software. The sensitivity control of the inputs offers 256 resistance levels, ensuring a highly precise adjustment of up to 120 dB. Through the integrated settings, energy saving, Hi-Current, and Hi-AB classes, as well as the A-Class mode can be switched in real-time. This allows you to optimally adjust the performance of the Amplifier according to your preferences and acoustic requirements.

What crossover options does the Thesis TH uno Amplifier have?

The Thesis TH uno offers flexible crossover solutions through its extensive module package, which includes high-pass, low-pass, and bandpass filters that can be adjusted in 32 steps from 18 Hz to 7.5 kHz. Eight standard modules and two customizable modules provide tailored filter settings for various speaker configurations. The high-quality crossover module is already included and supports seamless integration into existing audio systems, utilizing the bypass or AD-Link filter options system.

What safety features does the Thesis TH uno offer?

The Thesis TH uno provides several safety features to ensure safe operation. A 150 A fuse protects the amplifier from overvoltage. The integration of multiple power supplies in a synchro-PWM configuration ensures redundant power supply and prevents unwanted failures. The master/slave bridged and slave chain modes allow for a safe and effective connection of multiple amplifiers to increase overall performance without compromising safe operation.

Is the Thesis TH uno suitable for Hi-Res audio?

The Thesis TH uno is extremely well-suited for Hi-Res audio, as it integrates advanced 24-bit/192 kHz DACs that ensure an excellent audio experience. Its compatibility with Audison Full DA HD technology and Hi-Res audio files with listening certificates underscores this focus on top-notch sound quality. These technical features allow for the enjoyment of the subtle nuances of high-resolution audio data, making it an ideal choice for audiophiles who place great value on rich and clear sound.

What digital inputs does the Thesis TH uno from Audison support?

The Thesis TH uno offers a variety of digital input options that allow for flexible integration into modern audio setups. It supports S/PDIF and AD Link inputs with a maximum capacity of 192 kHz/24 bit, making it well-suited for the playback of high-resolution audio files. The use of optical digital inputs enables lossless signal transmission and expands the amplifier's compatibility. Up to 8 digital channels can be operated simultaneously via the RJ-45 connection, making it ideal for complex audio installations.
