3. Prima APBMW K4M

Prima APBMW K4M

7 reviews

Coming back soon 50 Watt

Prima APBMW K4M

7 reviews

Technical Highlights

  • Peak power of 100 W, impedance of 4 ohms, sensitivity 89 dB.
  • With woofer membrane made of waterproof pressed paper, 100 mm size.
  • Hi-Pass crossover at 6 KHz, woofer magnet 50 x 29 x 3 mm.
  • More technical details
€186.15
-15% €219.00 €186.15
2% discount with credit card

Your price match offer

ProductPrima APBMW K4M

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant cannot currently be ordered. We can offer a suitable alternative available sooner.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet

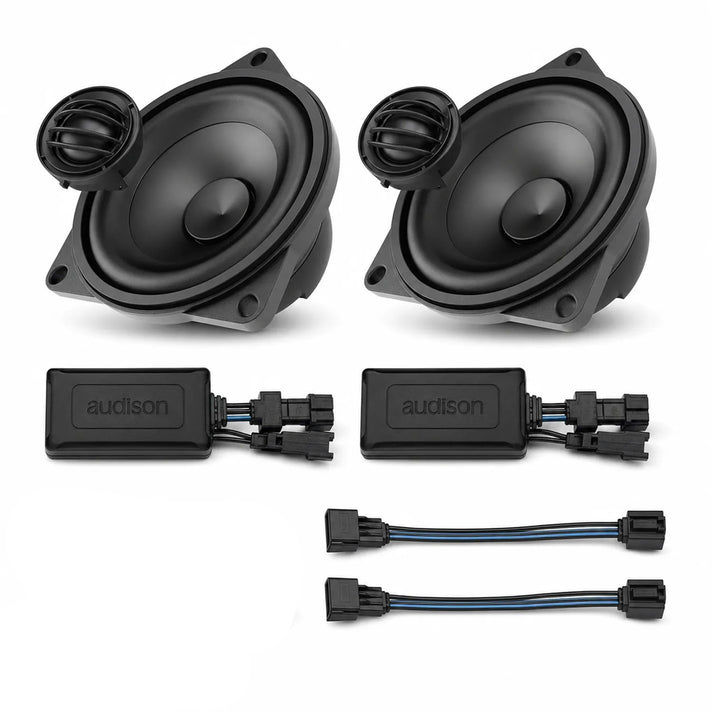

Audison-Prima APBMW K4M-BMW-Lautsprecherset-masori-kaufen
€186.15
€219.00 €186.15

Compatible with Prima APBMW K4M

Prima APBMW K4M is a BMW Speaker Set from Audison as a 2-way system with a 100 mm midrange and Tetolon tweeter. The midrange uses a waterproof, pressed paper diaphragm and a 25 mm fiberglass voice coil. The magnet group is made of neodymium, the basket is made of aluminum die-cast, and it is compatible with BMW Mini with plug & play connections. The crossover operates as a hi-pass at 6 kHz with 6 dB/oct. The tweeter features a radiation characteristic optimized with FEM simulation and a level adjustment of -3 dB or 0 dB. A damping removable motor cover and a 30 cm extension with plug & play connections are included. The sensitivity is 89 dB, the impedance is 4 Ohm, the continuous power handling is 50 W, and the peak power handling is 100 W.

Features
  • BMW Speaker Set
  • 2-way system
  • Manufacturer: Audison
  • 100 mm midrange
  • Tetolon tweeter
  • Waterproof, pressed paper diaphragm
  • 25 mm fiberglass bass voice coil
  • Neodymium magnet group
  • Aluminum die-cast basket compatible with BMW Mini
  • Plug & play connections
  • Tweeter support for plug & play OEM installation
  • 30 cm extension with plug & play connections
  • Damping removable motor cover
  • Crossover with high-quality components and plug & play connections
Technical Specifications
  • Woofer size: 100 mm
  • Tweeter size: 29 mm
  • Voice coil woofer: 25 mm
  • Voice coil tweeter: 25 mm
  • Crossover: Hi-Pass 6 kHz at 6 dB/oct
  • Magnet size woofer: 50 x 29 x 3
  • Peak power handling: 100 W
  • Continuous power handling: 50 W
  • Sensitivity: 89 dB
  • Impedance: 4 Ohm
  • Tweeter level adjustment: -3 dB, 0 dB
  • Diaphragm diameter woofer: 80 mm
  • Xmax woofer: 0.5 mm
  • Re woofer: 3.3 Ohm
  • Fs woofer: 90 Hz
  • Le woofer: 0.32 mH @ 1 kHz
  • Vas woofer: 1.8 l
  • Mms woofer: 6.4 g
  • Cms woofer: 0.5
  • Bxl woofer: 4.8
  • Qts woofer: 0.48
  • Qms woofer: 8.9
  • Sound pressure level woofer: 88 dB
  • Weight woofer: 0.426 kg
  • Weight tweeter: 0.06 kg
  • Recommended high-pass cutoff: 150–200 Hz

Frequently Asked Questions about Prima APBMW K4M

What advantages does the water-repellent press paper membrane of the Prima APBMW K4M offer?

The water-repellent press paper membrane of the Prima APBMW K4M midrange driver ensures a natural sound free from unwanted plastic resonances. This is particularly beneficial in a vehicle environment, where moisture is a common challenge. Especially if you enjoy listening to music loudly while wanting to experience clear and precise sound, this special membrane structure provides an optimized listening experience. Additionally, the water-repellent property enhances the durability of your speaker system, protects against environmental influences, and ensures long-lasting sound quality. The speaker remains stable and functional even in high humidity.

What specific performance data does the Prima APBMW K4M have?

The Prima APBMW K4M offers a peak power of 100 watts and a continuous power handling of 50 watts, providing a remarkably powerful listening experience. The Crossover operates with a high-pass cutoff in the range of 150-200 Hz and offers a Hi-Pass: 6 KHz @ 6dB/Oct. The woofer shows a sensitivity of 89 dB at an impedance of 4 ohms, making it ideal for use in vehicles that require high output power with optimal energy operation. These parameters, especially the peak power, make it a powerful addition to your vehicle.

What are the Thiele-Small parameters for the woofer of the Audison Prima APBMW K4M?

The Thiele-Small parameters for the woofer of the Prima APBMW K4M include a Re value of 3.3 ohms, a resonance frequency (Fs) of 90 Hz, and an equivalent volume (Vas) of 1.8 liters. Furthermore, the moving mass (Mms) is 6.4 g, the compliance (Cms) is 0.5, and the force factor (Bxl) is 4.8. With a total Q factor (Qts) of 0.48, the woofer shows a balanced performance between power and compliance, ideal for detailed audio reproduction. Qms is at 8.9, while the magnet system has also been optimized to deliver an impressive sensitivity of 88 dB.

How does the neodymium magnet of the Prima APBMW K4M affect sound performance?

The neodymium magnet in the Prima APBMW K4M maximizes performance while minimizing weight and mass, which is particularly advantageous in vehicles. Neodymium is known for its high magnetic strength, allowing for more precise movement of the speaker diaphragm, resulting in a more dynamic auditory experience. The emphasis on clarity and precision in every frequency range, from deep bass to high frequencies, is enhanced by the magnetic force. This technical component is invaluable for users who need a detailed and powerful soundstage in their car.

What installation options does the Prima APBMW K4M set offer for BMW models?

The Prima APBMW K4M set is specifically designed for a variety of BMW models such as the BMW 1 Series, 2 Series, 3 Series, 4 Series, 5 Series, 6 Series, 7 Series, as well as Mini models. With plug-and-play connections and a supplied 30 cm extension, the system can be integrated with minimal effort. The aluminum die-cast basket and the Tetolon tweeter are tailored to OEM fixtures, allowing for easy installation. Due to specific compatibilities, such as with the BMW 3 Series F30 center and top Hi-Fi midrange and parcel shelf, the speakers can be easily integrated into existing systems. The comprehensive installation solution offers flexibility and significantly simplifies the mounting process.

What functions does the crossover in the Prima APBMW K4M have?

The crossover in the Prima APBMW K4M is equipped with high-pass and band-pass filters that separate frequencies at 6 kHz @ 6dB/Oct. This frequency separation ensures clean playback of audio frequencies optimally matched to the midrange and tweeter. The use of high-quality components in the crossover maximizes sound quality, enabling more detailed audio reproduction. Additionally, the components are designed as plug-and-play connections, greatly simplifying integration in the vehicle. The crossover adapts to various installation situations and offers flexible adjustments for diverse sound preferences.

What technical features does the woofer of the Prima APBMW K4M offer?

The woofer of the Prima APBMW K4M, with a diameter of 100 mm, offers a variety of technical features: it has a 25 mm fiberglass voice coil that ensures both high power handling and structural rigidity. The processed magnet measures 50 x 29 x 3, supported by an optimized design for optimal sound performance. The woofer cone, with a diameter of 80 mm, provides natural sound mids without plastic resonances due to the pressed paper diaphragm. The Xmax, the maximum linear excursion of the woofer, is 0.5 mm. This ensures clear, undistorted bass and makes it ideal for music lovers who prefer powerful music playback in their car.

Can the Prima APBMW K4M Set be used with existing BMW Hi-Fi systems?

Yes, the Prima APBMW K4M is compatible with various BMW Hi-Fi and Top-HiFi systems. The included adapters and the aluminum die-cast basket with Plug&Play connections ensure easy integration into existing systems. This includes models such as the BMW 1 Series E81, F20, or the BMW 5 Series F10. For vehicles with base audio or Hi-Fi configurations, the set offers an adaptable solution to enhance existing audio systems without major modifications. The modular design and compact construction of the system promote a smooth installation, allowing for harmonious interaction with the existing vehicle acoustics.

How does the Tetolon tweeter of the Prima APBMW K4M contribute to sound quality?

The 25 mm Tetolon tweeter of the Prima APBMW K4M is optimized for reproducing high-precision and clear highs. This component was developed using FEM simulations to achieve an ideal radiation characteristic, creating a comprehensive soundstage. Tetolon is a special material known for providing balanced and smooth frequency reproduction. In conjunction with the flexible adjustment level of -3 dB to 0 dB for different acoustic requirements, the tweeter allows for personalized audio playback. These features make the tweeter an essential component for enthusiasts expecting the highest sound fidelity in the vehicle interior.

What is the function of the aluminum die-cast basket in the Prima APBMW K4M?

The aluminum die-cast basket of the Prima APBMW K4M serves multiple purposes: it provides a stable and resonance-free structure that enhances sound quality by minimizing vibrations. Aluminum is lightweight yet robust, which helps reduce distortion at high volumes. Additionally, the die-cast basket is specifically made for BMW models, ensuring a precise fit and easy installation. Thanks to the Plug&Play connections, the basket facilitates integration into the vehicle's convertible acoustics, maximizing both installation efficiency and sound performance. This makes it essential for a high-quality audio solution in the vehicle.
