  3. AF TSL 3YP Amp Kit
Audison AF TSL 3YP Amp Kit Tesla Complete Set
SKU:  AFTSL3YP-AMP
EAN:  8018823146845
1080 Watt

AF TSL 3YP Amp Kit

SKU:  AFTSL3YP-AMP
EAN:  8018823146845

Technical Highlights

  • Total output: 1080 watts RMS, 12 x 60 W at 4 ohms, 90 W at 2 ohms.
  • Core component: Audison Forza AF M12.14, 12 channels, 14-channel DSP.
  • Frequency range: 10 Hz to 42,000 Hz, 105 dBA, damping factor over 80.
  • More technical details
€1.990,00
€1.990,00 €1.990,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
May 18, - May 21,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €165,83 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-AF TSL 3YP Amp Kit-Tesla-Komplettset-masori-kaufen
€1.990,00
€1.990,00 €1.990,00

AF TSL 3YP Amp Kit by Audison

The AF TSL 3YP Amp Kit from Audison is a specially designed Tesla Complete Set that offers seamless integration into Tesla Model 3 and Model Y from 2022. At the heart of the system is the Audison Forza AF M12.14 bit DSP Amplifier with 12 channels and a total power of 1080 Watts RMS. Thanks to the 14-channel DSP with 24-bit/96 kHz high-res audio precision, you can enjoy an exceptional sound experience. The set also includes a Subwoofer in a closed enclosure and is fully integrable into the Tesla infotainment. Installation is facilitated by the special mounting bracket and the CN TSL 3YB 01 T-Harness cable set, allowing for true plug & play without the need for wire cutting.

System components & performance

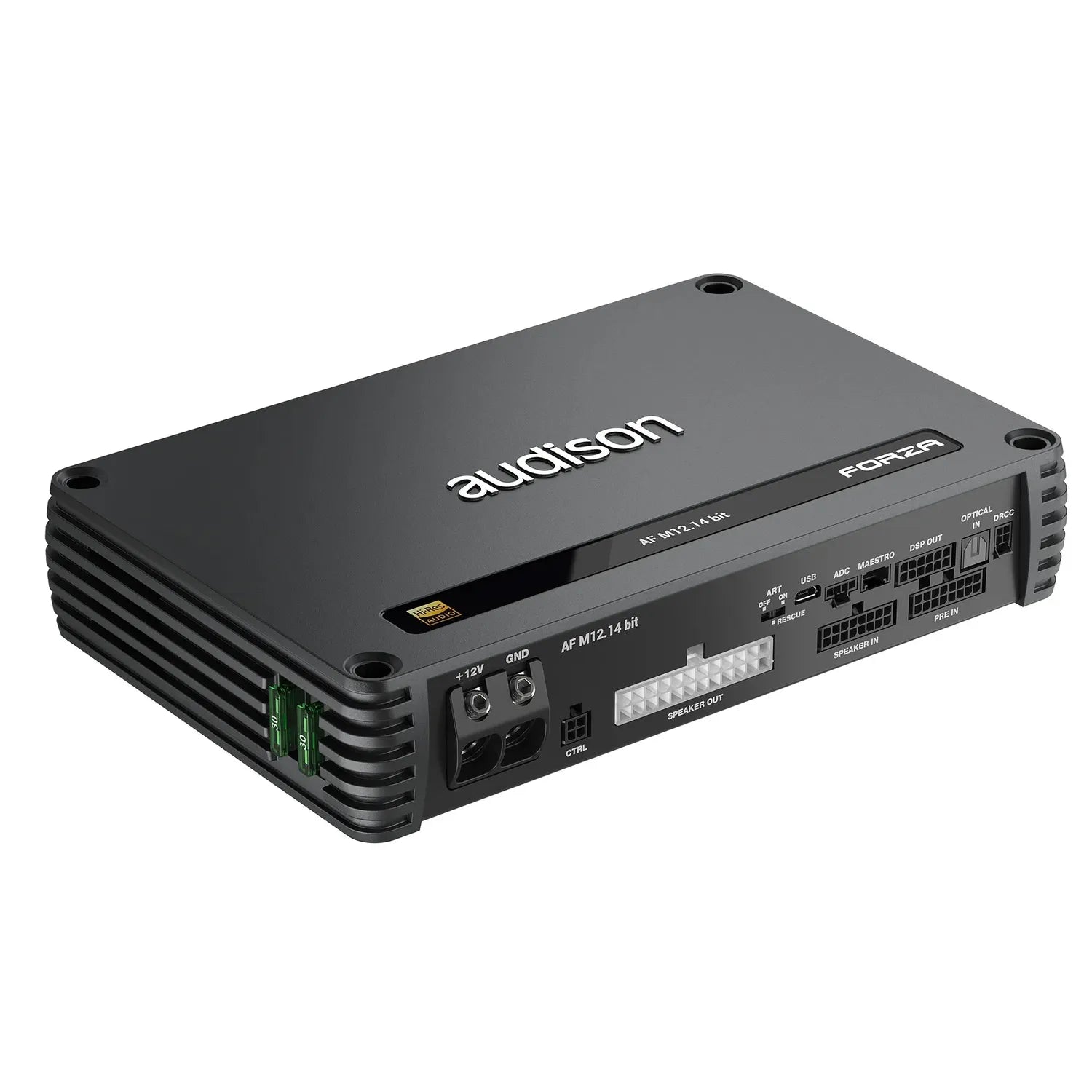

  • Centerpiece: Audison Forza AF M12.14 bit DSP Amplifier with 12 channels
  • Total power: 1080 Watts RMS (12 x 60 W at 4 Ohm / 12 x 90 W at 2 Ohm)

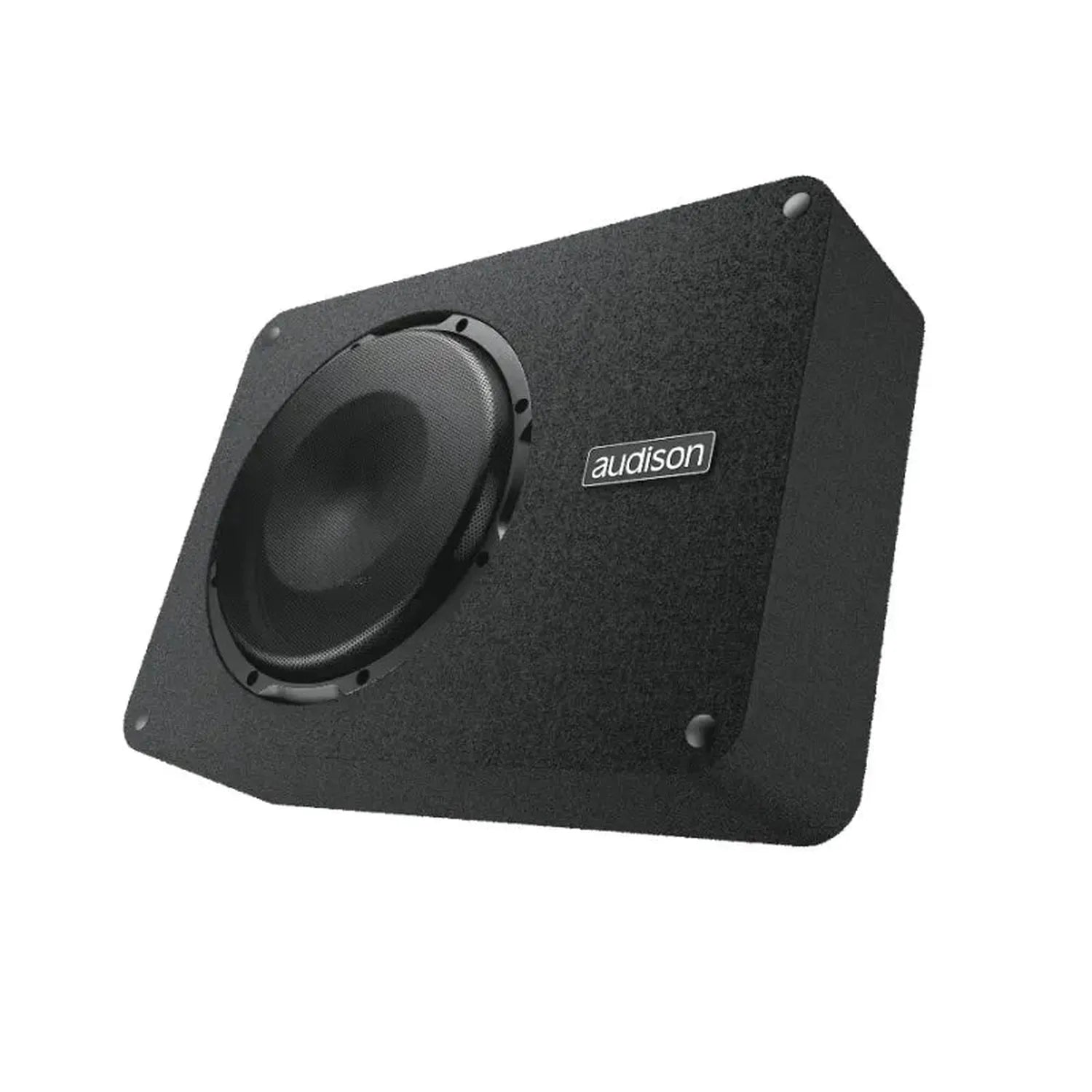

  • Subwoofer: APBX 10 S4S (250 mm / 10 inches) in a closed enclosure
  • Signal processing: 14-channel DSP with 24-bit/96 kHz high-res audio precision
  • Integration: Full integration into the Tesla infotainment (Subwoofer level adjustable)

Specific Tesla optimization

  • Optimized for Tesla Model 3 (from 2022) and Model Y (from 2022) with Ryzen chipset
  • System upgrade: Activates the factory-inactive Tweeters in the mirror triangle
  • Tuning file: Specifically developed setup by Audison engineers for perfect time correction and EQ
  • Signal management: Correction of factory Tesla frequency response interventions for natural sound

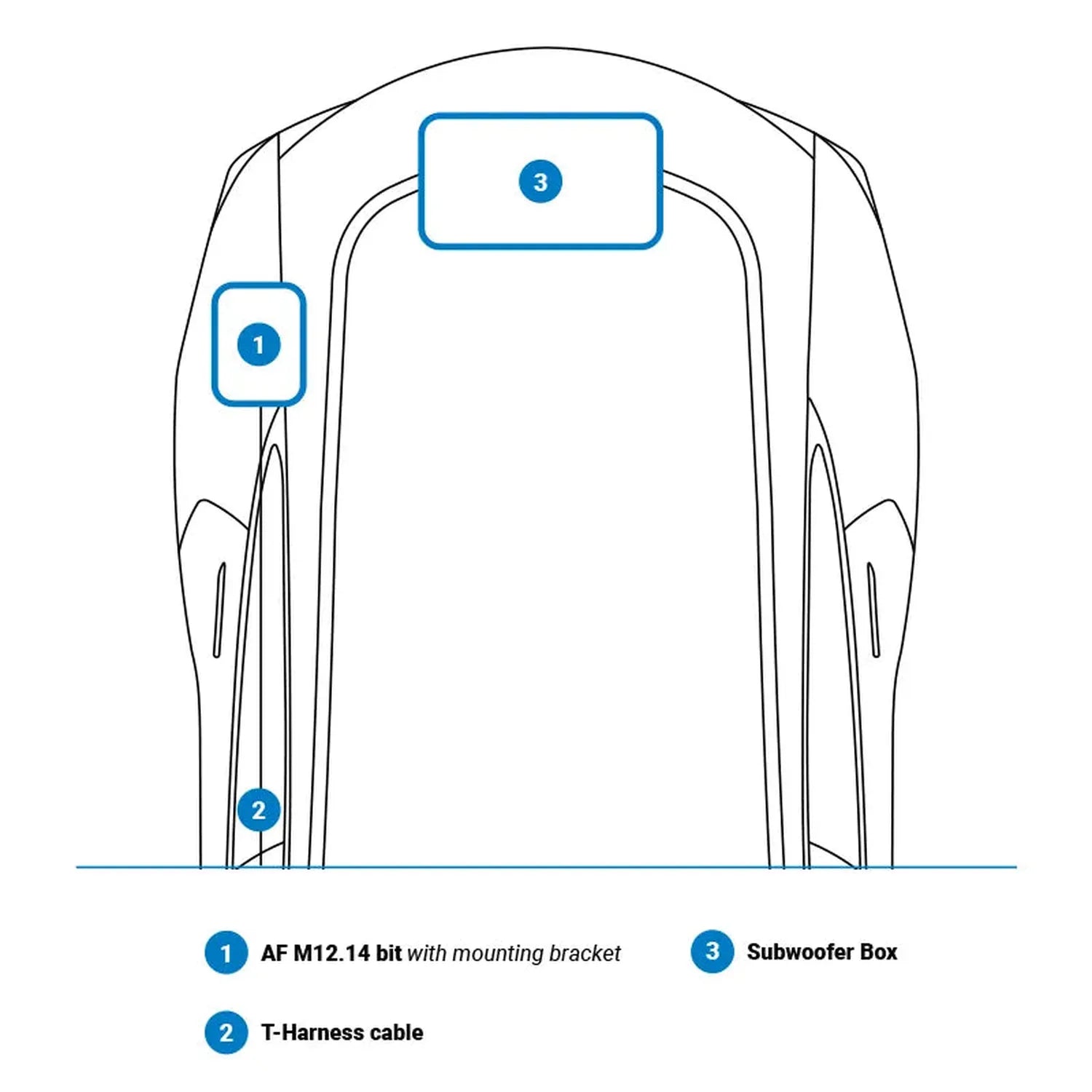

  • Installation: Includes Tesla-specific mounting bracket for an invisible installation

Connections & wiring

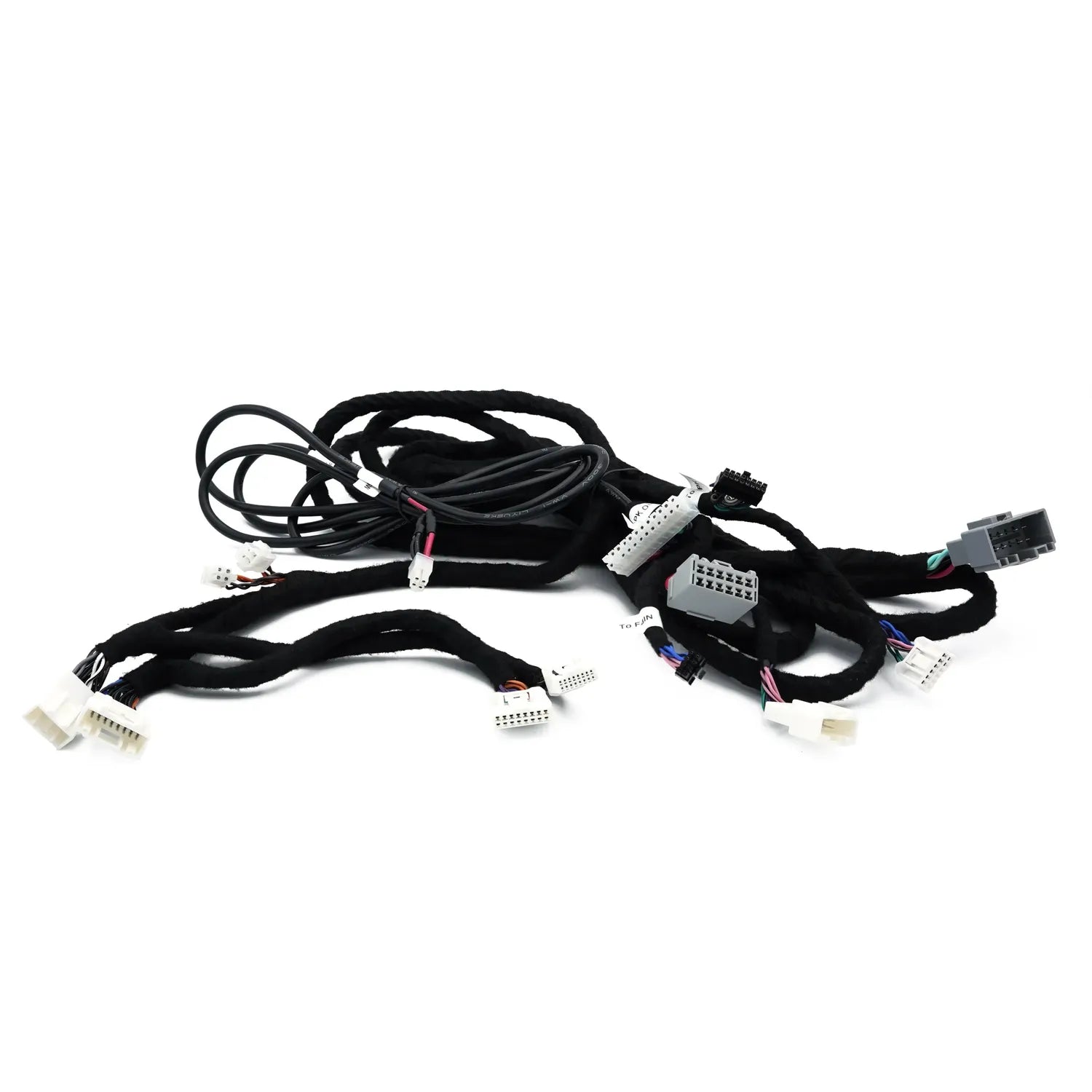

  • Cable set: CN TSL 3YB 01 T-Harness for true plug & play without cutting wires
  • Inputs: 8 high-level inputs with integrated load simulation (USS)
  • Digital input: Optical S/PDIF input (up to 24 bit/192 kHz) for external sources
  • Expandability: Native support for Audison B-CON (Bluetooth Hi-Res) via dedicated port
  • Control: Connection for DRC AC Digital Remote Control available

Technical details & components

  • Amplifier technology: Highly efficient Class-D of the latest generation (Forza series)
  • Frequency range: 10 Hz to 42,000 Hz for crystal-clear highs and deep bass
  • Signal-to-noise ratio: Impressive 105 dBA for noise-free music enjoyment
  • Damping factor: Over 80 (at 100 Hz / 4 Ohm) for maximum speaker control
  • DSP features: 15-pin parametric EQ per channel as well as Linkwitz-Riley and Butterworth filters

Physical data & delivery contents

  • Dimensions Amplifier: 240 x 47 x 156 mm (compact for concealed installation)
  • Dimensions Subwoofer: 470 x 334 x 120 mm (custom fit for the area under the loading floor)
  • Weight Amplifier: 2.04 kg
  • Weight Subwoofer: 8.63 kg

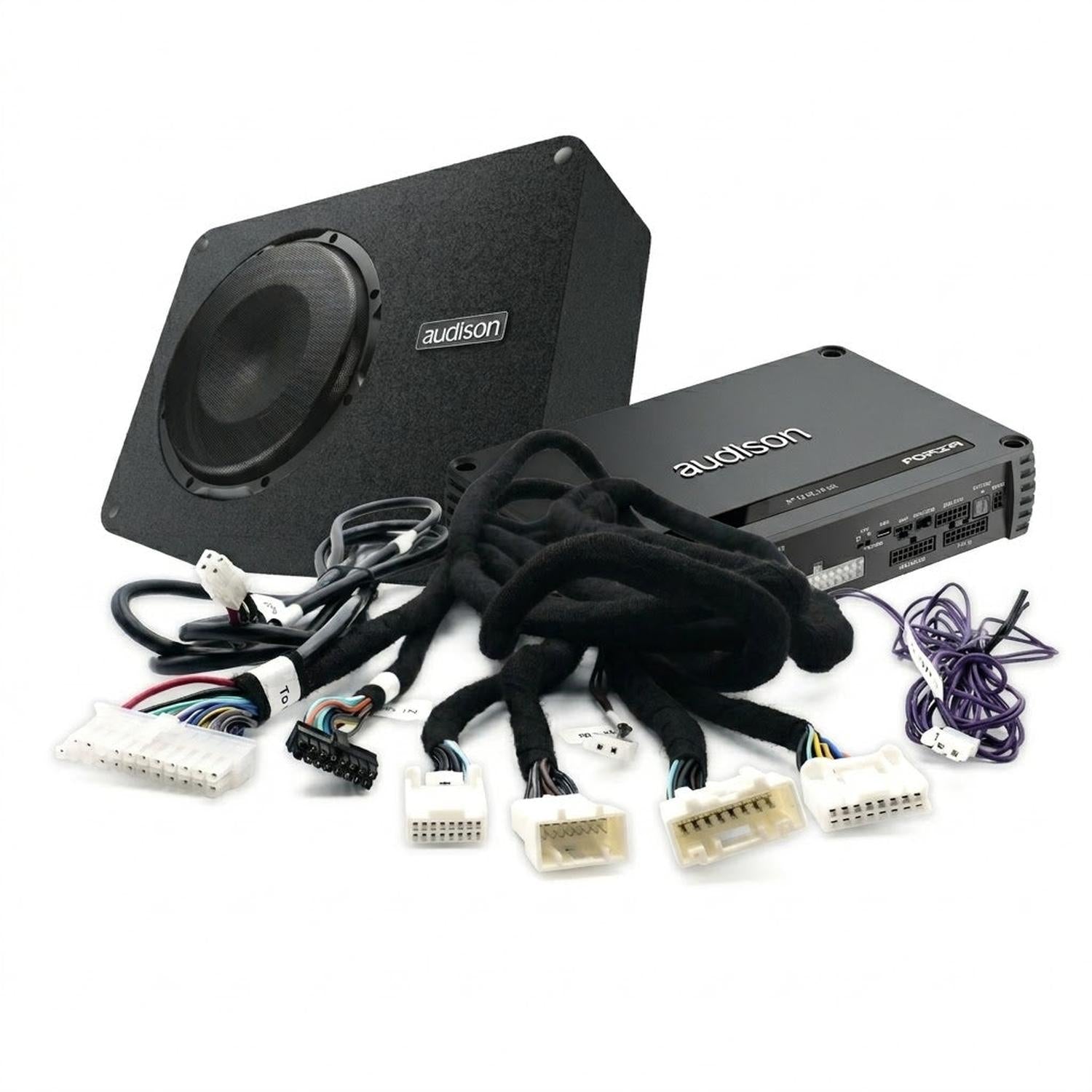

  • Package contents: DSP Amplifier, enclosure Subwoofer, T-Harness, mounting bracket, and accessories

Your benefits at Masori

Frequently Asked Questions about AF TSL 3YP Amp Kit

What is the total power of the AF TSL 3YP Amp Kit?

The AF TSL 3YP Amp Kit houses the Audison Forza AF M12.14 bit DSP Amplifier, which delivers an impressive total power of 1080 Watts RMS. This amplifier offers 12 channels, each providing 60 W at 4 Ohms or 90 W at 2 Ohms. It maintains remarkable efficiency and power stability despite the high output. By connecting these channels with precise DSP processing (24-bit/96 kHz High-Resolution Audio), users are offered an unparalleled musical experience. The power capacity also supports an APBX 10 S4S Subwoofer, which can be seamlessly integrated into the amplifier system.

What DSP features does the AF TSL 3YP Amp Kit have?

The AF TSL 3YP Amp Kit features a complex 14-channel DSP that enables 24-bit/96 kHz High-Resolution Audio. DSP features include a 15-band parametric equalizer per channel, as well as Linkwitz-Riley and Butterworth filters. These DSP functionalities provide extensive options for sound customization and optimization, perfectly tuned according to the user's preferences and the vehicle's environment. With these advanced signal processing options, the system can correct the factory frequency responses in the vehicle, resulting in a more natural and impressive sound experience.

How is the integration of the AF TSL 3YP Amp Kit in Tesla vehicles?

The AF TSL 3YP Amp Kit is specifically optimized for Tesla Model 3 and Model Y (from the year 2022) with Ryzen chipset. It includes full integration into the Tesla infotainment system, with the subwoofer level being individually adjustable. Additionally, the system optimizes the factory-inactive tweeters in the mirror triangle, enhancing and correcting the natural frequency response of the sound system and integrating almost invisibly through Tesla-specific mounting brackets. These measures ensure seamless integration and an invisible yet high-quality sound upgrade for Tesla vehicles.

What are the physical dimensions of the AF TSL 3YP Amp Kit?

The AF TSL 3YP Amp Kit is compactly sized to allow for discreet installation. The Audison Forza AF M12.14 bit DSP Amplifier measures 240 x 47 x 156 mm, allowing for a concealed and easily accessible placement in the vehicle. The Subwoofer APBX 10 S4S is sized at 470 x 334 x 120 mm, specifically designed to fit under the loading floor. These precise dimensions ensure that the components of the kit can be integrated into the vehicle both functionally and aesthetically, without negatively affecting the spatial conditions.

What connection options does the AF TSL 3YP Amp Kit offer?

The AF TSL 3YP Amp Kit offers a variety of connection options to ensure maximum flexibility and quality. It features 8 high-level inputs with integrated load simulation (USS), allowing for a seamless connection to factory vehicle sound systems. Additionally, the kit has an optical S/PDIF input that supports external sources up to 24 bit/192 kHz. For wireless connections, there is native compatibility with Audison B-CON via a dedicated port. A DRC AC connection allows for the use of a Digital Remote Control to adjust the sound while in operation.

How does the Amplifier technology of the AF TSL 3YP Kit affect audio quality?

The AF TSL 3YP Amp Kit uses the latest generation of highly efficient Class-D Amplifier technology from the Forza series. This technology provides excellent sound efficiency while reducing power consumption and minimizing heat loss. The amplifier covers a frequency range from 10 Hz to 42,000 Hz, enabling extremely clear high frequencies and deep bass. The signal-to-noise ratio of 105 dBA contributes to a noise-free and detailed listening experience. Overall, the use of this amplifier technology results in a highly precise and dynamic sound profile, ideal for discerning audio enthusiasts.

How is the Subwoofer of the AF TSL 3YP Amp Kit designed?

The Subwoofer included in the AF TSL 3YP Amp Kit, APBX 10 S4S, is a sealed 250 mm (10 inch) Subwoofer designed to deliver deep and powerful bass frequencies. The sealed enclosure promotes a tight bass response without disturbing resonances. With dimensions of 470 x 334 x 120 mm, the Subwoofer is specifically intended for concealed installation under the loading floor. This strategically thought-out enclosure design, combined with the power consumption of the Amplifier, ensures that the Subwoofer is not only efficient but also provides a spatially unobtrusive sound experience.

What Thiele-Small parameters does the AF TSL 3YP Subwoofer have?

Since the product description does not include specific Thiele-Small parameters for the APBX 10 S4S Subwoofer of the AF TSL 3YP Amp Kit, no information can be provided in this regard. Normally, Thiele-Small parameters, such as equivalent air volume (Vas), total quality factor (Qts), resonance frequency (Fs), or moving mass (Mms), would serve to determine the acoustic properties and enclosure requirements of a Subwoofer. In the absence of data, I recommend contacting the manufacturer directly for detailed technical information that would offer more precise application and tuning options.

How is the AF TSL 3YP Amp Kit installed in the vehicle?

The installation of the AF TSL 3YP Amp Kit in the Tesla is extremely user-friendly and almost invisible due to the Tesla-specific mounting bracket included in the package. The relatively compact dimensions of the Amplifier (240 x 47 x 156 mm) and the Subwoofer (470 x 334 x 120 mm) allow for flexible placement in the vehicle, preferably in concealed locations such as under the loading floor. The T-Harness cable set ensures true plug-and-play without the need to cut or reroute cables, significantly simplifying and optimizing the installation process.

What advantages does the Audison B-CON support offer in the AF TSL 3YP Kit?

The native support for Audison B-CON in the AF TSL 3YP Amp Kit opens up versatile possibilities for wireless audio streaming in Hi-Res quality. Through a dedicated port, B-CON technology can be integrated, allowing for the transmission of high-resolution audio via Bluetooth. This preserves the acoustic integrity of music tracks and enhances detail fidelity. This elevates the wireless sound experience to a new level by bypassing limitations imposed by wired transmissions. The comprehensive support for Audison B-CON achieves high compatibility and a seamless user experience.
