  3. HX 165 Dust 3-Way Evo 3
Audio System HX 165 Dust 3-Way Evo 3 6.5" (16,5cm) Speaker Set
SKU:  HX-165-DUST-3-WAY-EVO-3
EAN:  4251834503472
150 Watt

HX 165 Dust 3-Way Evo 3

SKU:  HX-165-DUST-3-WAY-EVO-3
EAN:  4251834503472

Technical Highlights

  • 6.5" speaker set, neodymium drive, 3 ohm impedance, 240 watts.
  • NAWI paper cone, ventilated cast basket, deep reproduction.
  • Flexibly expandable, high-quality materials, precise high-end reproduction.
  • More technical details
€699,00
€699,00 €699,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 2, - Jun 5,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €58,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audio System-HX 165 Dust 3-Wege Evo 3-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€699,00
€699,00 €699,00

HX 165 Dust 3-Way Evo 3 by Audio System

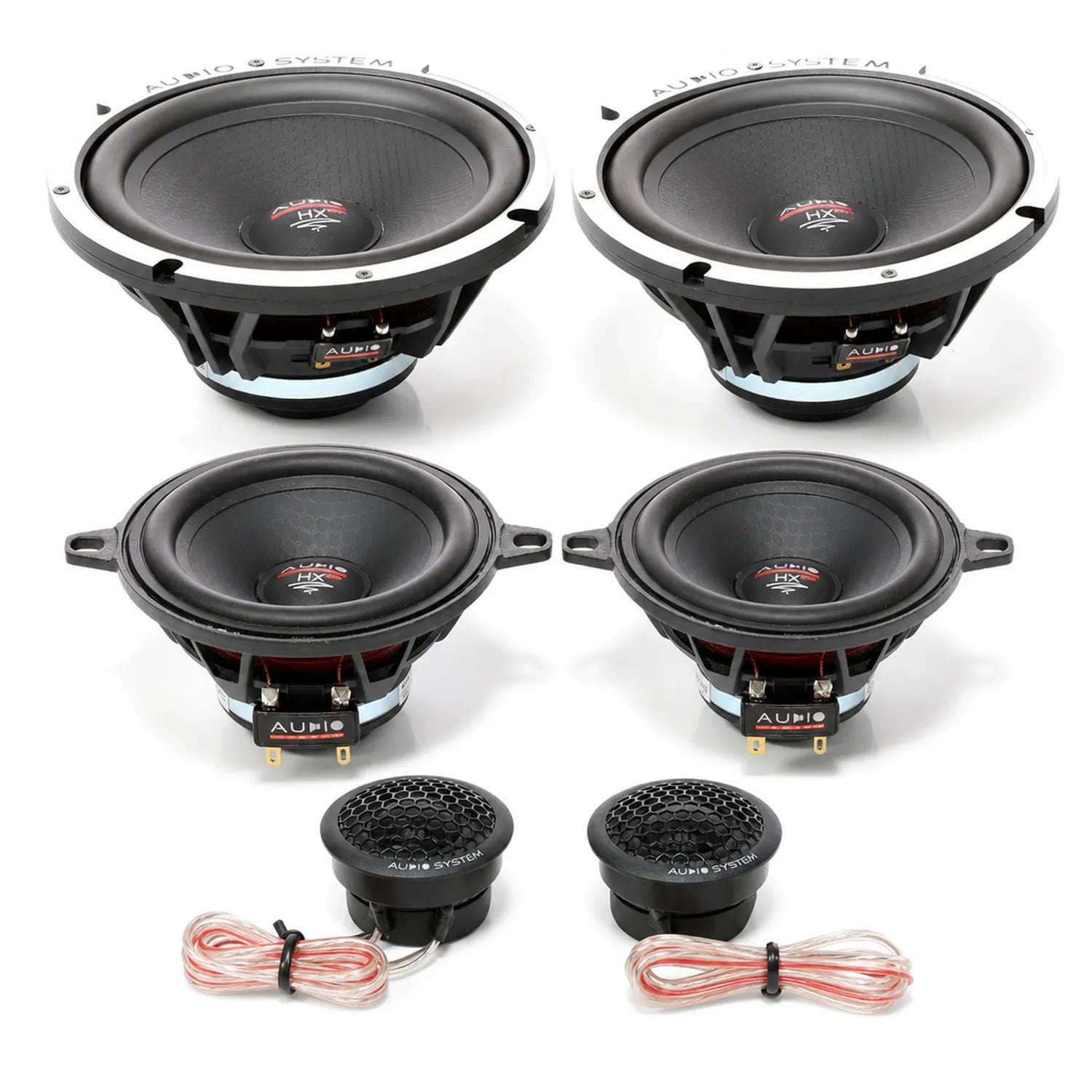

The HX 165 Dust 3-Way Evo 3 from Audio System is a 6.5 inch Speaker Set in a fully active design. The midrange drivers EX 165 DUST EVO 3 and EX 80 DUST EVO 3 feature neodymium drives, ventilated cast baskets, and NAWI paper membranes with fiberglass and Nomex spider. The HS 25 DUST EVO Tweeter also uses a neodymium drive and is designed as a 26 mm absolute high-end component. The system is designed for deep-range playback and operates with impedances of 3 Ohms for the woofers and midrange drivers, and 4 Ohms for the tweeter. The maximum load capacity of the 165 mm woofers is 240 Watts. The delivery includes two units each of the EX 165 DUST EVO 3, EX 80 DUST EVO 3, and HS 25 DUST EVO components, including high-quality connection cables.

Features
  • 6.5 inch (16.5 cm) Speaker Set
  • Audio System neodymium drive for all components
  • Ultra-light and stable NAWI paper membrane with fiberglass
  • Ventilated cast basket
  • Nomex spider
  • Power EX 165 DUST EVO 3: 150 Watts RMS
  • Power EX 165 DUST EVO 3: 240 Watts Max
  • Power EX 80 DUST EVO 3: 65 Watts RMS
  • Power EX 80 DUST EVO 3: 95 Watts Max

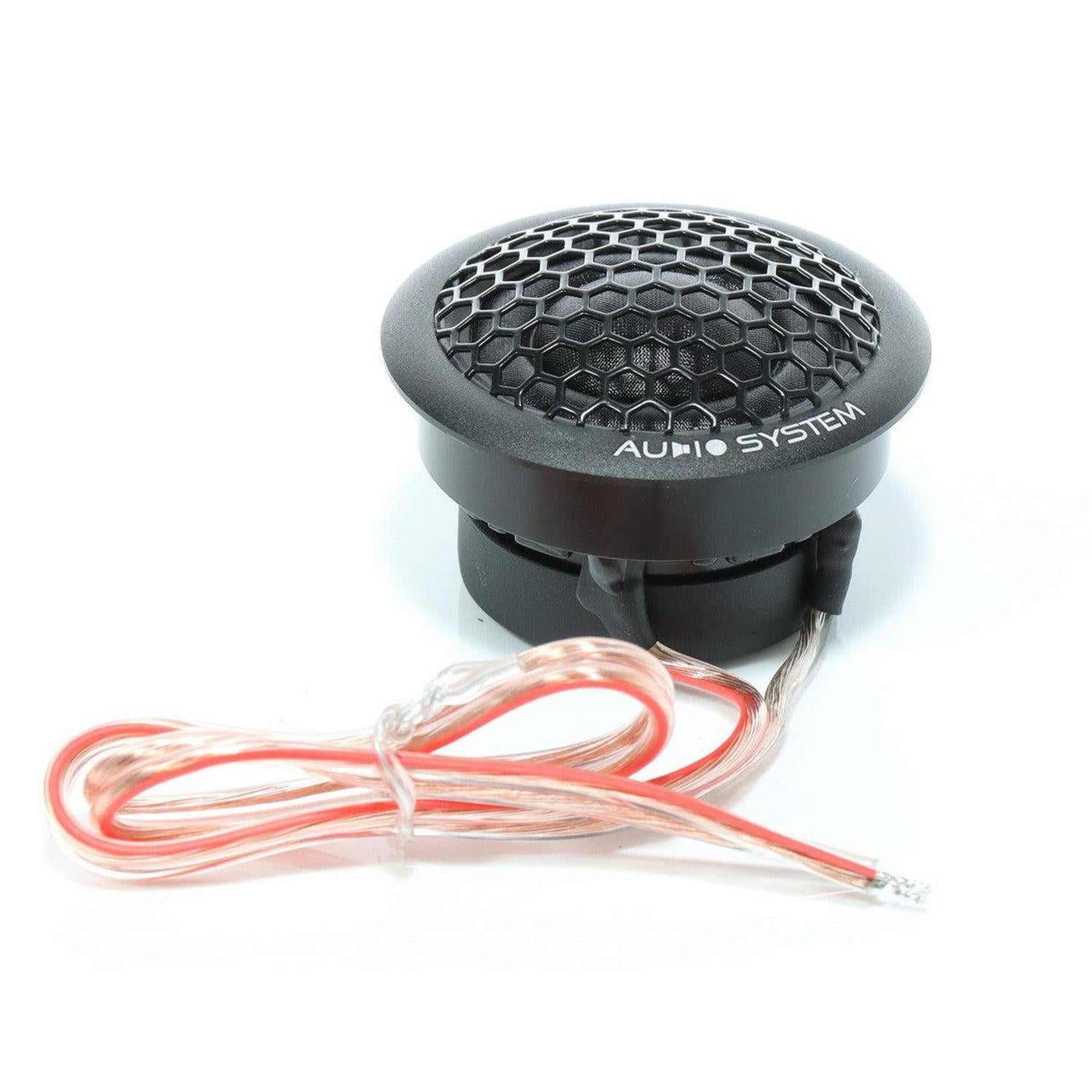

  • HS 25 DUST EVO Tweeter with protective grille and coupled volume
  • High-quality connection cable for tweeter
  • HX SERIES Fully Active
Technical Specifications
  • Impedance for woofers and midrange drivers: 3 Ohms
  • Impedance for tweeter: 4 Ohms

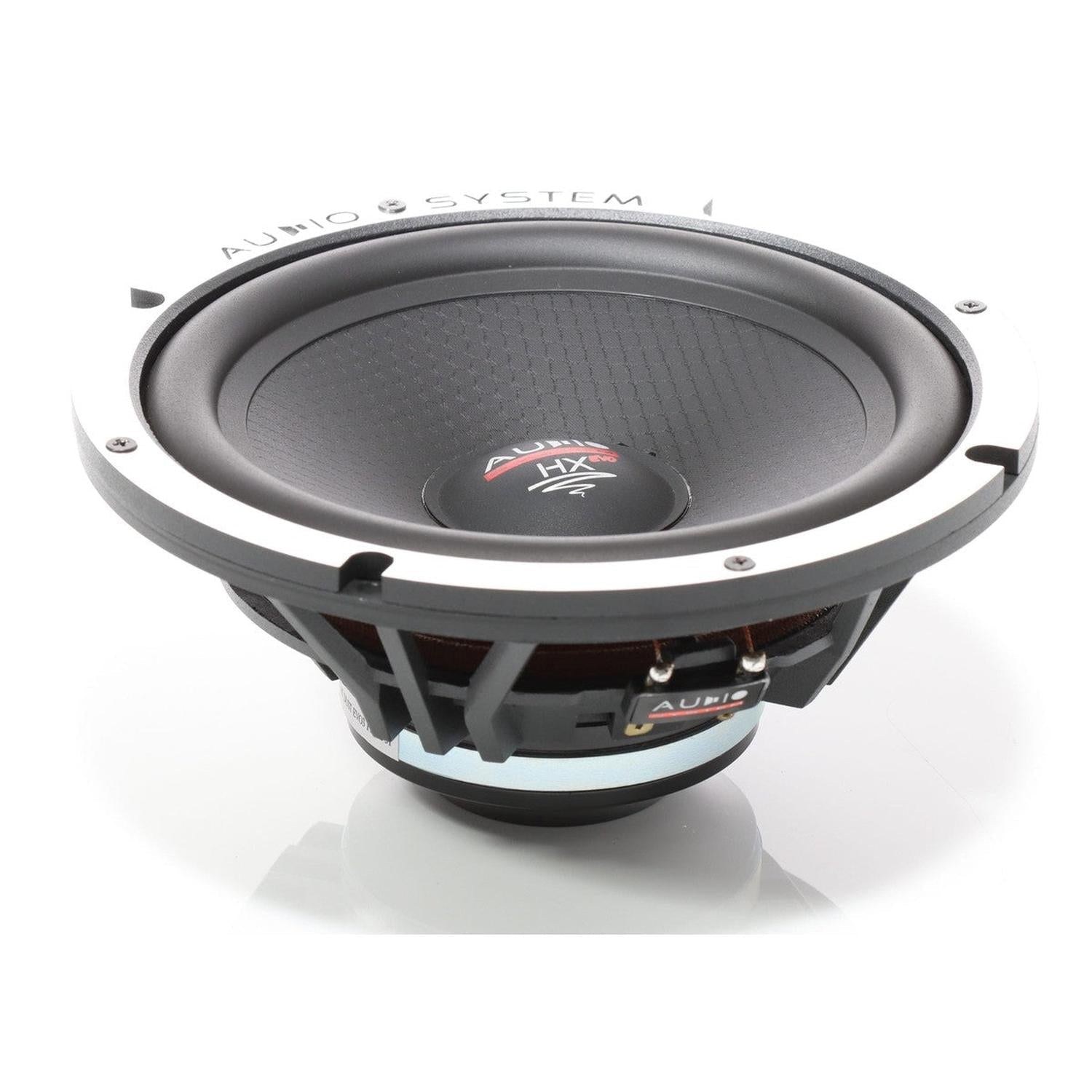

  • Outer diameter EX 165: 166 mm
  • Installation depth EX 165: 67 mm
  • Installation measurement EX 165: 146 mm

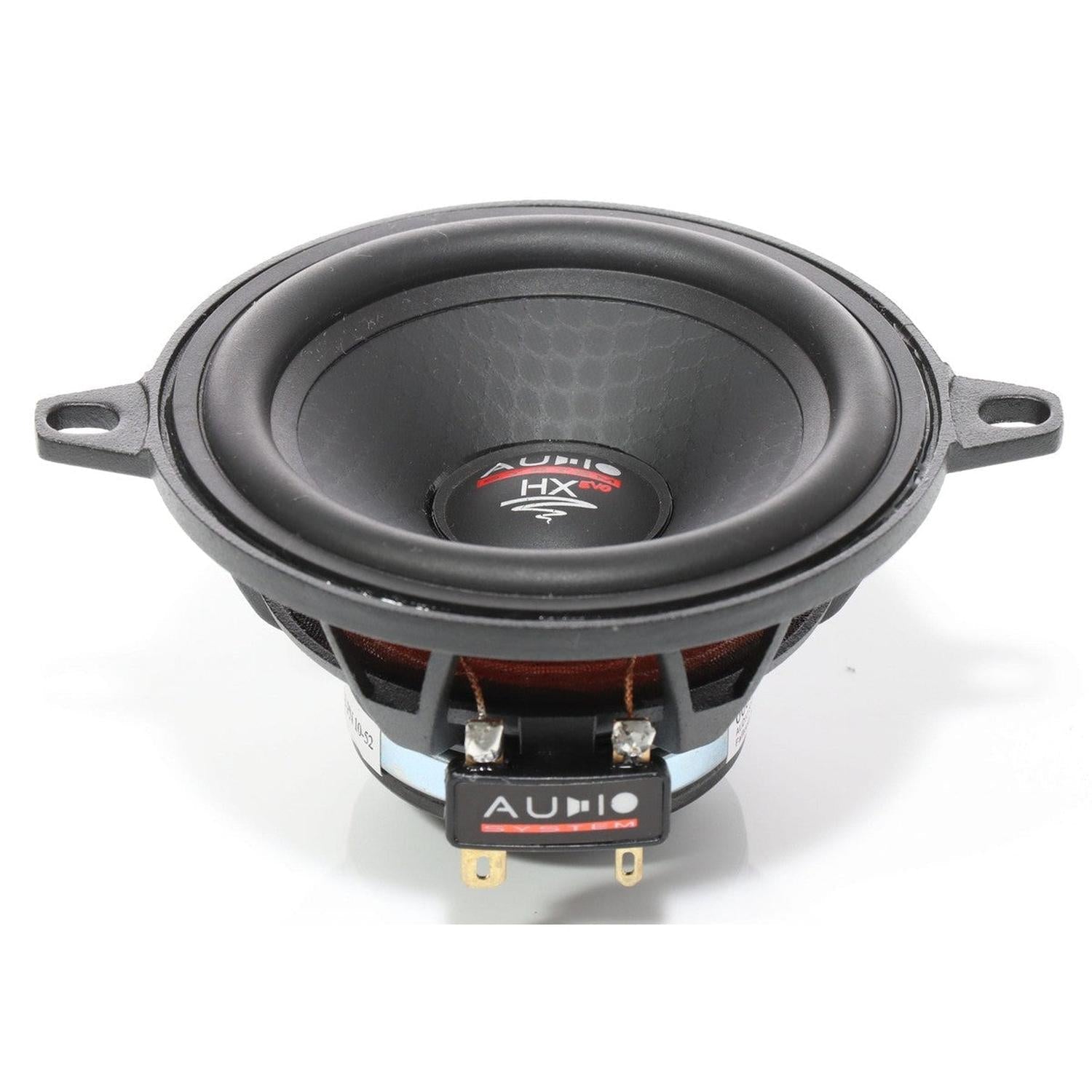

  • Outer diameter EX 80: 88 mm / 112 mm
  • Installation depth EX 80: 44 mm
  • Installation measurement EX 80: 77 mm
  • Outer diameter HS 25: 54.5 mm
  • Installation depth HS 25: 22 mm
  • Installation measurement HS 25: 49 mm
  • Total height HS 25: 27 mm
  • Neodymium magnet diameter HS 25: 45 mm
  • Resonance frequency Fs for tweeter: 960 Hz

Your benefits at Masori

Audio System HX 165 Dust 3-Way Evo 3 Datasheet

Open datasheet

Frequently Asked Questions about HX 165 Dust 3-Way Evo 3

What technical features distinguish the HX 165 Dust 3-Way Evo 3 Speaker Set?

The HX 165 Dust 3-Way Evo 3 Speaker Set from Audio System offers an outstanding sound experience with 6.5'' midrange drivers and 26 mm tweeters. The midrange drivers utilize a neodymium drive and feature a ventilated cast basket. An ultra-light NAWI paper diaphragm combined with fiberglass and Nomex spider ensures precise sound reproduction. The impedance is 3 ohms with a maximum power of 240 watts for the 165 mm speakers and 95 watts for the 80 mm variants. This allows for deep sound reproduction and optimally tuned sound effects. A comprehensive listening experience is thus guaranteed.

How does the 3 ohm impedance affect the sound of the HX 165 Dust 3-Way Evo 3?

The 3 ohm impedance in the HX 165 Dust 3-Way Evo 3 Speaker Set results in low electrical resistance and allows for higher current intake, resulting in a more intense and dynamic sound reproduction. The lower ohm value favors a more efficient use of the speakers' power, which in turn enables more volume and clarity in the sound. This impedance option makes the set particularly suitable for amplifiers that can support lower impedances, thus producing a powerful and deep sound.

What role does the neodymium drive play in the HX 165 Dust 3-Way Evo 3 Set?

The neodymium drive of the midrange drivers and tweeters in the HX 165 Dust 3-Way Evo 3 significantly improves the magnetic field strength at the same weight compared to conventional speaker magnets. This increases the efficiency of the speaker, leading to more precise sound reproduction. Neodymium is particularly strong at low volume and weight, making the entire set more compact and saving space for high-quality sound elements. This favors detailed reproduction of high and mid tones, which is particularly interesting for discerning music lovers.

What materials are used in the HX 165 Dust 3-Way Evo 3 series?

The HX 165 Dust 3-Way Evo 3 series uses highly specialized materials for its speakers. The midrange drivers feature a NAWI paper diaphragm, combined with fiberglass and a Nomex spider construction. This combination of materials provides a lightweight yet stable structure that ensures optimal sound reproduction. Additionally, a vented cast basket is used, which contributes to the cooling and stability of the speaker. The tweeters also have neodymium magnets and are equipped with a coupled protection volume that ensures clear high-end sound.

How is the sound reproduction of the HX 165 Dust 3-Way Evo 3?

The sound reproduction of the HX 165 Dust 3-Way Evo 3 is characterized by its deep-reaching frequencies and clear highs. This is achieved through the combination of 6.5'' midrange drivers and HS 25 DUST EVO tweeters, covering a wide range of tones. The deliberately developed material composition, including NAWI paper diaphragm and neodymium drive, ensures a finely tuned balance in the sound. The frequencies of the tweeters extend up to 960 Hz, supporting the precise coverage of high sound ranges. Overall, this is ideal for HiFi enthusiasts.

What is the size of the HX 165 Dust 3-Way Evo 3 Speaker Set?

The HX 165 Dust 3-Way Evo 3 Speaker Set consists of different components with specific dimensions: The EX 165 DUST EVO 3 midrange drivers have an outer diameter of 166 mm and a mounting depth of 67 mm. The installation occurs at a diameter of 146 mm. The EX 80 DUST EVO 3 speakers are specified with an outer diameter of 88/112 mm and a mounting depth of 44 mm. Their installation dimensions are 77 mm. The HS 25 DUST EVO tweeters measure an outer diameter of 54.5 mm, with a mounting depth of 22 mm and an installation size of 49 mm.

What tips are there for installing the HX 165 Dust 3-Way Evo 3 system?

For the installation of the HX 165 Dust 3-Way Evo 3 set, you should pay attention to the specific installation dimensions to ensure optimal sound. The EX 165 DUST EVO 3 midrange drivers require a mounting depth of 67 mm and a diameter of 146 mm. The EX 80 DUST EVO 3 should be mounted at a depth of 44 mm and a diameter of 77 mm. For the HS 25 DUST EVO tweeters, a mounting depth of 22 mm with a diameter of 49 mm is important. Also, note that the neodymium drive requires a similar impedance to other amplifiers.

Why are the tweeters of the HX 165 Dust 3-Way Evo 3 sets special?

The tweeters of the HX 165 Dust 3-Way Evo 3 sets, specifically the HS 25 DUST EVO, have unique technical features. The diameter of 26 mm combined with the neodymium drive allows for excellent high-end sound reproduction. They have a protective grille and coupled volume, which significantly improves sound quality. With a frequency range coverage up to 960 Hz and an impedance of 4 Ohms, they are optimized for crystal-clear high-frequency representation. Tweeters are crucial for the brilliance in the sound image, and this combination ensures listening pleasure at the highest level.

How do the cast baskets affect the performance of the HX 165 Dust 3-Way Evo 3?

The cast baskets in the speakers of the HX 165 Dust 3-Way Evo 3 sets provide high stability and ventilation. These structural advantages improve the thermal handling of the speakers, which is essential with the presence of the neodymium magnet in the 80 mm and 165 mm midrange drivers as well as the HS 25 DUST EVO tweeters. With improved cooling, peak performances of 240 Watts in the larger midrange drivers and 95 Watts in smaller models can be achieved. This optimized thermal processing helps reduce distortion and maintain sound quality.

What are the frequency separations and frequency response in the HX 165 Dust 3-Way Evo 3?

The frequency separations in the HX 165 Dust 3-Way Evo 3 speaker set are specifically tuned to the individual frequencies to optimize clarity and precision. The tweeters, specifically the 26 mm HS 25 DUST EVO models, are optimized for high frequencies up to 960 Hz, while the NAWI paper cone midrange drivers support low frequencies at an impedance of 3 Ohms. This separation of frequencies allows each speaker unit to reproduce its frequency ranges accurately and without overlaps or distortions. This is particularly advantageous for more complex musical pieces, where a wide frequency range is essential.
