3. ASA Mercedes Audiogateway MOST>Cinch

ASA Mercedes Audiogateway MOST>Cinch

ASA Mercedes Audiogateway MOST>Cinch

Technical Highlights

  • Impedance of the OEM active system is adjusted by RCA red/white.
  • Performance of the original system is maintained with MOST ring.
  • Does not support fader function, vehicles with MOST25 system.
  • More technical details
€259.00
€259.00 €259.00
2% discount with credit card

Your price match offer

ProductASA Mercedes Audiogateway MOST>Cinch

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 16–Sep 21.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms

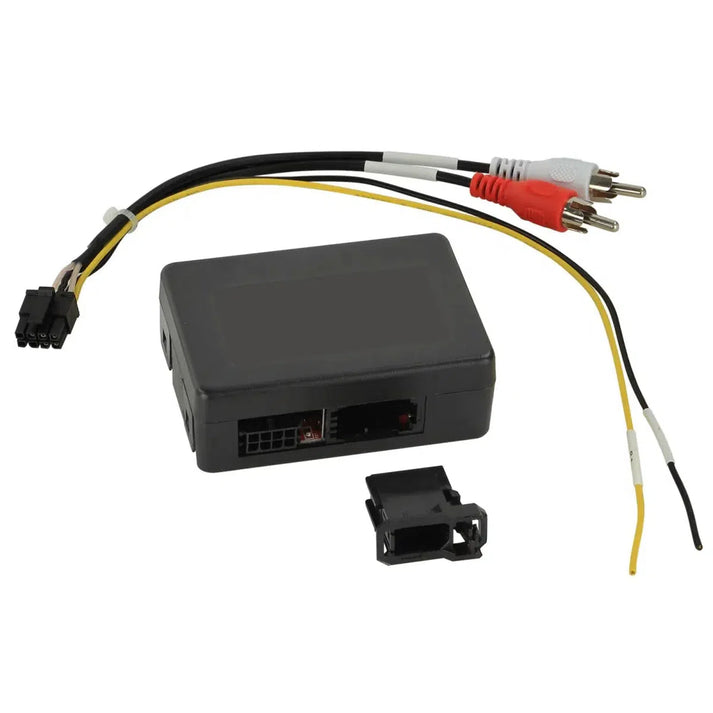

ACV-ASA Mercedes Audiogateway MOST>Cinch-Aktivadapter-masori-kaufen
€259.00
€259.00 €259.00

ASA Mercedes Audiogateway MOST>Cinch is an Active Adapter from ACV. Interface from OEM sound system MOST(m) to RCA red/white. Designed for vehicles with MOST25 OEM sound system and Audiogateway as well as Audio 50 APS Comand NTG2 / NTG2.5 OEM navigation. Connection via loose cables with yellow: +12V constant power terminal 30 and black: ground terminal 31. RCA(m) red/white to the front pre-amplifier output of an aftermarket radio. Fader function not supported. Not compatible with Mercedes SL-Class (R230) 03/2006–12/2011, not for Comand 2.0 / 2.5 OEM navigation and not for D2B Optical Bus System.

Features
  • Active Adapter
  • Interface MOST(m) to RCA red/white
  • Loose cables
  • Vehicles with MOST25 OEM sound system
  • Vehicles with Audiogateway
  • Vehicles with Audio 50 APS Comand NTG2 / NTG2.5 OEM navigation
  • Not compatible: Mercedes SL-Class (R230) 03/2006–12/2011
  • Vehicles without Comand 2.0 / 2.5 OEM navigation
  • Vehicles without D2B Optical Bus System
  • RCA(m) red/white to front pre-amplifier output aftermarket radio
  • Fader function not supported
Technical Data
  • Yellow: +12V constant power terminal 30
  • Black: ground terminal 31
  • Compatibility: Mercedes CL-Class (C215) 02/2004–08/2006
  • Compatibility: Mercedes CLS (C219) 10/2004–06/2008
  • Compatibility: Mercedes E-Class (S211/W211) 03/2002–02/2008
  • Compatibility: Mercedes S-Class (W220) 02/2004–09/2005
  • Compatibility: Mercedes SLK-Class (R171) 03/2004–03/2008
  • Vehicles with Comand OEM navigation with 1 rotary knob on the left / shift paddle on the right
  • Vehicles without Comand OEM navigation with 2 rotary knobs left/right
  • In case of defects: remove OEM additional components CD changer / TV tuner / telephone module from the MOST ring
  • Optical fiber connector MOST ring: item 771000-2100
  • Optical fiber loop (f) MOST ring: item 771000-2101

Frequently Asked Questions about ASA Mercedes Audiogateway MOST>Cinch

How is the ASA Mercedes Audiogateway MOST>Cinch installed?

For the installation of the ASA Mercedes Audiogateway MOST>Cinch, you first need the correct connections between your aftermarket radio and the OEM amplifier. Use the red and white RCA connections. The yellow wire is intended for +12V constant power (terminal 30) and the black for ground (terminal 31). It is important to check the functionality of the MOST ring connections before final assembly. If your vehicle has a defective OEM module such as a CD changer, remove it from the MOST ring to avoid interference.

Which vehicles are compatible with the ASA Mercedes Audiogateway MOST>Cinch?

The ASA Mercedes Audiogateway MOST>Cinch is suitable for various Mercedes models such as the CL-Class (C215) from 02/2004 - 08/2006, E-Class (S211/W211) from 03/2002 - 02/2008, S-Class (W220) from 02/2004 - 09/2005, CLS (C219) from 10/2004 - 06/2008, and SLK-Class (R171) from 03/2004 - 03/2008. It is important that these models have a COMAND navigation system. Vehicles without COMAND OEM navigation or without a D2B optical bus system are not compatible. Pay attention to the specific model restrictions when selecting, as compatibility is crucial for functionality.

What functions does the ASA Mercedes Audiogateway MOST>Cinch not support?

The ASA Mercedes Audiogateway MOST>Cinch does not support a fader function. This means you cannot adjust the volume separately between the rear and front speakers. Sound and subwoofer settings may also not be available depending on the vehicle-specific OEM active system. This results from the signal adaptation from MOST to RCA, which only ensures basic audio transmission but cannot retain all customized OEM functions. You should consider these limitations if you want to ensure a balanced sound profile for your vehicle.

What connections does the ASA Mercedes Audiogateway MOST>Cinch have?

The ASA Mercedes Audiogateway MOST>Cinch provides specific electrical and optical connections. Electrically, it is powered by +12V constant current (terminal 30) and ground (terminal 31). The audio signals are transmitted through the RCA connectors in red and white. For the optical connection within the MOST ring, a fiber optic connector must be used, such as item 771000-2100 for the fiber optic loop (f). These optical connections are essential for maintaining communication between the system components of your vehicle.

What must be considered when integrating into the MOST ring?

When integrating the ASA Mercedes Audiogateway MOST>Cinch into the MOST ring, it is important that all fiber optic cables are correctly connected. Use item 771000-2100 to close open connections. If a component of the system, such as a CD changer or TV tuner, is defective, it must be removed to avoid disrupting the signal flow. These steps ensure uninterrupted communication within the vehicle system. All connections should be checked for functionality before final assembly to avoid later errors.

How does the ASA Mercedes Audiogateway MOST>Cinch affect the existing sound system?

The ASA Mercedes Audiogateway MOST>Cinch allows an aftermarket radio to be connected to existing OEM sound systems by adapting the output signals of the aftermarket radio. The original amplifier and speakers remain active, ensuring the preservation of existing sound quality. However, there may be limitations for vehicles with an existing OEM active system, particularly regarding the fader function or special sound adjustments. It is important to consider all limitations during installation to guarantee the best possible integration.

What role does the fiber optic cable play in the ASA Mercedes Audiogateway MOST>Cinch?

The fiber optic cable in the ASA Mercedes Audiogateway MOST>Cinch is essential for optical signal transmission in the MOST bus system. It ensures that all control units in the vehicle can communicate efficiently with each other. Fiber optic connectors like item 771000-2100 must be correctly placed to close open circuit ends and thus ensure the functionality of the system. When changes occur within the MOST system, such as the removal of defective components, proper handling and covering of the fiber optic cables is crucial to avoid disruptions or loss of functionality.

Can the ASA Mercedes Audiogateway MOST>Cinch be used with an OEM navigation unit?

Yes, the ASA Mercedes Audiogateway MOST>Cinch is compatible with specific OEM navigation units such as the Audio 50 APS Comand NTG2 / NTG2.5. These units require a direct adaptation to the MOST bus for system functionality. Vehicles equipped with Comand OEM navigation based on these NTG standards can thus continue to use their factory-installed sound system in combination with an external retrofit radio without any issues. However, it is crucial that the unit is properly integrated into the existing MOST ring to ensure error-free operation.

What happens with defective OEM additional components in the ASA Mercedes Audiogateway MOST>Cinch?

With defective OEM additional components such as a CD changer, TV tuner, or telephone system that are integrated into the MOST bus ring, these must be removed to avoid disrupting signal transmission. Open fiber optic ends can be closed with products like the fiber optic loop (f), item number 771000-2101. This prevents signal loss and allows the main system to continue being used without necessarily repairing the affected components. This way, the focus remains on the functionality of the amplifier and speakers.

Why is testing before the final assembly of the ASA Mercedes Audiogateway MOST>Cinch important?

Before the final assembly of the ASA Mercedes Audiogateway MOST>Cinch, it is essential to check all connections and functions to ensure that there are no installation errors that could lead to signal interruptions. A thorough check avoids later problems, especially with the fiber optic connections in the MOST ring, which must be correctly positioned and closed. This initial functional test helps to detect defects early and prevent unnecessary effort later on, ensuring a smooth installation and functionality of the entire audio system.
