3. Reiss Audio speakers & Amplifier for cars
  5. RS-AE1000.4D

RS-AE1000.4D

250 Watt

RS-AE1000.4D

Technical Highlights

  • 4 Ohm RMS: 150 watts x 4, 2 Ohm RMS: 250 watts x 4, Impedance 4/2 ohm.
  • Peak power 2000 watts, Frequency range 10 Hz – 40 kHz, S/N >104 dB.
  • Total harmonic distortion <0.5%, Operating voltage from 9 – 17 volts possible.
  • More technical details
€454.86
€330.00 €454.86
2% discount with credit card

Your price match offer

ProductRS-AE1000.4D

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 22–Sep 29.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet
Reiss Audio-RS-AE1000.4D-4-Kanal Verstärker-masori-kaufen
€454.86
€330.00 €454.86

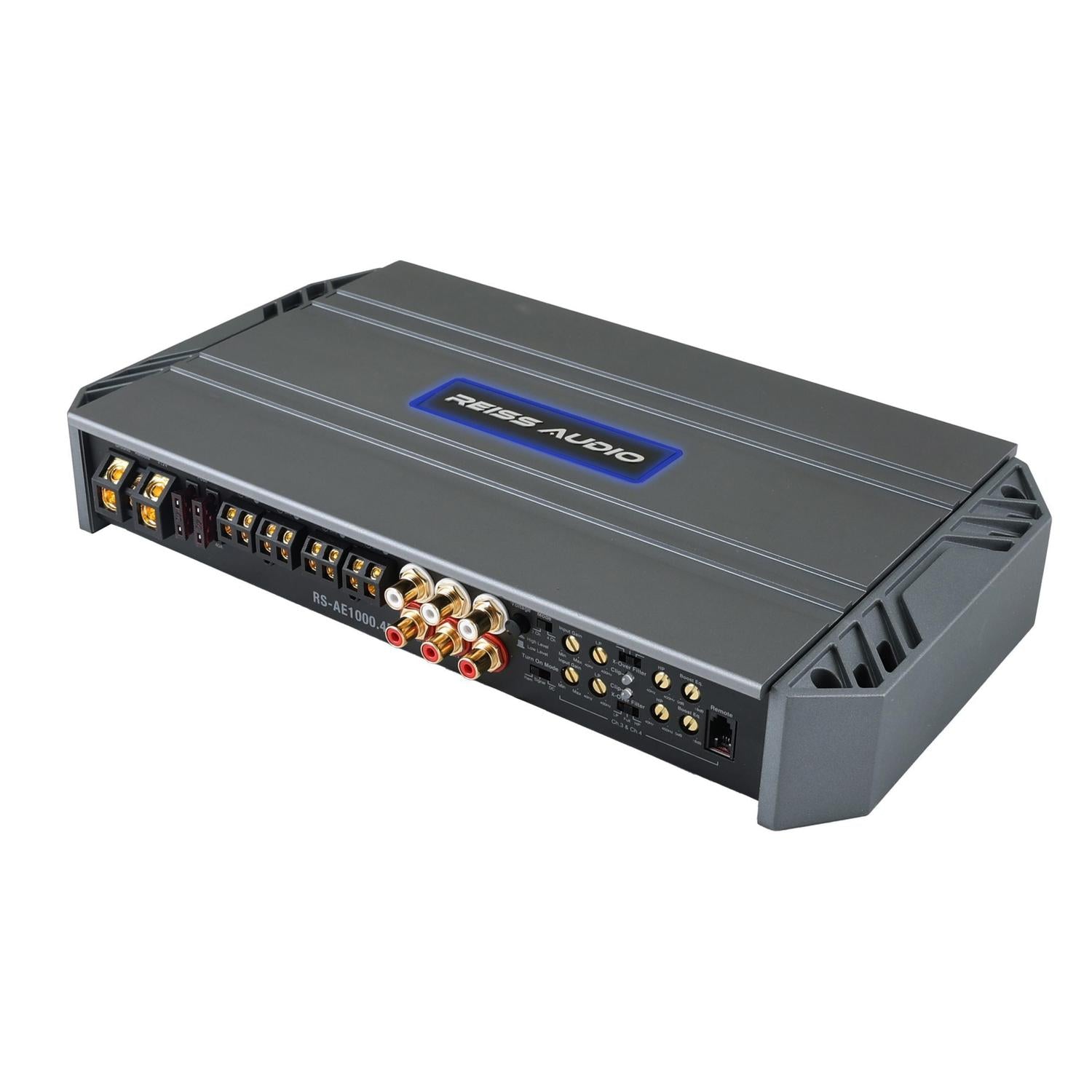

The RS-AE1000.4D from Reiss Audio is a 4-Channel Amplifier with an RMS power of 150 Watts x 4 at 4 Ohms. At an impedance of 2 Ohms, the device delivers 250 Watts x 4 RMS, while in bridged mode at 4 Ohms, it provides 500 Watts x 2 RMS. The peak music power is rated at 2000 Watts. The amplifier covers a frequency range of 10 Hz to 40 kHz and operates with an efficiency of 83 percent at 4 Ohms. A signal-to-noise ratio of over 104 dB and a total harmonic distortion of less than 0.5 percent characterize the technical parameters. Features include variable high-pass and low-pass crossovers from 40 Hz to 400 Hz, as well as EQ boosts from 0 to 18 dB. The operation occurs within a voltage of 9 to 17 Volts, with an 80 A Fuse included in the package.

Features
  • 4-Channel Amplifier
  • RMS power at 4 Ohms: 150 Watts x 4
  • RMS power at 2 Ohms: 250 Watts x 4
  • RMS power at 4 Ohm bridge: 500 Watts x 2
  • Peak music power: 2000 Watts
  • Efficiency at 4 Ohms: 83 percent
  • Signal-to-noise ratio: >104 dB
  • High-pass crossover: 40 Hz – 400 Hz
  • Low-pass crossover: 40 Hz – 400 Hz
  • Boost EQ: 0 – 18 dB
  • Fuse requirement: 80 A
Technical Specifications
  • Frequency range: 10 Hz – 40 kHz
  • Total Harmonic Distortion + Noise: <0.5 percent
  • Input sensitivity: 250 mV – 10 V
  • Crossover slope: 24 dB/Octave
  • Operating voltage: 9 – 17 Volts

Frequently Asked Questions about RS-AE1000.4D

What RMS power does the RS-AE1000.4D offer at different ohm values?

The Reiss Audio RS-AE1000.4D provides different RMS power levels at a voltage of 14.4 volts depending on the impedance. At a resistance of 4 ohms, each of the four channels delivers 150 watts. When the impedance is lowered to 2 ohms, the RMS power increases to 250 watts per channel. In bridge mode at 4 ohms, the amplifier even reaches 500 watts for two channels. This flexibility allows you to optimally match your amplifier to your speaker configuration and achieve the maximum possible audio performance for your system.

What is the peak music power of the RS-AE1000.4D?

The RS-AE1000.4D from Reiss Audio delivers an impressive peak music power of 2000 watts. This power is particularly relevant if you value high volume and clarity in music with peak levels. Unlike continuous RMS power, peak power is a snapshot of the maximum possible power that can be reached momentarily. This allows for more dynamic playback and reduces the risk of distortion when the amplifier is heavily used. This way, you can enjoy a clear and powerful sound even at high volumes.

What frequency range does the RS-AE1000.4D cover?

The frequency range of the Reiss Audio RS-AE1000.4D spans from 10 Hz to 40 kHz, allowing for an extremely wide capture of both deep bass and high frequencies. This bandwidth exceeds the audible spectrum and ensures that even in the most complex music, all details are audible. The extended frequency range is particularly useful for genres that require rich sound, such as classical music or electronic tracks with deep sub-bass. Additionally, this range covers all typical bass, midrange, and treble frequencies within an audio system.

How is the RS-AE1000.4D specified in terms of total harmonic distortion and noise?

The Reiss Audio RS-AE1000.4D has a Total Harmonic Distortion & Noise (THD + Noise) value of less than 0.5%. This low value indicates high fidelity in the reproduction of audio content. Less distortion means that the music is played back as it was originally recorded, without significant changes in sound quality. Furthermore, the amplifier has a signal-to-noise ratio of over 104 dB, which means that unwanted noise is very low compared to the audio signal. These specifications contribute to a clear, pure sound image.

What are the input sensitivities of the RS-AE1000.4D?

The input sensitivity of the RS-AE1000.4D can be adjusted between 250 mV and 10 V. This flexibility allows you to effectively combine the amplifier with various sources, including those with low output voltage like head units and those with higher voltage like dedicated audio pre-amps. Adjusting the input sensitivity ensures that the optimal volume is reached without distortion, while also allowing the amplifier to provide maximum speaker output. This fully utilizes the sound potential of the audio system.

How does the efficiency at 4 ohms affect the performance of the RS-AE1000.4D?

The efficiency of the RS-AE1000.4D at an impedance of 4 ohms is 83%. A high efficiency like this means that a large portion of the electrical energy consumed is converted into audio power, with minimal loss in the form of heat. This leads to more efficient operation, which is particularly beneficial when the amplifier is operated at higher power levels for extended periods. Higher efficiency also helps reduce battery load, which can be crucial for continuous operation in mobile applications.

What crossovers are integrated in the RS-AE1000.4D?

The RS-AE1000.4D features integrated high-pass and low-pass filters, each operating with a 24 dB/octave crossover. The high-pass crossover covers a range from 40 Hz to 400 Hz, while the low-pass crossover covers the same frequency range. These filters allow precise control over the frequency ranges that are sent to different speakers. Additionally, the system offers boost EQ options for both crossovers with a gain of 0 to 18 dB to further customize the sound character. The flexible crossover options help to get the best out of each speaker.

What voltage does the RS-AE1000.4D require for operation?

The Reiss Audio RS-AE1000.4D operates within a voltage range of 9 to 17 volts. This wide voltage range allows for use in a variety of vehicles that can provide different voltage levels. The flexibility regarding the operating voltage ensures that the Amplifier works under different load conditions and remains reliable even with potential voltage fluctuations. This is particularly relevant for vehicles with dynamic charging systems. Operating within the specified voltage range also ensures stable and reliable audio performance.

What are the requirements for the fuse of the RS-AE1000.4D?

For the safe operation of the RS-AE1000.4D, fuses with a capacity of 80 A are required. This fuse is provided with the Amplifier to ensure optimal safety standards. The correct sizing of the fuse is crucial to protect both the Amplifier and the entire audio system from overcurrent and potential electrical damage. When installing or replacing the fuse, you should ensure that this specification is followed to maintain the functionality and longevity of the Amplifier.

How is the RS-AE1000.4D correctly installed?

When installing the RS-AE1000.4D, you should consider the dimensions of the Amplifier and the space required for wiring. Ensure that the Amplifier is well-ventilated to avoid overheating. Use appropriate installation kits designed for the voltage and current requirements of the Amplifier, and make sure that all electrical connections are secure and insulated. Considering all these factors ensures that the Amplifier functions optimally. This also guarantees compatibility with various vehicle models, provided the physical space requirements are met.
