Audio System Radion R 10 Flat G Active Evo 10" (25cm) Active Enclosed Subwoofer
SKU:  R-10-FLAT-G-ACTIVE-EVO
EAN:  4251834500440
240 Watt

Radion R 10 Flat G Active Evo

SKU:  R-10-FLAT-G-ACTIVE-EVO
EAN:  4251834500440

Technical Highlights

  • With 285 watts maximum power, RMS power of 240 watts, 4 ohms.
  • Efficient 1-channel digital amplifier, signal-to-noise ratio over 96 dB.
  • Variable depth between 150 mm at the top and 280 mm at the bottom, flexible installation.
  • More technical details
€375,00
€375,00 €375,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €31,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
EdgeStreet EDS10ADSP
Edge-Street EDS10ADSP-10" (25cm) Aktiv-Gehäusesubwoofer-masori-kaufen
Rebec-U10-10" (25cm) Aktiv-Gehäusesubwoofer-masori-kaufen
RebecU10
Audio System-Radion R 10 Flat G Active Evo-10" (25cm) Aktiv-Gehäusesubwoofer-masori-kaufen
€375,00
€375,00 €375,00

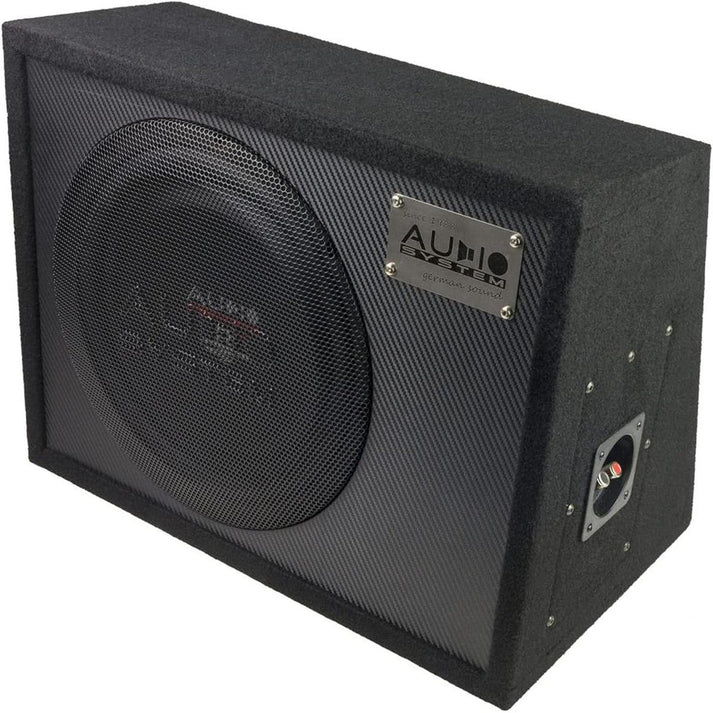

Radion R 10 Flat G Active Evo by Audio System

The Radion R 10 Flat G Active Evo from Audio System is a 10-inch active enclosure subwoofer with a closed 20-liter enclosure. The enclosure construction is made of 18 mm thick MDF and features a 33 mm front panel in carbon look. The system is powered by the integrated 1-channel digital amplifier M-350.1 D1 EVO, which provides an RMS power of 240 watts at an impedance of 4 ohms. For precise sound control, a low-pass filter from 40 to 220 Hz and a subsonic filter from 20 to 100 Hz are integrated. The maximum power of the system is 285 watts with a signal-to-noise ratio of over 96 dB. The device has a length of 460 mm and a height of 340 mm, with a depth varying from 150 mm at the top to 280 mm at the bottom.

Features
  • Product Type: 10 inch (25 cm) active enclosure subwoofer
  • Manufacturer: Audio System
  • Series: RADION-SERIES
  • Enclosure Type: 20 liters closed enclosure
  • Material: 18 mm MDF with 33 mm front panel in carbon look
  • Speaker Model: R 10 FLAT
  • Amplifier Model: M-350.1 D1 EVO
  • Impedance: 4 ohms
  • Power: 240 watts RMS
  • Power: 285 watts maximum
  • Length: 460 mm
  • Height: 340 mm
  • Depth top: 150 mm
  • Depth bottom: 280 mm
Technical Data
  • Operating Voltage: 10 - 16 V
  • RMS Power at 2 Ohm Mono: 1 x 350 watts
  • Signal-to-Noise Ratio: > 96 dB
  • Low-Pass Filter: 40 - 220 Hz
  • Subsonic Filter: 20 - 100 Hz
  • Transmission Frequency: 20 Hz - 220 Hz (+/- 1 dB)
  • Harmonic Distortion at 4 Ohms: < 0.048 %
  • Fuse: 1 x 20 A
  • Input Sensitivity: 200 mV - 6 V
  • Dimensions Metal Cover: 210 x 135 mm
  • Installation Size Module: 165 x 106 x 55 mm
  • Accessories: Includes RTC level remote control

Your benefits at Masori

Frequently Asked Questions about Radion R 10 Flat G Active Evo

How does the Audio System Radion R 10 Flat G Active Evo differ from other Subwoofers?

The Radion R 10 Flat G Active Evo from Audio System stands out with its closed 20-liter enclosure made from 18 mm thick MDF. The carbon-look front panel not only provides an aesthetic appearance but also supports the structure to optimize bass reproduction. The integrated M-350.1 D1 EVO is a 1-channel digital Amplifier that operates with a maximum power of 285 watts and 240 watts RMS power. With a signal-to-noise ratio of over 96 dB, as well as integrated low-pass and subsonic filters, this active Subwoofer allows for precise sound control, making it particularly appealing to audio enthusiasts.

What technical specifications characterize the Radion R 10 Flat G Active Evo active enclosure subwoofer?

The Radion R 10 Flat G Active Evo impresses with its 10-inch (25 cm) size and a 20-liter closed enclosure type. It has an impedance of 4 ohms and offers a maximum power of 285 watts, with the RMS power at 240 watts. The enclosure is made of high-quality 18 mm MDF with a 33 mm carbon-look front panel. The integrated Amplifier has an operating voltage of 10 to 16 V, a signal-to-noise ratio of over 96 dB, and a power of 240 watts at 4 ohms mono. These technical specifications ensure outstanding audio performance.

What installation tips are there for the Radion R 10 Flat G Active Evo?

The installation of the Radion R 10 Flat G Active Evo is facilitated by its flexible dimensions. With a length of 460 mm, a height of 340 mm, and a variable depth of 150 mm at the top to 280 mm at the bottom, the Subwoofer can be placed in various positions. This allows for adaptation to different vehicle interiors. The installation should be done in a way that the carbon-look front panel can freely express its sound. A robust mounting within the vehicle is recommended to ensure lasting and stable bass performance.

What power does the integrated Amplifier of the Radion R 10 Flat G Active Evo provide?

The integrated Amplifier M-350.1 D1 EVO in the Radion R 10 Flat G Active Evo offers impressive performance specifications. It operates with an RMS power of 240 watts at 4 ohms mono and can reach up to 350 watts RMS power at 2 ohms mono. With a signal-to-noise ratio of over 96 dB, the amplifier ensures clear and distortion-free playback. It also features a low-pass filter from 40 to 220 Hz and a subsonic filter from 20 to 100 Hz, providing precise sound control. A low total harmonic distortion of under 0.048% ensures the highest sound fidelity.

How do the dimensions of the Radion R 10 Flat G Active Evo affect compatibility with vehicles?

The dimensions of the Radion R 10 Flat G Active Evo are designed to allow flexible installation in different vehicle types. With a length of 460 mm, a height of 340 mm, and a variable depth of 150 mm at the top to 280 mm at the bottom, the Subwoofer can be accommodated in a space-saving manner without compromising bass performance. Due to its special shape, the Subwoofer fits particularly well in sedans and SUVs, where space constraints often pose a challenge. The sturdy MDF enclosure supports secure installation. In smaller vehicles, optimization can be achieved through the varying depth.

What advantages does the closed 20-liter enclosure of the Radion R 10 Flat G Active Evo offer?

The closed 20-liter enclosure of the Radion R 10 Flat G Active Evo is designed for stable and precise bass reproduction. Closed enclosures provide controlled sound wave projection, contributing to the precision of low frequencies. The 18 mm thick MDF provides structural strength, while the 33 mm front panel in carbon look is not only aesthetically pleasing but also supports stiffness for optimal sound reproduction. Such closed systems are ideal for genres that require precision in bass, such as jazz or classical music. The air pressure in the closed enclosure also acts as additional damping.

How does the signal-to-noise ratio affect audio quality in the Radion R 10 Flat G Active Evo?

The signal-to-noise ratio of the Radion R 10 Flat G Active Evo is over 96 dB, ensuring that the audio output is exceptionally clear and free from background noise. A high signal-to-noise ratio is crucial so that quiet audio sections do not get lost in the noise. This allows even subtle sounds to be reproduced accurately, and the entire audio spectrum is presented crystal clear. Especially in complex musical pieces, where detailed reproduction is important, the high signal-to-noise ratio stands out positively. Owners of the Radion Subwoofer can therefore expect undisturbed, clean listening pleasure.

What filtering options does the Radion R 10 Flat G Active Evo offer for sound optimization?

The Radion R 10 Flat G Active Evo is equipped with a variable low-pass filter and a subsonic filter, which are crucial for sound optimization. The low-pass filter is adjustable in the range of 40 to 220 Hz, allowing the frequency response to be tailored to the specific needs and preferences of the user. The subsonic filter, with a range of 20 to 100 Hz, protects the speaker from unwanted low frequencies that could stress the Subwoofer at high volume. These filters enable fine-tuning of the sound, so the Subwoofer can always be optimally set to the personal music taste.

What are the requirements for the operating voltage of the Radion R 10 Flat G Active Evo?

The Radion R 10 Flat G Active Evo requires an operating voltage between 10 and 16 volts to deliver its optimal performance. This voltage requirement corresponds to typical values in most vehicles, allowing the Subwoofer to provide a constant and reliable audio performance. Adhering to this operating voltage is crucial for the functionality of the integrated 1-channel digital Amplifier, as deviations could affect sound quality or even the device's functionality. Therefore, it is essential to ensure that the vehicle battery can consistently provide this operating voltage to avoid disruptions.

What functions does the RTC level remote control offer for the Radion R 10 Flat G Active Evo?

The RTC level remote control of the Radion R 10 Flat G Active Evo allows the user to conveniently and easily adjust the output volume of the Subwoofer from a distance. This feature is particularly useful for quick adjustments while driving, without interrupting user activities. The level can be precisely adjusted using the remote control to respond to different music styles or soundscapes, significantly enhancing user-friendliness. The RTC function also ensures consistently high audio quality by keeping the volume level optimally regulated at all times.
