Audio System Z-FDBG 2-4 / Z-DB 9 Fuse Holder
SKU:  Z-FDBG-2-4-Z-DB-9
EAN:  4260101645555

2 Reviews

Z-FDBG 2-4 / Z-DB 9

SKU:  Z-FDBG-2-4-Z-DB-9
EAN:  4260101645555

2 Reviews

Technical Highlights

  • Inputs 20-50mm², Outputs 10-20mm², ideal for power amplifiers.
  • Scratch-resistant smoked polycarbonate, dimensions: 170x40x100mm.
  • Recessed connection cables, knurled screws for optimal contact.
  • More technical details
€39,00
€39,00 €39,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
dBvoxDBVOXMFM4
The dBvox DBVOXMFM4 is a transparent fuse holder with four connection points, set on a black rectangular base and topped with a clear plastic lid.

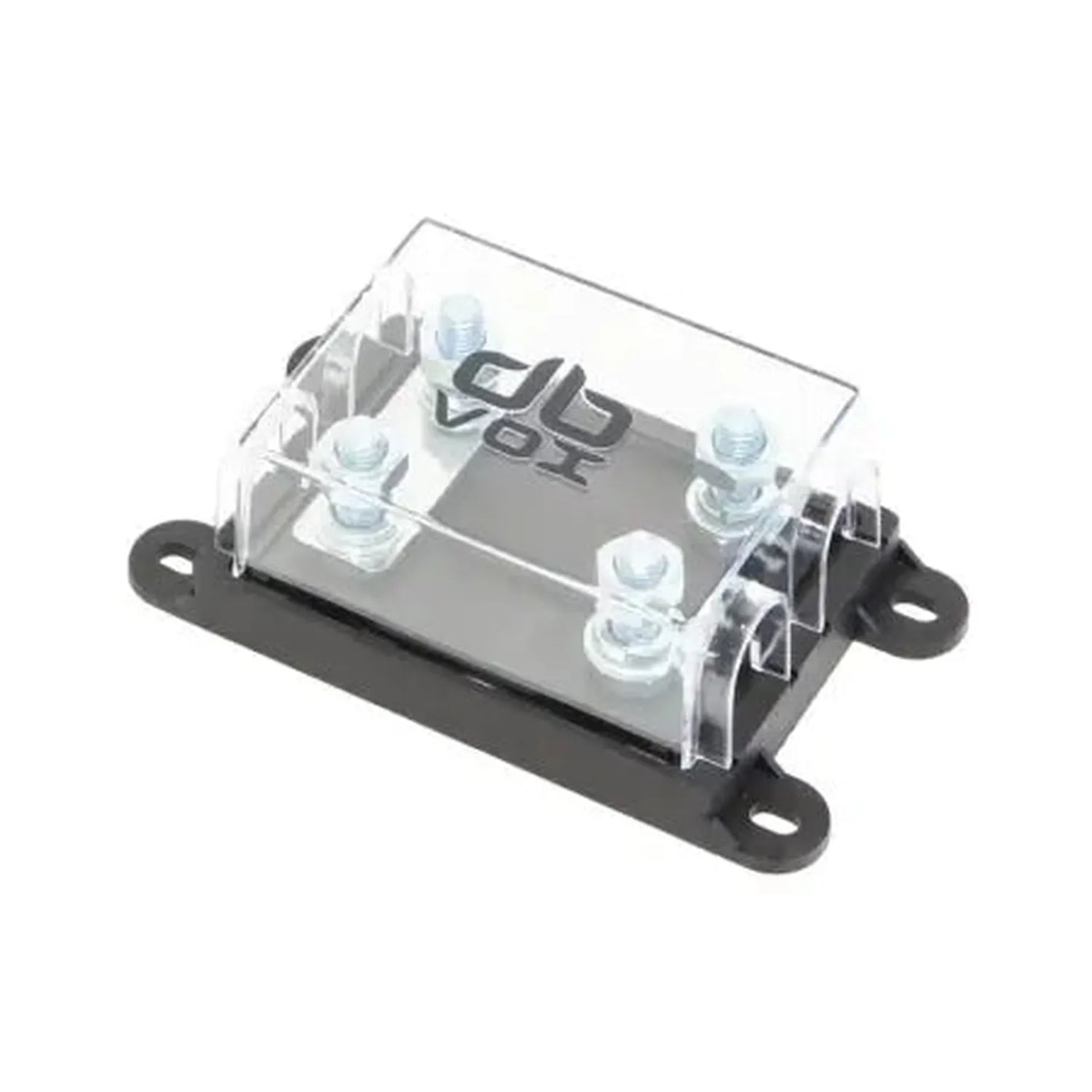

The dBvox DBVOXMFM2 is a clear plastic ANL Sicherungshalter with four metal terminals, black base, and db VOX logo on the cover.
dBvoxDBVOXMFM2

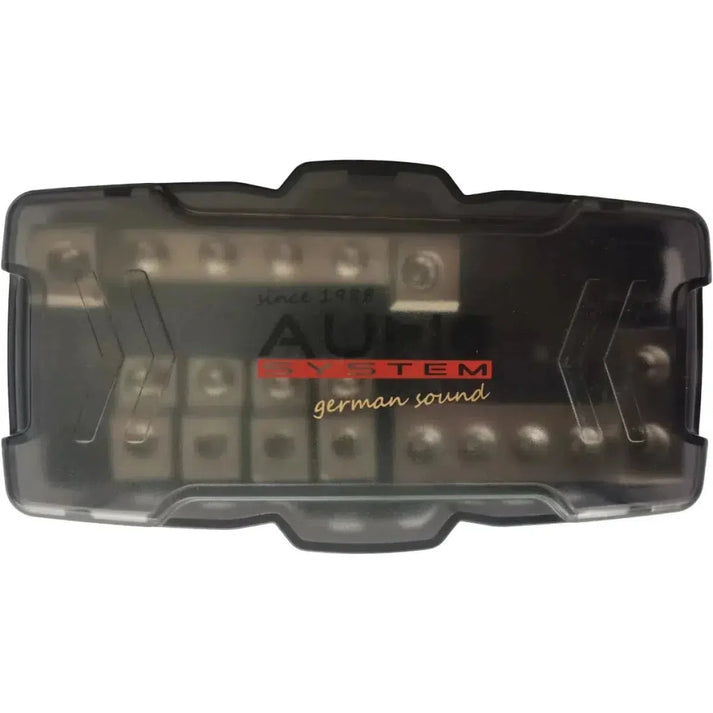

Rectangular black and transparent Z-FDBG 2-4 / Z-DB 9 Sicherungshalter by Audio System with visible metal terminals, for Mini-ANL Sicherungen.
€39,00
€39,00 €39,00

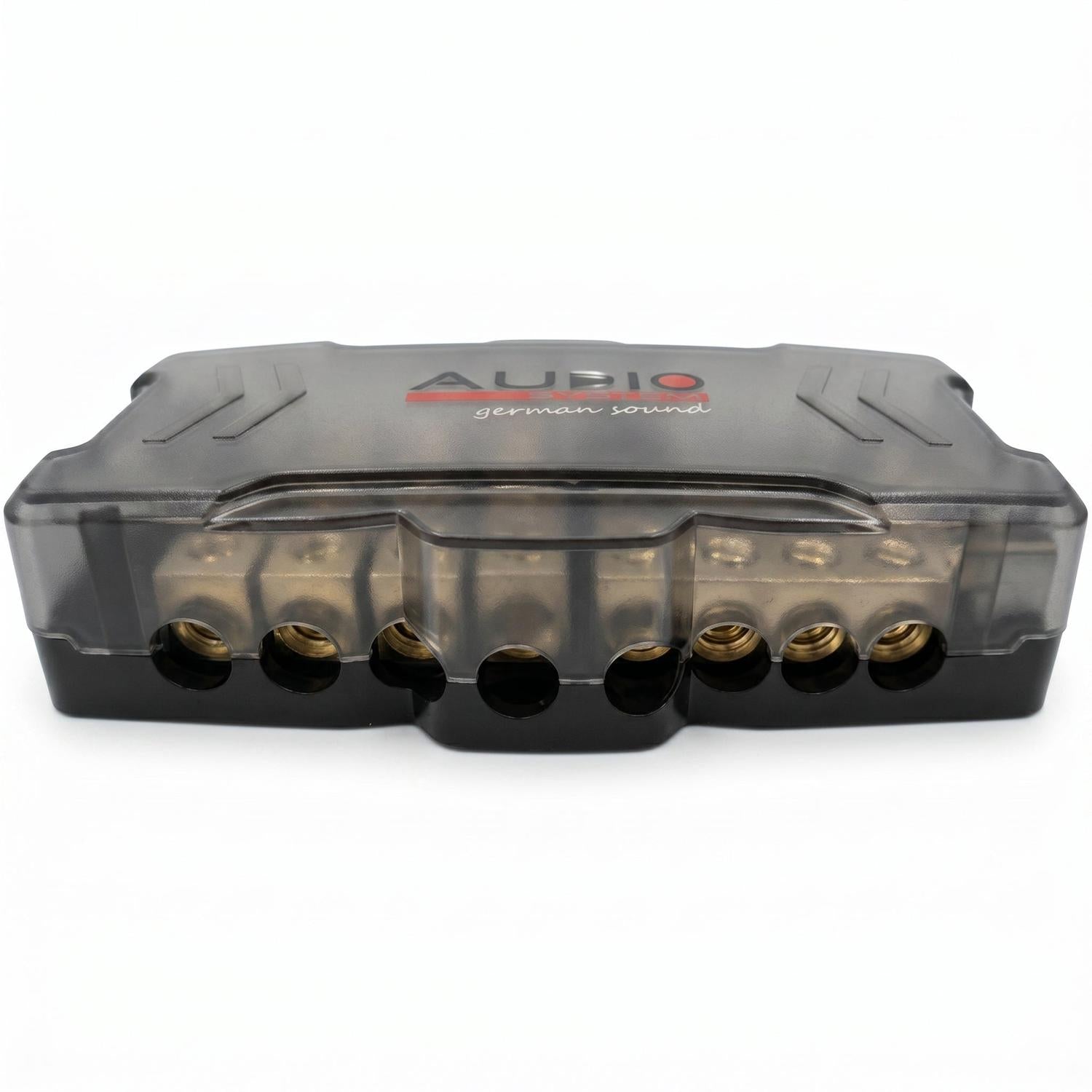

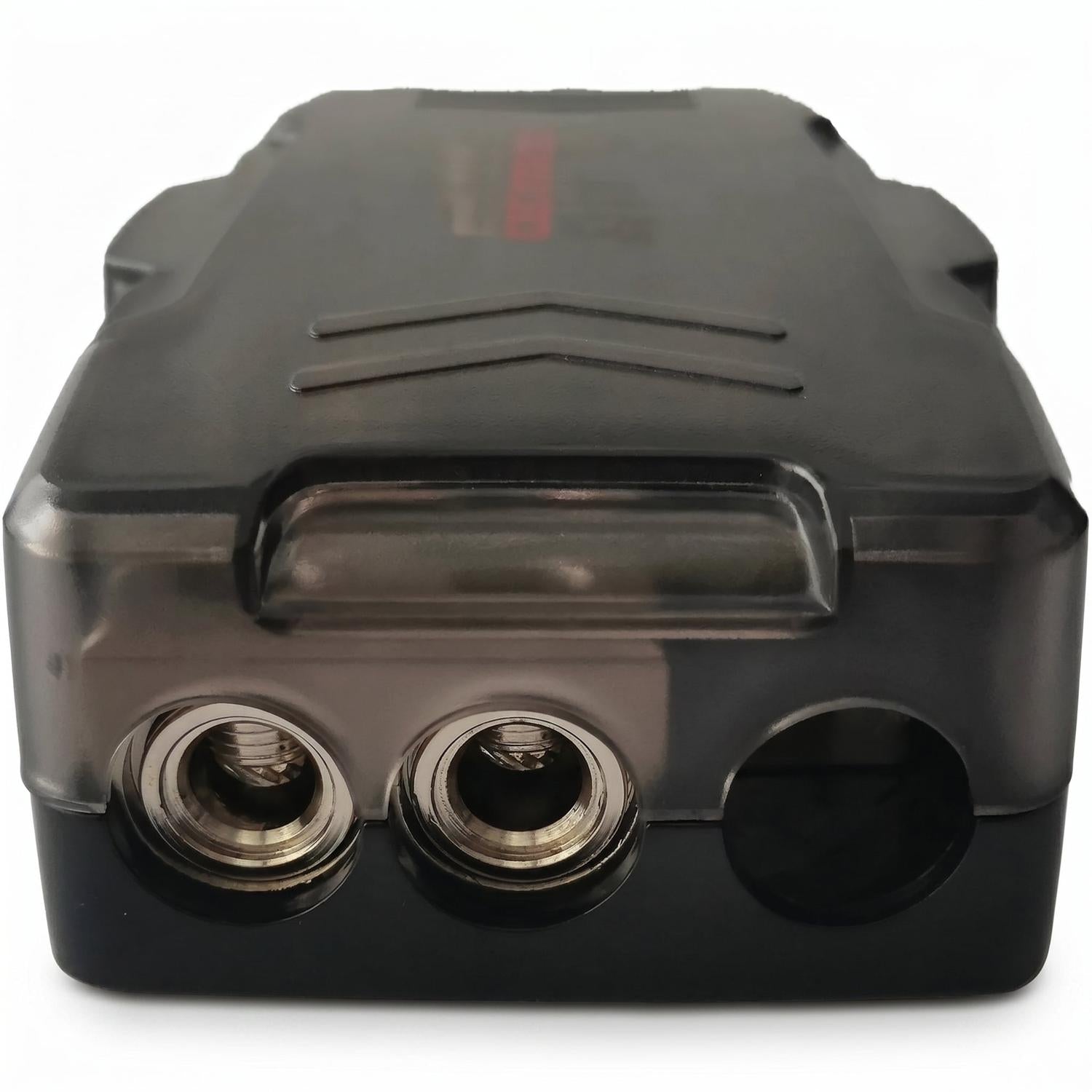

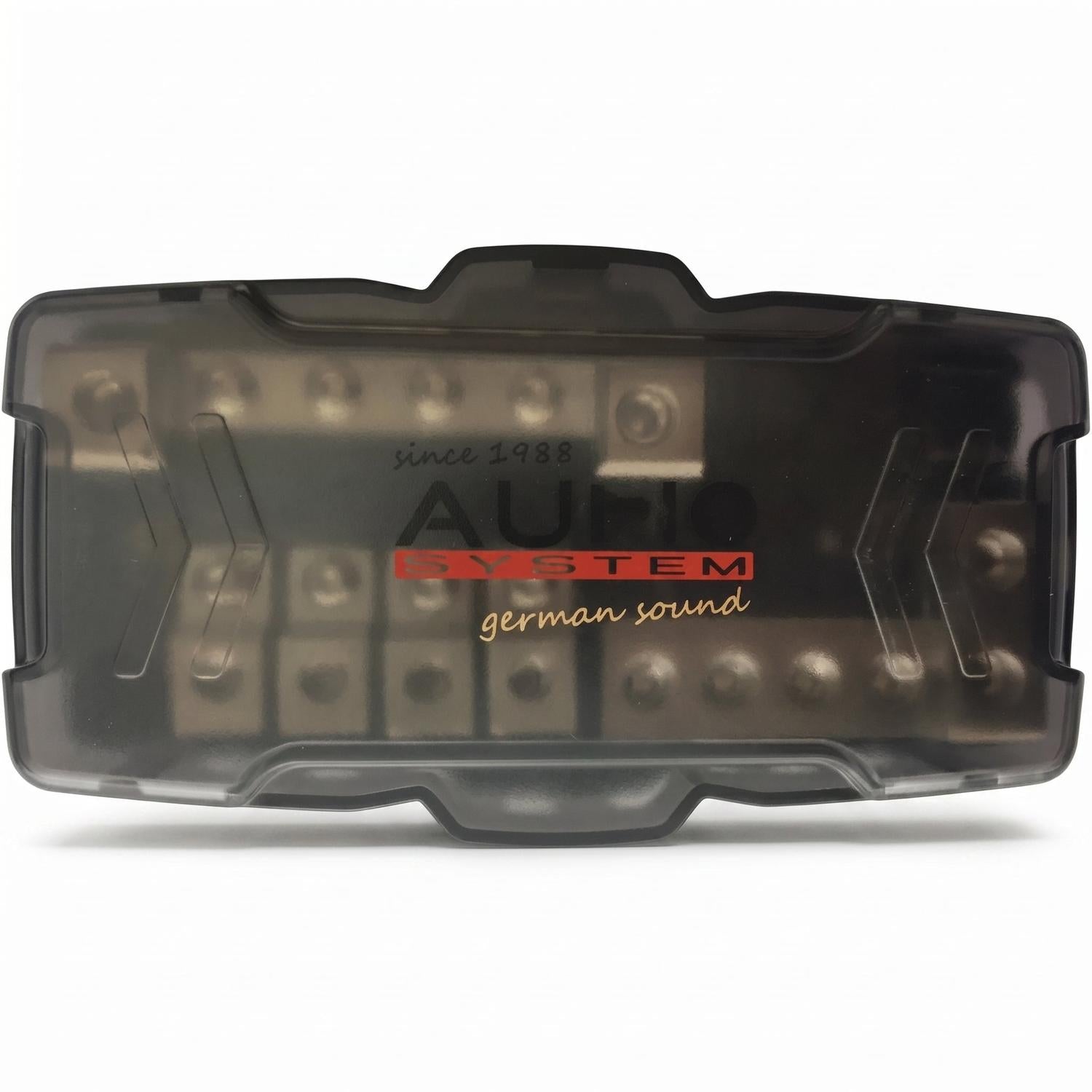

Z-FDBG 2-4 / Z-DB 9 by Audio System

Audio System Z-FDBG 2-4 / Z-DB 9 is a Fuse Holder. The Fuse Distributor and the Ground Distributor each offer 2x inputs up to 20–50 mm² and 4x outputs up to 10–20 mm². The housing is made of smoked polycarbonate and is scratch-resistant. Secured with Mini-ANL fuses. Knurled screws support the cable connection. Recessed cable connections and embedded cable supports. Dimensions 170 x 40 x 100 mm.

Features
  • Fuse Holder
  • Fuse Distributor: 2x up to 20–50 mm² input, 4x up to 10–20 mm² output
  • Ground Distributor: 2x up to 20–50 mm² input, 4x up to 10–20 mm² output
  • Secured with Mini-ANL fuses
  • 50 mm² inputs on the Fuse Distributor and Ground Distributor
  • Smoked polycarbonate housing is sturdy and scratch-resistant
  • Knurled screws for better contact of connected cables
  • Recessed cable connection to prevent short circuits
  • Embedded cable supports keep the cables secure and straight
  • Dimensions: 170 x 40 x 100 mm
  • Mini-ANL fuses available optionally
Technical Data
  • 1.5 mm²: optimal 10 A, maximum 15 A
  • 2.5 mm²: optimal 20 A, maximum 25 A
  • 4.0 mm²: optimal 25 A, maximum 30 A
  • 6.0 mm²: optimal 35 A, maximum 40 A
  • 10 mm²: optimal 50 A, maximum 60 A
  • 16 mm²: optimal 70 A, maximum 80 A
  • 20 mm²: optimal 90 A, maximum 100 A
  • 25 mm²: optimal 100 A, maximum 125 A
  • 35 mm²: optimal 125 A, maximum 150 A
  • 50 mm²: optimal 160 A, maximum 200 A
  • 70 mm²: optimal 200 A, maximum 250 A
  • 95 mm²: optimal 250 A, maximum 300 A

Your benefits at Masori

Frequently Asked Questions about Z-FDBG 2-4 / Z-DB 9

What cable sizes are supported by the Audio System Z-FDBG 2-4 / Z-DB 9 Fuse Holder and distributor?

The Audio System Z-FDBG 2-4 / Z-DB 9 Fuse Holder supports cable sizes for the inputs of 20-50mm² and for the outputs of 10-20mm². This allows for the connection of multiple amplifiers and provides a flexible solution for various requirements in audio installation. The dimensions allow for the safe connection of both high-power main power lines and smaller branch lines. Using the appropriate cable sizes is crucial for optimal power conduction and minimal losses in distribution. With the correct cable cross-sections, a solid connection is ensured, which can power the audio system effectively.

What distinguishes the housing of the Z-FDBG 2-4 / Z-DB 9?

The housing of the Audio System Z-FDBG 2-4 / Z-DB 9 is made of smoked polycarbonate, which offers excellent durability and stability. The material is known for its high scratch resistance, reliably protecting the fuse holder even under challenging conditions. Additionally, the darkened design provides an appealing look in the vehicle. Polycarbonate is a preferred material in the automotive industry for its resistance to heat and mechanical influences. As a result, the fuse holder remains stable and visually appealing even after prolonged use, effectively protecting the internal components.

What type of fuses does the Z-FDBG 2-4 / Z-DB 9 use?

The Audio System Z-FDBG 2-4 / Z-DB 9 uses Mini-ANL fuses, which are known for their compactness and reliability. These fuses allow for quick and easy protection of the circuit. Mini-ANL fuses are a common choice in car audio applications, as they offer easy installation and good protection. The holder allows for the uncomplicated replacement of the Mini-ANL fuses, ensuring a quick restoration of functionality in the event of a short circuit. Optionally, fuses are available in various rating levels to meet individual needs and system requirements.

Why are knurled screws important in the Z-FDBG 2-4 / Z-DB 9 Fuse Holder?

The thumb screws of the Audio System Z-FDBG 2-4 / Z-DB 9 Fuse Holder are an important detail, as they ensure improved contact of the connected cables. Due to their structure, they facilitate tightening and loosening without additional tools, simplifying installation and maintenance. They also provide the ability to ensure a reliable and secure connection, which is essential in vehicles exposed to vibrations. A good contact reduces electrical resistance and minimizes the risk of voltage losses, leading to a more efficient and stable power supply.

What safety features does the Z-FDBG 2-4 / Z-DB 9 distribution block offer?

The Audio System Z-FDBG 2-4 / Z-DB 9 distribution block is equipped with various safety features. One of the most notable is the recess of the cable connections, which effectively prevents short circuits. This design keeps the cables securely and firmly locked in place. Additionally, integrated cable supports built into the distribution block stabilize the cables along their entire length and prevent twisting and unnecessary movement. These technical features not only contribute to the safety of the electrical system but also extend the lifespan of the connected components by minimizing physical stress.

How does the Z-FDBG 2-4 / Z-DB 9 optimize cable safety in the car?

The Audio System Z-FDBG 2-4 / Z-DB 9 optimizes cable safety through the innovative use of embedded cable supports that keep the cables secure and straight. This design ensures that cables are not bent or interrupted, which is particularly important in moving environments like vehicles. This not only ensures physical safety but also optimizes electrical efficiency by minimizing losses due to uneven cable runs. This technological measure allows you to have a robust audio system that operates reliably even under harsh conditions.

What are the dimensions of the Z-FDBG 2-4 / Z-DB 9 Fuse Holder?

The Audio System Z-FDBG 2-4 / Z-DB 9 Fuse Holder has dimensions of 170x40x100mm. These compact dimensions allow for flexible installation in various vehicle types without taking up much space in the engine compartment or cockpit. Thanks to these dimensions, users can easily integrate the fuse distribution block into existing systems, regardless of the vehicle design or the arrangement of the audio system. The compact size contributes to the versatility of the product, especially for applications where space is limited and a powerful solution is still required.

What fuse ratings are recommended for the Z-FDBG 2-4 / Z-DB 9?

The Audio System Z-FDBG 2-4 / Z-DB 9 supports a variety of fuse ratings, depending on the cable cross-section. For 1.5 mm², an optimal value of 10 A is recommended, while a maximum of 15 A is possible. For 2.5 mm², 20 A is suggested, with 25 A as the maximum. Other values are: 4.0 mm² with 25 A, 6.0 mm² with 35 A, 10 mm² with 50 A, and 16 mm² with 70 A, with the maximum values being 5-10 A higher. These values ensure safe current flow control and provide protection against overloads in the vehicle's electrical system.

How do you install the Z-FDBG 2-4 / Z-DB 9 fuse and distribution block?

The installation of the Audio System Z-FDBG 2-4 / Z-DB 9 fuse and distribution block is done by securing the housing in a suitable location in the vehicle where there is enough space to hold the cables safely and stably. It is advisable to use screws or clamps that are suitable for polycarbonate. It is important to route the cables properly and tighten the knurled screws for optimal contact. Special attention should be paid to the alignment and securing of the recessed cable connections to ensure smooth and safe operation. By following these steps, the performance and safety of your audio system will be maximized.

Which car brands is the Z-FDBG 2-4 / Z-DB 9 compatible with?

The Audio System Z-FDBG 2-4 / Z-DB 9 is universally designed to integrate with a variety of car brands and models that provide space for the product's dimensions. Its compact size of 170x40x100mm allows for use in numerous vehicle configurations without specific impacts on the vehicle structure. This makes it suitable for both typical sedans and larger vehicles like SUVs. The versatility makes the fuse and distribution block a flexible solution for most automotive applications, provided that the available installation space is taken into account.
