Audio System Z-FDB 3-4 fuse holder

Name: Audio System Z-FDB 3-4 Fuse Holder | Masori
Brand: Audio System
Price: 29.75 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Audio System Z-FDB 3-4 fuse holder

Inputs up to 50mm², outputs up to 20mm², mini-ANL fuses.
Knurled screws for optimal contact, short circuit prevention.
Robust polycarbonate housing, scratch-resistant and durable.
Mehr technische Details

00

€29,75

~~€35,00~~ €29,75

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Audio SystemZ-FH Mini WP

Rockford FosgateRFCB200

Z-FDB 3-4 by Audio System

The Z-FDB 3-4 is a high-quality fuse holder from Audio System. This model offers a variety of connection options and is equipped with a secure and robust construction. The integrated knurled screws ensure excellent contact of the connected cables, while the recess of the cable connection prevents short circuits. The housing made of "smoked" polycarbonate is stable and scratch-resistant. Additionally, the Z-FDB 3-4 features inputs of up to 50mm² at the fuse distribution. Please note that the suitable mini-ANL fuses are available optionally.

distribution board

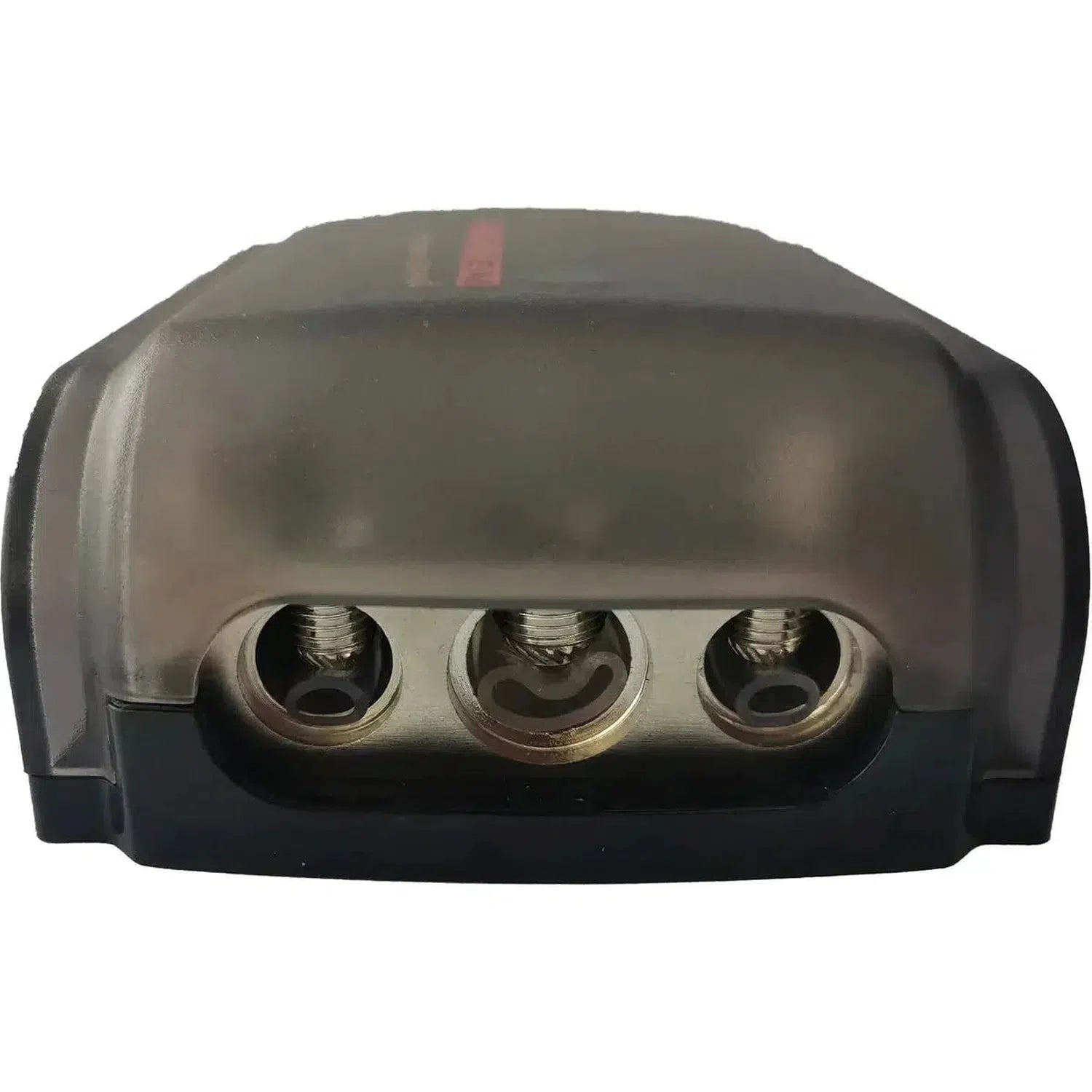

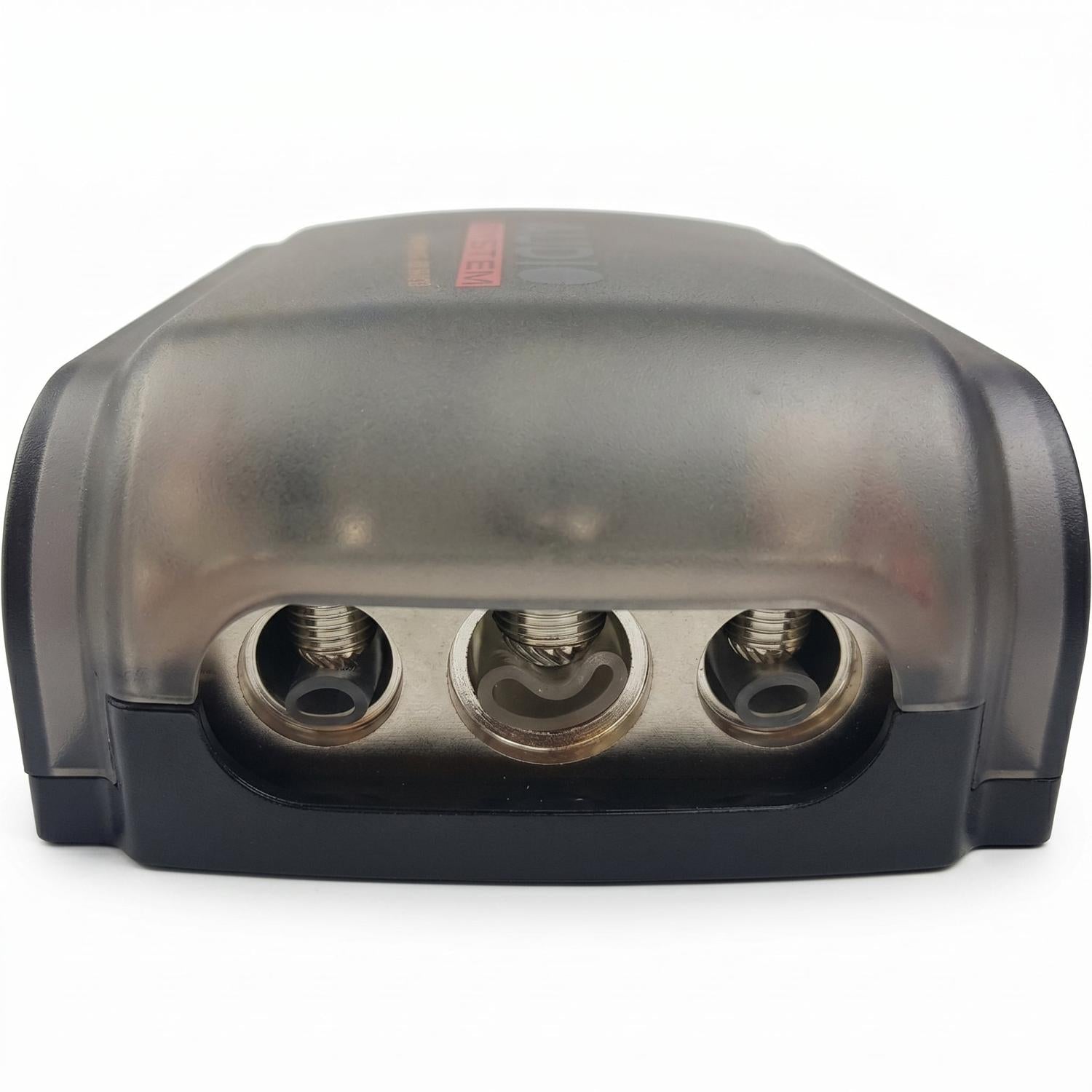

1x up to 50mm² input
2x up to 35mm² input

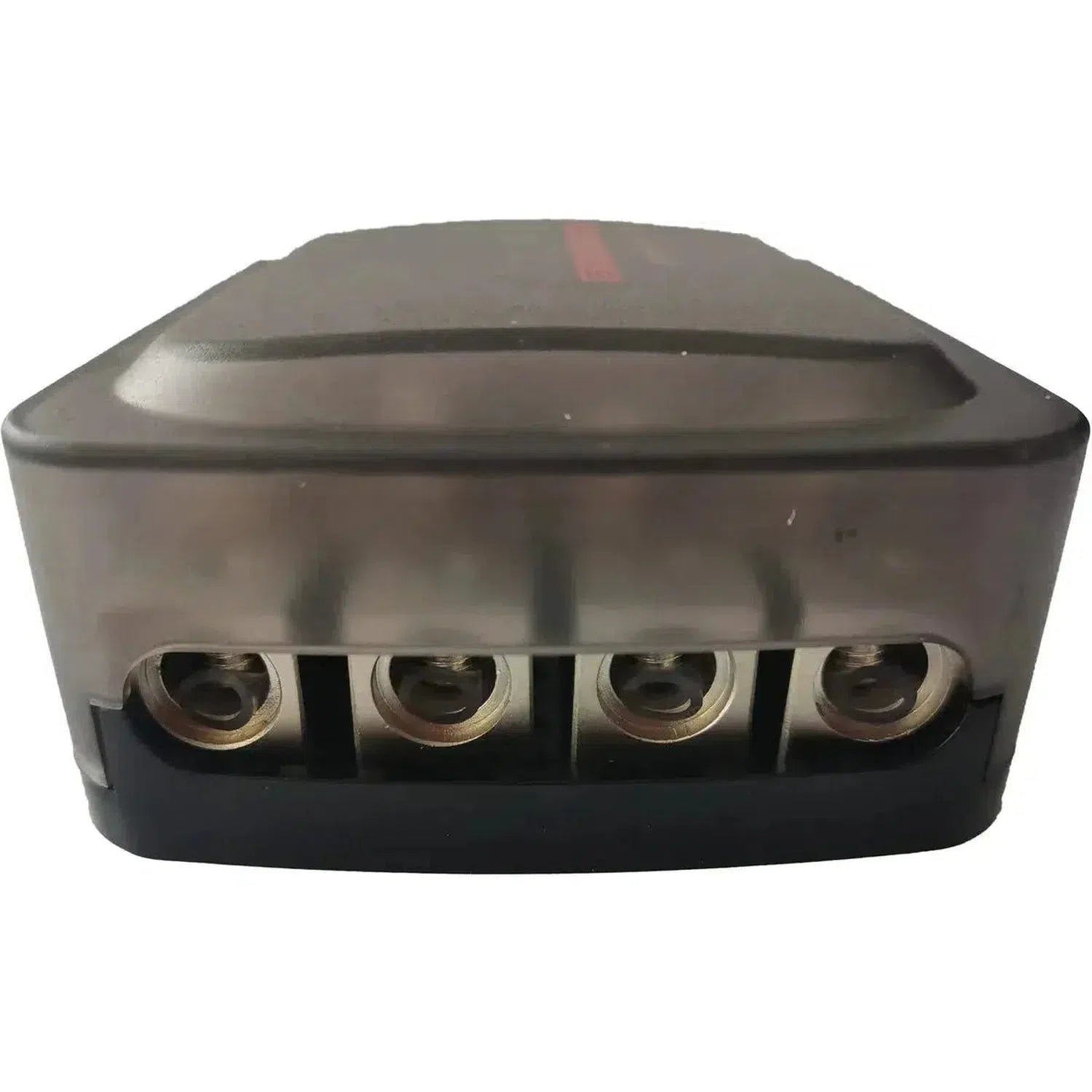

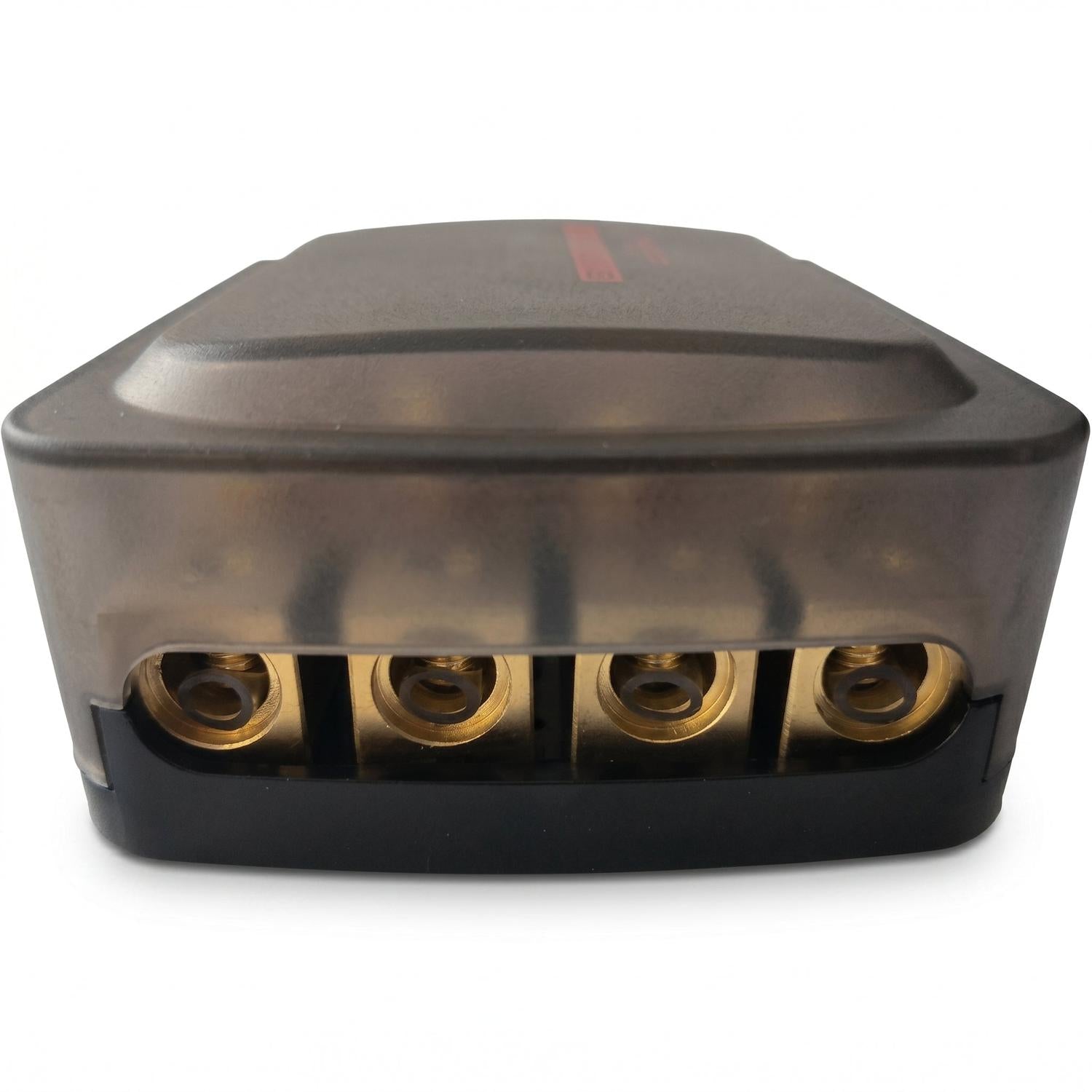

4x up to 20mm² output
Secured with mini ANL fuses

Features

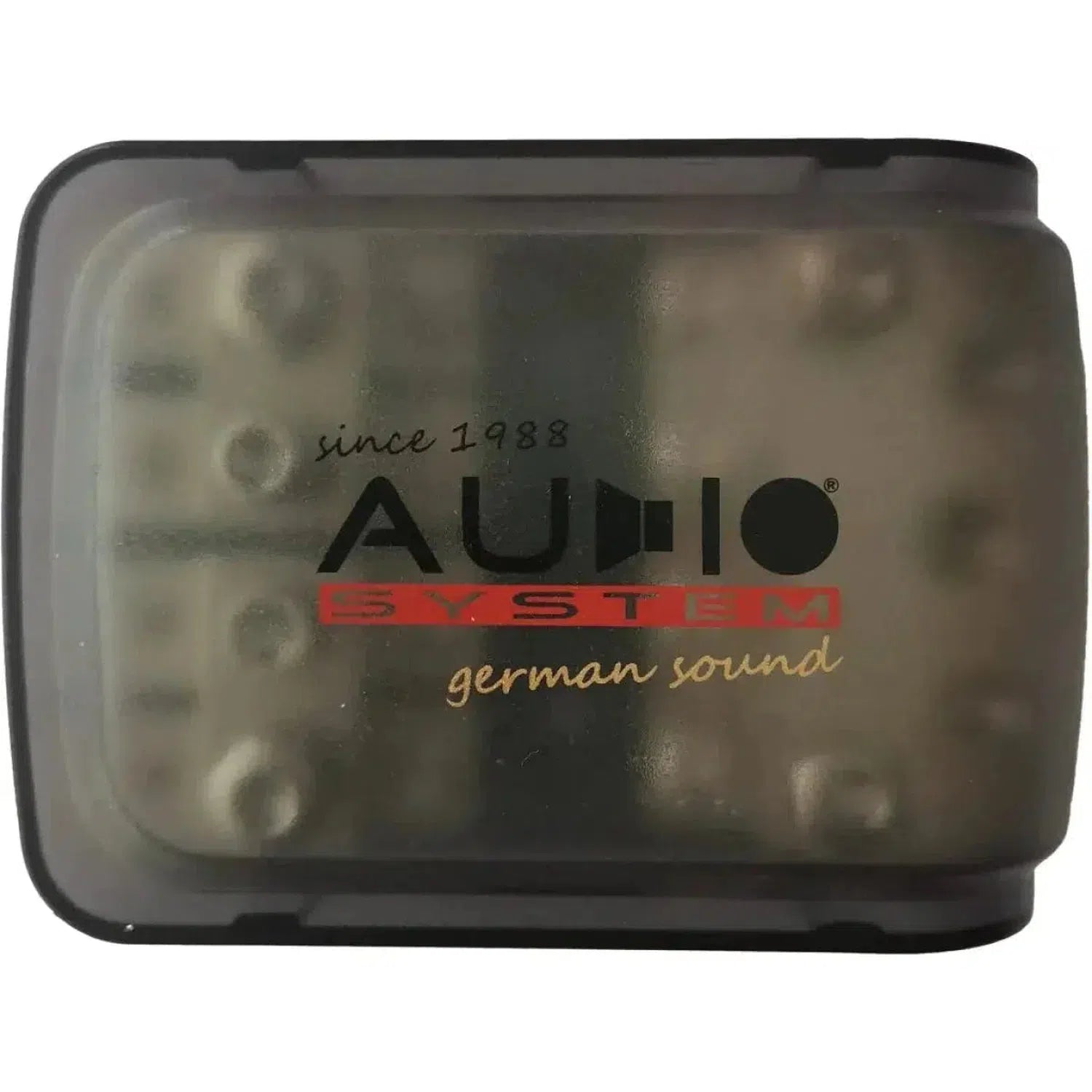

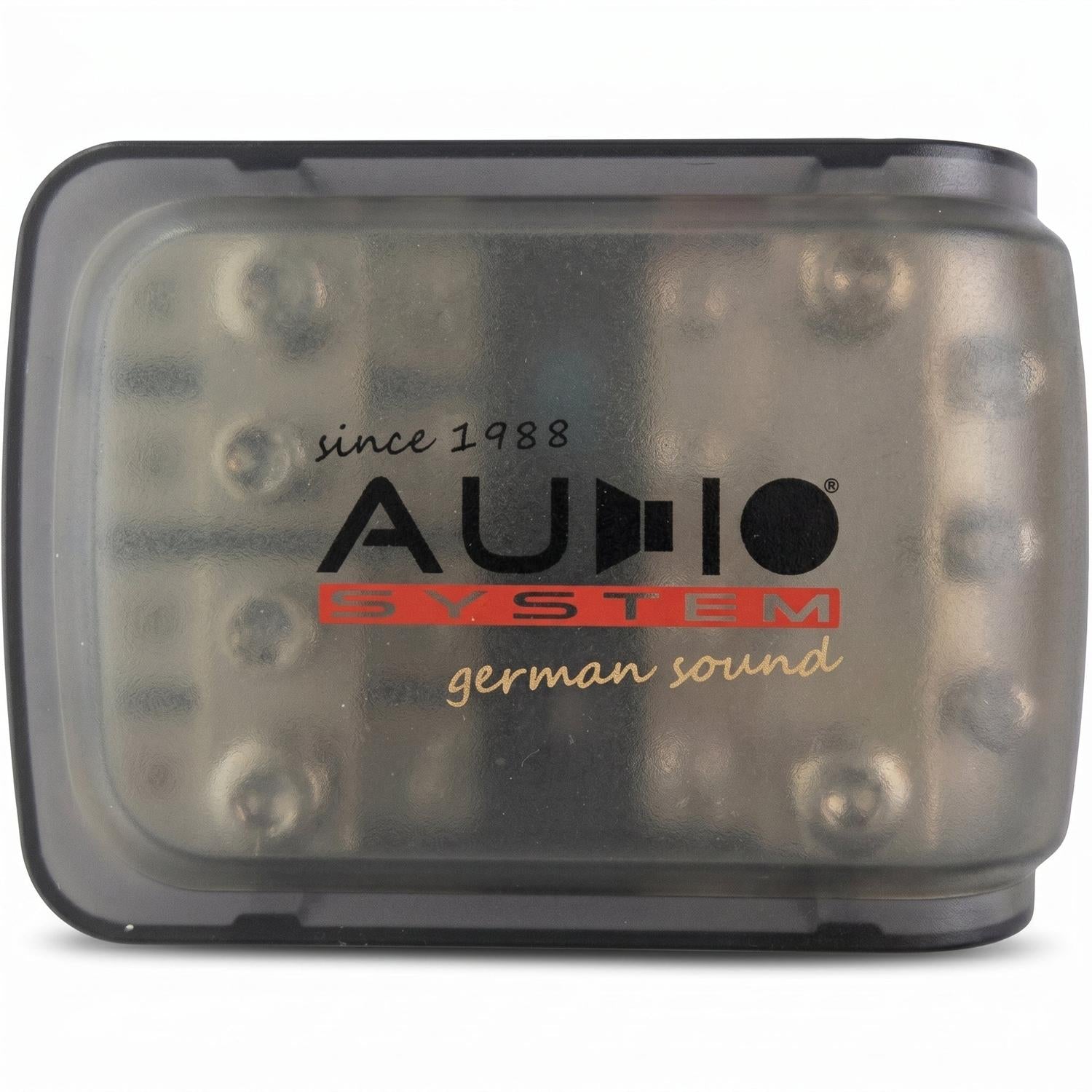

Smoked polycarbonate housing stable and scratch-resistant
50mm² inputs at the distribution board
Knurled screws for better contact of the connected cables
Deepening of the cable connection to avoid short circuits
Dimensions: 117x41x84mm
Mini-ANL fuses are available optionally.

Recommended Security Values

cable cross-section	optimal collateral value	maximal collateral value
1.5 mm²	10 A	15 A
2.5 mm²	20 A	25 A
4.0 mm²	25 A	30 A
6.0 mm²	35 A	40 A
10 mm²	50 A	60 A
16 mm²	70 A	80 A
20 mm²	90 A	100 A
25 mm²	100 A	125 A
35 mm²	125 A	150 A
50 mm²	160 A	200 A
70 mm²	200 A	250 A
95 mm²	250 A	300 A

Frequent questions about Z-FDB 3-4

Welche Anschlussmöglichkeiten bietet der Z-FDB 3-4 Sicherungshalter?

The Z-FDB 3-4 from Audio System consists of a high-quality fuse distribution system. It offers a 1x up to 50mm² input, 2x up to 35mm² inputs, and 4x up to 20mm² outputs. This variety allows for flexible integration into various electrical systems. The use of robust materials and precise workmanship ensures that the connections are stable and durable. This is complemented by the knurled screws, which provide excellent contact for the connected cables, which is crucial for both signal transmission and overall system stability. The recess of the cable connection efficiently prevents any potential short circuits.

Wie schützt der Z-FDB 3-4 vor Kurzschlüssen?

The Z-FDB 3-4 fuse holder protects against short circuits through its thoughtful design. The cable connections are recessed, which minimizes the risk of unwanted contacts and thus short circuits. Another protective mechanism is the use of mini-ANL fuses, which can be added optionally. The housing is made of sturdy and scratch-resistant 'smoked' polycarbonate, which additionally serves as a protective layer. This combination of physical design aspects and high-quality materials ensures that the Z-FDB 3-4 is not only aesthetically pleasing but also provides reliable protection and ensures safe power distribution.

Welche Materialien werden für das Gehäuse des Z-FDB 3-4 verwendet?

The housing of the Z-FDB 3-4 is made of 'smoked' polycarbonate. This material is known for its excellent stability and scratch resistance. Polycarbonate is a thermoplastic plastic used in many technical applications where strength and heat resistance are required. Additionally, the 'smoked' finish of the housing not only maintains an aesthetic surface but also provides extra protection against environmental influences. The choice of this high-quality material significantly contributes to the lifespan and reliability of the fuse holder, as it withstands the demands in challenging environments.

Welche Kabelquerschnitte sind mit dem Z-FDB 3-4 kompatibel?

The Z-FDB 3-4 fuse holder is compatible with a variety of cable cross-sections. It supports inputs up to 50mm² and has additional inputs of 35mm² and outputs of 20mm². Specific fuse ratings are recommended for the different cross-sections; for example, fuse ratings of 10 A to 15 A are optimal for a cable cross-section of 1.5 mm². Larger cable cross-sections like 50 mm² may require fuse ratings of up to 200 A. This flexibility allows the fuse holder to be adapted to different electrical requirements, which is particularly useful in more complex audio and electrical systems.

Wie erfolgt die Installation des Z-FDB 3-4 im Auto?

The installation of the Z-FDB 3-4 requires precise knowledge of the dimensions of the fuse holder as well as the necessary space in the vehicle. With dimensions of 117x41x84mm, the fuse holder can be easily integrated into most car models, always taking into account the available space. The selection of suitable cable cross-sections and fuse values is crucial for safe operation. Thanks to the knurled screws that guarantee a strong contact, the Z-FDB 3-4 can be installed securely and stably to ensure optimal performance in any electrical setup. The sturdy polycarbonate frame additionally facilitates the installation.

Welche Sicherungstypen sind mit dem Z-FDB 3-4 verwendbar?

The Z-FDB 3-4 fuse holder is designed to support mini-ANL fuses. These fuses are not included in the delivery and must be added for the fuse functionality of the holder. The mini-ANL fuses are available in various amperages, corresponding to the cable cross-section and the current requirements of the installation. These fuses provide protection against overvoltage and overcurrent, which is crucial for the stability of the electrical system. The use of these fuses increases the reliability of the system by allowing a quick response to unforeseen power surges.

Wie ist die Stromverteilung im Z-FDB 3-4 geregelt?

The power distribution in the Z-FDB 3-4 is regulated through a combination of its specific input and output connections. With a 1x input connection up to 50mm² and several output connections up to 35mm² or 20mm², an optimal distribution system is enabled. The use of mini-ANL fuses ensures that each connection guarantees the correct current flow within the specified fuse values. This is crucial to provide the necessary power to the system components while simultaneously activating the overcurrent protection mechanisms of the fuse holder to secure the electrical circuits.

Welche Anforderungen gibt es an die Platzierung des Z-FDB 3-4?

The placement of the Z-FDB 3-4 is important to maximize performance and safety. Due to its compact dimensions of 117x41x84mm, this fuse holder fits into various installations. However, it should be installed in a location that protects it from extreme temperatures and moisture to ensure its longevity and functionality. Accessibility for maintenance purposes should also be considered, as replacing fuses may be necessary. Adequate air circulation around the housing should also be provided to minimize potential heat buildup.

Wie funktioniert der Sicherungsaustausch im Z-FDB 3-4?

The replacement of the fuses in the Z-FDB 3-4 is straightforward, yet caution should be exercised. First, the 'smoked' polycarbonate housing is opened to gain access to the installed mini-ANL fuses. Within the fuse holder, fuses can be replaced as needed and according to the specified amperage ratings. Ensure that the replacement fuses have the same specifications to guarantee proper functionality and short circuit protection. The replacement should only be performed with the power turned off and with appropriate tools to ensure safety during handling.

Welche Rolle spielen die Rändelschrauben im Z-FDB 3-4?

The knurled screws in the Z-FDB 3-4 play a central role in ensuring a stable and secure electrical connection of the connected cables. These special screws increase the clamping pressure and ensure that the cables sit firmly and securely. By improving the contact area and the connection, signal losses are minimized, which is particularly important under high current loads. Therefore, the knurled screws significantly contribute to enhancing the overall performance of the system and make the installation more user-friendly, as they allow for tool-free adjustment of the connections.
