ACV LFB Ford 32Pin Steering Wheel Remote Control
SKU:  42SFO020
EAN:  4026724671643

LFB Ford 32Pin

SKU:  42SFO020
EAN:  4026724671643

Technical Highlights

  • CAN bus, 32-pin Ford connector, speed signal, handbrake signal. Suitable for Ford Fiesta, Transit, Custom, various models. Signals: ignition, lights, reverse gear, steering wheel remote control.
  • More technical details
€99,00
€99,00 €99,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €8,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
ACVLFB Ford ISO/Mini ISO
ACV-LFB Ford ISO/Mini ISO-Lenkradfernbedienung-masori-kaufen
ACV-T-Kabel Ford/Land Rover 24Pin-T-Adapter-masori-kaufen
ACVT-cable Ford/Land Rover 24Pin
ACV-LFB Ford 32Pin-Lenkradfernbedienung-masori-kaufen
€99,00
€99,00 €99,00

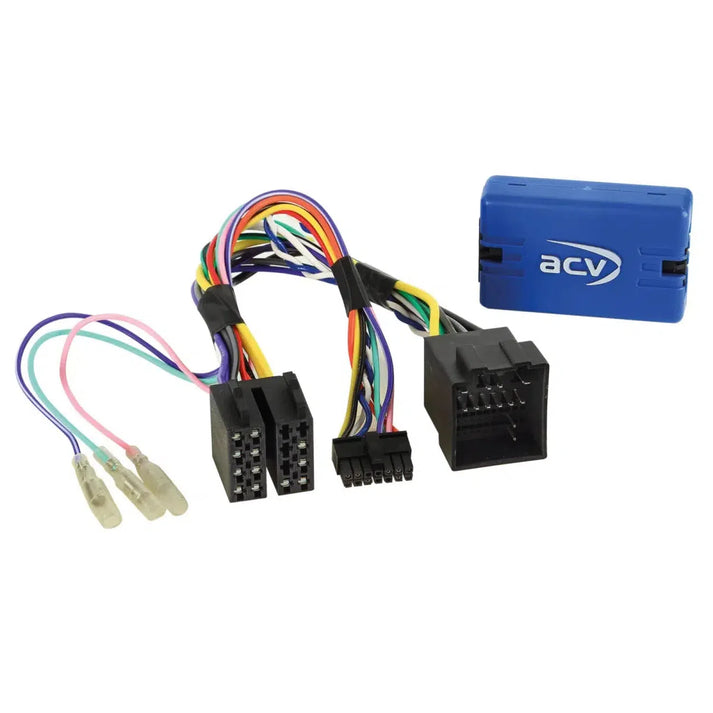

LFB Ford 32Pin by ACV

The LFB Ford 32Pin is a Steering Wheel Remote Control from ACV with CAN Bus and 32 Pin Ford Plug. The signals available are +12V ignition terminal 15, +12V lighting terminal 58, +12V reverse signal, speed signal, and ground GND handbrake signal. The total output capacity is 100 mA max. For current requirements greater than 100 mA, specifications for relays with a coil resistance of 75 Ohm min. for 1 relay and 150 Ohm min. for 2 relays are provided. Compatible with Ford Fiesta (JHH) 06/2017–03/2022 as well as 03/2022–2023, Ford Transit (FAC/FAD) 06/2019–2023, and Ford Transit Custom (FAC/FAD) 01/2018–2023. Connection cables are available for Alpine, Parrot, Bosch-Blaupunkt >2010 Mini ISO, Blaupunkt/China HU/Kenwood 3 cables, Clarion, JVC, Kenwood, Multilead various devices, Multilead various devices/Pioneer 2022>, Panasonic, Blaupunkt/Kenwood/Pioneer jack, Pioneer AVH/DMH/SPH 2022> jack loose, devices with LFB learning function, Blaupunkt/Kenwood/Sony jack, and XZent/Zenec.

Features
  • Steering Wheel Remote Control
  • Manufacturer: ACV
  • Interface: CAN Bus
  • Connection: 32 Pin Ford Plug
  • Compatible with Ford Fiesta (JHH) 06/2017–03/2022, Ford Fiesta (JHH) 03/2022–2023, Ford Transit (FAC/FAD) 06/2019–2023, Ford Transit Custom (FAC/FAD) 01/2018–2023
  • Total output capacity: 100 mA max.
Technical Data
  • red: +12V ignition terminal 15
  • orange: +12V lighting terminal 58
  • purple/white: +12V reverse signal
  • pink: speed signal
  • green: ground GND handbrake signal
  • Current requirement greater than 100 mA: 1 relay coil resistance 75 Ohm min.
  • Current requirement greater than 100 mA: 2 relays coil resistance 150 Ohm min.
  • Reimport vehicles or vehicles with different software may be incompatible in functions.
  • LFB cable 42s/acv > Alpine jack: 42ctalpinelead
  • LFB cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
  • LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
  • LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cables: 42ctchinahulead
  • LFB cable 42s/acv > Clarion jack: 42ctclarionlead
  • LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
  • LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
  • LFB cable 42s/acv > Multilead various devices: 42ctmultilead
  • LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
  • LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
  • LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
  • LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
  • LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> jack loose: 42ctpioneerlead2
  • LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
  • LFB cable 42s/acv > Blaupunkt/Kenwood/Sony jack: 42ctsonylead
  • LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Your benefits at Masori

ACV LFB Ford 32Pin Datasheet

Open datasheet

Frequently Asked Questions about LFB Ford 32Pin

Which vehicle models are compatible with the LFB Ford 32Pin Adapter?

The LFB Ford 32Pin Adapter from ACV is compatible with various Ford models: Ford Fiesta (JHH) from 06/2017 to 03/2022 and from 03/2022 to 2023, as well as Ford Transit (FAC/FAD) from 06/2019 to 2023 and Ford Transit Custom (FAC/FAD) from 01/2018 to 2023. The correct 32-pin Plug is crucial for compatibility. Ensure that the CAN-Bus connection is present in your car and that the vehicle's software version is compatible, as differing software in reimported vehicles can lead to incompatibilities.

How does the connection of the LFB Ford 32Pin Adapter work?

When connecting the LFB Ford 32Pin Adapter from ACV, several signals are present: Terminal 15 provides +12V ignition, Terminal 58 offers +12V lighting, the reverse signal is purple/white, the speed signal is pink, while green provides the ground GND for the handbrake signal. The total outputs of the adapter have a load limit of 100 mA, with the current demand for higher power requiring a relay with a coil resistance of at least 75 Ohms or 150 Ohms for two relays. Use the specific cables for the Steering Wheel Remote Control during installation.

Are there any special notes for installing the LFB Ford 32Pin Adapter?

When installing the LFB Ford 32Pin Adapter from ACV, it is important to check the compatibility of your factory radio with the aftermarket radio. This concerns both the plug architecture and software compatibility. Before the final installation, you should test all vehicle functions as well as the Steering Wheel Remote Control to ensure functionality. Especially with reimported vehicles, differing software can lead to incompatibilities. Therefore, make sure that all adapter cables are correctly connected and installed according to the instructions to ensure smooth operation.

Which radios are compatible with the LFB Ford 32Pin Cable?

The LFB Ford 32Pin Adapter from ACV offers connection options to various radio brands: Alpine, Parrot, Bosch-Blaupunkt (after 2010), Kenwood, Clarion, JVC, Panasonic, Sony, and others. Each radio type has a specific Connecting Cable, such as 42ctalpinelead for Alpine or 42ctkenwoodlead for Kenwood. Using the correct cable type is crucial to maintain the full functionality of the Steering Wheel Remote Control. This allows for a seamless user experience when using an aftermarket radio in the Ford model. Please check the specific compatibility of your radio model before installing it.

What steering wheel remote control functions does the LFB Ford 32Pin Adapter support?

The LFB Ford 32Pin Adapter ensures that despite the replacement of the factory radio, the functions of the steering wheel remote control remain largely intact. Supported functions typically include volume control, skipping forward and backward between tracks, as well as answering and ending calls, depending on the features of the retrofitted radio received. However, due to various vehicle configurations and software versions of the retrofitted radios, some functions may be lost or assigned to alternative functions. A functionality check before final installation is recommended to ensure that all desired functions are available.

How do I check the compatibility of my factory radio with the LFB Ford 32Pin Adapter?

To ensure the compatibility of your factory radio with the LFB Ford 32Pin Adapter from ACV, you should first compare the plugs of the adapter with those of your vehicle. Visual matches are important, as are the technically required prerequisites, such as the presence of a CAN bus system with a 32-pin connection. Check the vehicle history to see if the corresponding factory radio was installed and whether the adapter plugs fit correctly. For re-imports, ensure that the software version of the car radio is compatible. This is especially important for vehicles with different regional software versions.

What are the consequences of a faulty installation of the LFB Ford 32Pin Adapter?

A faulty installation of the LFB Ford 32Pin Adapter from ACV can lead to various problems. Possible consequences include the loss of functionality of the steering wheel remote control, unexpected vehicle behavior such as incorrect signals for ignition, lighting, or speed, as well as issues with loose plug connections. In the worst case, these can cause electrical disturbances. It is important to follow the recommended installation procedures and ensure that the specific cable connections are correct to guarantee the smooth operation of all vehicle and radio components.

How can I test the functionality of the LFB Ford 32Pin Adapter?

To test the functionality of the LFB Ford 32Pin Adapter, first connect all components according to the instructions and turn on the ignition. Check the Steering Wheel Remote Control for its function, test the volume settings and the title navigation of the radio. Ensure that all functions present in the vehicle, such as ignition, lighting, and speed signal, are working correctly. Any deviation could indicate faulty connections or incompatibilities. It is advisable to perform these tests before permanently installing the adapter in the vehicle to ensure that all connections are stable and functional.

Are retrofitting adjustments possible if the aftermarket radio is not fully supported?

If your aftermarket radio is not fully supported, it may be necessary to integrate specific software adjustments or hardware components to ensure full compatibility with the LFB Ford 32Pin Adapter from ACV. These adjustments can range from installing additional adapter modules to firmware updates of the aftermarket radio. It is also possible that some control functions, such as the Steering Wheel Remote Control buttons, may need to be reprogrammed individually. A careful analysis of the existing settings and technical setup can help identify the necessary adjustments.

What technical specifications affect the performance of the LFB Ford 32Pin Adapter?

The performance of the LFB Ford 32Pin Adapter from ACV is influenced by several technical specifications: The maximum current requirement must not exceed 100 mA, while the coil resistances for a relay must be at least 75 Ohms and for two relays at least 150 Ohms. The cable connections for Steering Wheel Remote Controls to various radio brands are specifically defined and must be applied correctly. Factors such as the stability of the power supply and the integrity of the ground connections are critical elements to ensure consistent and reliable performance of the adapter in the vehicle environment.
