ACV LFB Ford 24-pin/display connector Steering Wheel Remote Control
SKU:  42SFO017
EAN:  4026724131277

LFB Ford 24-pin/display connector

SKU:  42SFO017
EAN:  4026724131277

Technical Highlights

  • CAN bus connector with 24 pin, Ford connector compatible.
  • Maximum total load capacity of 100 mA, 75 Ohm coil resistance.
  • Supports steering wheel remote control, with LFB cable 42s/acv.
  • More technical details
€129,00
€129,00 €129,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €10,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
ACVT-cable Ford/Land Rover 24Pin
ACV-T-Kabel Ford/Land Rover 24Pin-T-Adapter-masori-kaufen
AD Alternators-Ford 2,5L 350A - 13.4V-16.2V-Ford-Lichtmaschine-masori-kaufen
AD AlternatorsFord 2.5L 350A - 13.4V-16.2V

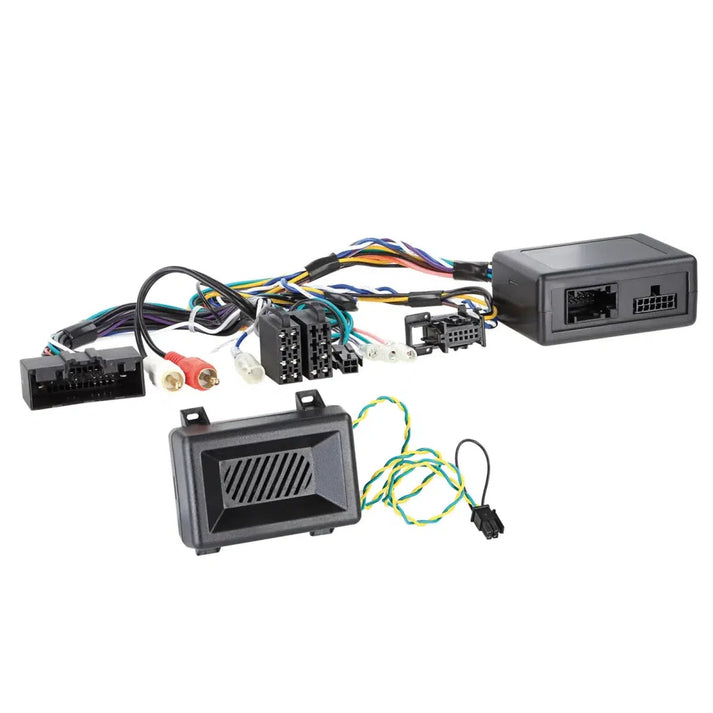

ACV-LFB Ford 24Pin/DisplayStecker-Lenkradfernbedienung-masori-kaufen
€129,00
€129,00 €129,00

LFB Ford 24-pin/display connector by ACV

ACV LFB Ford 24Pin/Display Plug is a Steering Wheel Remote Control with CAN Bus, 24 Pin Ford Plug, and AMP Display Plug. Additional connections: OEM AUX > RCA(m) red/white and OEM USB > USB-A(m). Compatibility: Ford Focus (DBY) 10/2014–08/2018, vehicles with OK and/or voice function button, vehicles with small OEM display, vehicles without SYNC 2; for vehicles with OEM navigation, the interface function may be partially incompatible. Supported functions: PDC rear, warning tones, date/time settings. Provided signals: +12 V ignition (terminal 15), +12 V lighting (terminal 58), +12 V reverse signal, speed signal, ground GND handbrake signal; total output load 100 mA max; for higher current demand, relay with min. 75 Ohm (one relay) or 150 Ohm (two relays). Disable SYNC functions like BT and others in the SYNC menu of the OEM device before installation; SYNC emergency call function is disabled with the BT function. Reimport vehicles or vehicles with different software may be incompatible in functions.

Features
  • Steering Wheel Remote Control
  • Manufacturer: ACV
  • CAN Bus
  • Connection: 24 Pin Ford Plug
  • Connection: AMP Display Plug
  • Connection: OEM AUX > RCA(m) red/white
  • Connection: OEM USB > USB-A(m)
  • Ford Focus (DBY) 10/2014 - 08/2018
  • Vehicles with OK and/or voice function button
  • Vehicles with small OEM display
  • Vehicles without SYNC 2 system
  • Vehicles with OEM navigation > interface function may be partially incompatible
  • Disable SYNC functions like BT and others in the SYNC menu of the OEM device before installation
  • SYNC emergency call function is disabled with the BT function
  • PDC rear supported
  • Warning tones supported
  • Date/time settings supported
  • Reimport vehicles or vehicles with different software may be incompatible in functions
  • Adjustment note: Turn off retrofit device, press voice selection button, press voice selection button for 2 seconds to access the settings menu, make adjustments only as described in the user manual
  • In case of malfunctions in adjustment mode: readjust after CAN Bus idle
Technical Data
  • Signal red: +12 V ignition terminal 15
  • Signal orange: +12 V lighting terminal 58
  • Signal purple/white: +12 V reverse signal
  • Signal pink: speed signal
  • Signal green: ground GND handbrake signal
  • Total output load: 100 mA max
  • Current demand greater than 100 mA: 1 relay coil resistance 75 Ohm min
  • Current demand greater than 100 mA: 2 relays coil resistance 150 Ohm min
  • LFB cable 42s/acv > Alpine jack: 42ctalpinelead
  • LFB cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
  • LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
  • LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
  • LFB cable 42s/acv > Clarion jack: 42ctclarionlead
  • LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
  • LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
  • LFB cable 42s/acv > Multilead various devices: 42ctmultilead
  • LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
  • LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
  • LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
  • LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
  • LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> jack loose: 42ctpioneerlead2
  • LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
  • LFB cable 42s/acv > Blaupunkt/Kenwood/Sony jack: 42ctsonylead
  • LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Your benefits at Masori

ACV LFB Ford 24-pin/display connector Datasheet

Open datasheet

Frequently Asked Questions about LFB Ford 24-pin/display connector

How do I connect the LFB Ford 24Pin/Display Plug in the vehicle?

The connection of the LFB Ford 24Pin/Display Plug is made through various interfaces in the vehicle. The 24-Pin Ford Plug connects to the vehicle's CAN Bus, while the AMP Display Plug is connected to the OEM Display. For audio transmission, a RCA Plug for AUX and a USB-A Plug are available. Before installation, you should check if the device is compatible with your vehicle's network, especially in vehicles with smaller displays or without SYNC 2 systems. When wiring, make sure to consider the correct signal connections for ignition, reverse gear, lighting, and ground.

Which vehicle models are compatible with the LFB Ford 24Pin/Display Plug?

The LFB Ford 24Pin/Display Plug is compatible with the Ford Focus (DBY) from 10/2014 to 08/2018. Vehicles that have a small OEM Display or OEM Navigation may not be compatible with all functions of the adapter, especially those without a SYNC 2 system. It is advisable to check if the aftermarket radio is consistent with the existing software compatibility of the vehicle, as compatibility issues may arise with re-imported vehicles or models with differing software. A manual check of the installed systems in the vehicle is therefore extremely important before use.

Does the LFB Ford 24Pin/Display Plug support the Steering Wheel Remote Control?

Yes, the LFB Ford 24Pin/Display Plug supports the function of the Steering Wheel Remote Control. It is specifically designed to transmit the steering commands unchanged to the aftermarket radio. This includes all standard functions such as volume control and track selection. However, compatibility depends on whether the vehicle and the aftermarket radio are correctly connected, and whether the additional connection options, such as the PDC rear, correctly process the signals for reverse gear, ignition, and lighting. This way, all familiar functions remain available even with a new radio.

Which functions may be lost when using the LFB Ford 24Pin/Display Plug?

Depending on the aftermarket radio used and the vehicle's equipment, certain functions may be omitted. In particular, vehicles with OEM navigation and the use of SYNC functions such as the Bluetooth connection must disable these functions in the SYNC menu before installation. The voice and OK buttons may also need to be reconfigured in case of an error. Keep in mind that the system disables emergency signals via the Bluetooth interfaces. Some display vehicle settings only work when the aftermarket radio is turned off. Therefore, a careful check of system compatibility is essential.

Are there any special features when installing the Steering Wheel Remote Control Ford 24Pin/Display Plug?

When installing the Steering Wheel Remote Control Ford 24Pin/Display Plug, it is important to perform the previously mentioned compatibility checks. It is particularly advantageous that the adapter provides specific signals, including the speed signal (pink) and reverse signal (purple/white). These signals must be connected correctly to ensure full functionality of the system. Changes and adjustments in the settings mode should only be made after activating it by pressing the voice selection button for an extended period. The installation must also include fuses to prevent any electrical overloads.

How does the Steering Wheel Remote Control Ford 24Pin/Display Plug affect the original radio?

The Steering Wheel Remote Control Ford 24Pin/Display Plug does not replace the original radio but serves as an interface to enable the integration of an aftermarket radio while retaining controls such as the Steering Wheel Remote Control. The installation requires consideration of possible software differences between the original and aftermarket radios, which is why a comparison of the connectors in the vehicle is necessary beforehand. This may lead to functional limitations depending on the technical specifications of the aftermarket model used and the equipment variant of the vehicle.

How does the Steering Wheel Remote Control Ford 24Pin/Display Plug affect parking distance control systems?

The implementation of the Steering Wheel Remote Control Ford 24Pin/Display Plug seamlessly supports parking distance control systems (PDC) in the rear area of the vehicle. By correctly wiring ignition and lighting signals, the adapter can transmit warning signals and other relevant information to the aftermarket radio. Vehicles that come factory-equipped with PDC can therefore remain largely functional. However, it must be ensured that the correct signal transmission is checked during installation to avoid any discrepancies in operation. Incompatibilities should be avoided in advance.

What steps are required to open the settings menu using the Steering Wheel Remote Control Ford 24Pin/Display Plug?

To open the settings menu in a vehicle with the installed Steering Wheel Remote Control Ford 24Pin/Display Plug, first turn off the aftermarket radio. Then, press and hold the voice selection button for two seconds. This allows you to open the settings menu on your vehicle's display. It is crucial that you only make changes that are described in the user manual. If malfunctions occur, a reset after a CAN bus idle phase is required. Careful attention to the instructions can prevent incorrect inputs.

How does the USB port work on the Steering Wheel Remote Control Ford 24Pin/Display Plug?

The USB port of the Steering Wheel Remote Control Ford 24Pin/Display Plug is designed as a USB-A(m) interface and allows for connecting external devices, such as smartphones or USB drives, directly to the aftermarket radio. It is important to note that compatibility with certain media formats depends on the aftermarket radio, which processes the incoming USB signal. The installation should ensure that the USB port runs free of other cable routes in the vehicle to avoid interference. This ensures that audio and data transmissions are carried out without disruptions.

Are there any restrictions for navigation when using the Steering Wheel Remote Control Ford 24Pin/Display Plug?

In vehicles with OEM navigation, there may be restrictions when the Steering Wheel Remote Control Ford 24Pin/Display Plug is installed. Particularly important is the firmware of both the vehicle and the new radio. Incompatibilities can lead to certain navigation functions no longer being available. For devices without the SYNC 2 system, all navigation functions should be checked before retrofitting. Navigation may be affected by unexpected software conflicts, which is why a complete reset and review of the navigation settings is recommended before the system is put into operation.
