  3. Emphaser speakers, subwoofers & more for your car
  5. ECX-G5

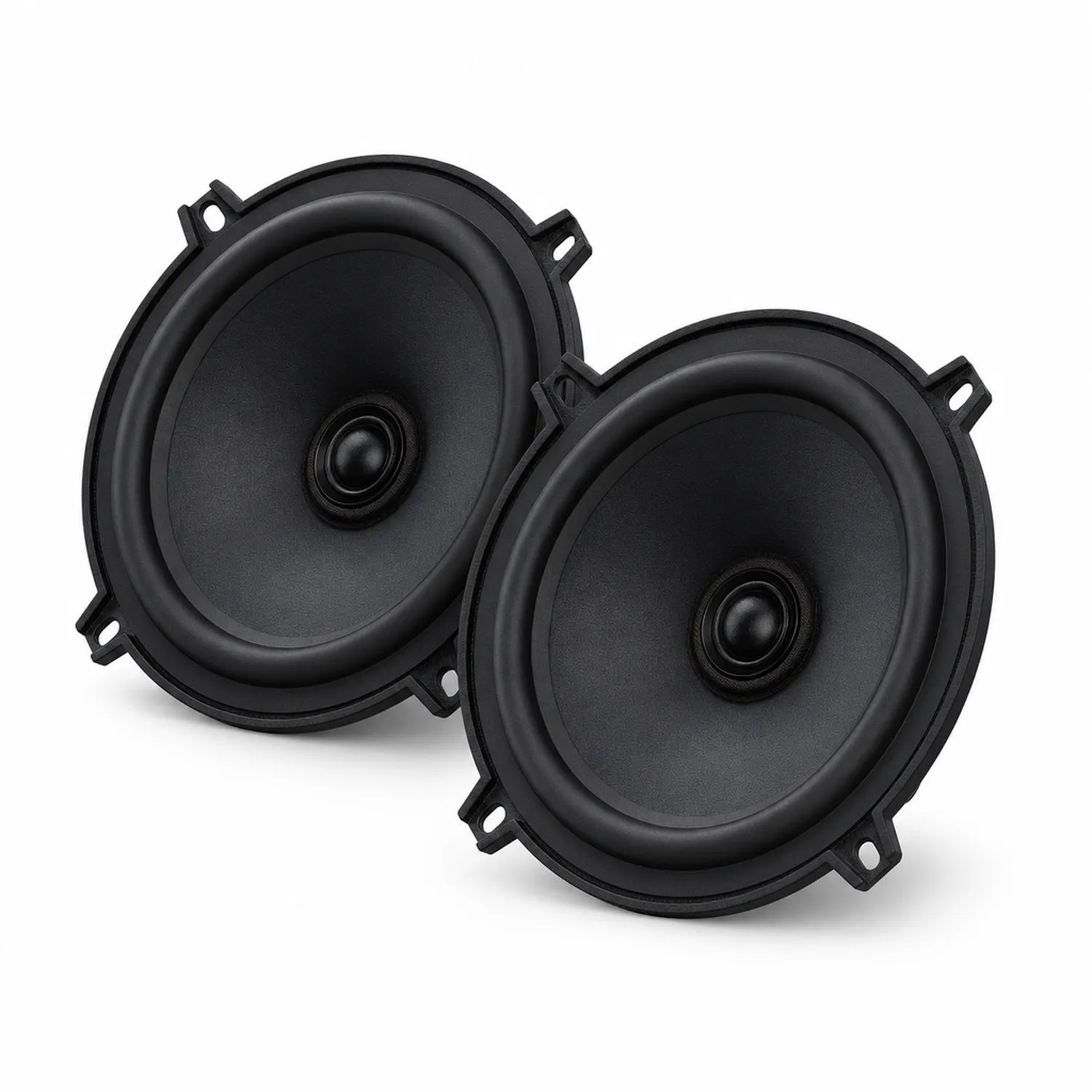

Emphaser ECX-G5 5" (13cm) Coaxial Speaker
SKU:  ECX-G5
EAN:  7612309204114
80 Watt

ECX-G5

SKU:  ECX-G5
EAN:  7612309204114

Technical Highlights

  • Rated power handling 80 watts RMS, rated impedance 4 ohms, frequency 85 Hz-22 kHz.
  • Sensitivity 87 dB 1W 1m, mounting diameter 116 mm, depth 60 mm.
  • Two-layer copper wire voice coil, 13 mm fabric dome tweeter.
  • More technical details
00 d
00 h
00 m
00 s
€151,20
-28% €209,00 €151,20
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
May 17, - May 20,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €12,60 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori

EmphaserEM-VWF4
Emphaser-EM-VWF4-VW-Lautsprecherset-masori-kaufen
Emphaser-EM-FDF1-Ford-Lautsprecherset-masori-kaufen
EmphaserEM-FDF1
Emphaser-ECX-G5-5" (13cm) Koaxial-Lautsprecher-masori-kaufen
€151,20
€209,00 €151,20

More power than ECX-G5 here!

Show all
  • The Deaf Bonce GDB-65 is a round black metal speaker grille with honeycomb mesh and small mounting holes, made for 165 mm Apocalypse Serie Tiefmitteltöner.

    GDB-65

    €9,00
    €9,00 €9,00
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Deaf Bonce-Apocalypse AP-X69A-6"x9" Koaxial-Lautsprecher-masori-kaufen
    200 Watt

    Apocalypse AP-X69A

    €150,00
    €150,00 €150,00
    Delivery
    May 20, - May 24,
  • Ai-Sonic-S2-C6.2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    90 Watt

    S2-C6.2

    €199,00
    €199,00 €199,00
    Delivery
    May 21, - May 26,
  • The DD Audio DC6.5a Lautsprecherset includes a large Speaker, sleek Tweeter, and compact Crossover Box on a white background.
    75 Watt

    DC6.5a

    €199,00
    €199,00 €199,00
    Delivery
    May 31, - Jun 5,
  • DD Audio-GR-MR Grill 5-8 Zoll-Lautsprechergitter-masori-kaufen

    GR-MR Grill 5-8 inch

    From €10,00
    €10,00 From €10,00
    In stock
    May 17, - May 18,
DSC01014_2

This could also look like this for you!

A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

Discover now

ECX-G5 by Emphaser Description

The Emphaser ECX-G5 is a 5-inch 13 cm coaxial speaker with CRYSTALGRAIN compound membrane in the mid-bass driver and FlowMax aluminum die-cast basket with optimized temperature management. A strontium ferrite magnet and a butyl rubber surround are integrated. The dual-layer copper wire voice coil sits on a temperature-resistant aluminum voice coil former, complemented by a Connex centering spider with woven voice coil lead. The tweeter measures 13 mm and features a textile dome. An Emphaser screw terminal with gold-plated contact surfaces is included. Rated power handling is 80 watts RMS, nominal impedance is 4 Ohm, frequency response is 85 Hz to 22 kHz, and sensitivity is 87 dB 1W 1m. Installation diameter is 116 mm and installation depth is 60 mm. Delivery includes 2 pieces of coaxial speakers, speaker cover optional ESP-GR5.

Features
  • 5-inch 13 cm coaxial speaker
  • Mid-bass driver with Emphaser CRYSTALGRAIN compound membrane
  • FlowMax aluminum die-cast basket with optimized temperature management
  • Strontium ferrite magnet
  • Butyl rubber surround
  • Dual-layer copper wire voice coil on temperature-resistant aluminum voice coil former
  • Connex centering spider with woven voice coil lead
  • 13 mm tweeter with textile dome
  • Emphaser screw terminal with gold-plated contact surfaces
  • Delivery includes 2 pieces of coaxial speakers, speaker cover optional ESP-GR5
Technical Specifications
  • Rated power handling: 80 watts RMS
  • Nominal impedance: 4 Ohm
  • Frequency response: 85 Hz to 22 kHz
  • Sensitivity 1W 1m: 87 dB
  • Installation diameter: 116 mm
  • Installation depth: 60 mm

Emphaser ECX-G5 Datasheet

Open datasheet

Frequently Asked Questions about ECX-G5

What special features does the ECX-G5 speaker from Emphaser have?

The ECX-G5 from Emphaser shines with an Emphaser CRYSTALGRAIN compound membrane mid-bass driver, a FlowMax aluminum die-cast basket that ensures effective temperature management, and a strontium ferrite magnet. A butyl rubber surround contributes to excellent sound quality and durability. The speaker features a dual-layer copper wire voice coil on a temperature-resistant aluminum voice coil former, complemented by a Connex centering spider with woven voice coil lead. Last but not least, a 13 mm textile dome tweeter provides a balanced sound image.

What technical specifications does the ECX-G5 speaker offer?

The ECX-G5 from Emphaser offers a nominal power handling of 80 watts RMS and a nominal impedance of 4 ohms. The frequency response ranges from 85 Hz to 22 kHz, ensuring a wide sound coverage. With a sensitivity of 87 dB at 1W/1m, it is designed to deliver rich sound even with moderate amplification. These specifications make it a versatile choice for audio enthusiasts who value high performance and sound fidelity.

How is the ECX-G5 from Emphaser constructed?

The ECX-G5 is a 5-inch (13 cm) coaxial speaker. It integrates an Emphaser CRYSTALGRAIN compound membrane mid-bass driver along with a 13 mm tweeter with a textile dome. The aluminum die-cast basket provides improved structural rigidity and heat dissipation. It also features a gold-plated screw terminal that minimizes contact resistance. This construction supports a harmonious interaction between the various components, contributing to a top-notch sound experience.

What is the compatibility of the ECX-G5 speaker regarding installation sizes?

With an installation diameter of 116 mm and a mounting depth of 60 mm, the ECX-G5 is flexible to install in many vehicles. It is especially important to ensure the availability of suitable mounting openings. These dimensions correspond to common standards used in many vehicle models. During installation, the distance to adjacent components should also be checked to prevent resonance issues.

What materials are used in the ECX-G5 speaker?

For the ECX-G5, Emphaser uses the CRYSTALGRAIN compound for the membrane, which contributes to excellent sound properties and high stability. The FlowMax aluminum die-cast basket plays a central role in temperature management, while the strontium ferrite magnet provides a powerful source of force. The dual-layer copper wire voice coil ensures high load capacity and durability. This choice of materials comes together to ensure excellent sound reproduction and build quality.

What advantages does the tweeter in the ECX-G5 speaker offer?

The tweeter of the ECX-G5 is a 13 mm model with a fabric dome that ensures fine and detailed high-frequency reproduction. This design is known for its ability to minimize distortion and ensure precise sound distribution. In conjunction with the rest of the speaker's architecture, the tweeter guarantees a harmonious integration of high frequencies into the overall sound image. Especially at high volumes, crystal-clear reproduction is achieved without loss of detail.

How does the ECX-G5 support the optimization of sound quality?

The sound quality of the ECX-G5 is supported by a butyl rubber surround that efficiently dampens vibrations, thereby improving sound purity. The EMCRYSTALGRAIN compound membrane mid-bass driver contributes to the precise reproduction of low frequencies. The strontium ferrite magnet provides stable magnetic force, leading to harmonious sound reproduction. Together with the dual-layer copper wire voice coil, an optimal interaction occurs that enables high overall sound quality.

What is included in the package of the Emphaser ECX-G5 speaker?

The package of the Emphaser ECX-G5 includes two coaxial speakers. Optionally, speaker covers labeled ESP-GR5 can be purchased. These covers are capable of further protecting the speakers and increasing their longevity. The included accessories allow for straightforward and flexible installation of the systems, which can be adapted to the specific requirements of the vehicle type. The sound quality is maintained at all times.

What special technical features support temperature management in the ECX-G5?

The temperature management of the ECX-G5 is significantly improved by the FlowMax aluminum die-cast basket. This material promotes heat dissipation and significantly reduces temperature influences on sound quality. In combination with the temperature-resistant aluminum voice coil carrier of the dual-layer copper wire voice coil, consistent performance is ensured even under high load. This not only extends the lifespan of the speaker but also optimizes the consistent sound quality, regardless of the power used.

How does the strontium ferrite magnet affect the ECX-G5?

The strontium ferrite magnet in the ECX-G5 offers high stability and efficiency in sound generation. These magnetic properties ensure that the speaker delivers constant and precise sound reproduction. The magnet supports the driver unit in producing powerful and deep bass while allowing for clean separation of frequencies. This makes it an ideal component for discerning listeners who expect peak performance from their audio system.
