X-100.5 MDSP-BTA
Technical Highlights
- Power: 4x 100 WRMS at 4 ohms, 1x 30 WRMS at 4 ohms.
- -Impedance: 4x 140 WRMS at 2 ohms, DSP with 9 channels.
- -Frequency from 10 to 24000 Hz, signal-to-noise ratio 107/112 dB.
- More technical details
Pay conveniently in 12 interest-free installments at €41,58 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

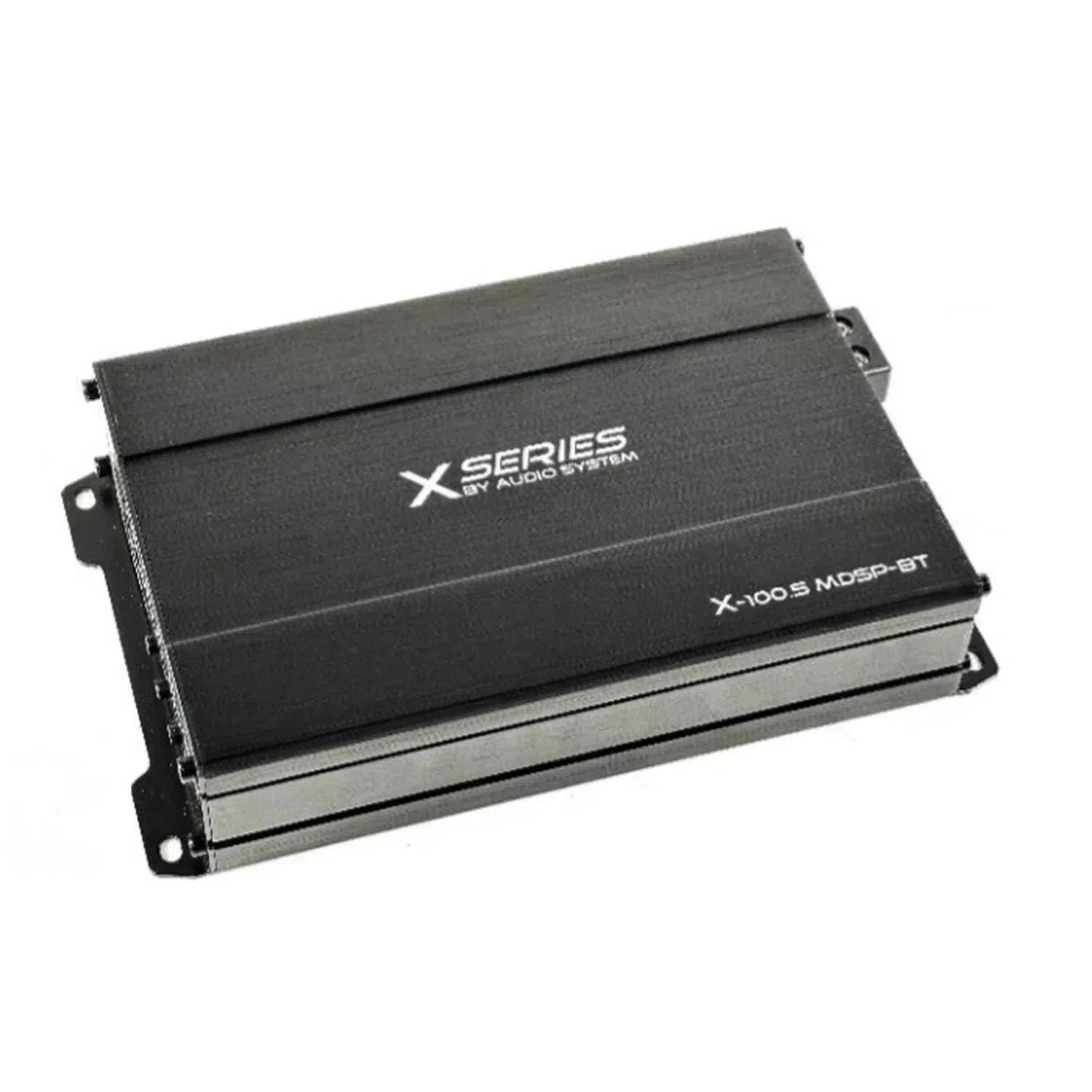

X-100.5 MDSP-BTA by Audio System
The X-100.5 MDSP-BTA from Audio System is a 5-Channel DSP Amplifier with an integrated 9-Channel SIGMA DSP processor from Analog Devices. The amplifier delivers 4x 100 WRMS at 4 Ohm and 1x 30 WRMS at 4 Ohm and is start-stop capable up to 6 volts for 5 seconds. Features include 30 parametric equalizers per channel, eight presets, and a slope of up to 48 dB. Control is done via app software through Android-Bluetooth or iOS-Bluetooth, with updates automatically performed over Wi-Fi. The system has six RCA inputs, six Molex high-level inputs with automatic turn-on, and four DSP-controlled RCA outputs with 5 volts. With dimensions of 113 x 38 x 163 mm, the amplifier covers a frequency range of 10 to 24000 Hz. The design was developed in Germany and is rated for an operating temperature range of -40°C to +85°C.
- 5-Channel DSP Amplifier
- 9-Channel SIGMA DSP processor from Analog Devices
- 4x 100 WRMS at 4 Ohm
- 4x 140 WRMS at 2 Ohm
- 1x 30 WRMS at 4 Ohm
- 30x parametric equalizers per channel
- 8x presets
- Slope up to 48 dB
- App software adjustable via Android-BT or iOS-BT
- Automatic update via Wi-Fi
- Start-stop capable up to 6 volts / 5 sec
- Dimensions 113 x 38 x 163 mm
- Frequency range: 10-24000 Hz
- Signal-to-noise ratio ADC: 107 dB
- Signal-to-noise ratio DAC: 112 dB
- 4x DSP controlled RCA outputs (5 volts)
- 6x RCA inputs (0.5 to 4 volts)
- 6x Molex high-level inputs (up to 12V)
- Operating voltage 10-16 volts
- Operating temperature -40°C to +85°C
- 1x remote output
