3. Crunch car speakers, Subwoofer & more
  5. GTS5.2C

GTS5.2C

80 Watt

GTS5.2C

Technical Highlights

  • Rated power 80 watts RMS, maximum power 160 watts, impedance 3 Ω.
  • Frequency range 65-22000 Hz, Y30 magnetic drives, 2-way system.
  • Two 130 mm mid-woofers, 20 mm silk domes, polypropylene cones.
  • More technical details
€66.56
-26% €89.90 €66.56
2% discount with credit card

Your price match offer

ProductGTS5.2C

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 15–Sep 18.
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet
CrunchGTS62
Crunch-GTS62-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
Crunch-GTS6.2C-6.5" (16,5cm) Lautsprecherset-masori-kaufen
CrunchGTS6.2C
Crunch-GTS5.2C-5" (13cm) Lautsprecherset-masori-kaufen
€66.56
€89.90 €66.56

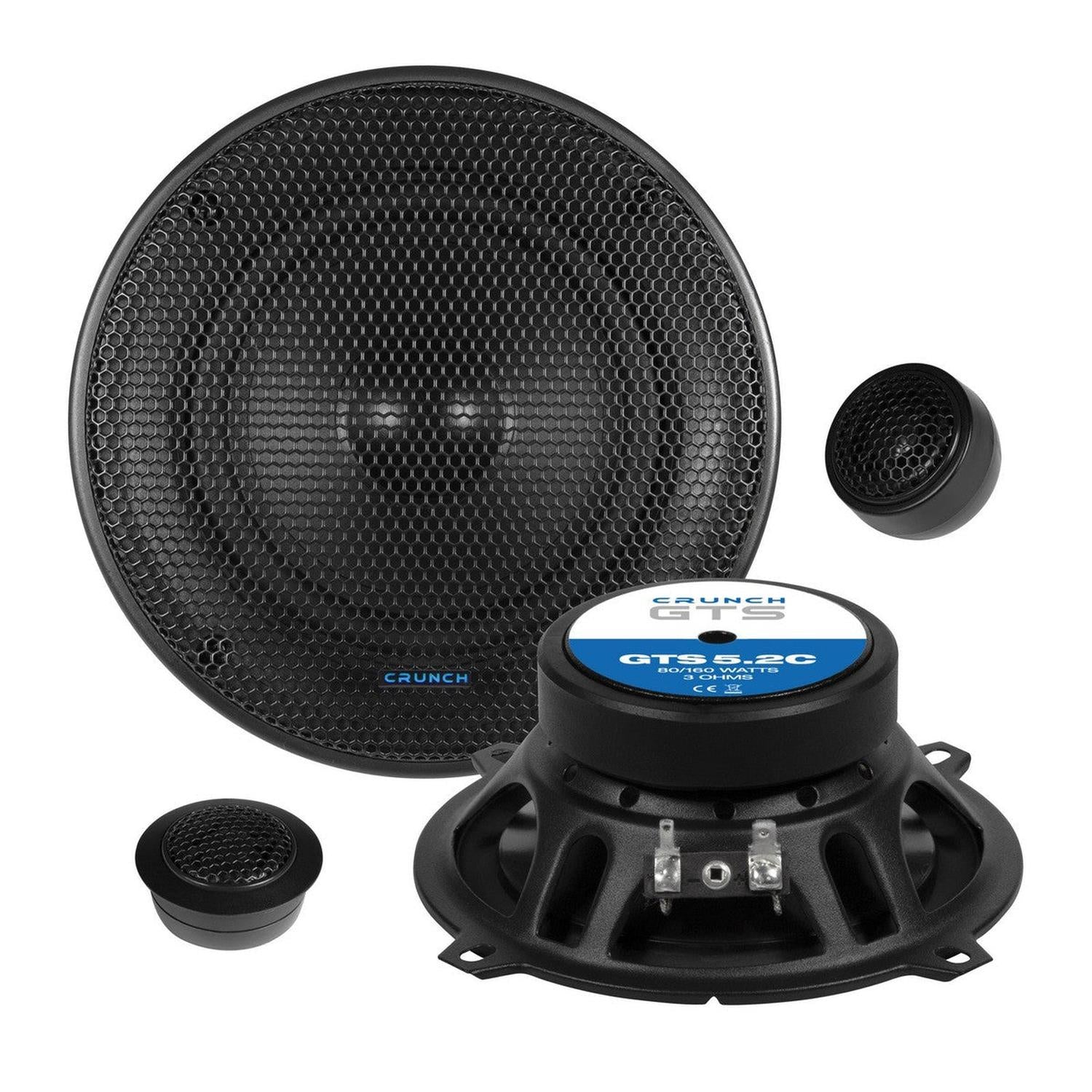

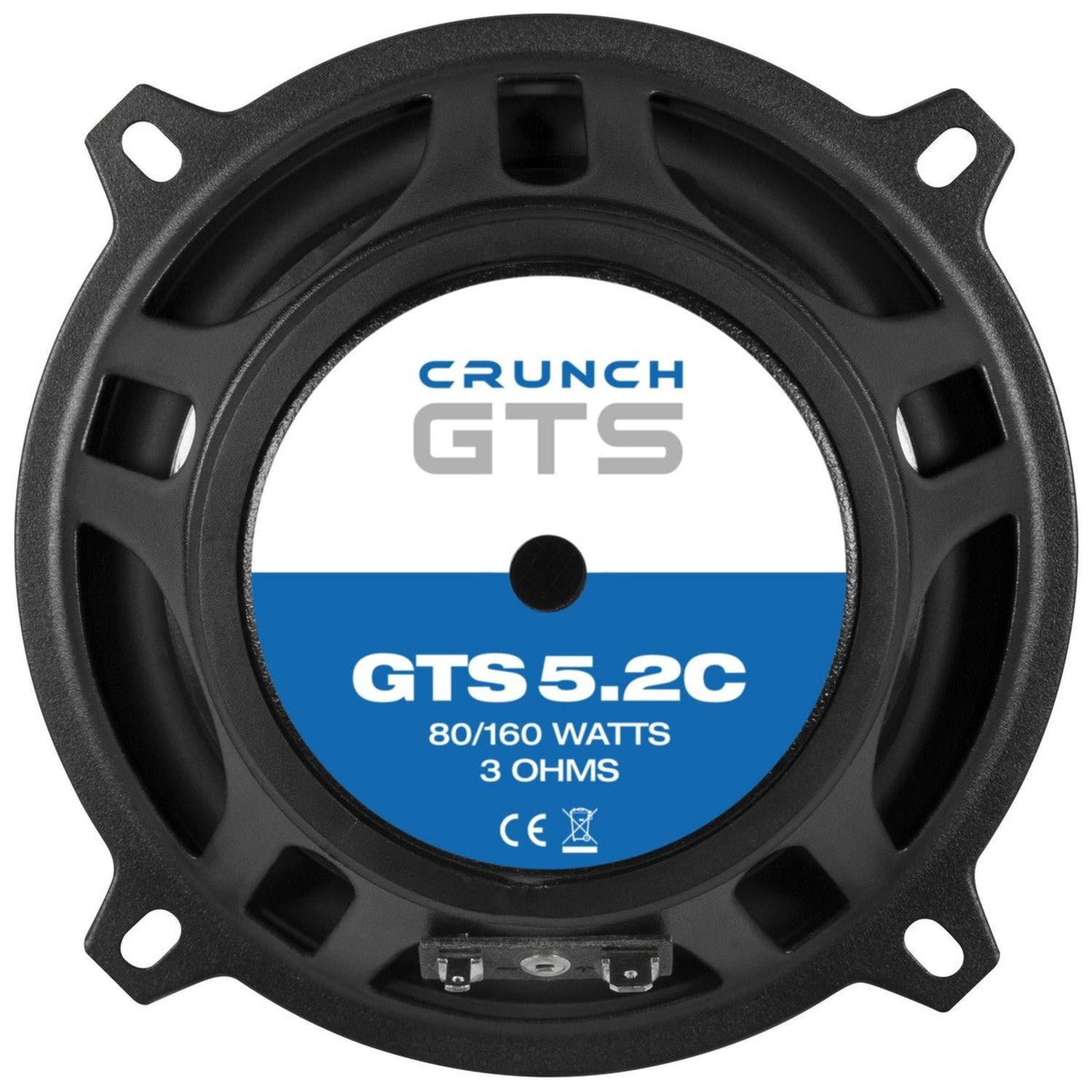

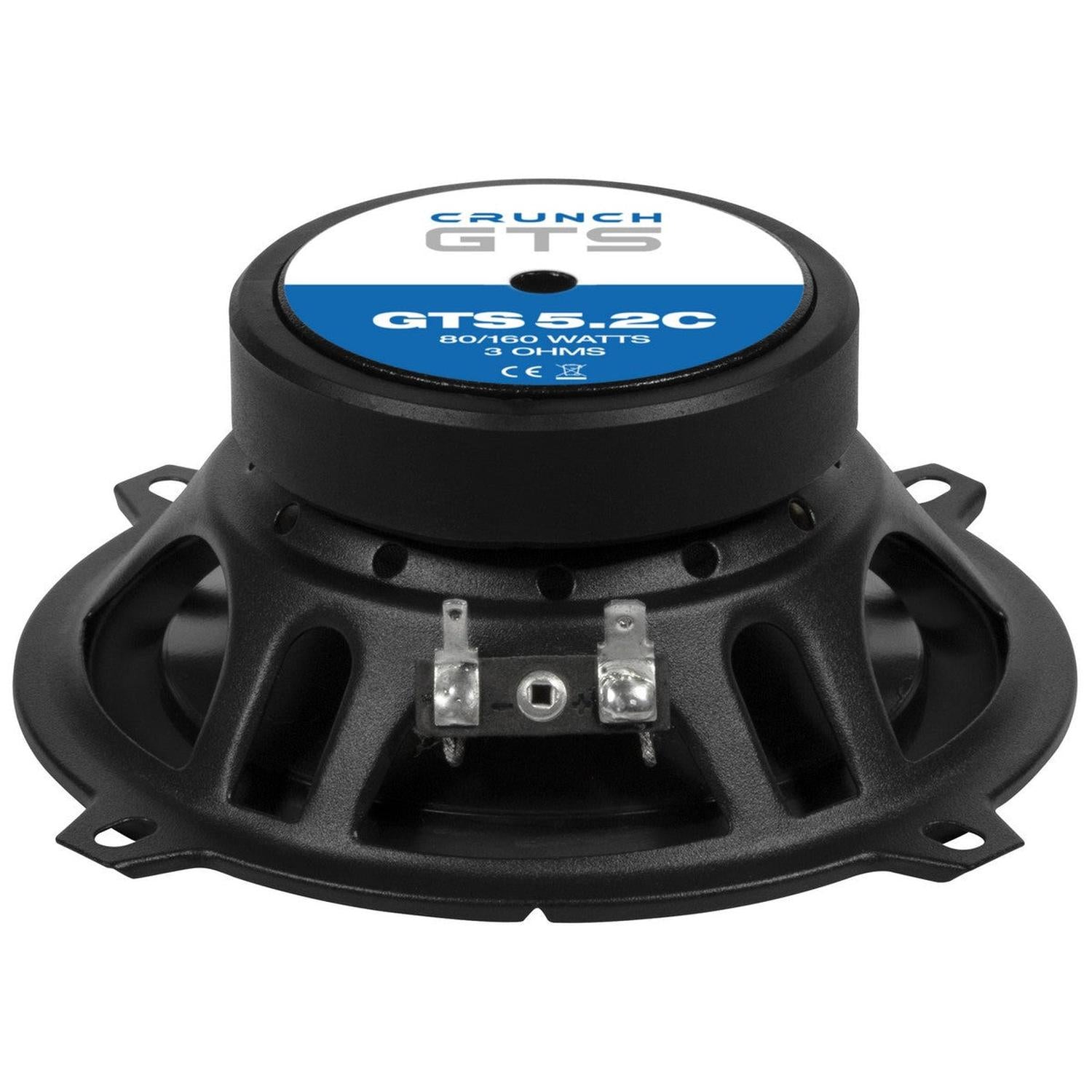

The GTS5.2C is a 5-inch Speaker Set from the manufacturer Crunch. It consists of two 130 mm midrange drivers with sturdy steel baskets and two 20 mm silk dome neodymium tweeters. The technical components include Y30 magnet drives and polypropylene membranes. The system has a rated power of 80 watts RMS and a maximum load capacity of 160 watts MAX. The impedance is specified at 3 Ω, while the frequency range extends from 65 to 22000 Hz. The delivery includes separate crossovers for the tweeters and midrange drivers as well as sturdy Speaker Grilles. The cutout diameter is 117 mm with a mounting depth of 50 mm.

Features
  • 5-inch (13 cm) Speaker Set
  • Rated power: 80 watts RMS
  • Maximum power: 160 watts MAX
  • Y30 magnet drives
  • Polypropylene membranes
  • Sturdy steel baskets
  • Shallow mounting depth

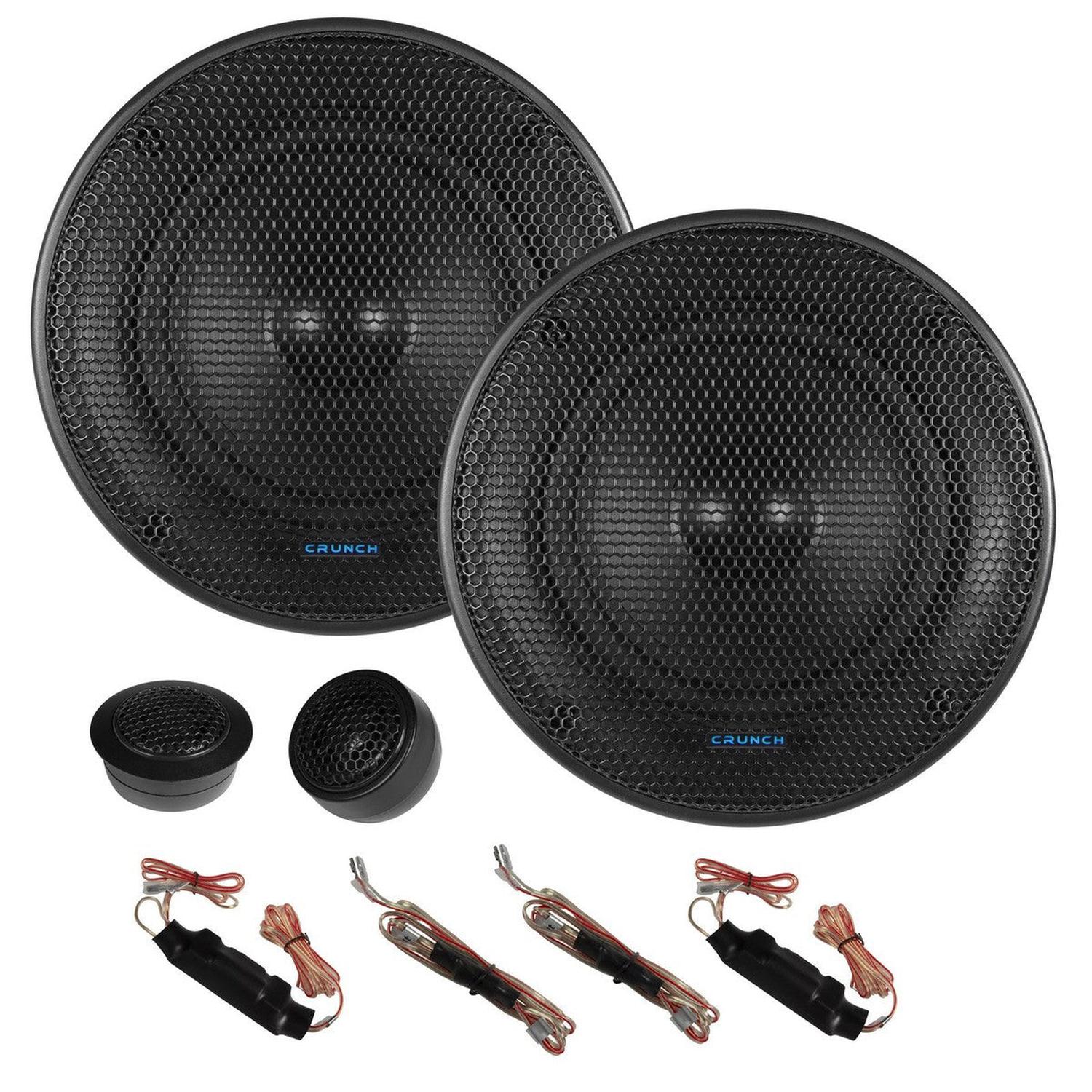

  • Separate crossovers for tweeters and midrange drivers
  • Tweeter crossover with high-frequency attenuation
  • Sturdy Speaker Grilles
Technical Specifications
  • 2 x 130 mm midrange drivers
  • 2 x 20 mm silk dome neodymium tweeters
  • 4 x inline crossover
  • Impedance: 3 Ω
  • Frequency range: 65 - 22000 Hz
  • Cutout diameter: 117 mm
  • Mounting depth: 50 mm

datasheet

Open data sheet

Frequently Asked Questions about GTS5.2C

What is the power of the Crunch GTS5.2C Speaker Set?

The Crunch GTS5.2C Speaker Set has a rated power of 80 Watts RMS, which represents a load capacity for continuous audio output, and a maximum load capacity of 160 Watts MAX, allowing it to handle higher power levels temporarily. Such parameters are ideal for an optimal sound profile without distortion, especially at high volume. RMS values are crucial for long-term durability, while the MAX specification aims to withstand peak loads without damaging the components. Calculations regarding amplifier matching should consider the impedance of 3 Ω to ensure impedance matching for lossless signal transmission.

What distinguishes the crossovers of the GTS5.2C speaker system?

The crossovers for the Crunch GTS5.2C system are crucial for the sound separation between tweeters and midrange drivers. With separate crossovers that feature a high-frequency attenuation, it ensures that the high frequencies are optimally distributed, resulting in a finely tuned sound image. High-quality crossovers protect the tweeters from overload and provide the flexibility to modify the high-frequency range according to listening preferences. These crossovers minimize signal distortion and achieve clear, detailed sound output. Their integration into the audio setup is essential for use in demanding acoustic environments and significantly enhances overall sound quality.

What technology do the tweeters of the GTS5.2C use?

The tweeters of the Crunch GTS5.2C speaker set use 20 mm silk dome neodymium drivers, a combination that provides precise high-frequency reproduction with low distortion. Neodymium is known for its high magnetic flux density, which leads to improved sensitivity and efficiency in sound reproduction. Silk domes ensure a smooth high-frequency sound that reduces abrupt and unpleasant frequency peaks. These domes deliver an especially wide frequency range of 65 to 22000 Hz, allowing for seamless coverage of highs. Especially if you appreciate detailed audio-enthusiast reproduction, this technology makes a difference in the sound image.

How is the installation of the GTS5.2C speaker set in terms of installation dimensions?

For the installation of the Crunch GTS5.2C speaker system, you should consider the installation dimensions. The required installation opening is 117 mm with a mounting depth of 50 mm, making it adaptable for a variety of vehicle models. It is important that the speaker stability is ensured by the steel baskets, which provide additional protection during installation. When adjusting, you can compare the dimensions with existing installation spaces to ensure smooth integration. The combination of low mounting depth and compact opening makes installation easier even in limited space conditions, ideal for replacement or retrofitting in existing audio setups.

What materials are used in the GTS5.2C speaker system?

The Crunch GTS5.2C speaker system utilizes a combination of polypropylene membranes and sturdy steel baskets, ensuring durability and sound integrity. Polypropylene membranes are particularly valued for their resistance to moisture and temperature fluctuations, and they contribute to balanced sound reproduction. The steel baskets provide mechanical support as well as vibration resistance, promoting detail retention in audio playback. Additionally, the tweeters are equipped with silk domes, known for their clear and smooth sound peaks. This choice of materials promises improved sound quality and longevity, allowing users to rely on consistent performance.

How is the impedance of the Crunch GTS5.2C Speaker Set to be interpreted?

The Crunch GTS5.2C Speaker Set has an impedance of 3 Ω, which specifies how much electrical resistance the speaker has against the amplifier signal. This impedance is low enough to favor more efficient energy transfer with compatible amplifiers and can lead to higher output power. When configuring with an amplifier, precise matching is necessary so that the amplifier system can correctly handle the low-impedance load without being excessively stressed. Adjustments are crucial to maximize both performance and audio quality and to avoid overloading that could affect the lifespan of the speakers.

What sound ranges does the Crunch GTS5.2C Speaker Set cover?

The Crunch GTS5.2C Speaker Set covers a frequency range from 65 Hz to 22,000 Hz, capturing both low and high tones, which allows for a wide dynamic range and finely nuanced audio playback. The woofers extend into the lower frequency range to deliver rich bass tones, which are enhanced by the robust polypropylene membranes. At the same time, the upper limit ensures precise high-frequency reproduction, specifically supported by the 20 mm silk dome neodymium tweeters, which are ideal for detailed highs. This range is optimal for music lovers who appreciate a detailed and balanced sound profile.

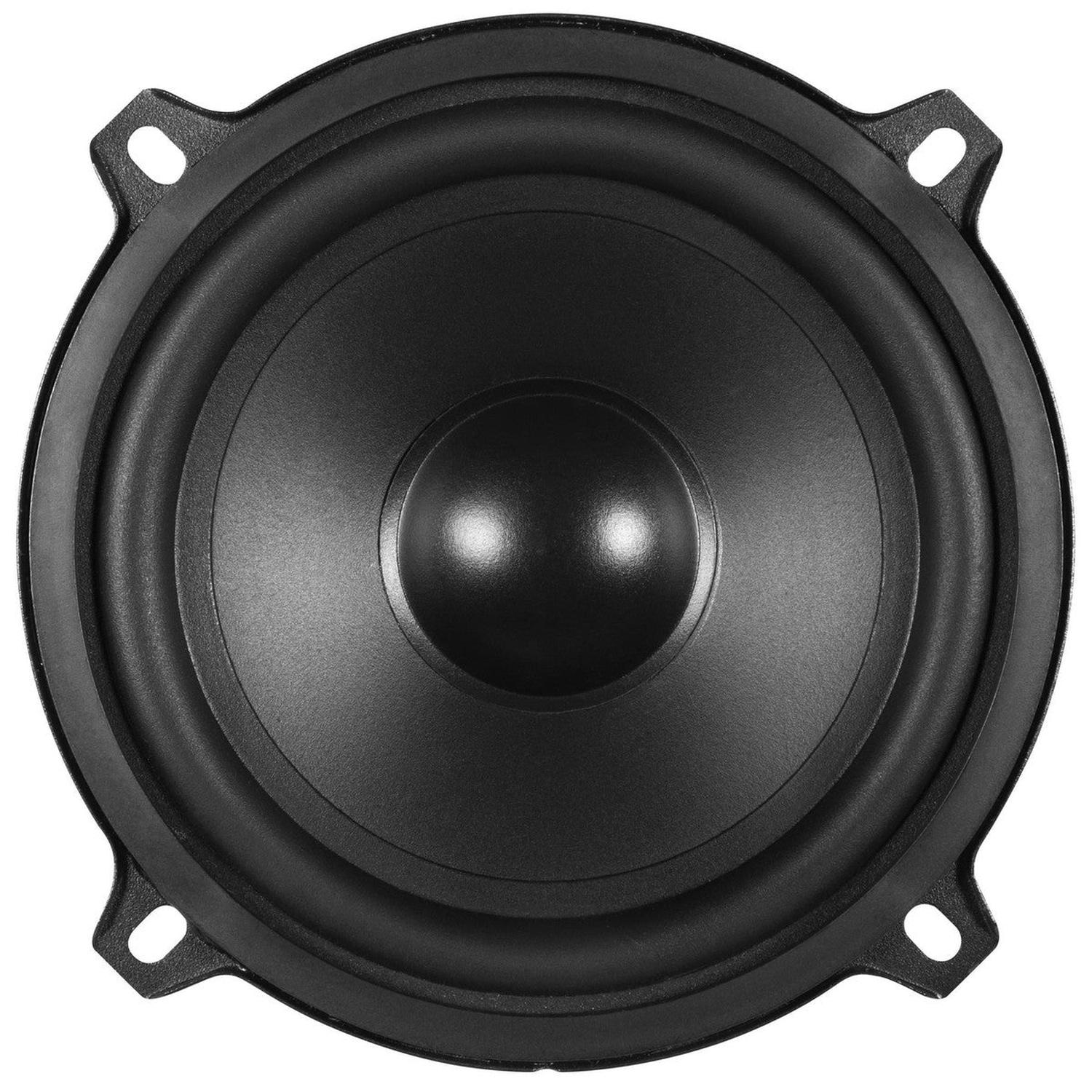

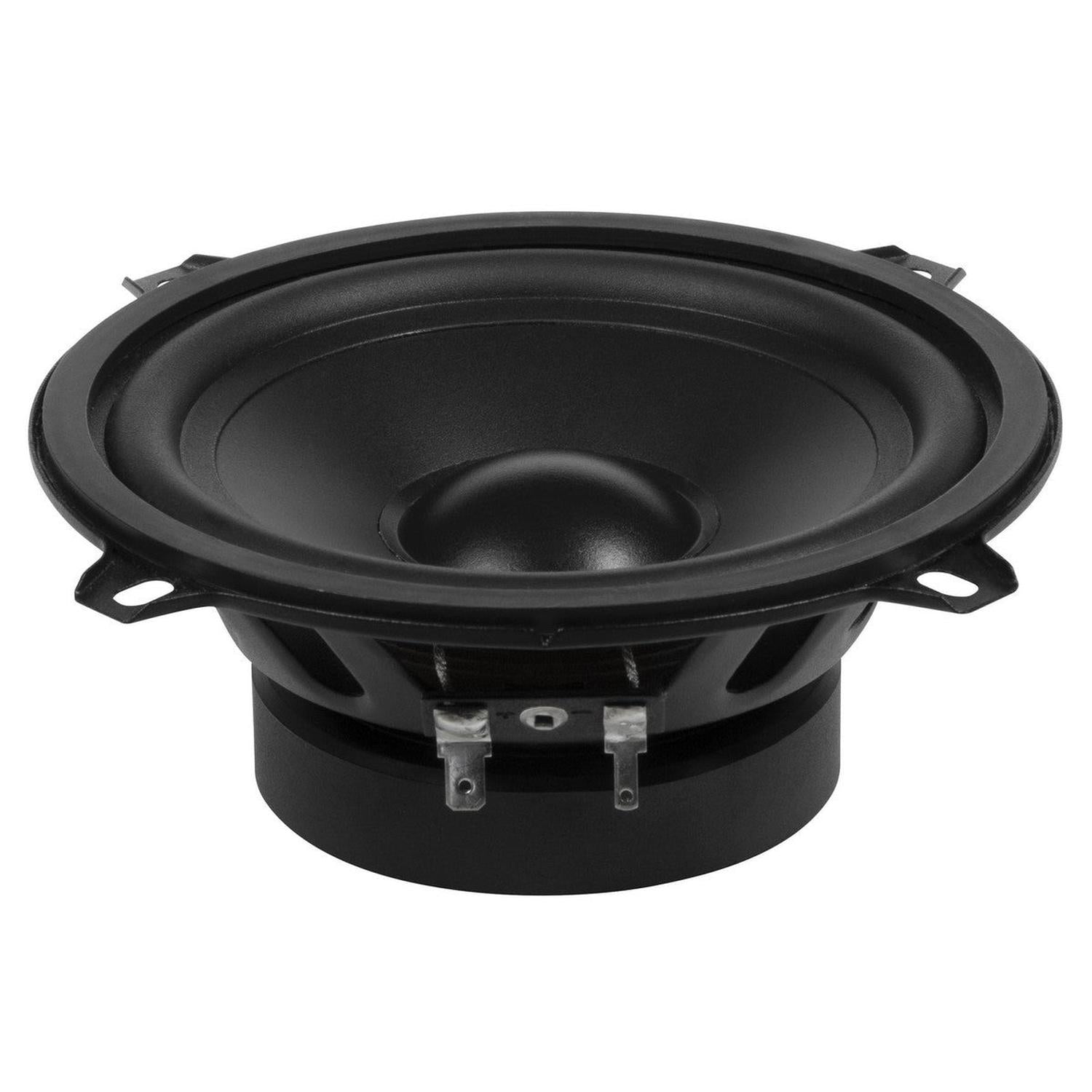

How do the midrange speakers of the GTS5.2C affect sound quality?

The 130 mm midrange speakers of the Crunch GTS5.2C significantly contribute to sound quality by optimally covering the mid-frequency range. Equipped with polypropylene membranes, they provide smooth and precise reproduction of mid frequencies, which are crucial for vocals and instrumental tones. The sturdy steel baskets reduce unwanted vibrations and distortions, favoring clear, balanced sound output. This construction ensures that the sound remains consistently clean and uncolored, while the magnets, due to their Y30 configuration, allow for a more efficient and reliable vibration amplitude, a critical component for quality sound reproduction in demanding environments.

What advantages do the Y30 magnetic drives offer in this speaker system?

The Y30 magnetic drives in the Crunch GTS5.2C Speaker Set provide increased energy efficiency and sound precision. Such magnets are known for their outstanding flux density, optimizing the mobility of the speaker membranes and reducing distortion. The improved linearity allows for a wider range of sound spectra to be reproduced accurately. Additionally, the Y30 drives enhance the durability of the speakers, enabling operation at higher volumes without compromising sound quality. These magnets are particularly valuable in highly dynamic audio recordings, where rapidly changing signal strengths at various frequencies must be processed efficiently. They are thus an integral part of the performance and sound of this speaker system.

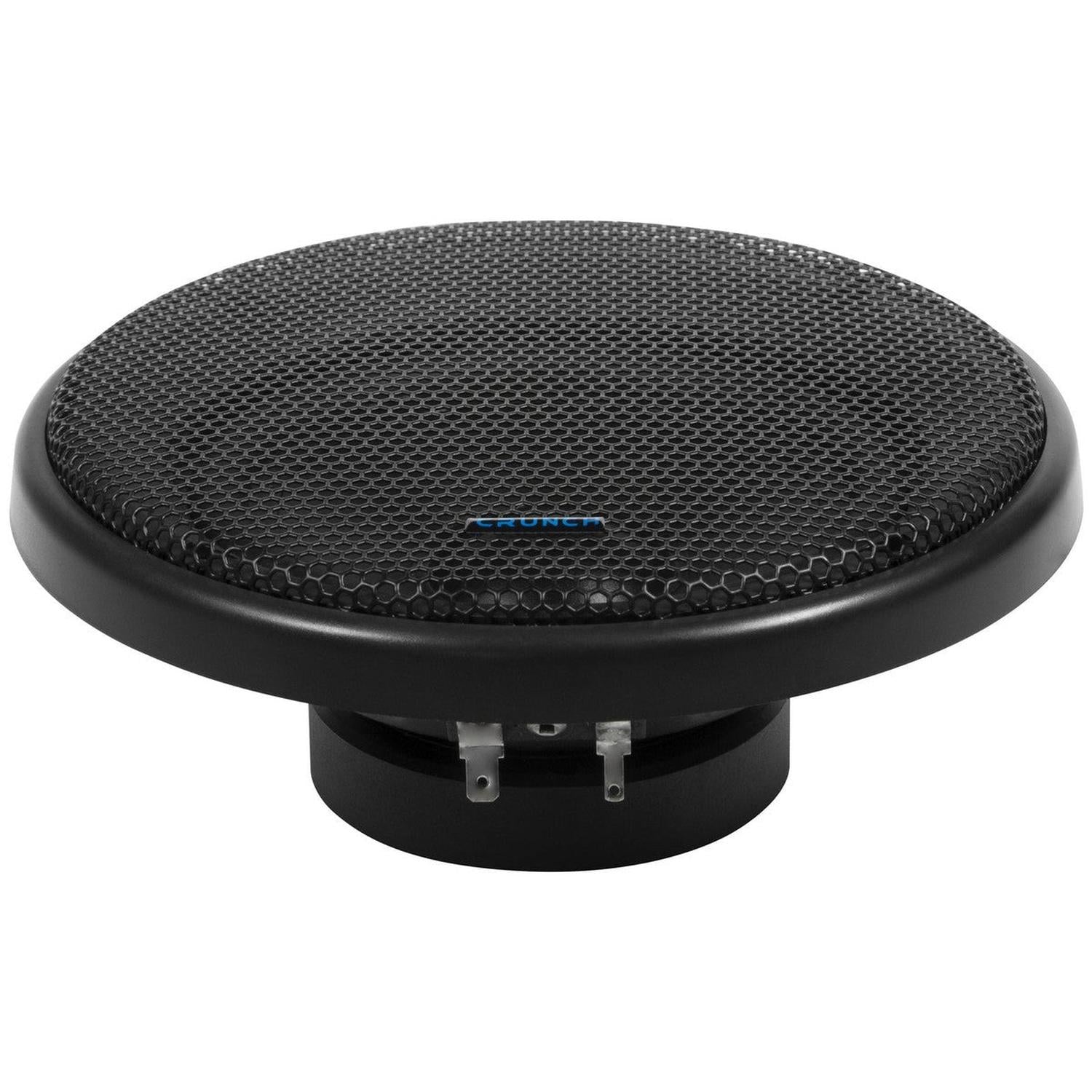

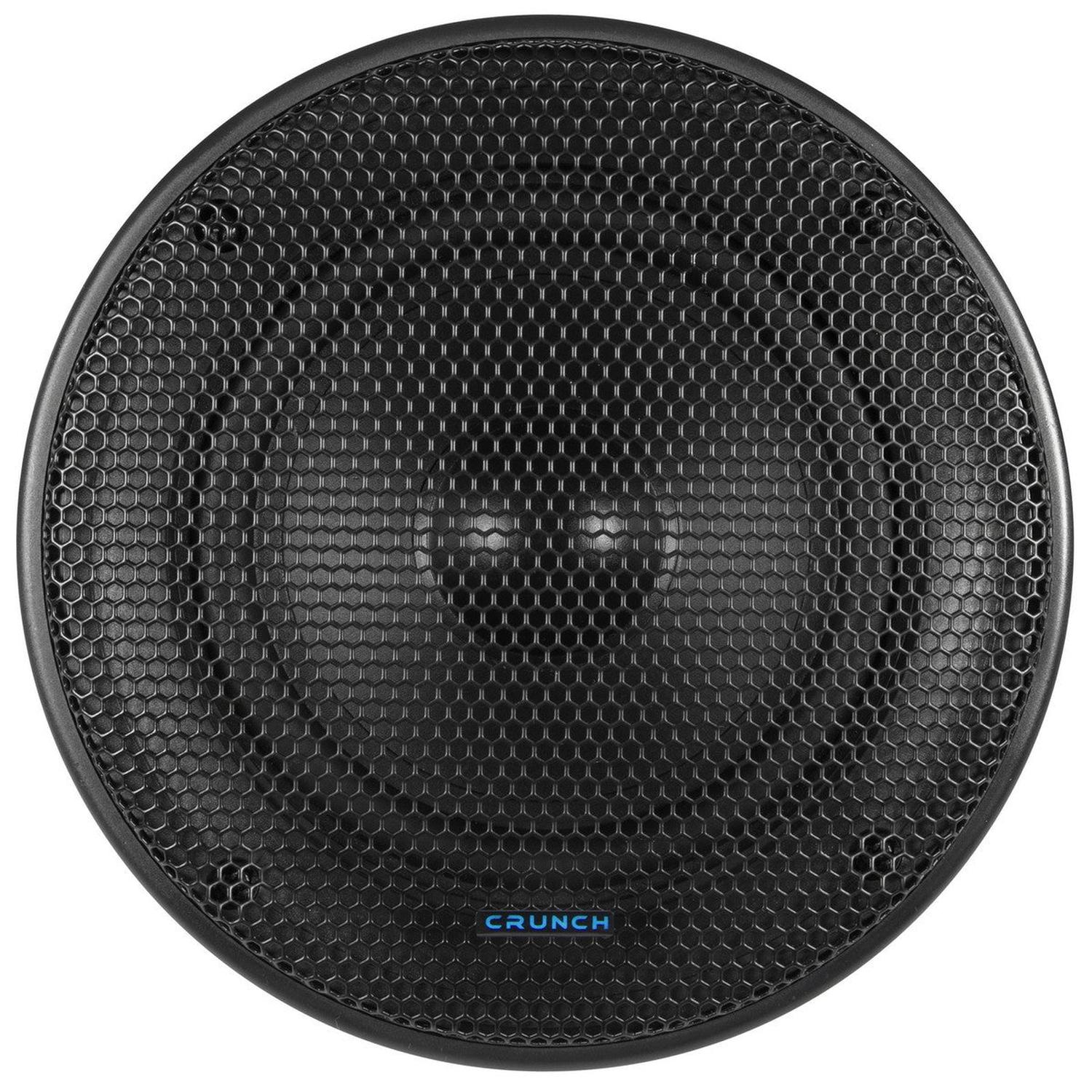

How do the stable speaker grilles affect the protection and performance of the GTS5.2C?

The stable speaker grilles of the Crunch GTS5.2C offer more than just physical protection—they contribute to long-term performance preservation by keeping the components safe from dust and physical influences. This is especially important during louder operation and in confined spaces to shield the sensitive membranes. Mechanical stability is ensured by the grilles, minimizing vibrations and thus supporting clear sound. Furthermore, they ensure that there is no risk of external pressure on the speakers, which increases the lifespan and functionality of the system. These grilles are visually appealing and functional, making them ideal for necessary integrations in various acoustic installations.
