  3. Comfort Mat Alubutyl insulation for cars
  5. Extreme 3.5mm
Comfort Mat Extreme 3.5mm Insulation
SKU:  EXTREME3,5MM
EAN:  4640107332527
1.7m²

Extreme 3.5mm

SKU:  EXTREME3,5MM
EAN:  4640107332527

Technical Highlights

  • Thickness 3.5mm, mechanical loss factor 0.63, high adhesion.
  • Preformed panels 500x700mm, aluminum foils 2x0.1mm.
  • Weight 6.43kg/m², water resistance guarantees robustness.
  • More technical details
€149,00
€149,00 €149,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 3, - Jun 6,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €12,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Comfort MatAerospace VOLT 2.5mm
Comfort Mat-Aerospace VOLT 2,5mm-Dämmung-masori-kaufen
Comfort Mat-Panther-Dämmung-masori-kaufen
Comfort MatPanther
Comfort Mat-Extreme 3,5mm-Dämmung-masori-kaufen
€149,00
€149,00 €149,00

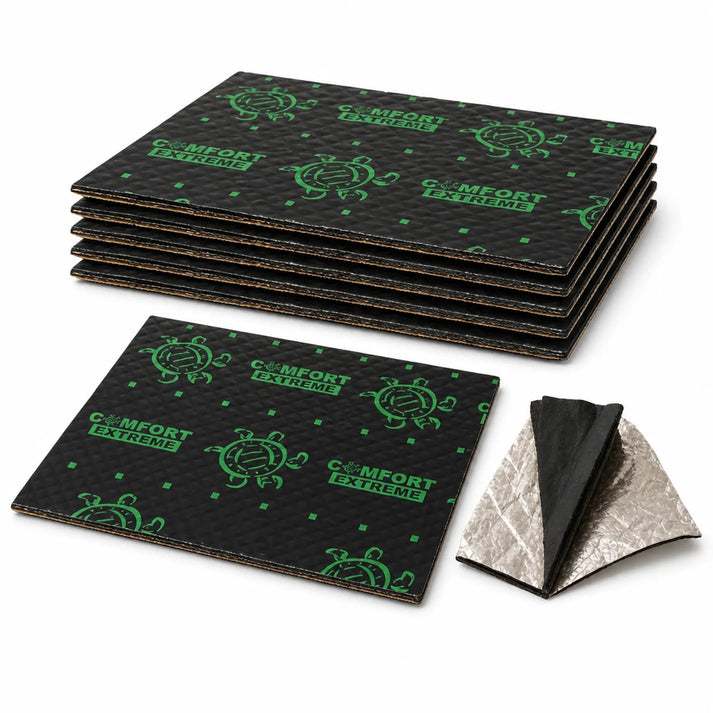

Extreme 3.5mm by Comfort Mat

Extreme 3.5mm is an Insulation from Comfort Mat with a thickness of 3.5 mm and a sheet size of 500 x 700 mm. The universal vibration damping mat is made from a blend of special butyl polymers with a bitumen layer and is reinforced with two layers of aluminum foil. The mechanical loss factor is 0.63, the adhesion is 11 N/cm, and the weight is 6.43 kg/m². The foil thickness is 2 x 0.1 mm, and the sheet weight is 2.25 kg. Features such as water resistance, corrosion protection, and resistance to environmental influences are present. It is intended for use as the first layer; heating is required during installation. Color Black/Green, 5 pieces per pack. Usage locations: wheel arches, front wall, vehicle floor, and SPL vehicles.

Features
  • Insulation
  • Universal vibration damping mat
  • Material mix: special butyl polymers with bitumen layer
  • Reinforcement: two layers of aluminum foil
  • Water resistant
  • Corrosion protection
  • Used as the first layer
  • Must be heated during installation
  • Color: Black/Green
  • Package contents: 5 pieces
  • Usage location: wheel arches, front wall, vehicle floor, SPL vehicles
Technical Data
  • Thickness: 3.5 mm
  • Sheet size: 500 x 700 mm
  • Foil thickness: 2 x 0.1 mm
  • Mechanical loss factor: 0.63
  • Sheet weight: 2.25 kg
  • Weight: 6.43 kg/m²
  • Adhesion: 11 N/cm

Your benefits at Masori

Frequently Asked Questions about Extreme 3.5mm

What materials are used in the Extreme 3.5mm from Comfort Mat?

The Extreme 3.5mm from Comfort Mat is made from a special blend of butyl polymers and a bitumen layer. These layers are reinforced by two layers of aluminum foil, each with a thickness of 0.1 mm. This combination of materials provides outstanding adhesion to metal surfaces and offers excellent damping properties under high vibration loads. Additionally, the product is water-resistant and provides corrosion protection, making it durable and resilient against environmental influences. This composition ensures a high mechanical loss factor of 0.63, effectively reducing vibrational energy.

What is the plate size of the Extreme 3.5mm damping mat?

The Extreme 3.5mm damping mat from Comfort Mat has a plate size of 500 x 700 mm. With a thickness of 3.5 mm, it has been specifically designed for use in areas with high vibration loads. This generous plate size is ideal for covering larger areas, such as wheel arches, front walls, or vehicle floors. Combined with its high adhesion of 11N/cm, this size provides an efficient way to dampen vibrations in various vehicle areas and optimize acoustic performance. These dimensions also facilitate adaptation to different surfaces and specifications.

What environmental properties does the Comfort Mat Extreme 3.5mm have?

The Extreme 3.5mm from Comfort Mat is characterized by its remarkable resistance to environmental influences. It is fully water-resistant, meaning it is not affected by moisture or dampness, making it ideal for use in places exposed to such conditions. Furthermore, it offers effective corrosion protection, ensuring that the underlying metal surfaces remain protected from rust. These properties ensure that the damping mat has a long lifespan even under challenging environmental conditions, without compromising functionality or structural integrity.

What purposes is the Extreme 3.5mm used for?

The Extreme 3.5mm damping mat from Comfort Mat is specifically designed for insulation in areas with high vibration loads. It is often used in SPL vehicles as well as in vehicle components such as wheel arches, bulkheads, and floors. This versatile application is supported by its outstanding adhesion to metal and the high mechanical loss factor, which effectively reduces vibrational energy. The mat is ideal as the first layer in insulation systems and not only offers acoustic benefits but also protects against water and corrosion, making it a reliable choice for many applications.

What specific properties influence the mechanical performance of the Extreme 3.5mm?

The mechanical performance of the Extreme 3.5mm from Comfort Mat is significantly determined by its high mechanical loss factor of 0.63. This value describes the mat's ability to convert vibrational energy into heat through internal friction, leading to a significant reduction in vibrations. The thickness of the mat at 3.5 mm, combined with the double-layer aluminum foil and the special butyl polymer blend, ensures optimal structural damping. Such properties make the mat ideal for use in areas with intense vibration loads, as commonly found in vehicles.

How is the Comfort Mat Extreme 3.5mm properly installed?

When installing the Comfort Mat Extreme 3.5mm, it is important to warm the mat before placement to activate the adhesive bond. Heating also facilitates the adaptation to various surfaces, especially with complex contours of vehicle structures. It is used as the first layer in the insulation system, providing a base for additional, potentially softer insulation materials. The mat should be applied cleanly and evenly to the designated metal surface to ensure maximum adhesion and effectiveness in vibration damping.

How much does a single plate of the Extreme 3.5mm weigh?

A single panel of the Extreme 3.5mm from Comfort Mat weighs 2.25 kg. This weight contributes to the overall load of 6.43 kg/m², which strongly supports the damping effects. The weight is a crucial factor that influences vibration damping because it increases the mechanical responsiveness of the material. The higher the weight per unit area, the more effectively the mat can absorb and reduce the vibrational energy transmitted from metal surfaces, leading to improved acoustic performance and driving comfort.

How many pieces of the Extreme 3.5mm mat are included in a package?

A package of the Comfort Mat Extreme 3.5mm contains five pieces. This quantity allows for effective insulation of larger areas or targeted use in multiple locations within the vehicle. Each mat is clearly defined by its dimensions of 500 x 700 mm and the specific material blend that ensures high vibration reduction. This packaging unit facilitates the planning and execution of insulation projects, especially when multiple zones within a vehicle need to be treated to maximize sound and vibration damping.

What color options are available for the Extreme 3.5mm?

The Comfort Mat Extreme 3.5mm is available in a black/green color scheme. This color combination offers a modern and discreet look that integrates well into the interior design of vehicles without being visually intrusive. The choice of color can also serve as an indicator for the correct placement of the mat during installation, especially in cases where certain colors are associated with corresponding surfaces in the vehicle. Color-wise, the mat is optimized to combine functionality and aesthetics.

Which vehicle models is the Extreme 3.5mm compatible with?

The Comfort Mat Extreme 3.5mm is universally applicable and therefore compatible with a wide range of vehicle models, particularly when used in wheel arches, firewall areas, and vehicle floors. Due to its standard dimensions, it fits various car manufacturers and models, but it is important to check the space conditions before installation. Since the mat is used as the first layer in the insulation system, it can be easily combined with other damping materials, making it a versatile solution for sound and vibration insulation in different types of cars.
