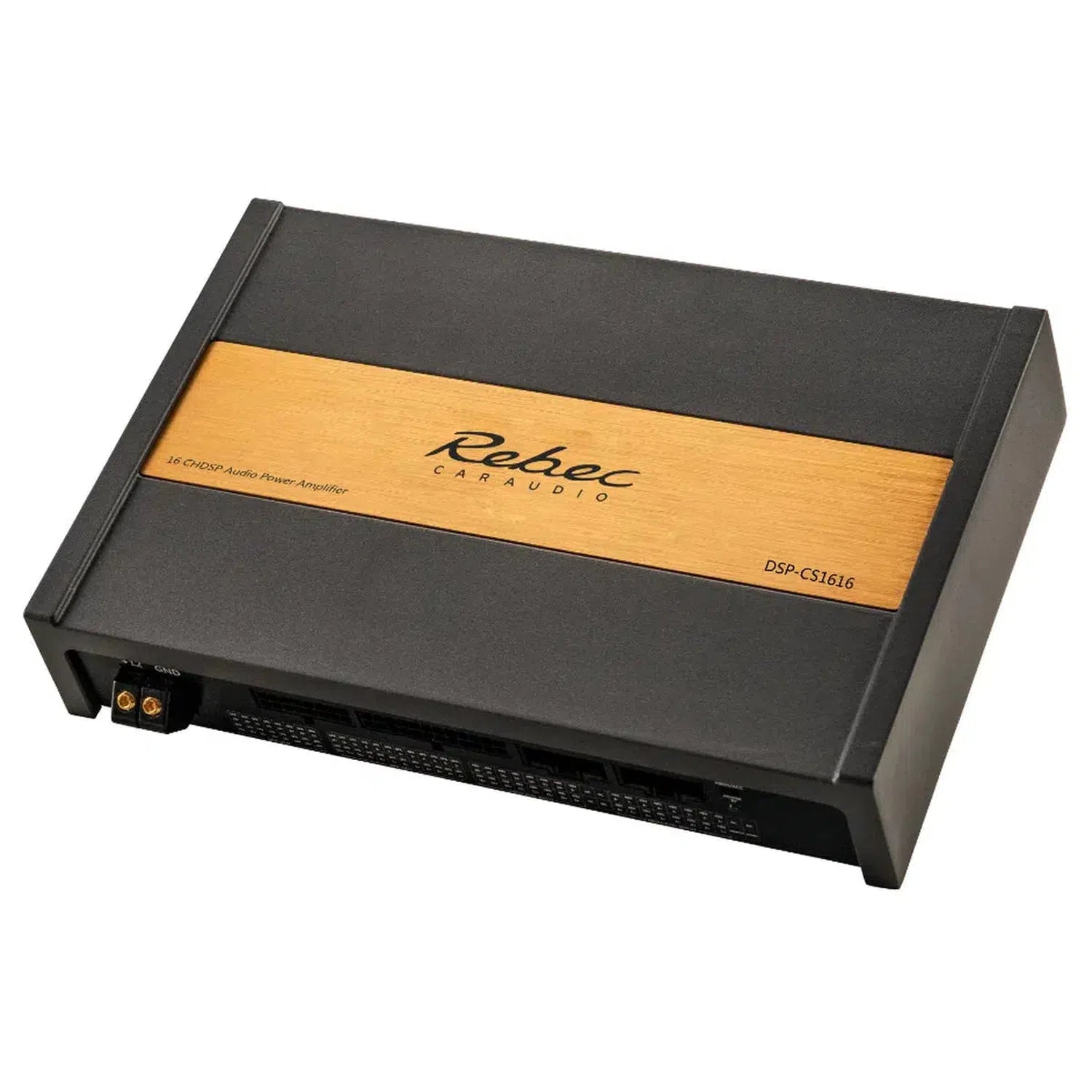

Rebec CS1616 16-channel DSP amplifier

Output power: 12x60 W + 4x80 W at 4 Ω, bridge 2x200 W.
DSP function: 16x31 segment PEQ, multi-slope settings.
16 inputs, Bluetooth V5.0, U-disk DSD128 playback.
Mehr technische Details

00

€899,10

~~€999,00~~ €899,10

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €74,92 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €84,99 60 Monate Plusgarantie Am beliebtesten €94,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

MuswayM6v3-24V

RebecCS1212

CS1616 by Rebec

Discover the CS1616 from Rebec, a product that impresses with its technical sophistication. This model offers you precise processing with high reliability. It scores with a user-friendly design and versatile application possibilities. Trust in the quality and expertise that Rebec provides you with the CS1616.

Main functional features

2 low-level inputs, 16 high-level inputs, Bluetooth inputs, U-Disk playback (DSD128), optical input (up to 96 kHz sampling rate).
16 high-level outputs, 16 RCA outputs.
High levels can be mixed and output with other sources.
DSP Function: Matrix routing function, each output channel selects the input signal source. 16×31-segment PEQ, multi-slope high-pass and low-pass function. 16 channels with independent delay settings. Supports input EQ, delay, high-pass and low-pass filter settings.
Output power (14.4 V supply, including line loss): RMS: 12x60 W + 4x80 W at 4 Ω (Bridge 2X200 W)
Complete protection: reverse polarity protection of the power supply, overcurrent protection, undervoltage protection, overvoltage protection, load dump protection, short circuit protection at the output of the power amplifier, etc.
Dual-Mode Bluetooth V5.0.
Start-up mode, switch to ACC or high start.
Supports the coordination of mobile PCs.
Six EQ modes can be preset.
Supports the control of the color display via cable.
Dimensions 296 x 193 x 57 mm
Supports the lossless playback function.
Supported files: MP3 WAV FLAC WMA DSD64/128

Rebec CS1616 Datenblatt

Datenblatt öffnen

Frequent questions about CS1616

Welche Eingänge unterstützt der CS1616 von Rebec?

The Rebec CS1616 offers a variety of input options, including two low-level inputs and 16 high-level inputs. Additionally, it features Bluetooth inputs and supports U-Disk playback with DSD128. A fiber optic input also allows for a sampling rate of up to 96 kHz. This variety of inputs makes the CS1616 extremely flexible for integration into various audio systems. Especially if you value extended connectivity for digital and analog inputs, this functionality will impress you. The versatility of the inputs allows for connecting different audio sources according to preference and need.

Wie viele Ausgänge besitzt der CS1616 von Rebec?

The Rebec CS1616 is equipped with a total of 16 high-level outputs as well as 16 RCA outputs. This configuration allows you to connect a wide range of speakers or other audio output devices to create a rich and comprehensive sound experience. The ability to mix and output high levels with other sources greatly expands the application areas and flexibility of the device. This is particularly advantageous when you want to coordinate and control different speaker systems. The multitude of outputs makes the CS1616 an ideal choice for complex audio environments.

Welche DSP-Funktionen bietet der CS1616?

The CS1616 from Rebec features advanced DSP functions, including a matrix routing function that allows each output channel to select its respective input signal source. Additionally, there is a 16x31 segment PEQ, including a multi-slope high-pass and low-pass function. Each of the 16 channels can be independently delayed, allowing for precise tuning and sound optimization. These DSP functions are crucial for efficiently managing and customizing audio output. If sound fidelity and expandability are important to you, you will appreciate the customization options of the CS1616. These advanced DSP features make it possible to tailor complex systems individually.

Welche Schutzvorrichtungen bietet der CS1616?

The Rebec CS1616 shines with a range of comprehensive protection devices. These include reverse polarity protection of the power supply, overcurrent protection, and undervoltage protection. Additionally, surge protection and load-dump protection are integrated, as well as short-circuit protection at the output of the power amplifier. These protective measures are essential to ensure that the system operates consistently and safely under variable electrical conditions. Especially in an environment with potentially fluctuating power conditions, these protection mechanisms provide you with the reassuring security to fully utilize your audio system without the risk of damage.

Unterstützt der CS1616 von Rebec Bluetooth?

Yes, the CS1616 is equipped with Dual-Mode Bluetooth V5.0, which allows for easy and effective connections with compatible Bluetooth devices. This is ideal for wireless audio transmission from smartphones or other Bluetooth-enabled devices. By integrating Bluetooth into the system, it remains flexible and expandable without relying on the hassle of additional cables. Especially if you value wireless freedom and modern audio streaming, the CS1616 offers a user-friendly solution. The dual operating mode provides additional flexibility to meet various requirements in audio streaming.

Welche Abmessungen hat der CS1616 von Rebec?

The CS1616 from Rebec measures 296 x 193 x 57 mm. This compact design makes it easier to integrate the device into various environments, whether in an existing audio system or in limited space. If you are looking for a powerful audio component that seamlessly fits into tight spaces, the size structure of the CS1616 is advantageous. These dimensions allow for easy installation and positioning, so you don't have to forgo advanced features. The space-saving design also makes it flexible for a wide range of installation scenarios.

Wie hoch ist die Ausgangsleistung des CS1616?

The Rebec CS1616 offers impressive output power with a 14.4 V supply, taking into account line loss. It provides 12x60 W and 4x80 W at 4 Ω, while in bridge mode even 2x200 W is possible. This high power capability allows for effective driving of various speaker types and delivers remarkable sound intensity, perfect for audio enthusiasts. If power and versatility are crucial for you, the CS1616 meets your requirements with flying colors. The power generates a dynamic sound output, ideal for demanding audio environments.

Kann der CS1616 verlustfreie Audioformate wiedergeben?

Yes, the Rebec CS1616 supports lossless playback functionality, which is indicative of a high-quality audio experience. Supported file formats include MP3, WAV, FLAC, WMA, and DSD64/128. This variety of supported formats ensures that you can access a wide range of your music library and play it back in outstanding quality. If you are a discerning listener who values audiophile sound, you will appreciate the quality audio output of the CS1616. Compatibility with lossless formats significantly expands the system's usability.

Welche EQ-Einstellungen bietet der CS1616?

The CS1616 from Rebec offers comprehensive equalizer settings, including six EQ modes that can be preset. Additionally, it supports input EQ, delay, and high and low pass filter settings, providing a variety of customization options for different audio experiences. These fine-tunings allow you to adjust the sound precisely to your preferences, whether for different music genres or speaker environments. The exceptional control over the sound effect through these EQ features significantly enhances your audio system, especially if you enjoy experimenting and want to get the most out of your listening space.

Wie erfolgt die Steuerung des CS1616 über mobile Geräte?

The Rebec CS1616 supports the tuning of mobile PCs, allowing you to control the audio system precisely and conveniently via a mobile device. Changes and settings can be made directly through the mobile interface, greatly simplifying operation. Additionally, the CS1616 supports the control of the color display via cable. This advanced control option allows you to make settings flexibly and quickly, without relying on additional installations. Especially for technology enthusiasts looking for an intuitive control solution, the CS1616 offers an ideal platform.
