  5. Voice AV 1.1

Audison Voice AV 1.1 Dome Tweeter

5 Reviews

90 Watt

Audison Voice AV 1.1 Dome Tweeter

5 Reviews

Technical Highlights

  • Peak power of 180 W, impedance of 4 ohms, frequency response: 1.2k 22k Hz.
  • CCAW voice coil, Ø 28 mm, neodymium magnet, high efficiency.
  • Tetolon dome, low mass, resonance-free behavior, 28 mm size.
  • More technical details
€139,00
€139,00 €139,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 23, - Mar 26,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €11,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
AudisonSR4,500
Audison-SR 4.500-4-Kanal Verstärker-masori-kaufen
Audison-Forza DRC AC-DSP-Zubehör-masori-kaufen
AudisonForza DRC AC
Audison-Voce AV 1.1-Kalotten-Hochtöner-masori-kaufen
€139,00
€139,00 €139,00

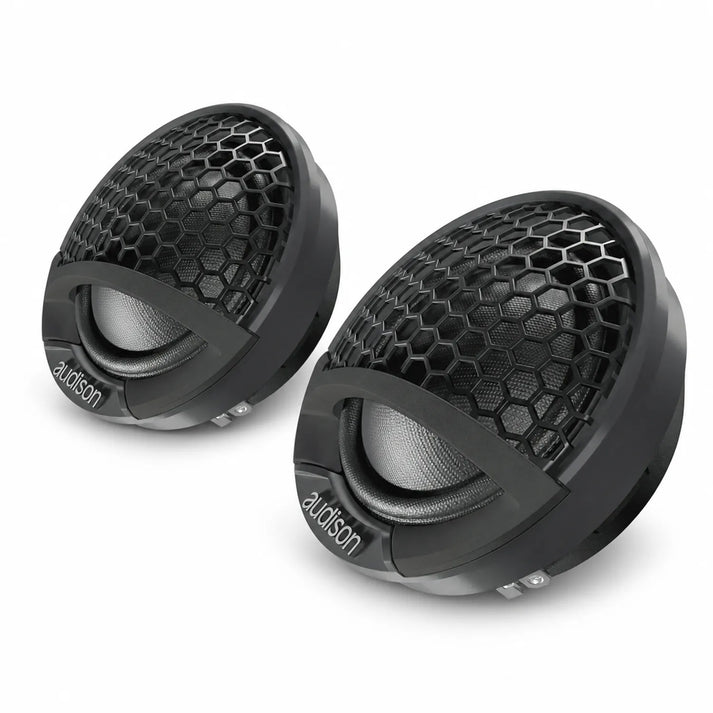

Voice AV 1.1 by Audison

Welcome to the world of rich sound! The Voce AV 1.1 dome tweeter from Audison, a leading provider in the audio sector, manages to produce a vibrant, natural, and detailed sound through its advanced technology and fine selection of materials. With its lightweight Tetolon diaphragm, double-layered CCAW voice coil, and high-density neodymium magnet, the Voce AV 1.1 delivers a peak power of 180 W and a wide frequency response between 1.2k and 22k Hz, with a size of 28 mm and an impedance of 4 Ohms. Look forward to reduced harmonic distortions and an exceptional sound experience that comes straight from the heart of your audio system.

TECHNICAL DATA

  • Size 28 mm
  • Load capacity - Peak 180 W
  • Power consumption with crossover Hi-pass filtered 2.0 kHz @ 12 dB/Oct
  • Impedance 4 Ohm
  • Frequency response 1.2k - 22k Hz
  • Magnet Material NEODYMIUM
  • Oscillating coil Ø 28 mm
  • Material of the vibrating coil CCAW
  • Subwoofer Qes 1.38
  • Membrane material TELOTON FIBRE

ELECTRO-ACOUSTIC PROPERTIES

  • D 28 mm
  • Re 3.3 Ohm
  • Fs 1000 Hz
  • Mms 0.3 g
  • Cms 0.07 mm/N
  • BL 2.2 T•m
  • Qms 4.2
  • Qts 1.04
  • The Standard 0.3 mH
  • The mH @ 10 kHz 0.07 0.03
  • Spl 92 dB

GENERAL

  • Weight 0.07 kg

DIMENSIONS

  • Size A 48 mm
  • Size C 28 mm
  • Measurement D 15.2 mm

PROPERTIES

  • Tetolon-Kuppel, a combination of silk and cotton with proprietary damping treatment, offers low mass and resonance-free behavior up to ultrasonic frequencies.
  • CCAW (Copper Clad Aluminium Wire) spool wound in double layers, extremely light and compact, resulting in very high efficiency and a crisp, dynamic sound.
  • The ring-shaped geometry of the rear damping chamber, along with the patented damping material, extends the frequency response to lower limits and reduces harmonic distortions.
  • Neodymium magnet with high flux density, for very high efficiency and detailed sound.

Your benefits at Masori

Audison Voice AV 1.1 Datasheet

Open datasheet

Frequently Asked Questions about Voice AV 1.1

What is the power of the Audison Voce AV 1.1 Tweeter?

The Audison Voce AV 1.1 Tweeter reaches a peak power of 180 watts. This power allows for precise sound reproduction even at high volumes without significant distortion. The recommended power input through a Crossover is at 2.0 kHz with a roll-off of 12 dB per octave. These technical details are specifically designed to optimally operate the tweeter and present the sound realistically and dynamically. Especially if you enjoy listening to music loudly, this capability is crucial for maintaining sound quality.

What frequency ranges does the Voce AV 1.1 cover?

The Audison Voce AV 1.1 covers a frequency range from 1.2 kHz to 22 kHz. This allows for detailed reproduction of both mid and high frequencies, making the sound vibrant and realistic. The ability to reproduce high frequencies up to 22 kHz enables capturing the subtlest nuances and details in the soundscape, which are essential for an immersive listening experience. The special Tetolon membrane ensures resonance-free behavior, minimizing disruptive artifacts in the sound.

What materials are used in the Audison Voce AV 1.1?

The Audison Voce AV 1.1 uses a Tetolon membrane made of silk and cotton, complemented by a proprietary damping treatment. This ensures low mass and resonance-free behavior. The tweeter also features a double-layered CCAW voice coil, which is responsible for high efficiency and dynamic sound. The high-density neodymium magnet ensures that the efficiency remains high and the sound is presented in detail. These special materials significantly contribute to performance and sound quality.

What are the dimensions of the Voce AV 1.1 and how does that affect installation?

The Audison Voce AV 1.1 Tweeter has a size of 28 mm with specific dimensions: Measurement A is 48 mm, Measurement C is 28 mm, and Measurement D is 15.2 mm. The compact design facilitates integration into various audio designs. Due to these dimensions, the Voce AV 1.1 is flexible enough to be installed in different vehicle models without causing space issues. When installing, you should ensure that there is enough room for the rear damping chamber to fully utilize the sound quality.

How is the CCAW voice coil of the Voce AV 1.1 constructed?

The CCAW voice coil in the Audison Voce AV 1.1 is double-layered, making it particularly lightweight and compact. This design promotes the high efficiency of the Tweeter and maximizes sound performance with minimal distortion. By using copper-clad aluminum wires, improved conductivity is ensured, leading to a clear and dynamic sound. The coil winding is designed for a diameter of 28 mm to ensure optimal contact with the neodymium magnet and to accurately reproduce high frequency ranges.

What role does the neodymium magnet of the Voce AV 1.1 play?

The Audison Voce AV 1.1 Tweeter features a neodymium magnet that impresses with its high flux density. This type of magnet ensures high efficiency by precisely controlling the movements of the voice coil, guaranteeing detailed and clear sound. The compact design of the neodymium magnet allows for easy and space-saving integration into the Tweeter's design without compromising sound quality. This property significantly contributes to the efficient transmission of audio signals and distortion-free reproduction.

What electro-acoustic properties does the Voce AV 1.1 have?

The Audison Voce AV 1.1 has an impedance of 4 Ohms and an efficiency of 92 dB. The Thiele-Small parameters include Qes of 1.38, Qms of 4.2, and Qts of 1.04, which describe the electromechanical efficiency and behavior of the Tweeter. Other parameters such as the moving mass (Mms) of 0.3 g, the force factor (BL) of 2.2 T•m, and the mechanical compliance (Cms) of 0.07 mm/N provide insight into the physical properties of the system. These technical specifications describe the coherent and detailed reproduction of audio content.

How does the Tetolon membrane of the Voce AV 1.1 affect sound quality?

The Tetolon membrane of the Audison Voce AV 1.1 significantly contributes to its excellent sound quality. This innovative combination of silk and cotton is refined through a proprietary damping treatment that reduces its resonances and keeps the sound clear and uncolored even at ultrasonic frequencies. The low mass allows for fast and precise movements, resulting in undistorted sound wave emission. This choice of material contributes to a wonderfully natural and vibrant sound that retains its brilliance even at high volumes.

Why are the harmonic distortions of the Voce AV 1.1 reduced?

In the Voce AV 1.1, harmonic distortions are reduced due to the special geometry and damping material of the rear chamber. The ring-shaped damping chamber utilizes patented damping material, which extends the frequency response to lower cutoff frequencies while simultaneously lowering harmonic distortions. This advanced acoustic architecture minimizes unwanted vibrations and prevents disturbing frequencies from affecting the sound image. The result is a clean and crisp sound reproduction that emphasizes authenticity and richness of detail.

How does the size of the Voce AV 1.1 influence its sound characteristics?

The size of 28 mm of the Voce AV 1.1 tweeter significantly influences its sound characteristics. The targeted tuning of this dimension allows for precise control of the diaphragm movement and optimization of frequency projection. A balanced diameter like this enables the reproduction of a wide frequency spectrum from 1.2 kHz to 22 kHz. This dimension aligns with the ability to vividly and dynamically represent both the fine details of the highs and subtle elements of the mid frequencies, which is crucial for the overall sound.
