Audison SR6,600 6-Channel Amplifier

1 Review

140 Watt

Audison SR6,600 6-Channel Amplifier

1 Review

Technical Highlights

  • Power: RMS 1120 W, efficiency over 87%, distortion 0.05%.
  • Impedance: Ch 1-4: 2Ω, Ch 5-6: 1Ω, bridged up to 4Ω.
  • Frequency range: bandwidth 10Hz 42kHz, hi-pass up to 700Hz.
  • More technical details
€499,00
€499,00 €499,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 23, - Mar 26,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
AudisonAP TH FRD02
Audison-AP T-H FRD02-T-Adapter-masori-kaufen
Audison-Forza AF C4D-4-Kanal Verstärker-masori-kaufen
AudisonForza AF C4D
Audison-SR 6.600-6-Kanal Verstärker-masori-kaufen
€499,00
€499,00 €499,00

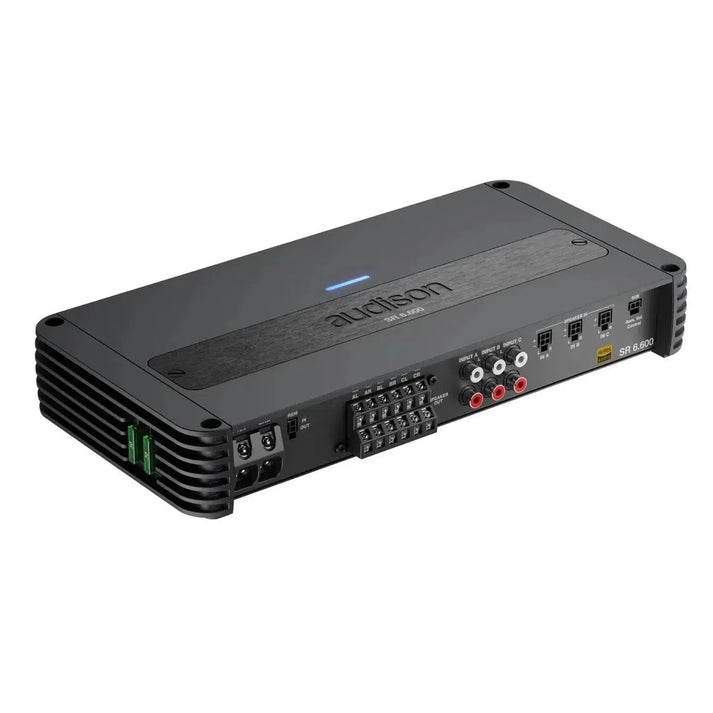

SR6,600 by Audison

The SR 6.600 from Audison is a premium 6-channel amplifier that stands out for its high performance and flexibility. Developed by a renowned manufacturer in the audio industry, this device belongs to the Class-D amplifier category and delivers impressive output power. With extensive technical specifications such as a bandwidth of 10Hz - 42kHz, an input sensitivity of Pre-In 0.32 - 8 VRMS, and an efficient efficiency of over 87%, the SR 6.600 brings quality and power into your hands. Additionally, it offers various modes and connection options and is highly versatile.

Technical Data

  • 6-channel amplifier
  • Class-D amplifier
  • Output power (RMS) @14.4 VDC, 1% THD
  • 6Ch Watt RMS @4Ω: 85 x 4 + 110 x 2
  • 6Ch Watt RMS @2Ω: 140 x 4 + 185 x 2
  • 6Ch Watt RMS 1-4 @ 2Ω , 5/6 @1Ω: 140x4/300x2
  • 5Ch Watt RMS @4Ω: 85 x 4 + 370 x 1
  • 5Ch Watt RMS @2Ω: 130 x 4 + 600 x 1
  • 4Ch Watt RMS @4Ω: 280 x 2 + 110 x 2
  • 4Ch Watt RMS @2Ω: 130 x 2 + 260 x 1 + 600 x 1
  • 3Ch Watt RMS @4Ω: 280 x 2 + 370 x 1
  • 3Ch Watt RMS : 280 x 2 @4Ω + 600 x 1 @2Ω
  • Efficiency >87%
  • Hi Level Input Yes
  • Low Level Input Yes
  • Operating voltage of power supply 11 - 15V / 2 x 30A
  • Idle current 2.2 A
  • Idle current when switched off 0.04 mA
  • Power consumption @ 14.4 VDC, 2Ω, Max music power 54 A
  • Remote OUT 4 - 15 VDC (150 mA)
  • Remote IN 4 - 15 VDC (1 mA)
  • ART - Automatic on/off switching
  • Distortion - THD @ 100 Hz, 4Ω, 70% rated power 0.05 %
  • Bandwidth 10Hz - 42 kHz
  • S/N ratio 102 dBA
  • Input sensitivity Pre-In 0.32 - 8 VRMS
  • Pre In Impedance >10 kOhm
  • Input sensitivity Speaker-In 1.6 - 40 VRMS
  • Total RMS power 1120 W
  • Minimum impedance Ch 1-4: 2Ω, Ch 5-6: 1Ω, 1+2/3+4 bridged: 4Ω, 5+6 bridged: 2Ω
  • Adjustable crossover Yes
  • Input type Pre-In / Speaker-In
  • Hi-pass: 50 - 500 Hz @ 12 dB/Oct.
  • Band-pass: 50 - 700 Hz (Hi) / 50 - 5 kHz (Lo) @ 12 dB/Oct
  • Hi-pass: 50 - 700 Hz @ 12 dB/Oct
  • Lo-pass: 50 - 700 Hz @ 12 dB/Oct
  • Remote-controlled subwoofer volume (-20 - 6) dB
  • Weight 2.52 kg

Dimensions

  • A 314 mm
  • B 284 mm
  • C 155 mm
  • D 135 mm
  • E 47.4 mm

Dimensions of the Audison SR 6.600

Your benefits at Masori

Frequently Asked Questions about SR6,600

What are the performance specifications of the Audison SR 6.600 Amplifier?

The Audison SR 6.600 offers a variety of configurations with exceptional output power. At a supply voltage of 14.4 VDC, it achieves 85 W x 4 channels and 110 W x 2 channels at 4Ω. At 2Ω, the power increases to 140 W x 4 and 185 W x 2. The amplifier is flexible and can operate in various modes, such as 5-channel operation with 370 W per channel at 4Ω and up to 600 W at 2Ω. With a bandwidth of 10Hz to 42kHz, it covers almost the entire audible spectrum.

What crossover options does the SR 6.600 offer?

The SR 6.600 amplifier features an adjustable crossover for precise tuning. It includes a high-pass from 50 - 500 Hz @ 12 dB/Oct, a band-pass from 50 - 700 Hz in the high range and 50 - 5 kHz in the low range @ 12 dB/Oct. The low-pass frequencies range from 50 - 700 Hz also @ 12 dB/Oct. These options allow users to optimally adjust the sound to the respective speakers and acoustics, achieving clear, irresistible audio playback and maximizing versatility.

How efficient is the Audison SR 6.600 in terms of power consumption?

The Audison SR 6.600 is an extremely efficient Class D amplifier, with an efficiency of over 87%. In idle mode, it consumes only 2.2 A, with power consumption at maximum music output at 54 A. Additionally, the amplifier has a minimal idle current of just 0.04 mA when turned off. This efficient usage makes it ideal for cars with limited power budgets and ensures that the battery is not excessively strained. This is perfect if you have long listening sessions planned.

What are the impedance requirements for the SR 6.600 amplifier?

The Audison SR 6.600 is flexible in using speakers with different impedances. For channels 1-4, the minimum impedance is 2Ω, while channels 5-6 can even operate with a 1Ω impedance. If you want to bridge channels 1+2 or 3+4, an impedance of at least 4Ω is required, whereas bridged channels 5+6 need 2Ω. This flexibility allows you to use a wide range of speakers with varying impedances.

What input options does the Audison SR 6.600 support?

The SR 6.600 offers both Hi-Level and Low-Level inputs, making it compatible with a variety of audio systems. The Pre-In sensitivity ranges from 0.32 to 8 VRMS, while the Speaker-In sensitivity varies from 1.6 to 40 VRMS. This range allows for high-quality adaptation to many sources, regardless of signal strength. The Pre-In impedance is over 10 kOhm, ensuring clean signal transmission. This is particularly useful when combined with other audio system components.

How is the Audison SR 6.600 amplifier installed in a vehicle?

To install the Audison SR 6.600 in a vehicle, the dimensions are crucial: with a width of 314 mm, a depth of 284 mm, a height of 155 mm, and a thickness of 47.4 mm, the amplifier can be mounted discreetly. The floor space should match these dimensions to ensure proper ventilation and avoid overheating. When wiring, the power supply must be between 11 to 15 V DC, ensuring that the electrical requirements in the vehicle are sufficient. The installation location should be dry to optimally use the amplifier in the long term.

What is the operating voltage of the Audison SR 6.600?

The power supply of the Audison SR 6.600 operates at a voltage of 11 to 15 V. This voltage range ensures that the amplifier can be used in a variety of vehicles. It is important that the power supply remains stable to protect the amplifier from voltage fluctuations. A stable power supply allows for optimal operation of the amplifier, enabling it to continuously deliver full power. It is advisable to ensure that the vehicle's battery and charger are technically sound to guarantee the amplifier's full performance.

What advantages does Class-D amplifier technology offer in the SR 6.600?

The Audison SR 6.600 utilizes Class-D amplifier technology, known for its high efficiency and reduced heat generation. With over 87% efficiency, this technology minimizes energy loss, which is particularly beneficial in small vehicle interiors where cooling may be problematic. Class-D amplifiers also offer a compact design, making installation easier without taking up unnecessary space. Additionally, this technology provides a more precise and cleaner sound even at higher volumes, which is advantageous for discerning audiophiles.

What is the S/N ratio of the Audison SR 6.600?

The signal-to-noise ratio (S/N ratio) of the Audison SR 6.600 is 102 dBA, meaning the amplifier delivers an extremely clear signal with minimal background noise. This is crucial for the amplifier's excellent sound quality, as it provides a clear separation between the actual audio signal and background noise. Especially in quiet passages of music, a high S/N ratio prevents distracting noises from impairing the enjoyment of the music. This ensures that you can hear every tiny detail of your music without distractions from noise.

What parameters provide an automatic on/off switching mechanism in the SR 6.600?

The Audison SR 6.600 features ART - Automatic On and Off, which operates using Remote-IN (4 - 15 V, 1 mA) and Remote-OUT (4 - 15 V, 150 mA). This feature is particularly helpful as it automatically turns on the amplifier when an audio signal is detected and turns it off to save power when no signal is present. This makes using the amplifier in the vehicle more user-friendly and efficient, as no manual switching on and off is required, which can extend the device's lifespan.
