Audio System HX 100 DUST EVO3 5" (13cm) speaker set

Name: Audio System HX 100 DUST EVO3 5 inch speaker set
Brand: Audio System
Price: 509.15 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Audio System HX 100 DUST EVO3 5" (13cm) speaker set

Unique 3 ohm impedance, more power, intense kick bass.
5" woofer, strong neodymium magnets, compact design.
High sound quality, powerful, fits in the door.
Mehr technische Details

00

€509,15

~~€599,00~~ €509,15

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €42,42 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €54,99 60 Monate Plusgarantie Am beliebtesten €64,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Audio SystemX-2000.1 D

Audio SystemHX 130 DUST EVO3

HX 100 DUST EVO3 by Audio System

Discover the Audio System HX 100 DUST EVO3, a passive 2-way speaker set with exceptional features. With its unique impedance of 3 ohms, it draws more power from your amplifier than conventional systems. The speaker set with 5-inch mid-bass drivers features very strong neodymium magnets that deliver an intense kick bass. Despite their power, they require little space and even fit in the door. It is part of the renowned HX DUST EVO3 series and impresses with its high sound quality and performance.

Features

5-inch speaker set
2-way passive set

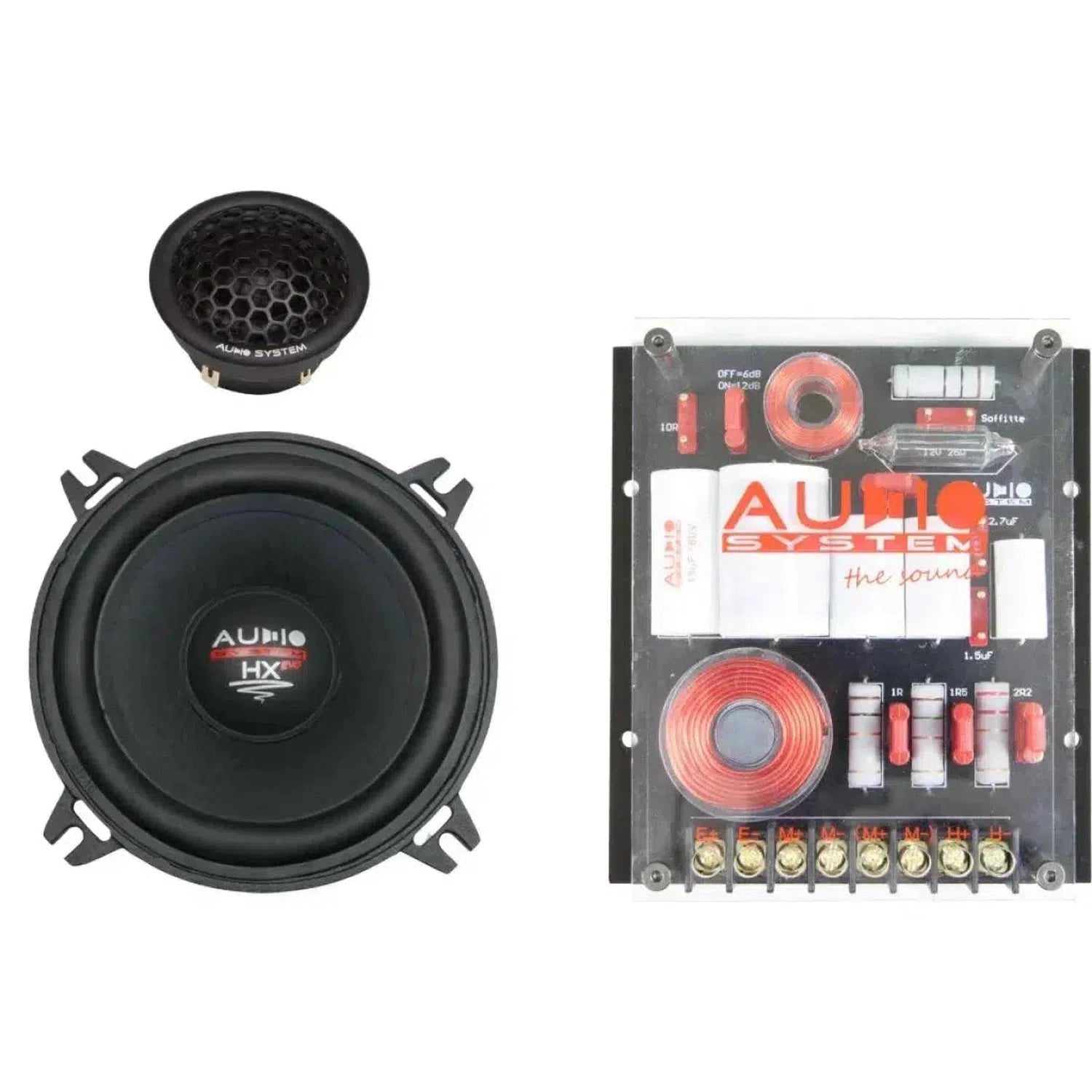

100 mm 2-way HIGH END component system consisting of:

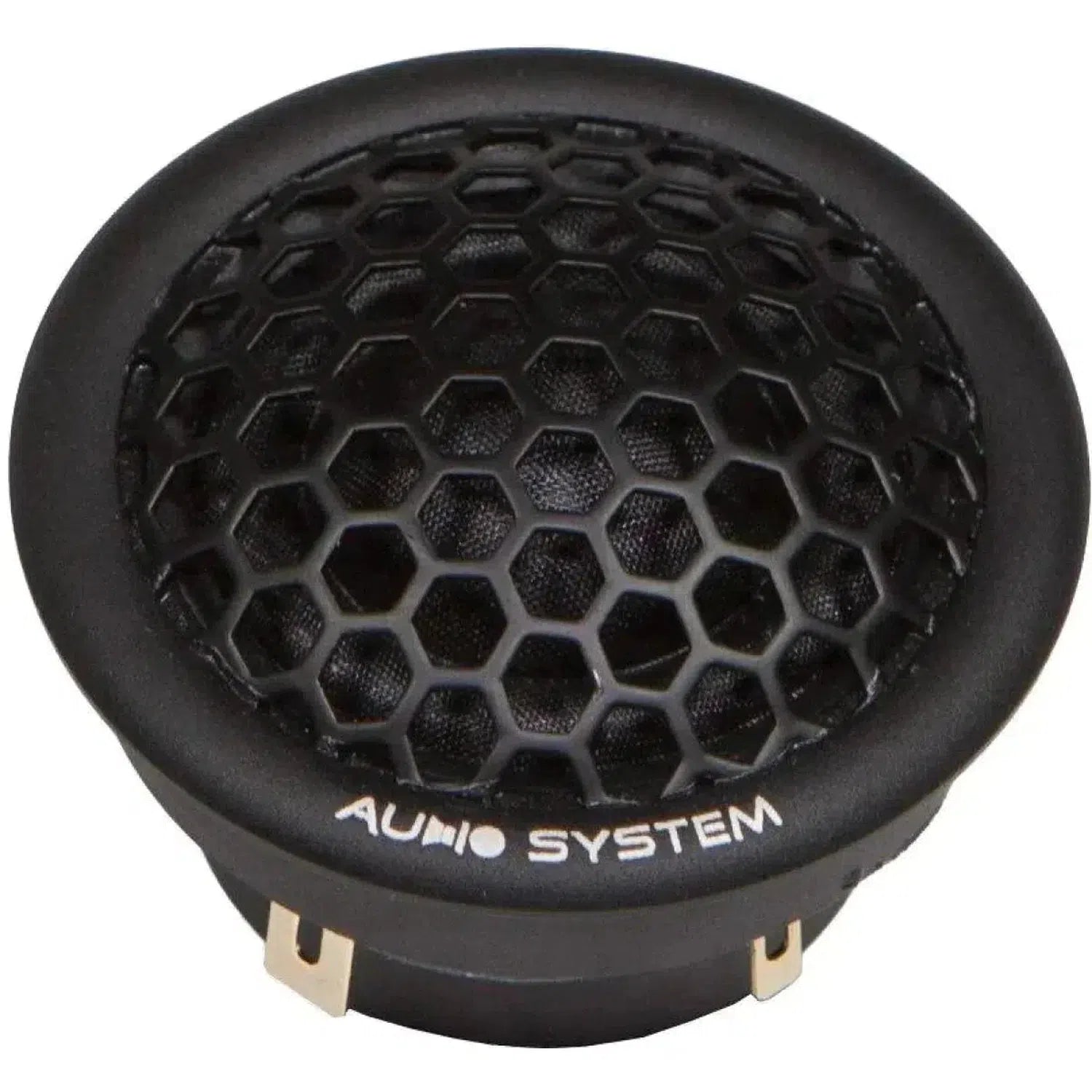

2x HS 25 DUST
2x FWHX

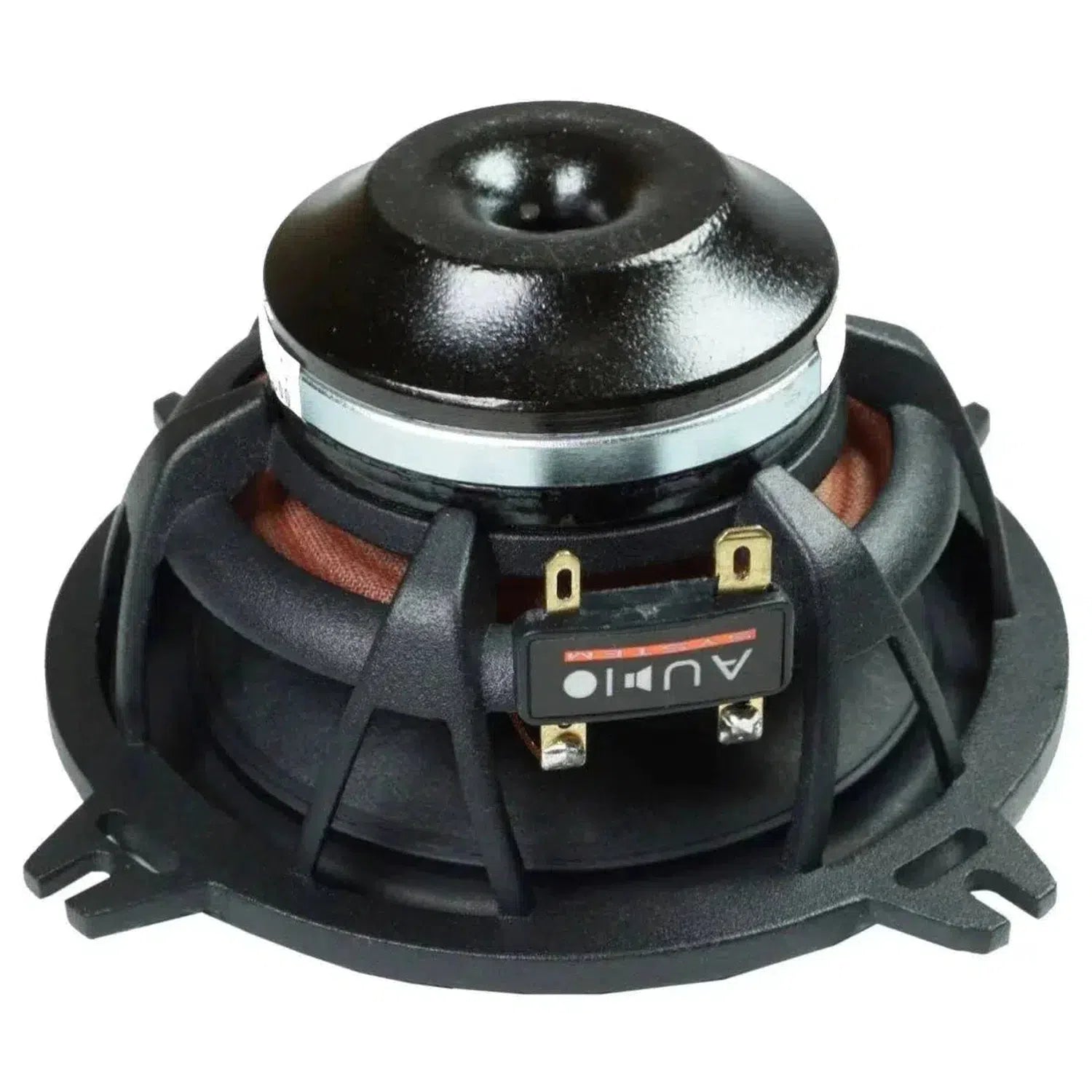

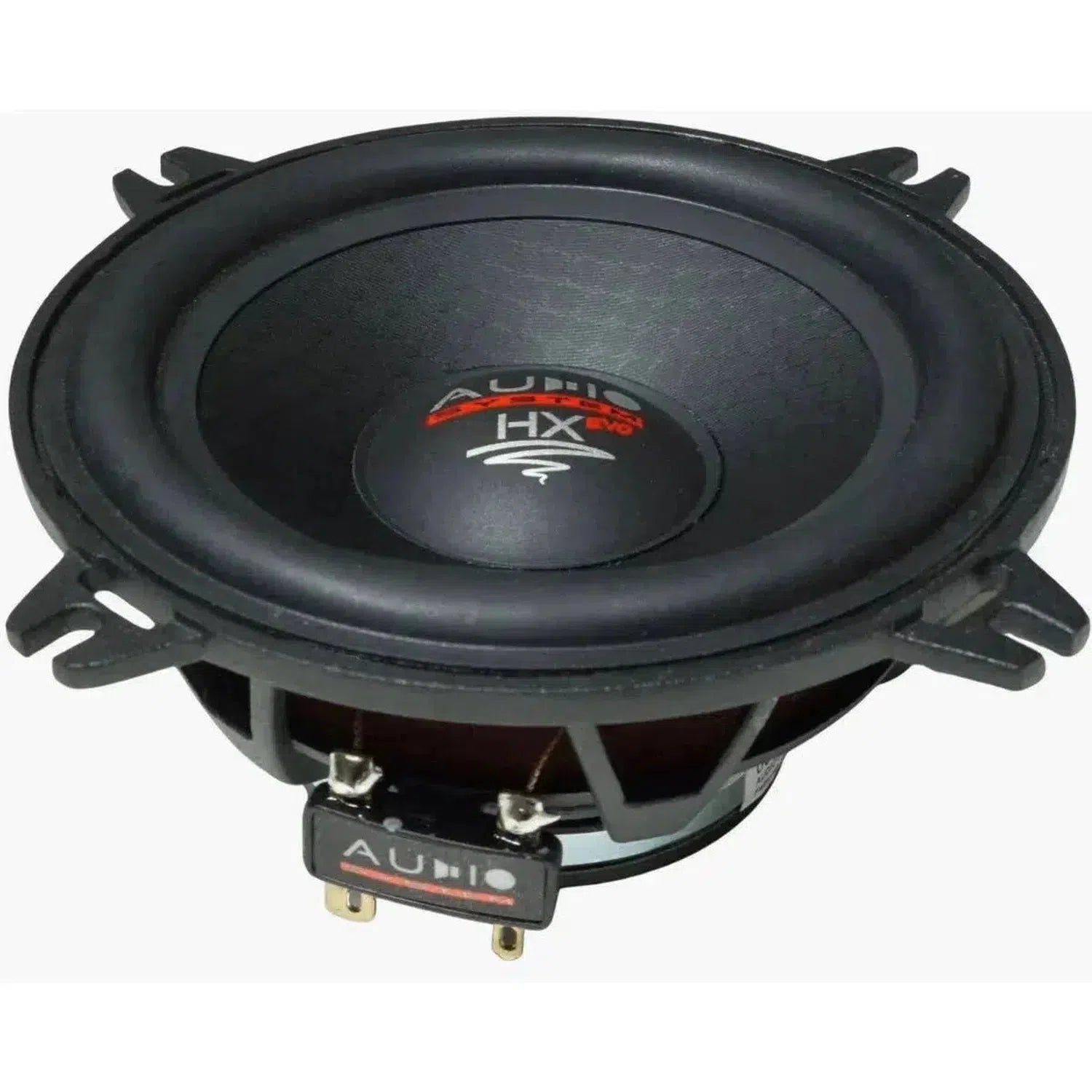

2x EX 100 DUST EVO 3

Specifications

Impedance: 3 ohms
Power: 2x 140/110 watts
Installation depth: 49.5 mm
Installation diameter: 93 mm

Frequent questions about HX 100 DUST EVO3

Was macht das Audio System HX 100 DUST EVO3 besonders?

The HX 100 DUST EVO3 from Audio System stands out due to its improved performance and compact dimensions. With an impedance of 3 ohms, which allows for higher power output from your amplifier, it offers high-quality sound. It consists of a passive 2-way speaker set that includes a 5" (13 cm) mid-bass driver and extremely strong neodymium magnets. This composition ensures intense kick bass while saving space due to the low installation depth of 49.5 mm. Additionally, it is made up of the components 2x HS 25 DUST, 2x FWHX, and 2x EX 100 DUST EVO 3, which together provide an impressive power of 2x 140/110 watts and offer installation flexibility with an installation diameter of 93 mm.

Wie hoch ist die Leistung des HX 100 DUST EVO3?

The audio system HX 100 DUST EVO3 speaker set offers an impressive performance of 2x 140 watts as maximum music power and 2x 110 watts RMS power. These power values highlight the speaker's ability to produce both high volumes and impressive sound dynamics. This strength is supported by the employed 3-ohm impedance, which provides better efficiency compared to conventional 4- or 8-ohm systems, ensuring that the amplifier can utilize its full capacity to enable powerful and clear music playback.

Welchen Einfluss hat die 3-Ohm-Impedanz des HX 100 DUST EVO3?

The 3-ohm impedance of the HX 100 DUST EVO3 ensures that more power is drawn from the connected amplifier, resulting in a more intense and dynamic sound reproduction. Compared to speaker systems with higher impedance values, such as 4 or 8 ohms, a 3-ohm system like the HX 100 DUST EVO3 allows for a more efficient use of the available amplifier power. This enables audio signals to be transmitted more powerfully and with greater sound richness, which is particularly advantageous at high volumes or with complex musical arrangements.

Welche Abmessungen hat das HX 100 DUST EVO3? Passt es in mein Auto?

The HX 100 DUST EVO3 speaker set features compact installation dimensions that allow it to be integrated into various vehicle models. The installation diameter is 93 mm and the installation depth is only 49.5 mm, making it easy to fit into many doors. These compact dimensions, combined with the powerful construction, allow for versatile installation. However, check your vehicle's installation specifications to ensure compatibility, as even slight deviations in the vehicle doors can be crucial.

Wie wird das Audio System HX 100 DUST EVO3 installiert?

The installation of the HX 100 DUST EVO3 can usually be done directly in the vehicle's doors, provided that the installation dimensions of 93 mm diameter and 49.5 mm depth are taken into account. Make sure to connect the existing speaker wires with the terminal connectors included in the set. Mechanical skills and an understanding of electronic components are advantageous for maximizing sound quality during installation. Ensure that the speaker is mounted in a way that minimizes any vibrations to avoid impairing sound reproduction. Correct polarity of the speaker connections is also essential for the system's full performance.

Welche Komponenten sind im HX 100 DUST EVO3 enthalten?

The HX 100 DUST EVO3 from Audio System consists of several specific components that together enable a balanced and powerful sound reproduction. The set includes two HS 25 DUST tweeters, which provide clear and precise highs. Additionally, there are two FWHX crossovers responsible for correctly dividing the audio signals between the woofers and midrange drivers. Also included in the set are two EX 100 DUST EVO 3 midwoofers. This combination of high-quality components ensures that every sound frequency is optimally reproduced, resulting in a harmonious sound image.

Welche Rolle spielt der Neodymmagnet im HX 100 DUST EVO3?

In the HX 100 DUST EVO3 speaker set, the neodymium magnets play a crucial role in sound reproduction by enabling a strong and intense kick bass. Neodymium, used as the magnet material, has an exceptionally high magnetic field strength, allowing the speaker drivers to operate with high precision and efficiency. These magnets are not only smaller but also lighter than conventional magnets, leading to a more compact overall design of the speaker. The result is a more powerful bass and an overall improved sound quality, without complicated construction or installation options.

Wie unterscheidet sich das 2-Wege System des HX 100 DUST EVO3 im Klang?

The 2-way system of the HX 100 DUST EVO3 divides the audio signal into two separate frequency ranges, allowing for clearer and more precise reproduction of highs and lows. The high frequencies are handled by the HS 25 DUST tweeters, which reproduce the nuances and details of the music, while the EX 100 DUST EVO 3 mid-bass drivers are responsible for the powerful bass and mids. This division enables a specialized and detailed sound reproduction that goes beyond what a single full-range speaker could achieve. This technology ensures impressive sound depth and precision, especially with demanding music.

Wie wirkt sich die hohe Soundqualität des HX 100 DUST EVO3 auf das Musikerlebnis aus?

The high sound quality of the HX 100 DUST EVO3 directly impacts the musical experience by providing a rich, detailed, and balanced soundscape. This quality is achieved through the interplay of well-matched components, such as the HS 25 DUST tweeters and the EX 100 DUST EVO 3 mid-bass drivers. The 3-ohm impedance and the crossovers ensure that each frequency range is reproduced clearly and without distortion. This particularly highlights sounds in dynamic music or complex arrangements that may be lost with other speaker systems, ensuring an immersive listening experience.

Welche technischen Merkmale des HX 100 DUST EVO3 beeinflussen den Klang?

Various technical features of the HX 100 DUST EVO3 intensely influence the sound. First, the specific 3-ohm impedance allows for higher efficiency in power consumption. The neodymium magnets contribute to strong and precise bass, while the 2-way configuration of the tweeter and mid-bass driver optimally separates and reproduces the frequencies. The exact dimensions - 93 mm installation diameter and 49.5 mm installation depth - allow for ideal integration into various vehicles. This combination of technical details ensures exceptional sound clarity, depth, and dynamics, which remain consistent even at high volumes.
