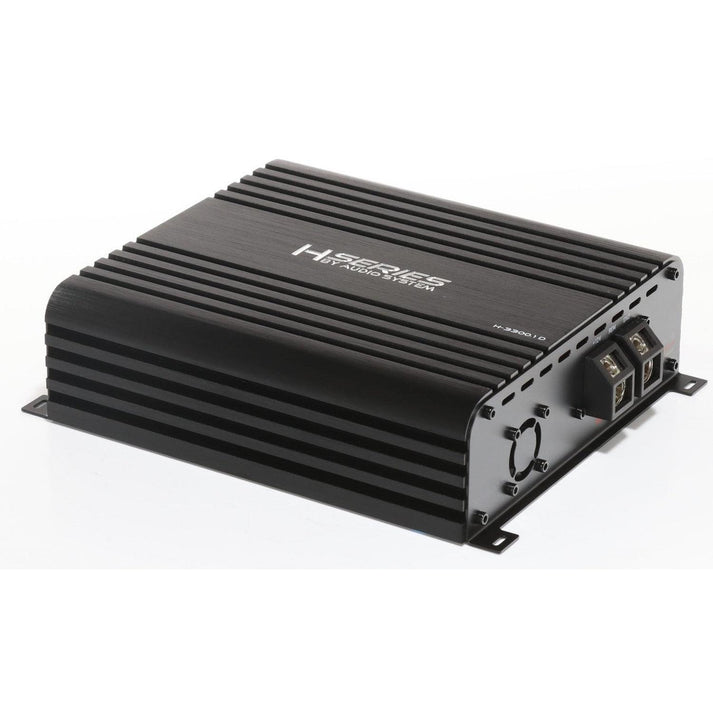

Audio System Helon H-3300.1 D 1-Channel Amplifier
SKU:  H-3300.1 D-12V
EAN:  4251834509832

Helon H-3300.1 D

SKU:  H-3300.1 D-12V
EAN:  4251834509832

Technical Highlights

  • Power: 1x 825 WRMS at 4 ohms, 1650 WRMS at 2 ohms, 3300 WRMS at 1 ohm.
  • Efficiency up to 84%, bass boost @ 45 Hz with 0 – 12 dB.
  • Subsonic filter, low pass filter, adjustable 0-180° phase shift.
  • More technical details
Normal price €499,00
Normal price €499,00 Selling price €499,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori


Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audio System-Helon H-3300.1 D 24V-1-Kanal Verstärker-masori-kaufen
Audio System-SW 11 Passive UNI-10" (25cm) Gehäusesubwoofer-masori-kaufen
Audio SystemSW 11 Passive UNI
Normal price €499,00
Normal price €499,00 Selling price €499,00

Helon H-3300.1 D by Audio System

Audio System Helon H-3300.1 D is a 1-Channel Amplifier from the Helon SERIES. The digital MONO high-performance amplifier with SMD technology features a Low Pass Filter and Subsonic filter. The phase shift is continuously adjustable from 0–180°. The efficiency is up to 84%. There is a RCA high-level input with automatic turn-on. Bass Boost at 45 Hz is adjustable from 0–12 dB. RTC is included. The power output is 1 x 825 WRMS at 4 Ohms, 1 x 1650 WRMS at 2 Ohms, and 1 x 3300 WRMS at 1 Ohm.

Features
  • 1-Channel Amplifier
  • Digital MONO high-performance amplifier with SMD technology
  • Helon SERIES
  • Low Pass Filter
  • Subsonic filter
  • Continuously adjustable phase shift 0–180°
  • Efficiency up to 84%
  • RTC included
  • RCA high-level input with automatic turn-on
  • Bass Boost at 45 Hz: 0–12 dB
Technical Specifications
  • RMS power at 4 Ohms: 1 x 825 WRMS
  • RMS power at 2 Ohms: 1 x 1650 WRMS
  • RMS power at 1 Ohm: 1 x 3300 WRMS
  • Efficiency: up to 84%
  • Phase shift: 0–180°
  • Bass Boost: 0–12 dB at 45 Hz
  • Input: RCA high-level input with automatic turn-on

Your benefits at Masori


Audio System Helon H-3300.1 D Datasheet

Frequently Asked Questions about Helon H-3300.1 D


What performance specifications does the Helon H-3300.1 D Amplifier offer?

The Helon H-3300.1 D from Audio System is a MONO amplifier that offers impressive performance specifications. You will find RMS outputs of 825 WRMS at 4 Ohms, 1650 WRMS at 2 Ohms, and 3300 WRMS at 1 Ohm. These figures make it extremely versatile, especially when high power demands are placed. The ability to adapt to different impedance levels ensures that you can always get the best audio performance from your system, regardless of the speaker configuration you use. This makes the H-3300.1 D perfect for demanding audio system installations.

How does the Low Pass Filter work on the Helon H-3300.1 D?

The Helon H-3300.1 D amplifier is equipped with a Low Pass Filter that is excellent for blocking frequencies above a certain point, thereby optimizing the sound quality of your Subwoofer. The Low Pass Filter is specifically designed to ensure that your amplifier only passes the low frequencies to the Subwoofer, reducing strain and interference at higher frequencies, and keeping the bass much clearer and more powerful at high volumes.

What does the Subsonic Filter do in the Helon H-3300.1 D?

The Subsonic Filter in the Helon H-3300.1 D amplifier is designed to filter out unwanted very low frequencies that could excessively strain your speaker system. Frequencies that fall below the human audible range are efficiently limited to protect your audio system. This minimizes distortion and ensures clearer sound reproduction, which plays a crucial role, especially in situations with extreme volumes. This filter significantly improves system stability and sound quality.

What is the Phase Shift in the Helon H-3300.1 D and how is it adjusted?

The continuously adjustable 0-180° phase shift in the Helon H-3300.1 D is an essential feature for fine-tuning your Audio System. It allows you to adjust the phase of your Subwoofer to achieve the best possible sound harmony with the other speakers in your system. Especially in complex audio installations, it is important to eliminate phase issues to maximize sound quality. By simply turning the knob on the Amplifier, you can find the optimal point where the bass is perfectly integrated into the overall sound image.

What is the efficiency of the Helon H-3300.1 D?

The Helon H-3300.1 D Amplifier features an efficiency of up to 84%. This high efficiency is particularly valuable for a digital amplifier, as it means that the amplifier effectively converts power into output, resulting in less energy loss. For you, this means less heat generation and lower energy consumption, while still allowing for maximum power output. This high efficiency is especially beneficial for power-intensive applications.

What advantages does the RCA high-level input of the Helon H-3300.1 D offer?

The RCA high-level input of the Helon H-3300.1 D allows for seamless integration into existing Audio Systems. With the automatic power-on feature, the amplifier is activated as soon as an audio signal is detected, significantly enhancing user-friendliness. This functionality is particularly convenient when you combine different audio components and strive for maximum efficiency and ease of use. This feature ensures that your amplifier is ready when needed, without requiring manual intervention.

How is the Bass Boost used in the Helon H-3300.1 D?

The Helon H-3300.1 D from Audio System is equipped with a Bass Boost designed for 45 Hz, allowing for an increase of 0 to 12 dB. This Bass Boost enables you to make your Subwoofer sound even more powerful and is especially useful when you want to enhance bass performance in certain music genres. By precisely tuning the frequency range and gain level, you can adjust the bass reproduction to your preferences and the acoustics of your vehicle to get the most out of your audio experience.

What installation instructions are there for the Helon H-3300.1 D?

When installing the Helon H-3300.1 D, there are some important points to consider. One of the most significant factors is the physical dimensions of your installation space. Since the Amplifier is specifically designed for high power ranges, it is important to ensure that adequate ventilation is available to avoid overheating. Make sure that the Amplifier is securely mounted and that there is enough space for cables and connections. Proper wiring is essential to avoid short circuits and ensure optimal performance.

Is the Helon H-3300.1 D compatible with my car speakers?

The Helon H-3300.1 D Amplifier from Audio System is compatible with a wide range of speaker systems due to its versatile performance parameters. It supports impedances from 4 Ohms to 1 Ohm, making it capable of working excellently with most commercially available Subwoofers and speakers. Before installing the Amplifier, determine the impedance of your existing speakers to ensure maximum compatibility and performance. This protects both your equipment and the Amplifier from overload.

What SMD technology does the Helon H-3300.1 D offer?

The Helon H-3300.1 D Amplifier uses SMD technology to enable a compact design while providing high performance. SMD stands for Surface-Mount Device, which means that the components are mounted directly on the surface of the circuit board. This technology not only saves space but also offers higher reliability, as the connections are shorter and more stable. This is particularly advantageous under high load and ensures a long-term stable and efficient performance of the Amplifier.
