3. Audio System speakers, Subwoofer & more for the car
  5. CO 609 Evo

CO 609 Evo

150 Watt

CO 609 Evo

Technical Highlights

  • 6×9″ coaxial system, fabric neodymium tweeter, precise highs.
  • Glass fiber membrane, Nomex spider, powerful bass reproduction.
  • High power handling, excellent sound quality, compact design.
  • More technical details
€199.00
€199.00 €199.00
2% discount with credit card

Your price match offer

ProductCO 609 Evo

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 15–Sep 18.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet
Audio System-CO 609 Evo-6"x9" Koaxial-Lautsprecher-masori-kaufen
€199.00
€199.00 €199.00

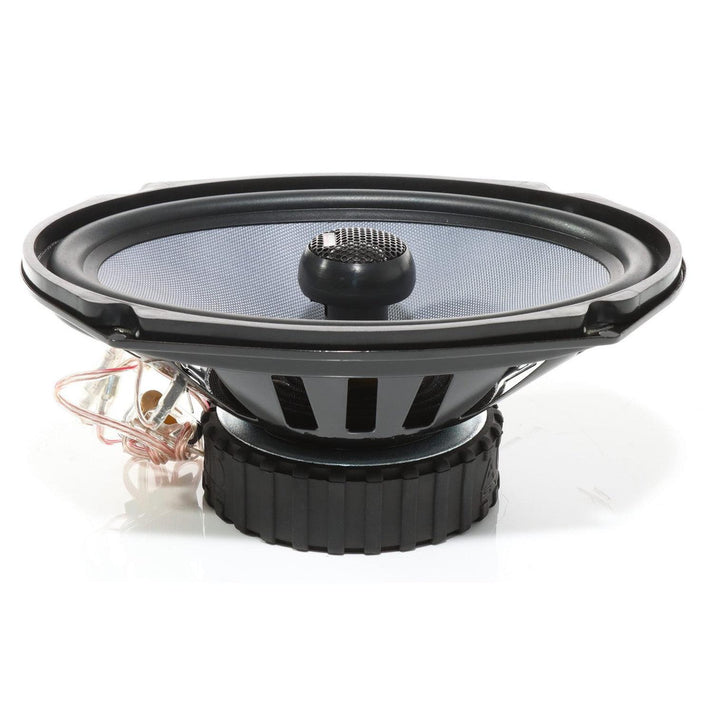

The CO 609 Evo from Audio System is a coaxial speaker in the size of 6x9 inches. The system includes a 25 mm textile neodymium tweeter and an external 12 dB crossover. The standard chassis features a 6x9 inch fiberglass diaphragm combined with a Nomex spider. The impedance is 3 Ohms. The RMS power is rated at 150 Watts, while the maximum power is 210 Watts. The package includes matching speaker grilles.

Features
  • 6x9 inch coaxial speaker
  • HIGH LEVEL Coaxial System including grille
  • 25 mm textile neodymium tweeter
  • External 12 dB crossover
  • 6x9 inch fiberglass diaphragm
  • Standard chassis with Nomex spider
Technical Data
  • Maximum power: 210 Watts
  • RMS power: 150 Watts
  • Impedance: 3 Ohms
  • Outer diameter chassis: 243 mm x 166 mm
  • Mounting depth: 83 mm
  • Mounting diameter: 218 mm x 150 mm

Frequently Asked Questions about CO 609 Evo

What are the technical specifications of the CO 609 Evo from Audio System?

The CO 609 Evo from Audio System is a coaxial speaker in a 6"x9" format. This speaker offers a maximum power of 210 watts with an RMS power of 150 watts. With an impedance of 3 ohms, it ensures efficient power intake. Installation is done via a standard chassis measuring 243 mm x 166 mm in outer diameter and a mounting depth of 83 mm. The mounting diameter is 218 mm x 150 mm. The fiberglass membrane and the Nomex spider drive the impressive bass reproduction, supported by a fabric neodymium tweeter with an external 12 dB crossover for detailed highs.

How does the 25 mm fabric neodymium tweeter contribute to the sound quality of the CO 609 Evo?

The 25 mm fabric neodymium tweeter of the CO 609 Evo is crucial for the precise reproduction of high frequencies. By using neodymium as the magnet system, the tweeter achieves high sensitivity and dynamics in sound reproduction. The integrated external 12 dB crossover ensures clean frequency separation between the woofer and tweeter, allowing for clear and detailed reproduction of high tones without distortion. The fabric material of the tweeter supports smooth and accurate sound radiation, ensuring balanced acoustics, especially in vehicles.

What role does the fiberglass membrane play in the CO 609 Evo?

The fiberglass membrane of the CO 609 Evo plays a significant role in shaping the sound characteristic, as it is specifically designed to ensure powerful bass reproduction. In conjunction with the Nomex spider, the fiberglass membrane acts as a stiff yet lightweight cone that responds quickly to sound signals, resulting in detailed and powerful bass reproduction. This combination minimizes distortion and supports precise acoustic reproduction across the entire frequency range, leading to an overall improved sound quality.

What are the installation requirements for the CO 609 Evo?

When installing the CO 609 Evo coaxial speaker, the specific installation parameters should be considered to ensure an optimal fit and performance. The necessary dimensions are 243 mm x 166 mm in the outer diameter of the chassis. The installation depth is set at 83 mm, and the installation diameter is 218 mm x 150 mm. These parameters are crucial to ensure compatibility with the intended installation spaces, especially with the grille integration. A precise installation contributes to sound quality by minimizing resonances and vibrations.

How is the bass reproduction designed in the CO 609 Evo?

The bass reproduction of the CO 609 Evo is made possible by the skillful combination of a fiberglass membrane and a Nomex spider. These materials have been carefully selected to guarantee high stiffness while maintaining low weight, allowing the speaker to respond quickly to low-frequency signals. The Nomex spider ensures that the speaker remains stable at both high volumes and low frequencies without distortion. This construction keeps the speaker under control and creates bass tones that are both punchy and voluminous.

What is the maximum and RMS power of the CO 609 Evo?

The CO 609 Evo from Audio System delivers a maximum output power of 210 watts and a continuous RMS power of 150 watts. This means that the speaker is designed for use at high volumes while remaining extremely reliable during prolonged use at moderate playback levels. The design with an impedance of 3 ohms allows for increased efficiency in power consumption, enabling the speaker to harmonize with various amplifiers and source devices. These features ensure that the speaker is versatile and offers high sound quality.

What technologies support the sound quality of the CO 609 Evo?

The sound quality of the CO 609 Evo is based on the combination of several advanced technologies. The fiberglass membrane, together with the Nomex spider, ensures agile yet precise bass reproduction. The 25 mm fabric neodymium tweeter, paired with an external 12 dB crossover, secures clean and detailed high-frequency reproduction. These technologies work together to create a harmonious balance across all frequency ranges. They allow for powerful bass as well as brilliant highs to be represented realistically, resulting in a compelling sound image.

How do impedance and frequency separation affect the CO 609 Evo?

The impedance of 3 ohms in the CO 609 Evo ensures that the speaker efficiently utilizes the power supplied to it, which is particularly advantageous for low-powered amplifiers. The external 12 dB crossover guarantees effective frequency separation between the Tweeter and bass driver, assigning each frequency to its optimal playback element. This crossover minimizes overlaps and resonances, allowing both highs and lows to be reproduced precisely and cleanly. This combination significantly contributes to the high sound quality and efficiency of the speaker system.

What features optimize the installation of the CO 609 Evo?

The installation of the CO 609 Evo is optimized through standardized installation dimensions. The external dimensions of the chassis are 243 mm x 166 mm, and the installation diameter is 218 mm x 150 mm, with an installation depth of 83 mm. These specific measurements allow for integration into existing fixtures without significant modifications. The included grille complements the installation and provides additional protection as well as aesthetic value. Properly securing the speaker can significantly minimize sound resonances and thus optimize audio output, which is crucial for a high-quality sound experience.

Is the CO 609 Evo compatible with my car?

The compatibility of the CO 609 Evo primarily depends on the specific enclosure dimensions and installation depth of your vehicle's factory speakers. The installation parameters of the speaker are 243 mm x 166 mm in external diameter, with an installation diameter of 218 mm x 150 mm and an installation depth of 83 mm. It is crucial to compare these dimensions with the existing speaker cutouts in your vehicle. If these parameters match, installation should proceed without issues. Otherwise, modifications to the vehicle's body or installation location may be necessary to realize the full sound potential.
