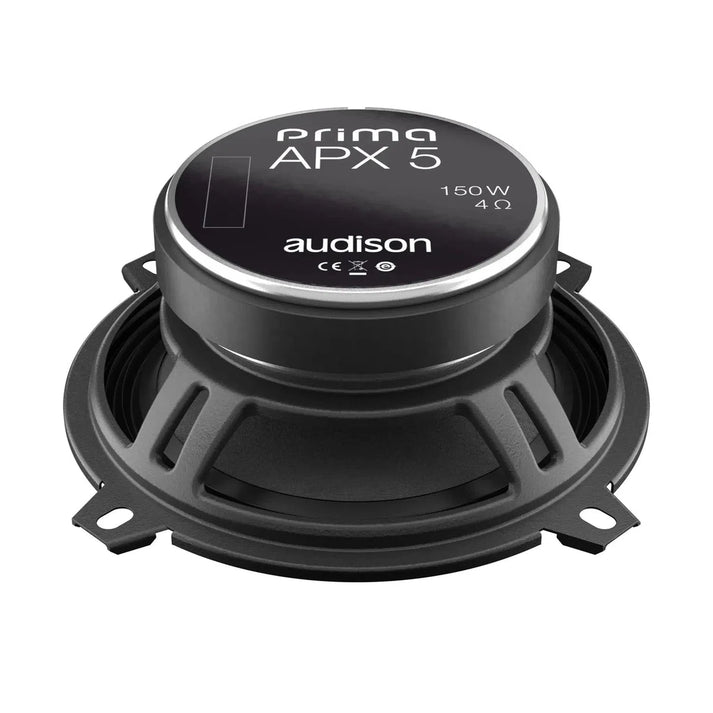

Audison APX 5 5" (13cm) Coaxial Speaker
SKU:  APX-5
EAN:  8018823111690

10 Reviews

50 Watt

APX 5

SKU:  APX-5
EAN:  8018823111690

10 Reviews

Technical Highlights

  • Peak power 150 W, continuous operation 50 W, impedance 4 Ohm.
  • 32mm copper coil, precise sound stage, linear frequency response.
  • Conc. coaxial tweeter, 5" size, Xmax 2 mm, SPL 93 dB.
  • More technical details
00 d
00 h
00 m
00 s
€88,11
-10% €97,90 €88,11
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 6, - Jun 9,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €7,34 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Ground ZeroTitanium GZTF 5.2X
Ground Zero-Titanium GZTF 5.2X-5" (13cm) Koaxial-Lautsprecher-masori-kaufen
Hifonics-Brutus BRX52-5" (13cm) Koaxial-Lautsprecher-masori-kaufen
HifonicsBrutus BRX52
Audison-APX 5-5" (13cm) Koaxial-Lautsprecher-masori-kaufen
€88,11
€97,90 €88,11

APX 5 by Audison

The Audison APX 5 is a coaxial speaker with a size of 5 inches or 130 mm. The system features a concentric coaxial tweeter as well as an acoustic lens for frequency response. The voice coil is made of pure copper and has a diameter of 32 mm. The diaphragm is made of water-resistant paper, while the suspension is made of TPU with a triple-wave profile. The basket is compactly designed and coated with an abrasion-resistant finish. For connection, there is a high-current quick-connect terminal with a temperature-resistant plastic cover. The development was carried out using Klippel technology.

Features
  • 5 inch (13 cm) coaxial speaker
  • Concentric coaxial tweeter
  • Acoustic lens
  • 32 mm voice coil made of pure copper
  • Water-resistant paper cone
  • TPU suspension with triple-wave profile
  • Compact basket with epoxy damping
  • High-current quick-connect terminal
  • Optimized installation depth for OEM integration
  • Developed with the KLIPPEL suite
Technical Specifications
  • Woofer size: 130 mm
  • Tweeter size: 24 mm
  • Power: 50 Watts RMS
  • Power: 150 Watts peak
  • Impedance: 4 Ohms
  • Frequency response: 70 – 23,000 Hz
  • Magnet size: 85 x 40 x 13 mm
  • Tweeter voice coil diameter: 15 mm
  • Maximum displacement (Xmax): 2 mm
  • DC resistance (Re): 3.1 Ohms
  • Resonance frequency (Fs): 90 Hz
  • Inductance (LE): 0.07 mH
  • Equivalent air volume (Vas): 3.8 l
  • Moving mass (Mms): 8.2 g
  • Suspension compliance (Cms): 0.33 mm/N
  • Force factor (Bl): 4.6 T·m
  • Total quality factor (Qts): 0.7
  • Electrical quality factor (Qes): 0.75
  • Mechanical quality factor (Qms): 10.6
  • Sound pressure level (SPL): 93 dB

Your benefits at Masori

Audison APX 5 Datasheet

Open datasheet

Frequently Asked Questions about APX 5

What size are the Audison APX 5 speakers?

The Audison APX 5 speakers feature a woofer size of 130 mm and a tweeter diameter of 24 mm. These coaxial speakers are specifically designed for demanding audio applications. With the concentric coaxial tweeter integrated within the woofer, they benefit from an emission point that ensures a consistent phase response. This results in a precise soundstage, comparable to high-quality component systems. The innovatively designed acoustic lens also allows for extremely linear frequency transmission, even when the speakers are not centrally placed. The compact woofer basket is secured with a robust epoxy adhesive to ensure the damping of the motor.

How is the performance of the APX 5 speakers defined?

The Audison APX 5 speakers are characterized by a woofer power handling of 150 watts at peak power and 50 watts in continuous operation. This is made possible by the high-quality 32 mm voice coil made of pure copper. The voice coil enhances control over the lower frequency ranges due to its high load capacity. The SPL (sound pressure level) of the woofer is an impressive 93 dB, providing powerful and clear sound. The optimized installation depth of these speakers makes them ideal for OEM integration, as they are compatible with a variety of installation options. The excellent performance is perfect for loud and clear music playback.

What frequency ranges can the APX 5 speakers cover?

The Audison APX 5 speakers offer an impressive frequency response ranging from 70 Hz to 23,000 Hz. This allows for coverage of both the lower and upper frequency ranges, ensuring clear bass and pronounced highs. The coaxial design with an integrated tweeter provides a precise soundstage. The acoustic lens of these speakers contributes to improving the frequency response by ensuring consistent sound fidelity even with off-center placement. These technical features make them an excellent choice for users who appreciate a wide sound spectrum. Additionally, the use of the innovative "Triple-Wave" TPU suspension positively influences playback fidelity.

How is the voice coil of the APX 5 speakers constructed?

The voice coil of the Audison APX 5 speakers is made of pure copper with a diameter of 32 mm. This construction allows for high load capacity as well as precise control of low frequencies. Copper is an excellent choice for voice coil material due to its high conductivity and thermal properties. This coil ensures efficient conversion of the supplied electrical energy into acoustic energy while providing the necessary heat dissipation at high power levels. The combination with the developed epoxy adhesive mounting guarantees mechanical stability and minimizes distortion, ensuring long-lasting precision and clarity of sound. Advanced users particularly appreciate this technical sophistication.

What materials are used for the diaphragm of the APX 5 speakers?

The diaphragm of the Audison APX 5 speakers is made from a water-repellent paper cone developed using FEM simulation technology. This material choice provides a balanced mix of lightness and rigid structure necessary for sound reinforcement. This design helps reduce unwanted resonances and supports clear sound reproduction. Additionally, the paper diaphragm is further enhanced by a special Klippel scan vibrometer optimization to ensure that the vibration characteristics are optimally tuned to the specific environment. Even in damp or challenging environments, the durability of the speaker remains high thanks to the waterproof coating. The broadband acoustics are continuously impressive.

How easy is the installation of the APX 5 speakers in my vehicle?

The Audison APX 5 speakers are easy to install thanks to their optimized installation depth, making them ideal for OEM integration. With dimensions of 130 mm for the woofer and 24 mm for the Tweeter, they fit various vehicle type applications. The use of the high-current quick-connect terminal allows for flexible and secure connections, significantly reducing installation time. When placing them in the vehicle, you need to ensure there is enough space to enjoy the comprehensive sound advantages. For demanding car systems, these speakers can be seamlessly integrated without extensive modifications. Their compactness and design offer flexibility in various installation scenarios.

What specific technical optimizations are implemented in the APX 5 speakers?

The Audison APX 5 speakers are characterized by several acoustic optimizations. This includes the acoustic lens, which ensures an extremely linear frequency response. The TPU suspension with a "Triple-Wave" profile also contributes to improving the linearity of the displacement. The engineering technology has been optimized using the Klippel technology suite to maximize sound performance. These speakers feature a simulated paper diaphragm that is both water-resistant and resonance-optimized. The integration of the concentric coaxial tweeter ensures that all high frequencies are emitted from a single point, minimizing interference. These technical parameters provide audiophile quality even in challenging installation environments and accurately represent sound details.

What is the significance of the concept tweeter in the APX 5 speakers?

The concentric coaxial tweeter in the Audison APX 5 speakers plays a crucial role in sound quality. It is mounted within the woofer, creating a single emission point. This leads to uniform phase alignment and a precise soundstage typically found in more complex component systems. The innovative concept tweeter also enhances spatial representation, ensuring that even with off-axis positioning of the speakers, sound imaging accuracy is maintained. The overall design harmonizes with other sound-optimizing features like the acoustic lens and enhances sound fidelity. Audiophiles particularly benefit from this advanced technology, which offers efficiency and clarity in a compact format.

What safety features do the Audison APX 5 speakers offer?

The Audison APX 5 speakers are equipped with various safety and protection features. The high-current quick-connect terminal is optimized not only for speed during installation but also has a temperature-resistant plastic cover that prevents short circuits. The double contact arrangement at the positive and negative terminals ensures outstanding electrical safety. The tuned mechanical design makes the speaker system resistant to mechanical stress and vibration damage. Additionally, the abrasion-resistant and scratch-resistant coating of the compact basket provides mechanical protection and durability. The entire speaker system is designed to deliver reliable performance under stress and in various installation environments. This thoughtful protection strategy ensures long-lasting sound consistency.

How does the triple-wave profile of the TPU suspension affect the performance of the APX 5 speakers?

The triple-wave profile of the TPU suspension of the Audison APX 5 speakers plays a crucial role in enhancing sound performance. The triple wave allows for perfect linearity of the diaphragm displacements, which is particularly important at high volumes. Thermoplastic polyurethane, as the material for the suspension, provides lasting flexibility while also ensuring stiffness to maintain the integrity of the transducer over time. A balance is achieved between responsiveness at low frequencies and damping at higher levels. Ultimately, the triple-wave profile improves dynamic performance and reduces distortion, preserving natural sound fidelity. This innovative suspension is ideal for listeners who desire energetic, uncolored music representation.
