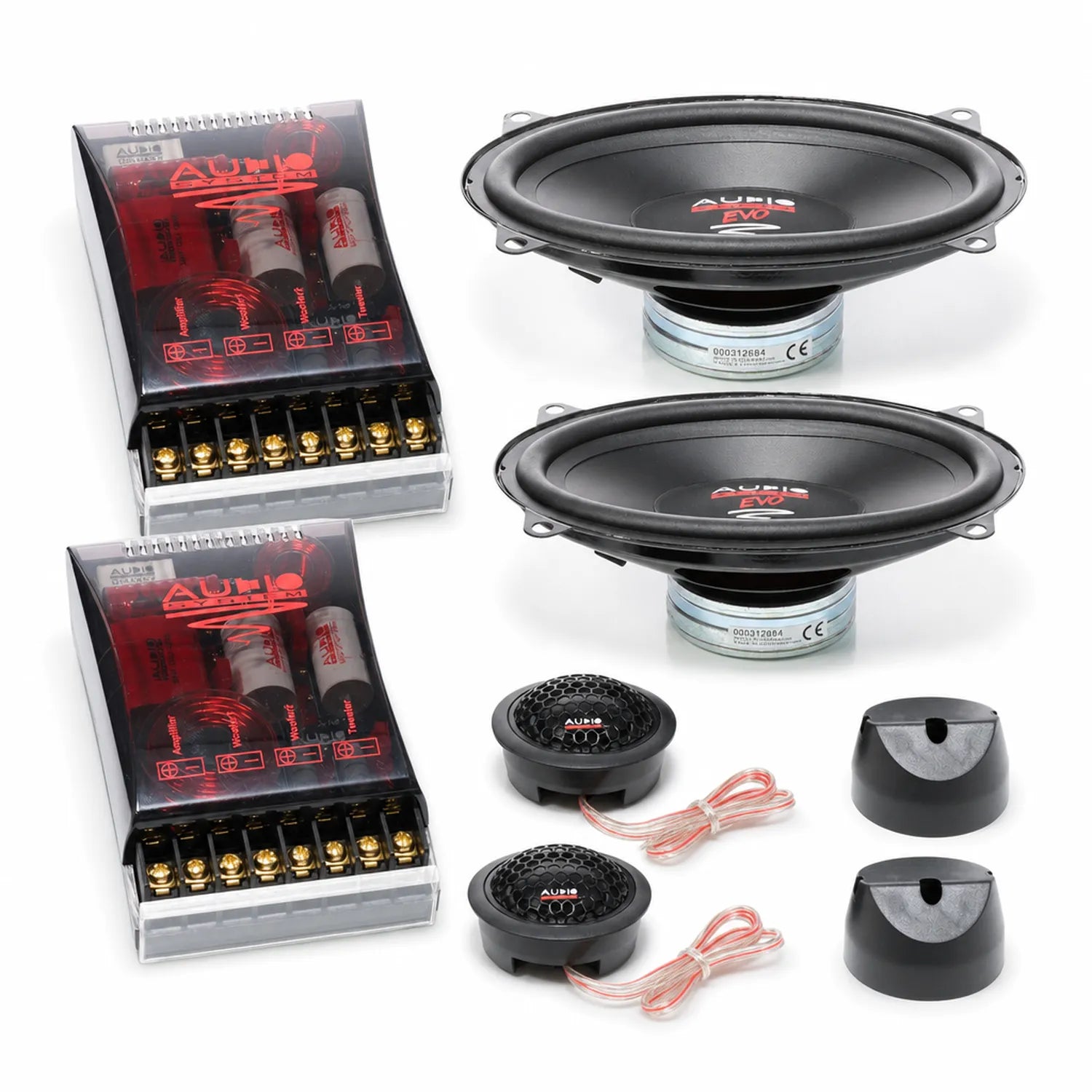

Audio System HX 406 SQ Evo3 4"x6" Speaker Set
80 Watt
Audio System

HX 406 SQ Evo3

4"x6" Speaker Set

Technical Highlights

  • Power of 120/80 watts, impedance 3 ohms, Nomex spider.
  • EPN38 neodymium magnet, deep reproduction, neodymium drive.
  • Crossover with 64-way adjustment, impedance for 2, 4, 8 ohms.
  • More technical details
€375,00
€375,00 €375,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Apr 6, - Apr 9,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €31,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

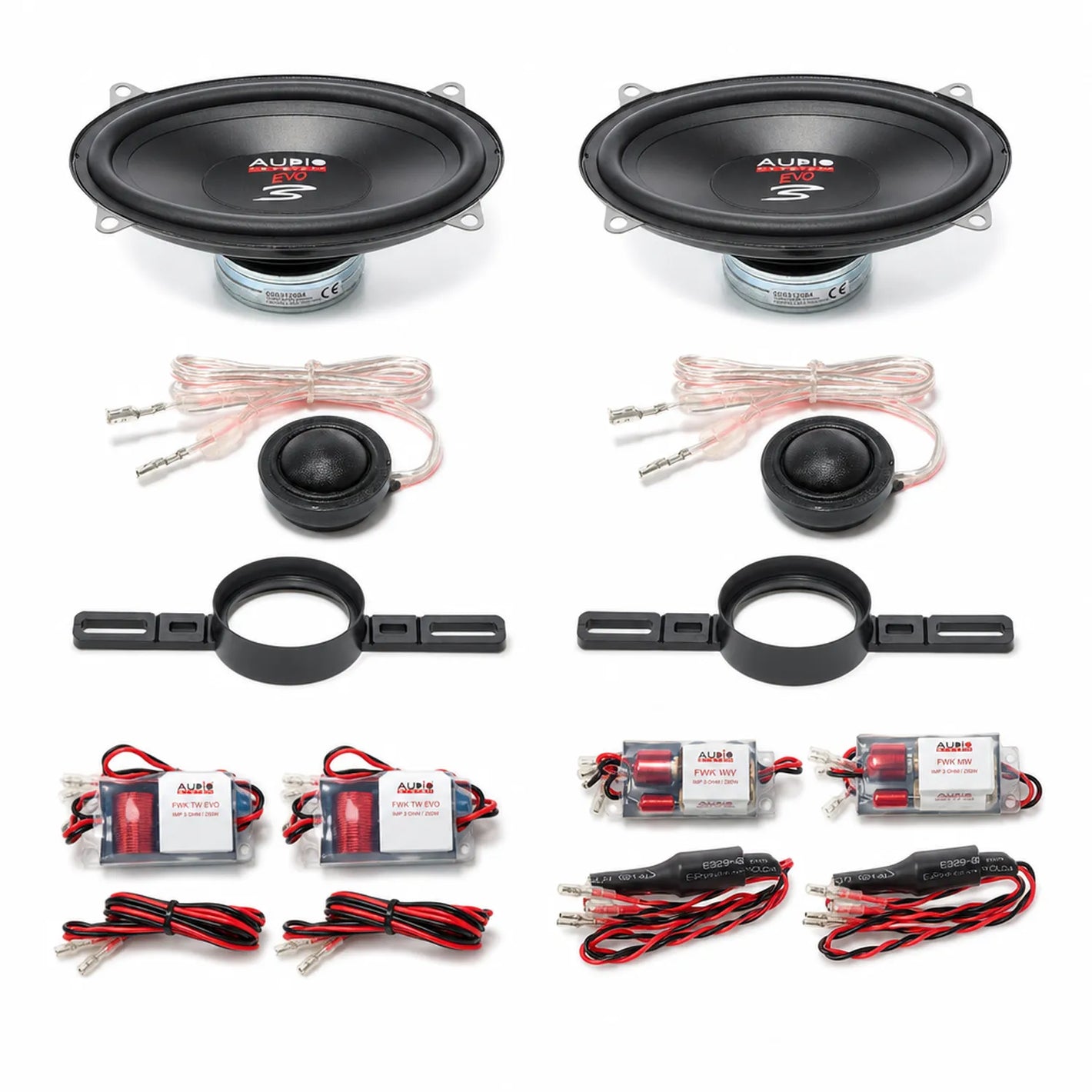

Audio SystemHX 406 SQ EM Evo3
Audio System-HX 406 SQ EM Evo3-4"x6" Lautsprecherset-masori-kaufen
Crunch-DSX462-4"x6" Lautsprecherset-masori-kaufen
CrunchDSX462
Audio System-HX 406 SQ Evo3-4"x6" Lautsprecherset-masori-kaufen
€375,00
€375,00 €375,00

HX 406 SQ Evo3 by Audio System

The HX 406 SQ Evo3 from Audio System is a 4 inch x 6 inch Speaker Set with neodymium drive and a NAWI-HPPC paper membrane with fiberglass insert. It features an EPN38-NEODYM magnet, a Nomex spider, and a ventilated basket for the midrange drivers. The set includes a 2-way high-end Crossover with 64-fold acoustic adjustment and impedance linearization for 2, 4, and 8 Ohm systems. The 25 mm fabric neodymium tweeters are equipped with ferrofluid cooling and protective grilles. The impedance of the midrange drivers is 3 Ohms, while the tweeters have an impedance of 4 Ohms. The power ratings are 120 Watts maximum and 80 Watts nominal.

Features
  • 4 inch x 6 inch Speaker Set
  • Midrange drivers with neodymium drive
  • Ultra-light NAWI-HPPC paper membrane with fiberglass insert
  • Nomex spider
  • EPN38-NEODYM magnet
  • Ventilated basket
  • 2-way high-end Crossover
  • 12 dB crossover with high audiophile capacitors
  • Impedance linearization for 2, 4, and 8 Ohm
  • 25 mm fabric neodymium tweeters
  • Ferrofluid cooling
  • Protective grille for tweeters
Technical Specifications
  • Power: 120 Watts Max
  • Power: 80 Watts RMS
  • Impedance midrange driver: 3 Ohms
  • Impedance tweeter: 4 Ohms
  • Resonance frequency (Fs) tweeter: 960 Hz
  • Outer diameter midrange driver: 152/97 mm
  • Mounting depth midrange driver: 46 mm
  • Mounting dimensions midrange driver: 145/88 mm
  • Dimensions Crossover: 84x129x38 mm
  • Outer diameter tweeter: 53.5 mm (with holder)
  • Mounting depth tweeter: 16 mm (with holder)
  • Height of tweeter housing: 28 mm

Your benefits at Masori

Audio System HX 406 SQ Evo3 Datasheet

Open datasheet

Frequently Asked Questions about HX 406 SQ Evo3

What are the technical features of the HX 406 SQ Evo3 Speaker Set?

The HX 406 SQ Evo3 from Audio System is a high-quality 4"x6" Speaker Set designed for high-end audio enthusiasts. It includes midrange drivers with a powerful neodymium drive and an ultra-light yet stable NAWI-HPPC paper diaphragm. This, combined with an EPN38-NEODYM magnet and a Nomex spider, ensures deep sound reproduction. The Speaker Set offers a power of 120/80 watts at an impedance of 3 ohms. The dimensions are: outer diameter 152/97 mm, installation depth 46 mm, and installation size 145/88 mm. These technical specifications result in an outstanding sound image.

How important is the diaphragm used in the HX 406 SQ Evo3?

The diaphragm plays a crucial role in the sound quality of the HX 406 SQ Evo3. It is made of an ultra-light and stable NAWI-HPPC paper diaphragm with fiberglass reinforcement, ensuring excellent vibrational capability and stiffness. This design not only allows for precise music reproduction but also provides deep bass response and reduced distortion. Especially at high volumes, it enables excellent sound reproduction. In combination with the EPN38-NEODYM magnet and the Nomex spider, the set offers balanced and detailed acoustics.

What is the function of the 2-way Crossover of the HX 406 SQ Evo3?

The 2-way high-end Crossover of the HX 406 SQ Evo3 from Audio System is specifically designed to allow versatile acoustic adjustment. Equipped with 64-fold adjustment and high-quality audiophile capacitors, it ensures optimal frequency separation for various audio systems, whether at 2, 4, or 8 ohms. This crossover ensures that frequencies are accurately distributed to the tweeter and midrange driver to achieve maximum sound fidelity. The impedance linearization also helps optimize efficiency and sound across different speaker configurations.

What dimensions are required for the installation of the HX 406 SQ Evo3?

For the installation of the HX 406 SQ Evo3 Speaker Set, specific dimensions are crucial. The set has an outer diameter of 152/97 mm and a mounting depth of 46 mm. It is important that the installation measurement is 145/88 mm. These dimensions are essential to perfectly integrate the speaker into existing installation spaces, especially when planning vehicle installations. In such an installation situation, it is important to pay close attention to these measurements to achieve optimal sound quality and avoid any installation obstacles.

How does the Crossover of the HX 406 SQ Evo3 optimize the listening experience?

The 2-way Crossover of the HX 406 SQ Evo3 Speaker Set optimizes the listening experience through the use of a 64-fold acoustic adjustment. It ensures that the frequencies are precisely divided between the Tweeter and Midrange driver, allowing for accurate sound output. The crossover uses high-quality 12 dB capacitors that provide smooth acoustic separation. The impedance linearization enhances adaptability for various speaker systems, whether 2, 4, or 8 Ohms, while always preserving sound accuracy. This results in a harmonious and balanced sound profile, regardless of volume.

What role do the Tweeters play in the HX 406 SQ Evo3 Set?

The Tweeters of the HX 406 SQ Evo3 Set are crucial for the detailed reproduction of high frequencies. The 25 mm fabric neodymium tweeters are equipped with protective grilles and utilize ferrofluid cooling to operate efficiently even at high volumes. With a fundamental frequency (Fs) of 960 Hz and an impedance of 4 Ohms, they contribute to clear and precise sound reproduction of high tones. The tweeters are designed to extract even nuances in musical pieces, making them ideal for discerning music lovers. These features ensure sensitive sound perception.

What challenges are there in the installation of the HX 406 SQ Evo3 Speaker Set?

The installation of the HX 406 SQ Evo3 Speaker Set can be challenging due to its specific dimensions, especially if you want to install it in a vehicle. The correct measurements are essential: outer diameter 152/97 mm, installation depth 46 mm, and installation size 145/88 mm. These measurements must be considered to ensure that the speakers fit perfectly and can unleash their full sound performance. It is important to ensure enough space in the mounting device and to avoid any obstacles in the installation area to not compromise the stability and sound quality of the system.

What advantages does the neodymium drive in the midrange driver of the HX 406 SQ Evo3 offer?

The neodymium drive in the midrange driver of the HX 406 SQ Evo3 offers numerous advantages. Neodymium is an extremely strong magnetic material that allows for high magnetic force at a low weight. This achieves high sensitivity and efficiency, which is particularly beneficial for excellent sound quality. In combination with the NAWI-HPPC paper diaphragm and the Nomex spider, the neodymium drive contributes to precise and deep-reaching music reproduction. This combination allows you to recognize even the finest sound nuances, which can be crucial for discerning music listeners and HiFi enthusiasts.

Can the HX 406 SQ Evo3 Set be used for different impedance systems?

Yes, the HX 406 SQ Evo3 Speaker Set is equipped with impedance linearization, allowing the system to be used in various scenarios, suitable for 2, 4, or 8-ohm systems. This flexibility in impedance adjustment makes the set versatile and compatible with different speaker configurations. The Crossover helps to optimally regulate the impedance without compromising sound quality. This makes it possible to adapt the set to different needs and systems, whether in a car or home audio context.

What installation dimensions are required for the tweeters of the HX 406 SQ Evo3?

The tweeters of the HX 406 SQ Evo3 Speaker Set require specific installation dimensions for optimal installation. The outer diameter with holder is 53.5 mm, without holder 44 mm. The installation depth with holder is 16 mm, without holder with grille 21 mm. The installation size with holder is 47.5 mm, without holder 44 mm. These precise measurements are crucial to properly place the tweeters in the existing installation space and not impair their acoustic performance. A correct fit contributes to maximizing sound quality and avoids unwanted vibrations or deformations.
